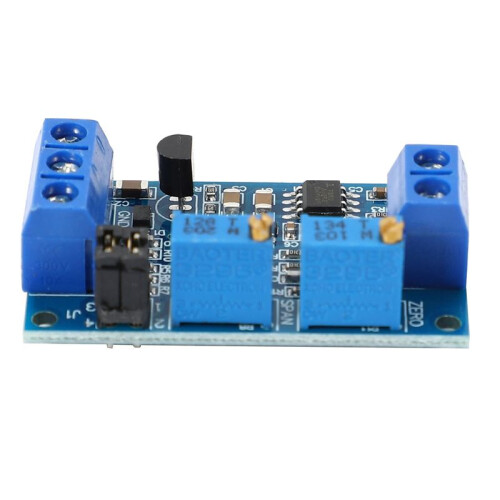

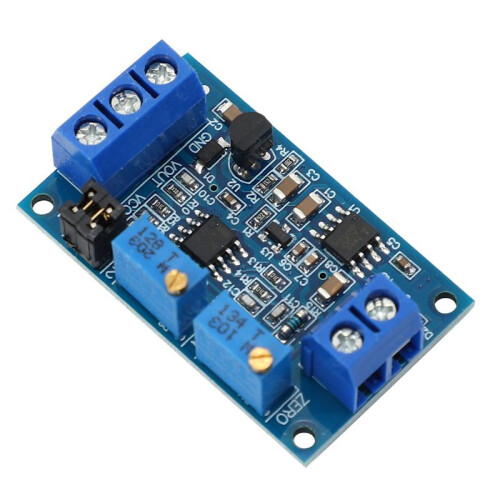

5X Current to Voltage Module 0/4-20mA to 0-3.3V 5V 10V Voltage Transmitter S08

Descriere 5X Current to Voltage Module 0/4-20mA to 0-3.3V 5V 10V Voltage Transmitter S08

Wide range of supply voltage, the output voltage to support multiple ranges
Zero and the range can be adjusted
High stability, good linearity, industrial grade
Resistance of current signal sampling with high precision color ring resistance, high precision, small temperature drift, high power

Instructions for use:
1. Module according to the wiring definition, supply voltage 7-36 V (if the output is 10 V, the supply voltage must be greater than 12 V)
2 after-the D2 indicator should be otherwise check the connection! Board with reverse protection, the back does not burn.
3. When the current input is minimal (0mA or 4mA), adjust the potentiometer zero so that the VOUT output is minimum (0.0 V or other voltage)
4 when the current input is maximum (20 mA), adjust the range potentiometer so that the output of the VOUT is the maximum (3.3 V, 5 V or 10 V, the output can be as low as 2.5 V when the entrance is 4-20ma)
colour: Photo Color
Material: PC+ metal
size: 4.2x2.5 cm / 1.65x0.98 inch

Package Contents:

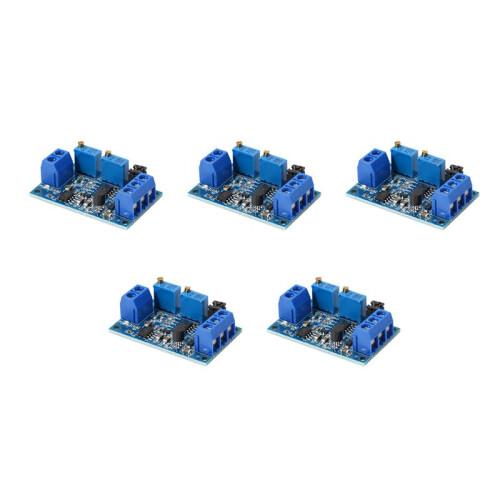

5 *Current To Voltage Module
