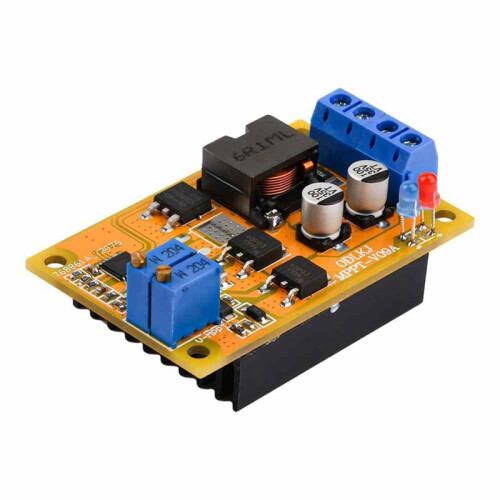

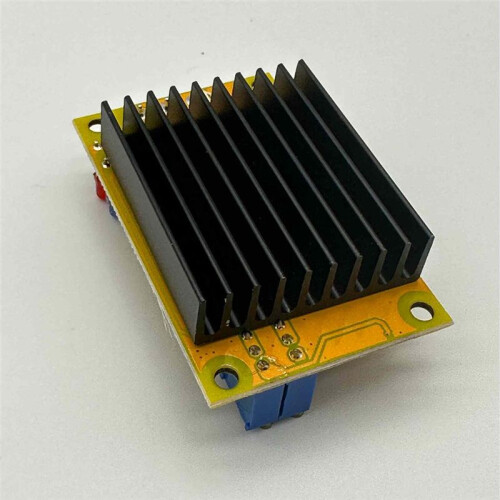

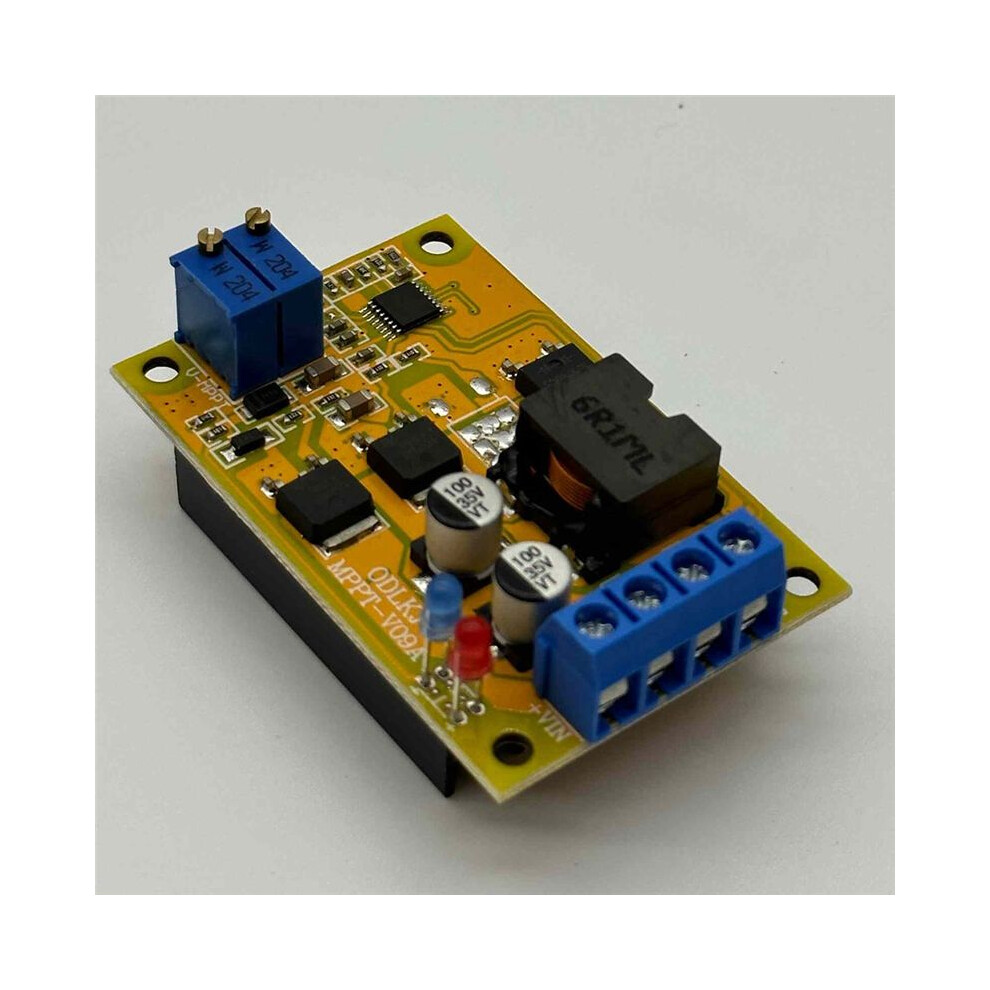

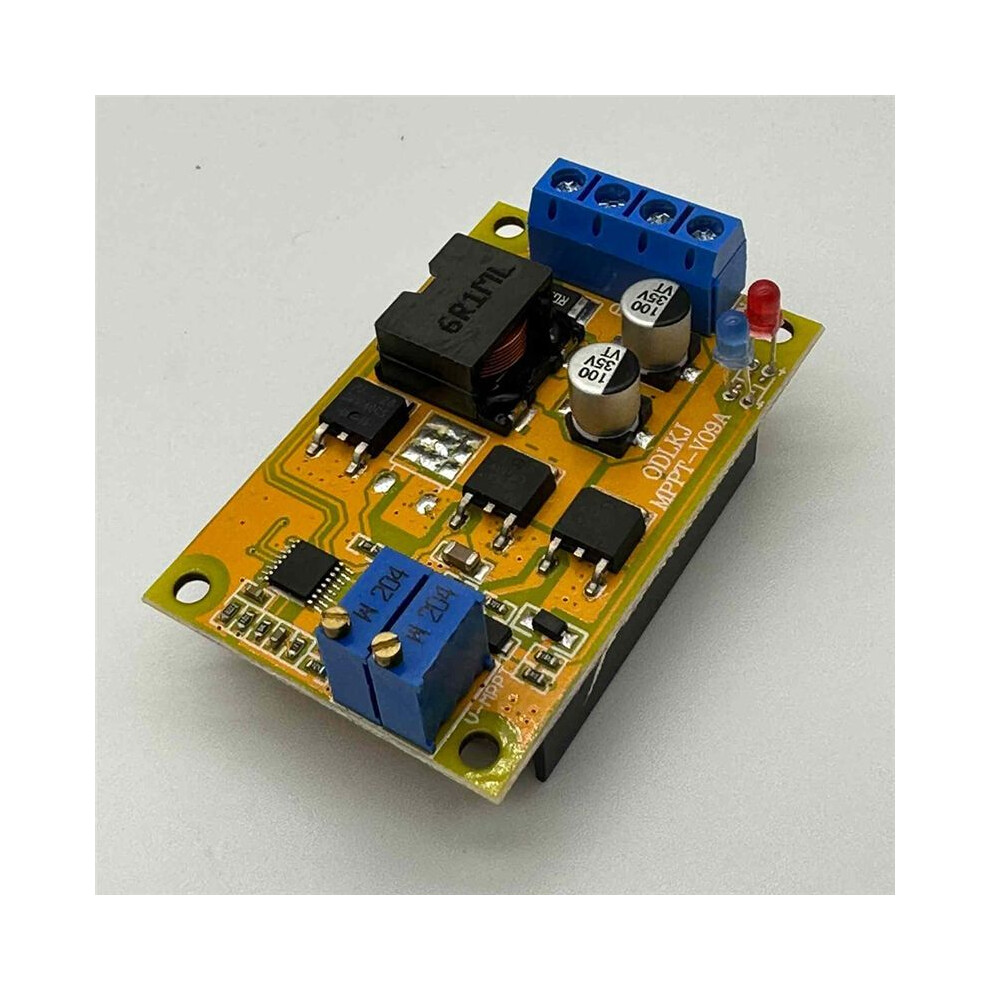

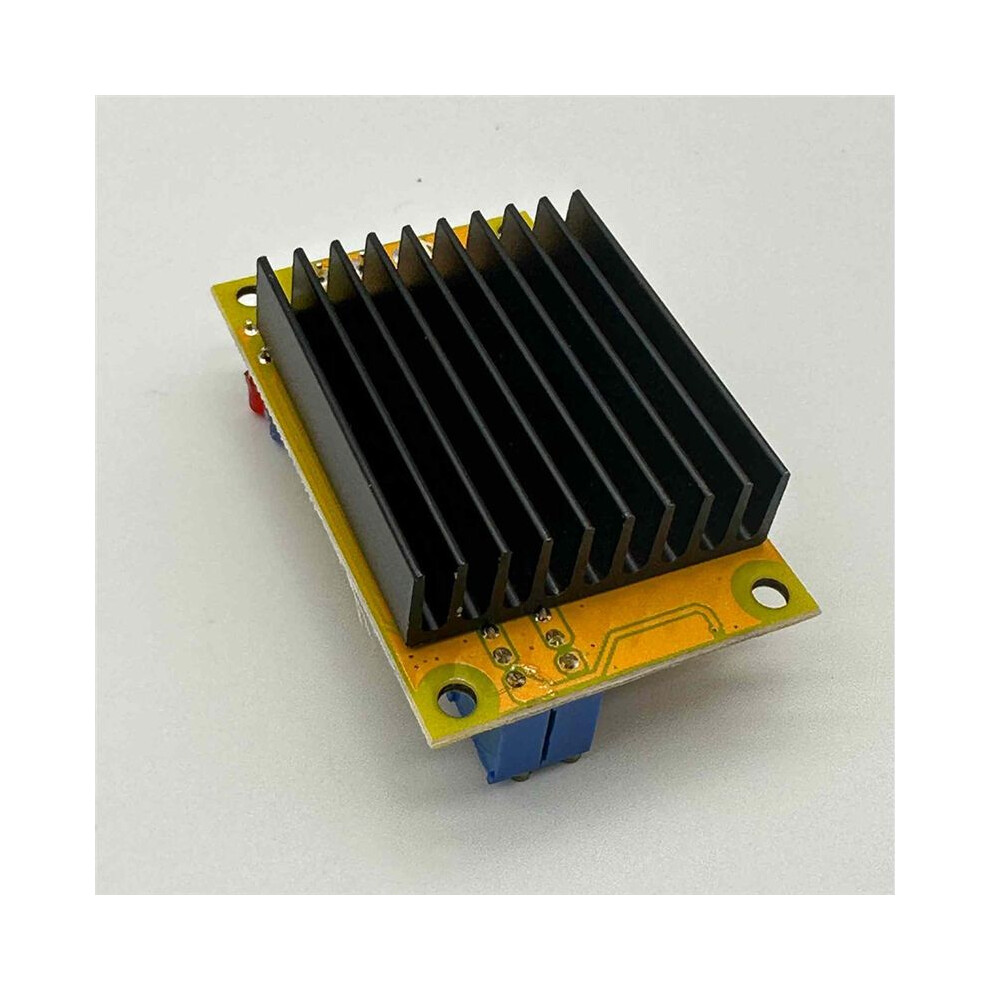

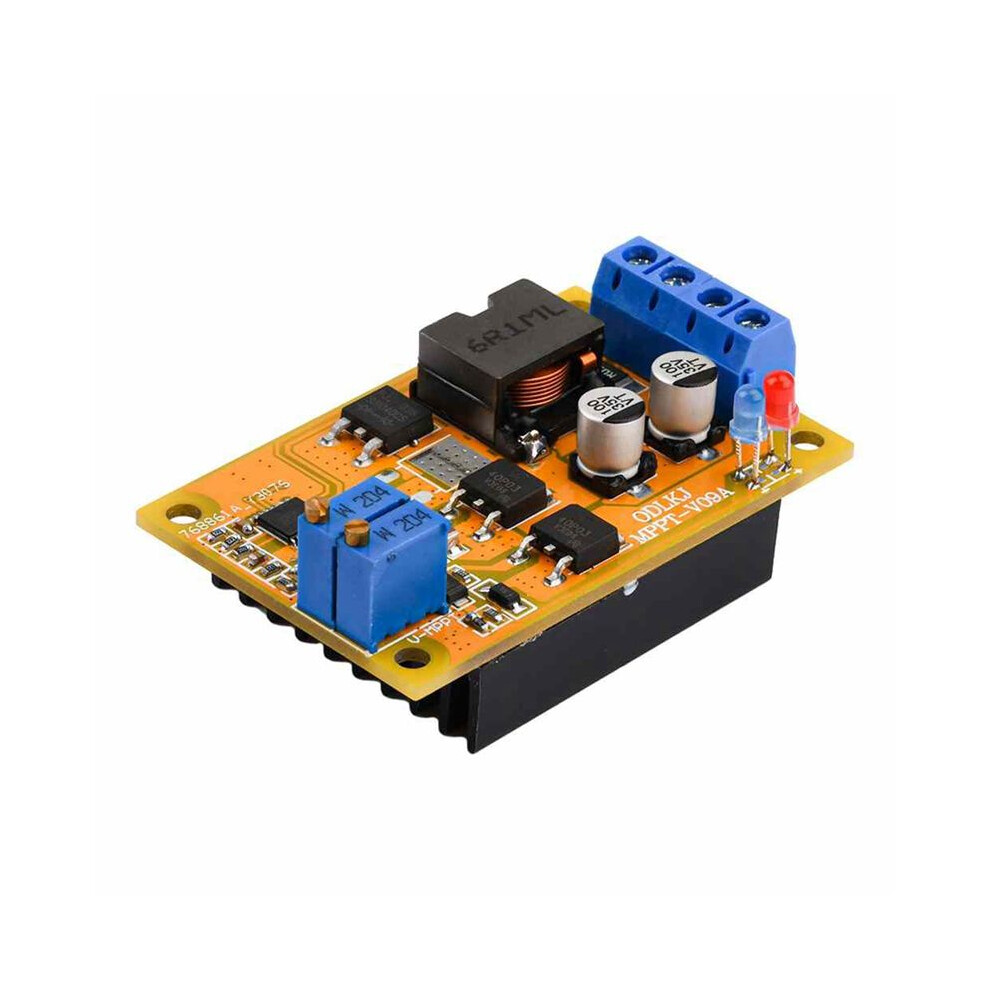

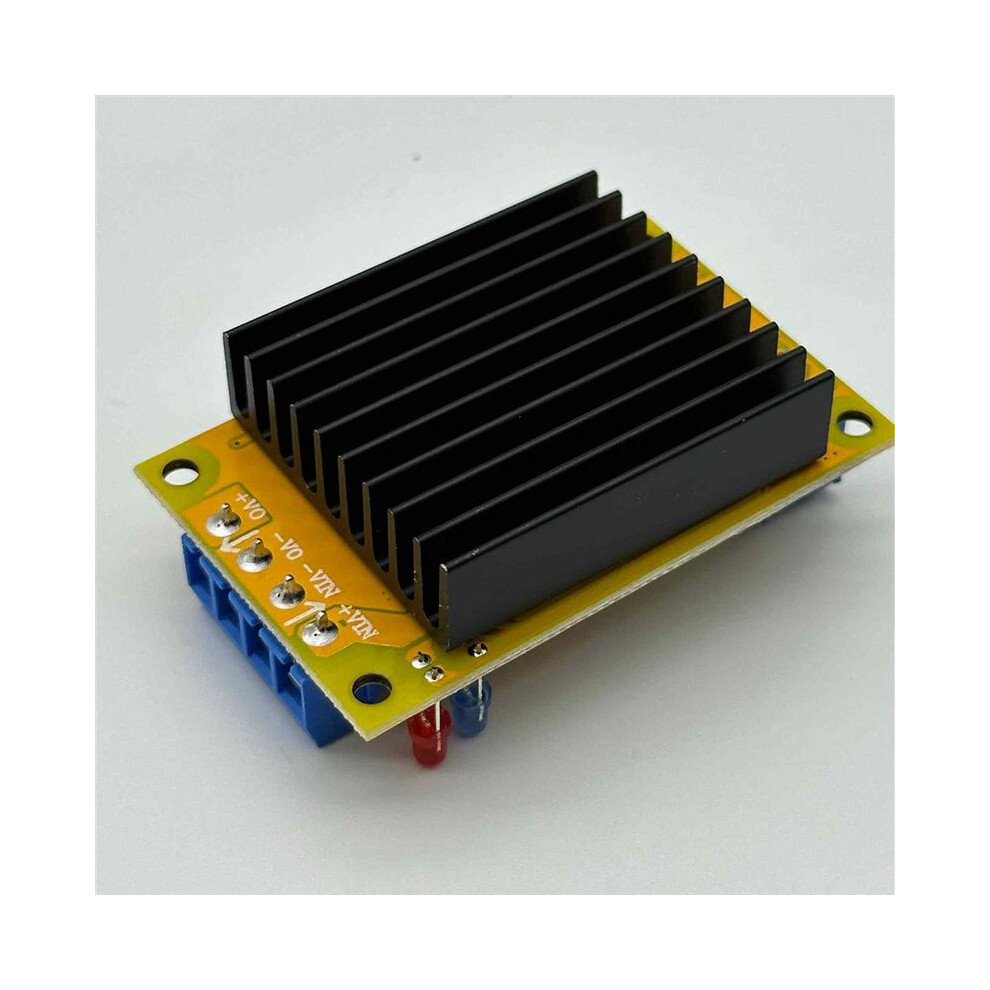

6A MPPT Solar Charge Controller DC8-30V 300KHz Battery Charging Module PWM Auto Reverse Connection Protection

Descriere 6A MPPT Solar Charge Controller DC8-30V 300KHz Battery Charging Module PWM Auto Reverse Connection Protection

1.The product is made of high-quality materials with guaranteed quality
2.Stable product performance and long service life
3.Maximum supported solar power: 100W, truly efficient MPPT
4.The output voltage can be adjusted arbitrarily, and CC-CV can be automatically controlled (it can support single or multiple lithium batteries or Lithium iron phosphate or lead-acid batteries)
5.The battery terminal is equipped with overvoltage protection function

Maximum power point tracking of solar cells, output current greater than solar panel current, truly efficient MPPT, supporting 7V-28V, to 100W solar
The output voltage can be adjusted arbitrarily, and the CC-CV is automatically controlled (it can support single or multiple lithium batteries or Lithium iron phosphate or lead-acid batteries)
Complete charging management of the battery
Maximum supported solar power: 100W
PWM switching frequency: 300KHz
Adaptive adjustment of constant current charging current 6A
Trickle charging of deeply discharged batteries
Dual indication of charging status and charging end status (red light during charging/full light /red light flashing/green light constantly , indicating no battery connected)
Soft start function
Battery end overvoltage protection
Module nature: buck type with maximum power point tracking charging board
Input voltage 8-30V
The output voltage is adjustable from 4.2-28V, and the input is at least 2V higher than the output
Output current 6A adaptive adjustment
Conversion efficiency: typical 92% output 18V output 14V
Colour:yellow
Material:PC+metal

Package Contents:
1 x Module
