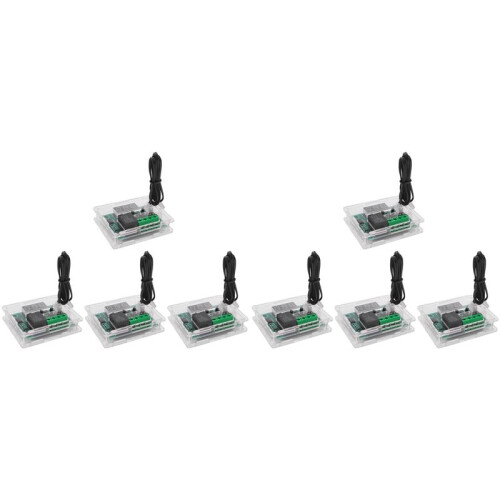

8PCS W1209 Digital Temperature Controller Module Electronic Temperature Temp Control Module with Acrylic Case

Descriere 8PCS W1209 Digital Temperature Controller Module Electronic Temperature Temp Control Module with Acrylic Case

Digital Temperature Controller with a 3-digit LED display, extremely bright; complete machine patch, wave soldering, stable performance, good consistency
Temperature Measurement Range: -50-110. Control accuracy is accurate to 0.1 degrees Celsius. Has passed stability, consistency and reliability testing
Embedded CPU chip (MCU), more intelligent, lower power consumption. Automatic power set memory (MCU built-in EEPROM memory unit).
Specifications: Refresh Rate: 0.5s;Input Voltage: 12V;Hysteresis Accuracy: 0.1;High Temperature Protection: 0 - 110
Measurement Input: NTC (10K 0.5%) Waterproof Sensor;Measurement Output: 10A relay;Resolution: When temperature is 0.1, the resolution is -9.9~99.9, other temperature segment is 1;Static Current: Less than 35MA, attract current less than 65MA

Function Setting Description:
Long press the "SET" button to enter the main menu settings,
press " + or - " to switching between P0-P6.
P0 :Cooling / Heating; Range: C/H; Default: C
P1 :Hysteresis Setting; Range:0.1-15; Default: 2
P2 :Highest Setting Limit; Range:110; Default: 110
P3: Lowest setting Limit; Range:-50; Default: -50
P4 :Temperature Correction; Range:-7~7; Default: 0
P5: Delay Start ; Range:0-10 Minute; Default: 0
P6: High Temperature Alarm; Range:0-110; Default: Off
colour: green + transparent
Material: acrylic + electronic components
size: 48mm x 40mm x 14mm

Package Contents:
8 * W1209 12V Digital Temperature Controller Board
8 * Acrylic Box
Tips:When Temperature controller is powered off, long press "- or +", you can restore the factory settings
