Active Balancer 1.2A Equalizer 16S Li-Ion Lifepo4 Transfer Board LTO Lithium Battery 16S
Nou
În stoc
De ce îți va plăcea să cumperi de la OnBuy:
- Câștigi Cashback la fiecare achiziție – folosește-l la următoarea comandă
- Livrare gratuită – la milioane de produse de pe site
- Clienții ne iubesc – 136,000 de recenzii cu evaluare “Excelent”
268,03 RON
+34,00 RON livrare
1%
Câștigați 2,68 RON instant
Află mai multe
Prețurile articolelor vândute de OnBuy includ TVA.
Opțiuni de plată în rate fără dobândă disponibile
Vezi descrierea completă și detaliile produsului
Livrare: Standard (34,00 RON) | mar 13 - joi 15 oct.
Vândut de: Dopipoo
Returnări: 30 zile
Protecție la plată pentru 180 de zile
Te-ar putea interesa și
Descriere & Detalii
Rezumat

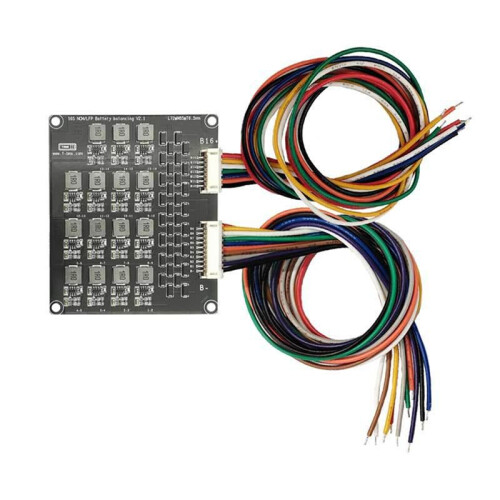

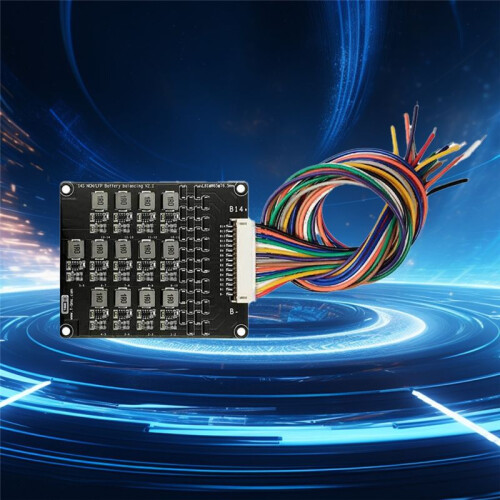

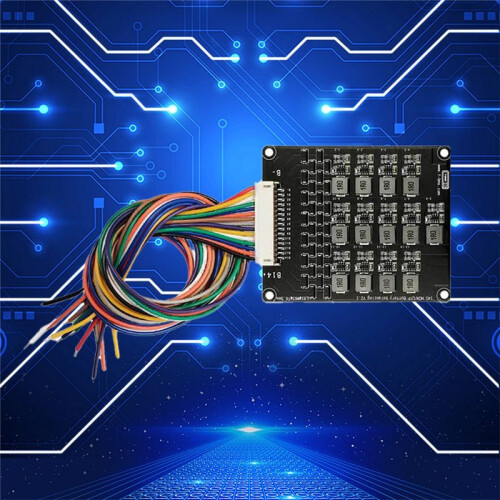

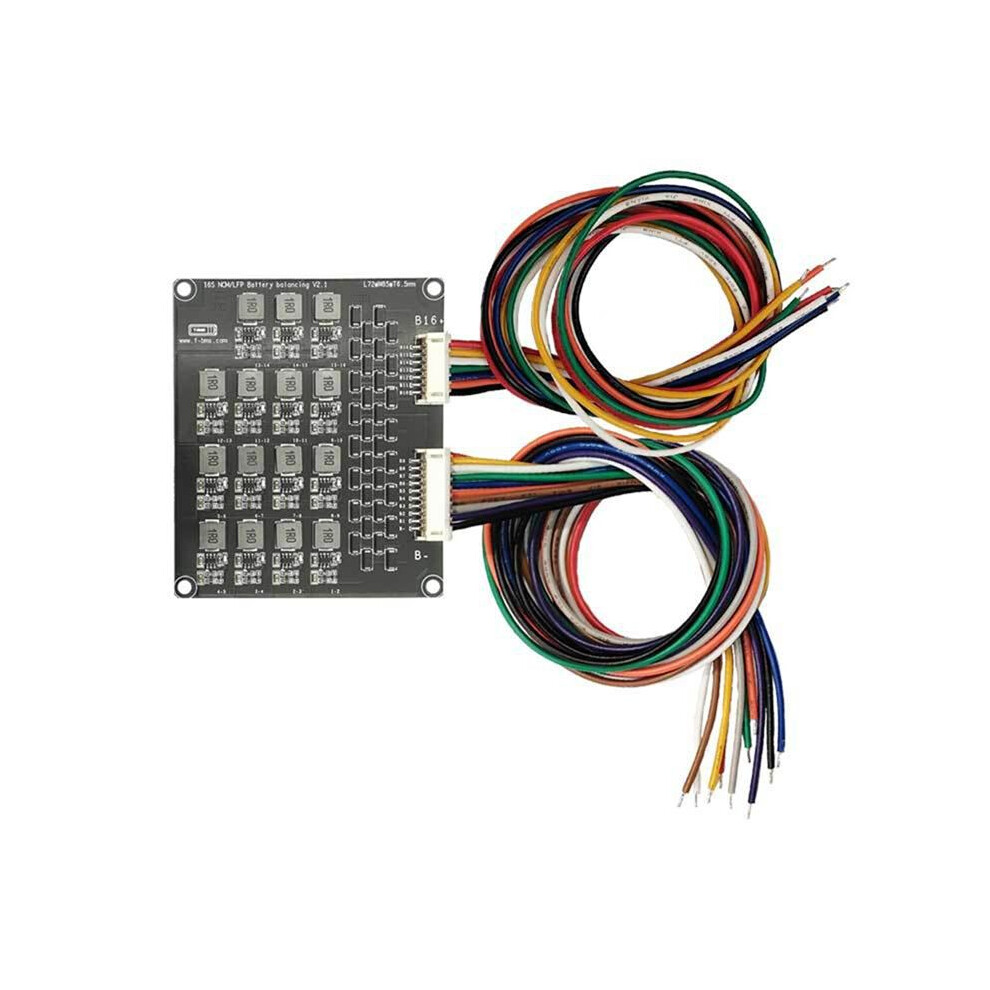

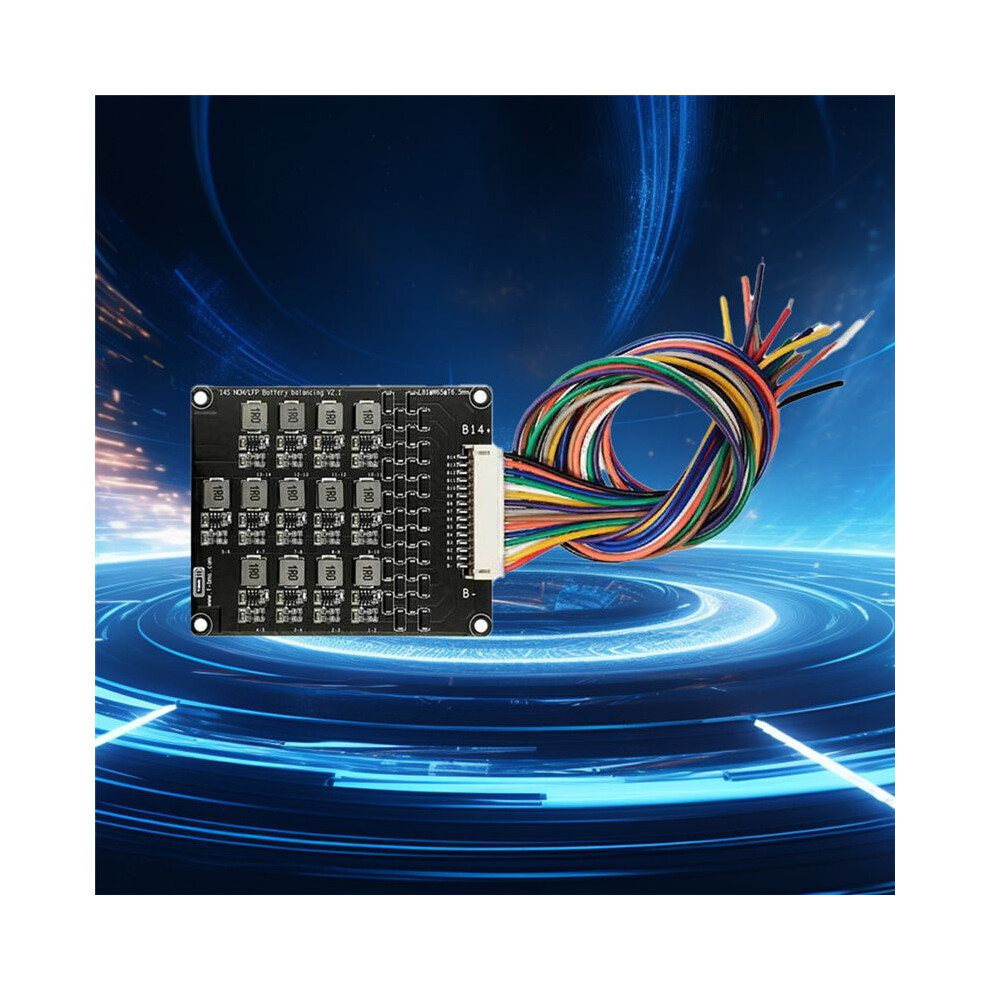

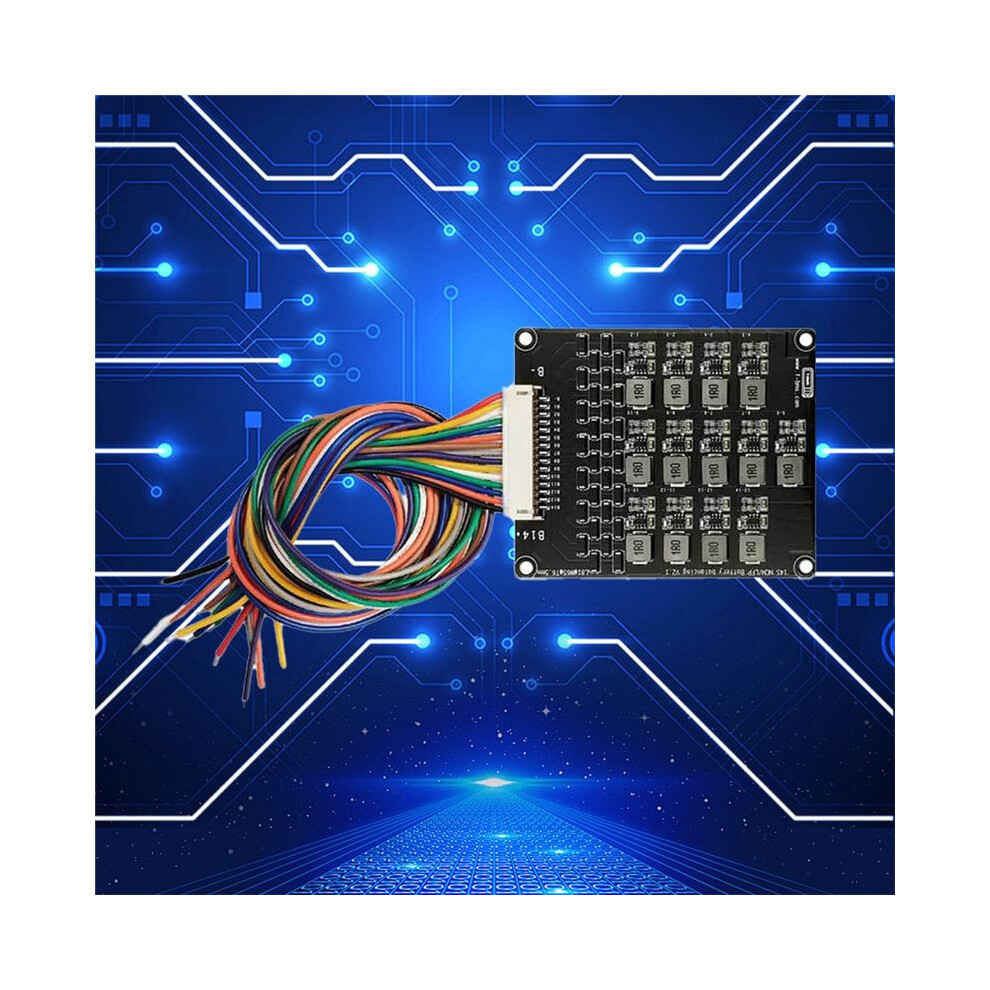

- 1.2A Active Balancer Inductive Active Balance 16S
- Will only balance two nearby battery which voltage defference bigger than 0.2V
- Functions of the new balance board: A freewheeling diode is added. The freewheeling diode is often used together with the energy storage element to prevent sudden changes in voltage and current, provide access and protect the balance board. Another change is to use inductance with larger volume and power, which is conducive to heat dissipation.
- Balance indication: 1. When the equalization light is on, the equalization work is turned on. 2. The equalization light goes out, the equalization circuit sleeps. 3. The equalization light flashes, the string indication is lost, or the circuit is faulty.
- Principle of equilibrium: This module is adjacent to the differential pressure equalization, and the adjacent battery voltage difference reaches 0.1V or more.
Descriere Active Balancer 1.2A Equalizer 16S Li-Ion Lifepo4 Transfer Board LTO Lithium Battery 16S
1.2A Active Balancer Inductive Active Balance 16S
Will only balance two nearby battery which voltage defference bigger than 0.2V
Functions of the board: A freewheeling diode is added. The freewheeling diode is often used together with the storage element to prevent sudden changes in voltage and current, provide access and protect the balance board. Another change is to use inductance with larger volume and power, which is conducive to heat dissipation.
Balance indication: 1. When the equalization light is , the equalization work is turned . 2. The equalization light goes out, the equalization circuit sleeps. 3. The equalization light flashes, the string indication is lost, or the circuit is faulty.
Principle of equilibrium: This module is adjacent to the differential pressure equalization, and the adjacent battery voltage difference reaches 0.1V or more.
The internal trigger balance is working until the adjacent battery voltage difference stops within 0.03V.
There is an adjacent differential pressure when charging and discharging the battery pack.
Trigger equalization, the battery pack voltage error will be pulled back to the ideal value, reducing battery maintenance costs.
Working voltage is 2.0V-4.5V, ternary iron lithium battery is common, lithium cobalt oxide battery is not applicable.
Equilibrium current:
Adjacent pressure difference is 0.1V or more (current is about 0.5-0.7A);
Adjacent pressure difference is above 0.2V (maximum equalization current is 1.2A);
The smaller the differential pressure, the smaller the equalization current.

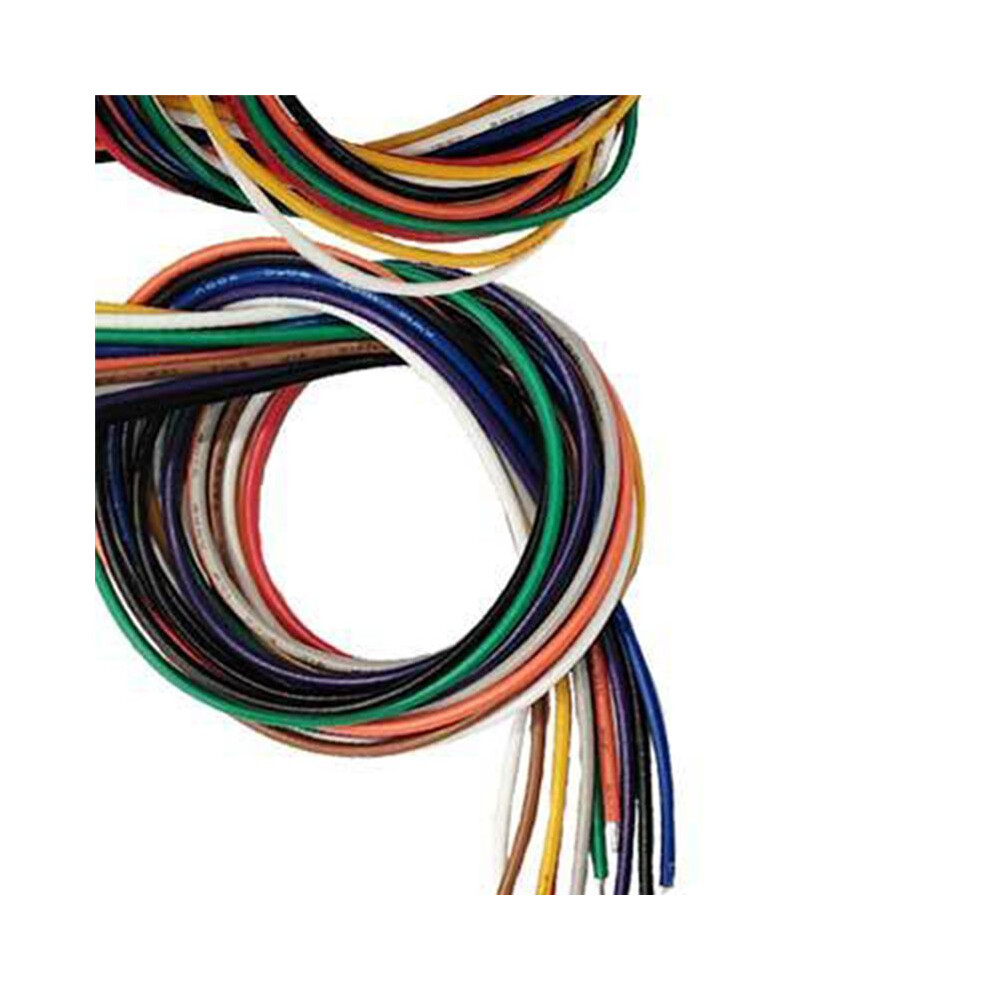

Wiring definition:
B-, the total negative pole of the battery pack (the negative pole of the first battery)
B1, the positive electrode of the first battery
B2, the positive electrode of the second battery
B3....... and so .
Note:13 or more string plugs need to be inserted obliquely, first touch the B-pins and
Detalii
| OPC | PPWJ5GG |
|---|---|
| Coduri | 4711042906187 (EAN) |
| Informații despre produs și siguranță |
Date despre produs
| Height | 2cm |
|---|---|
| Width | 12cm |
| Length | 13cm |
| Weight | 0.075kg |
| Colour | As Shown |
| Size | 16S |
| Material | Metal + Plastic |
