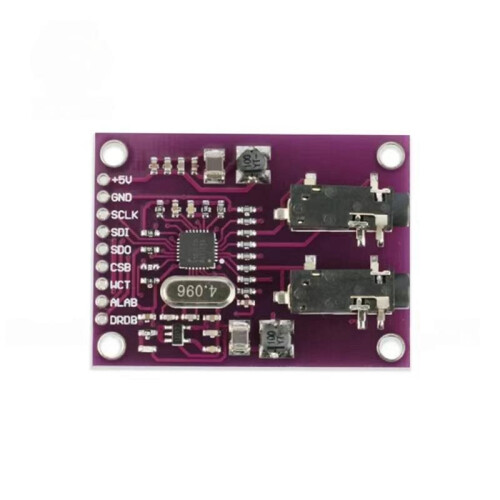

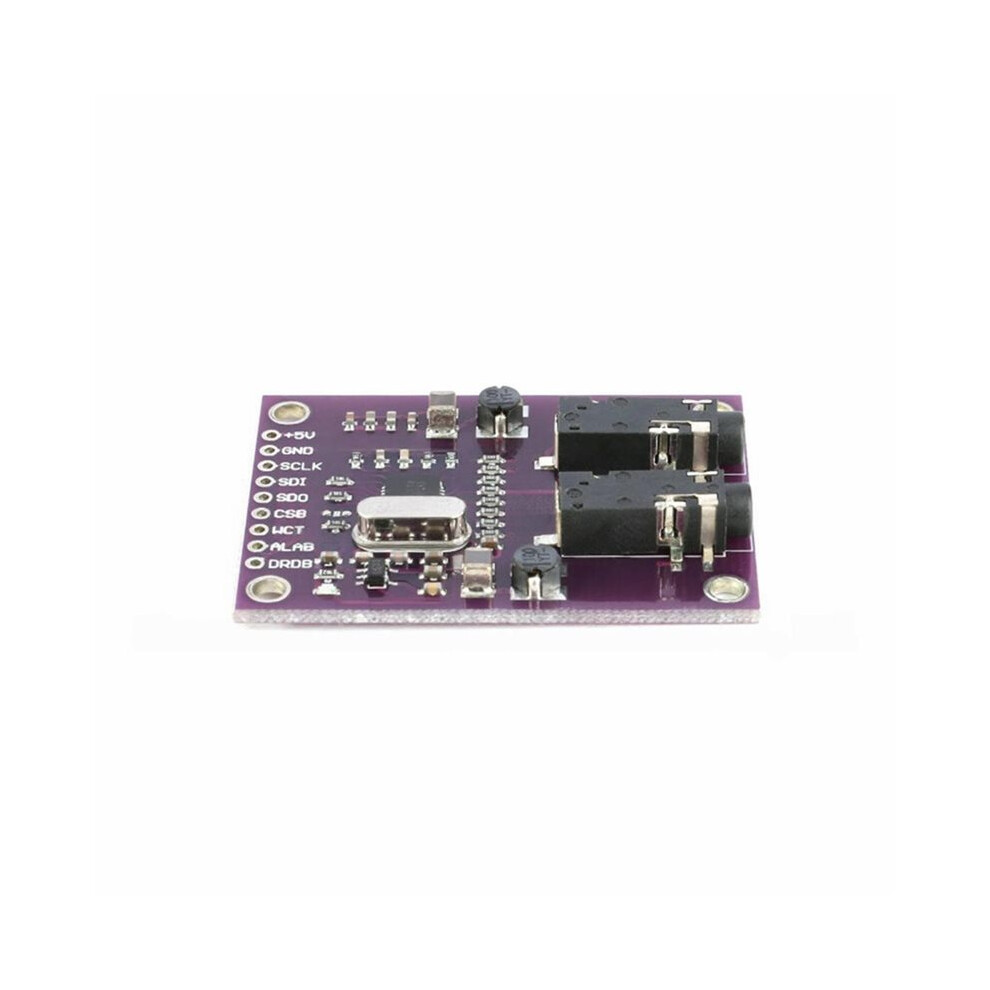

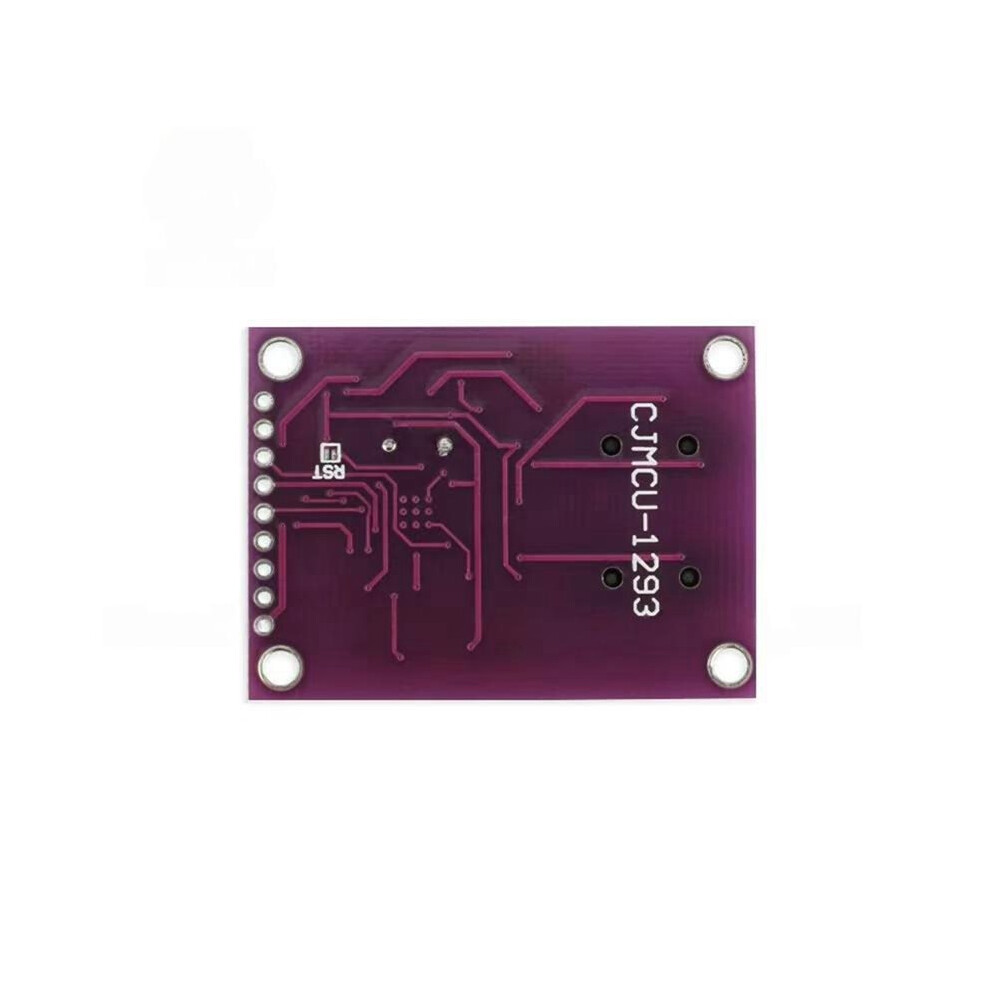

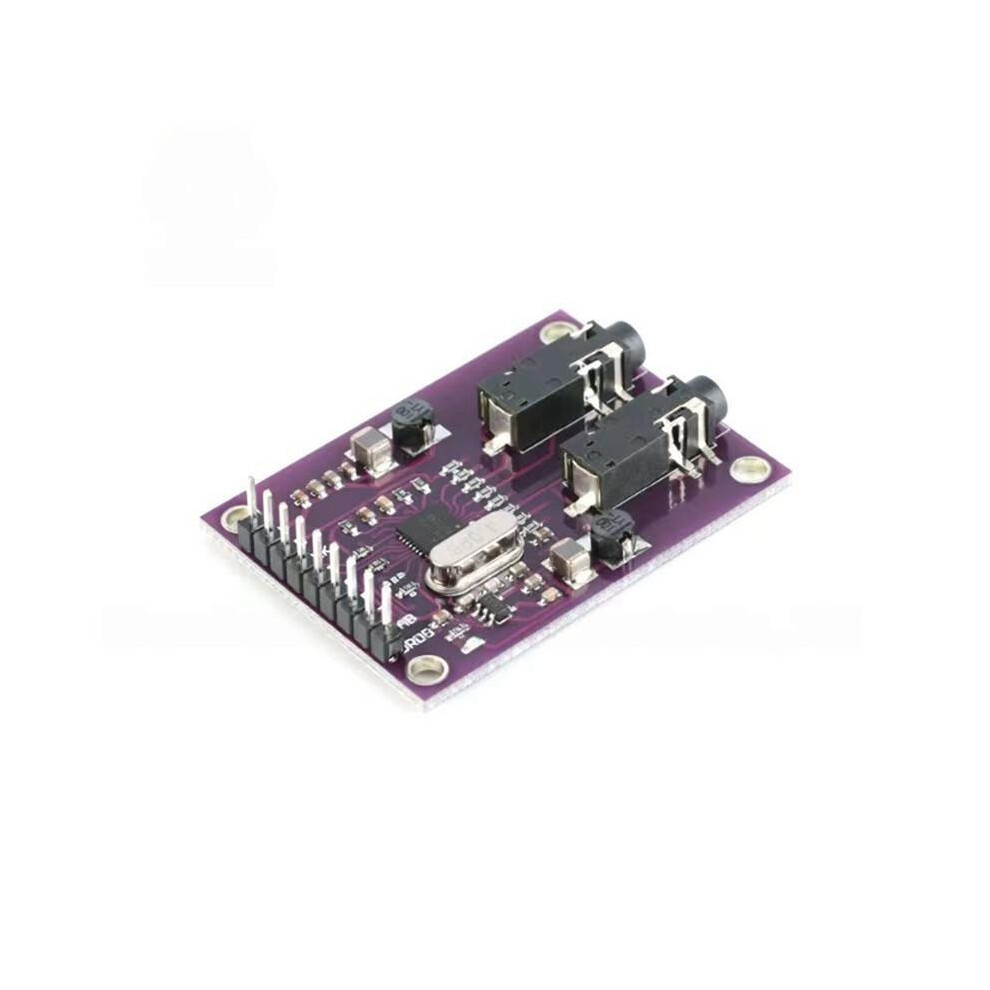

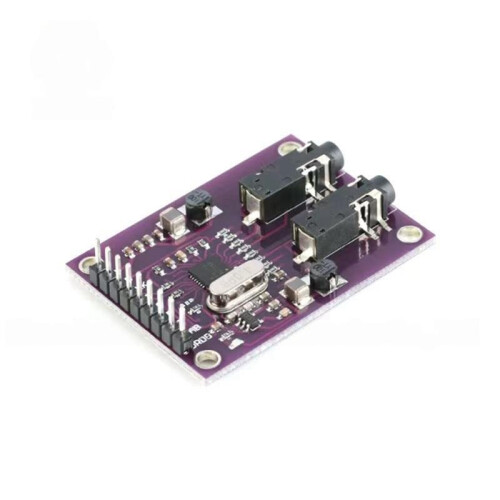

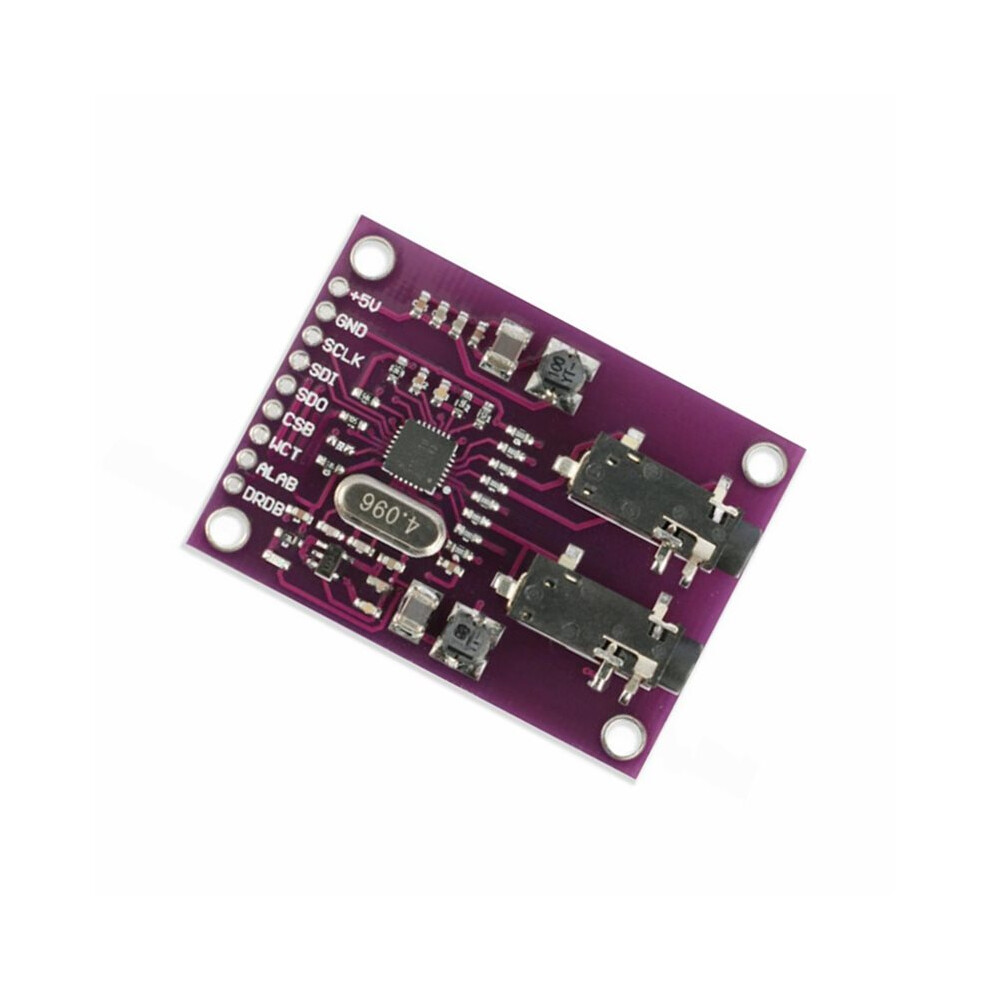

ADS1293 Digital Electrocardiogram (ECG) Module Physiological Signal Measurement 3-Channel 24-Bit Analog Front End

Descriere ADS1293 Digital Electrocardiogram (ECG) Module Physiological Signal Measurement 3-Channel 24-Bit Analog Front End

Product Features:

The ADS1293 includes all the features typically required in portable, low-power medical, sports, and fitness electrocardiogram (ECG) applications. It provides three high-resolution digital ECG channels with synchronized pace outputs. Each channel can be configured for a specific sampling rate and bandwidth, allowing users to optimize the configuration for performance and power consumption. All input pins include an electromagnetic interference (EMI) filter, and input channels can be selected via a flexible routing . It also features AC and lead-off detection, right leg drive and /Goldberger reference termination generation without external lead reconnection, an ALARMB pin for interrupt-driven diagnostics, battery voltage monitoring, a built-in oscillator and reference, and flexible power-down and standby modes.

Product Details:
Analog supply voltage: 2.7V~5.5V
Operating temperature: -20C~85C
Low power consumption: 0.3mW per channel
Input-induced noise: 7μVpp (40Hz bandwidth)
Input bias current: 175pA
Data rate: to 25.6ksps
Differential input voltage range: 400mV
Digital input/output (I/O)
Supply voltage: 1.65V to 3.6V
Module dimensions: 46.7mm x 34.1mm x 6.7mm, with four M3 mounting holes
Color:
Material: PCB

Package Contents:
1*Module
