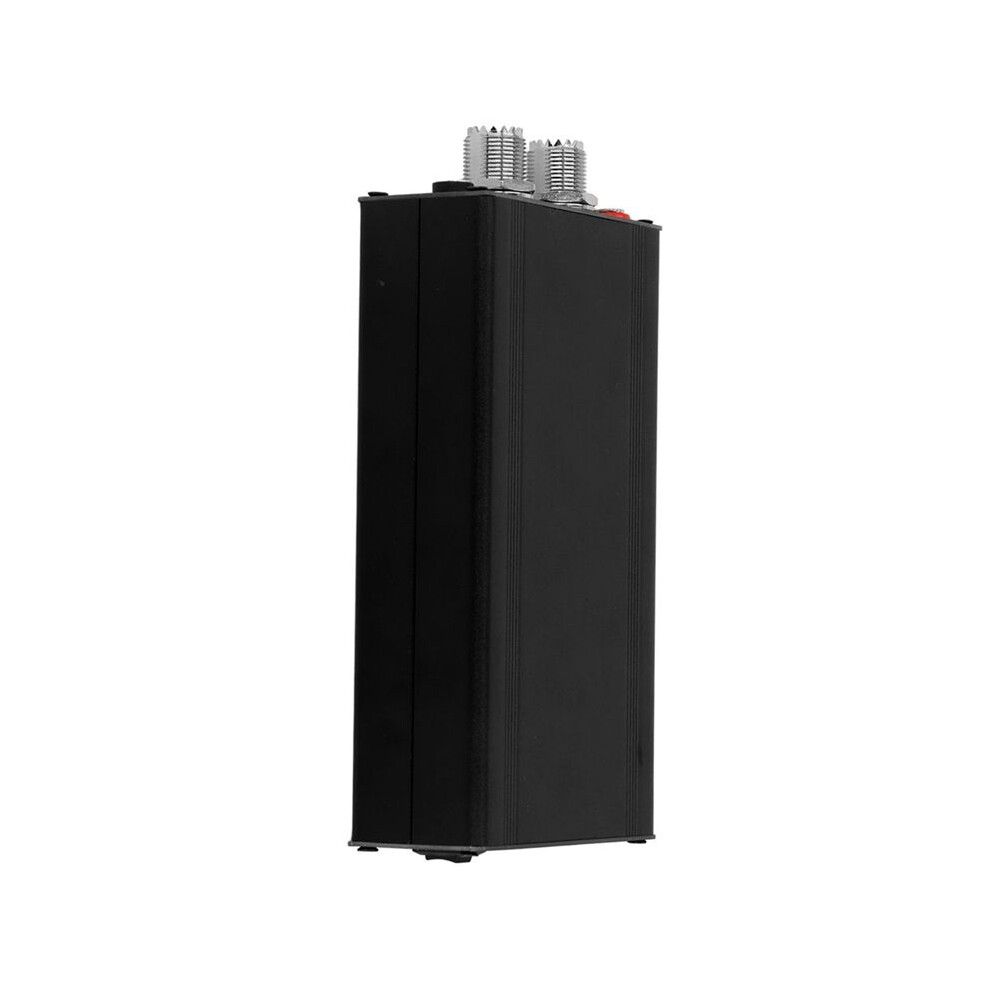

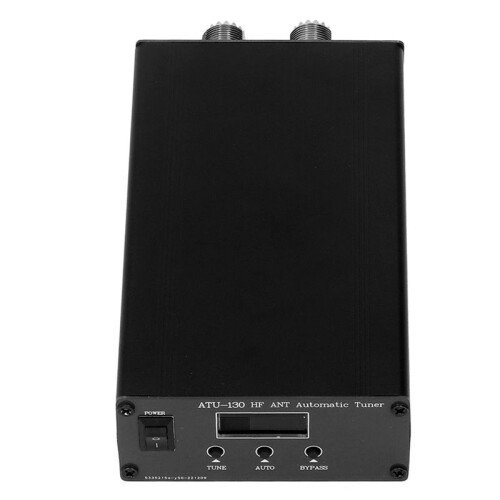

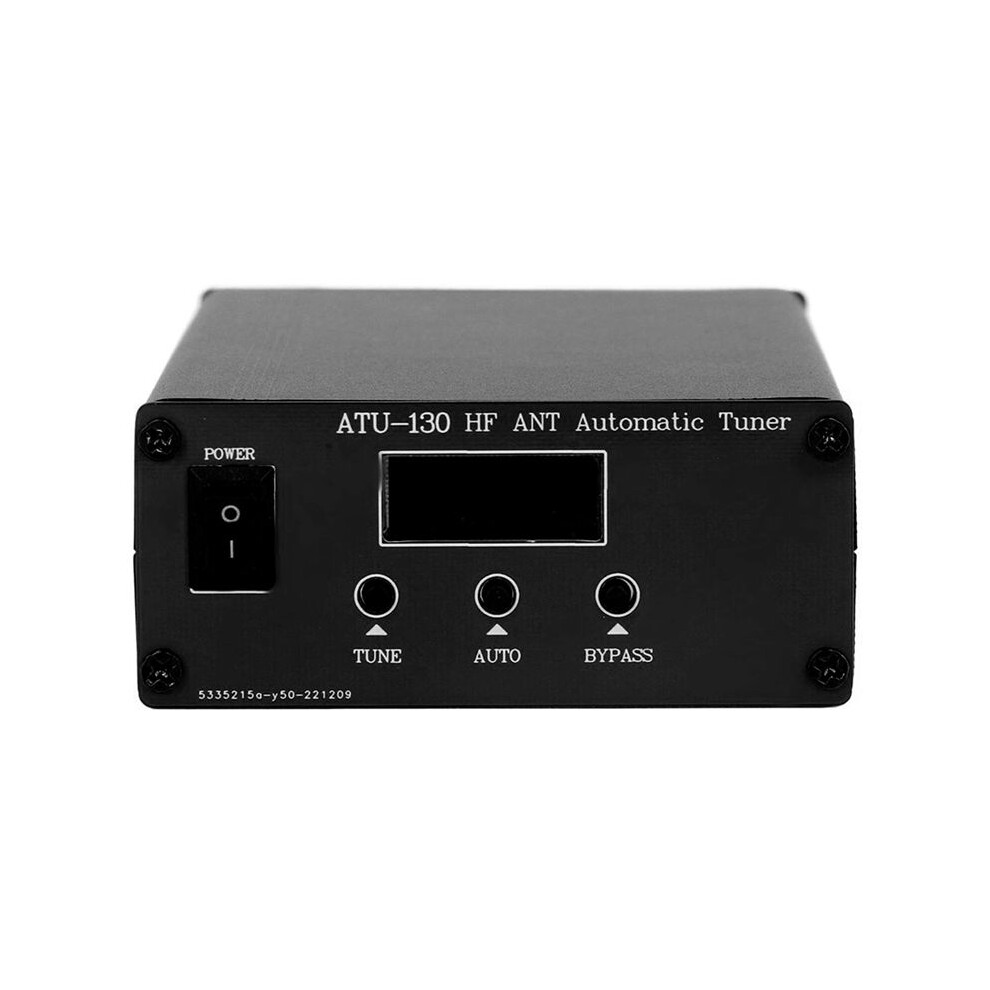

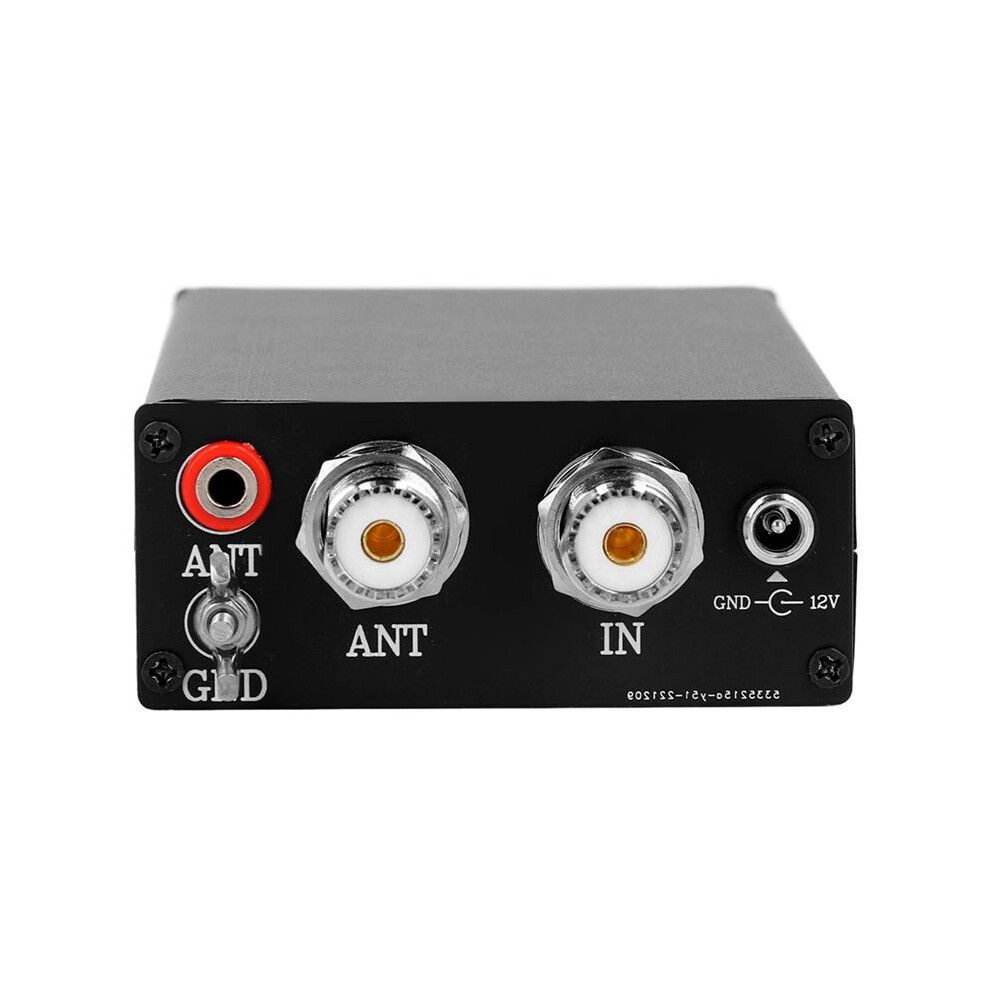

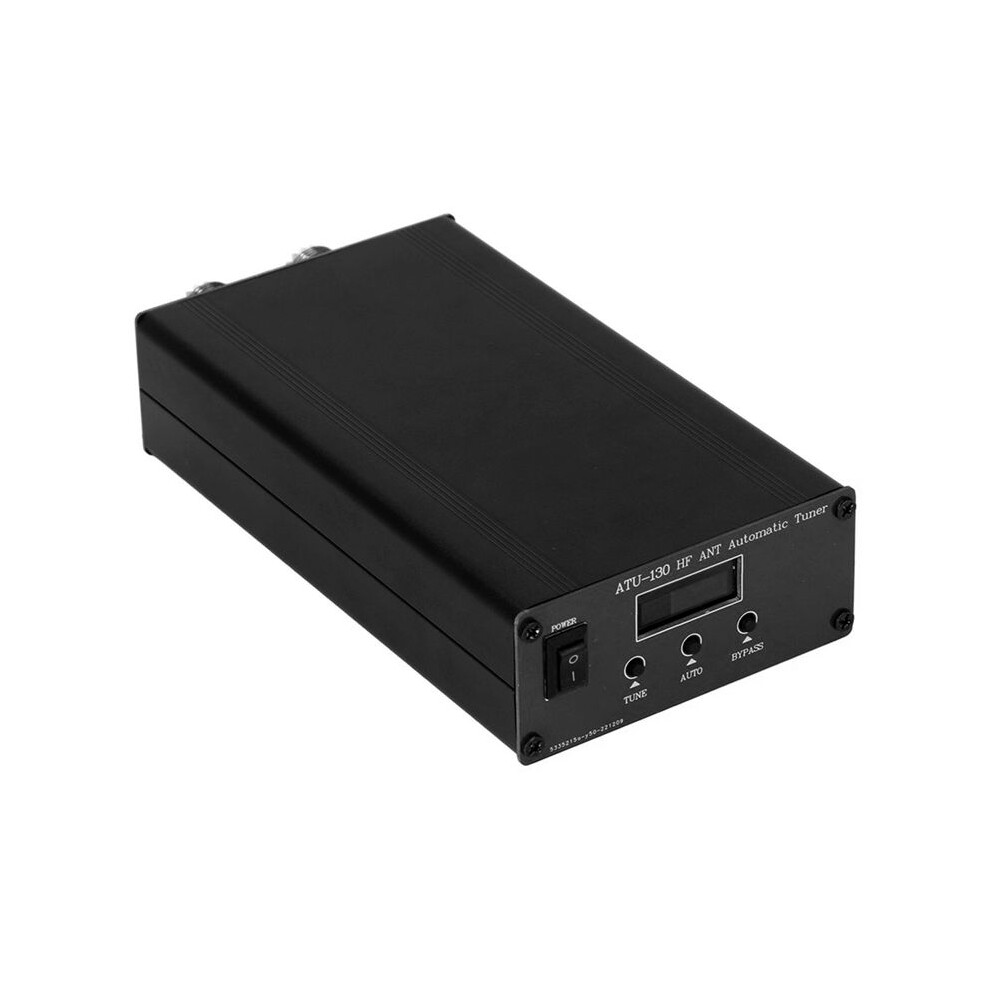

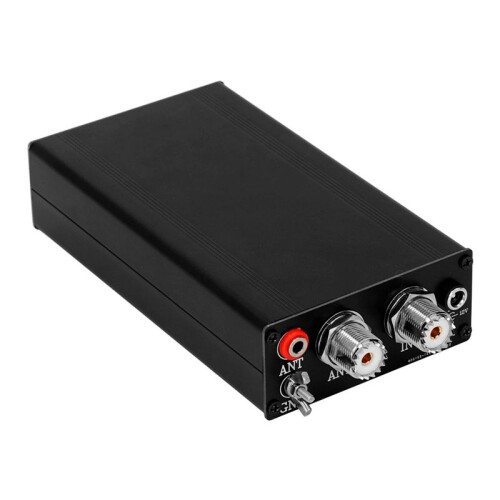

ATU-130 1.8‑50MHz 200W Micro-Shortwave Automatic Antenna Tuner 10‑15VDC Organic Light Emitting Diode Display
Nou
În stoc
De ce îți va plăcea să cumperi de la OnBuy:
- Câștigi Cashback la fiecare achiziție – folosește-l la următoarea comandă
- Livrare gratuită – la milioane de produse de pe site
- Clienții ne iubesc – 137,000 de recenzii cu evaluare “Excelent”
490,97 RON
662,81 RON
Reducere de 26%!
+49,70 RON livrare
1%
Câștigați 4,91 RON instant
Află mai multe
Prețurile articolelor vândute de OnBuy includ TVA.
Opțiuni de plată în rate fără dobândă disponibile
Vezi descrierea completă și detaliile produsului
Livrare: Standard (49,70 RON) | vin 13 - joi 19 nov.
Vândut de: Zemaoxia
Returnări: 30 zile
Protecție la plată pentru 180 de zile
Descriere & Detalii
Rezumat

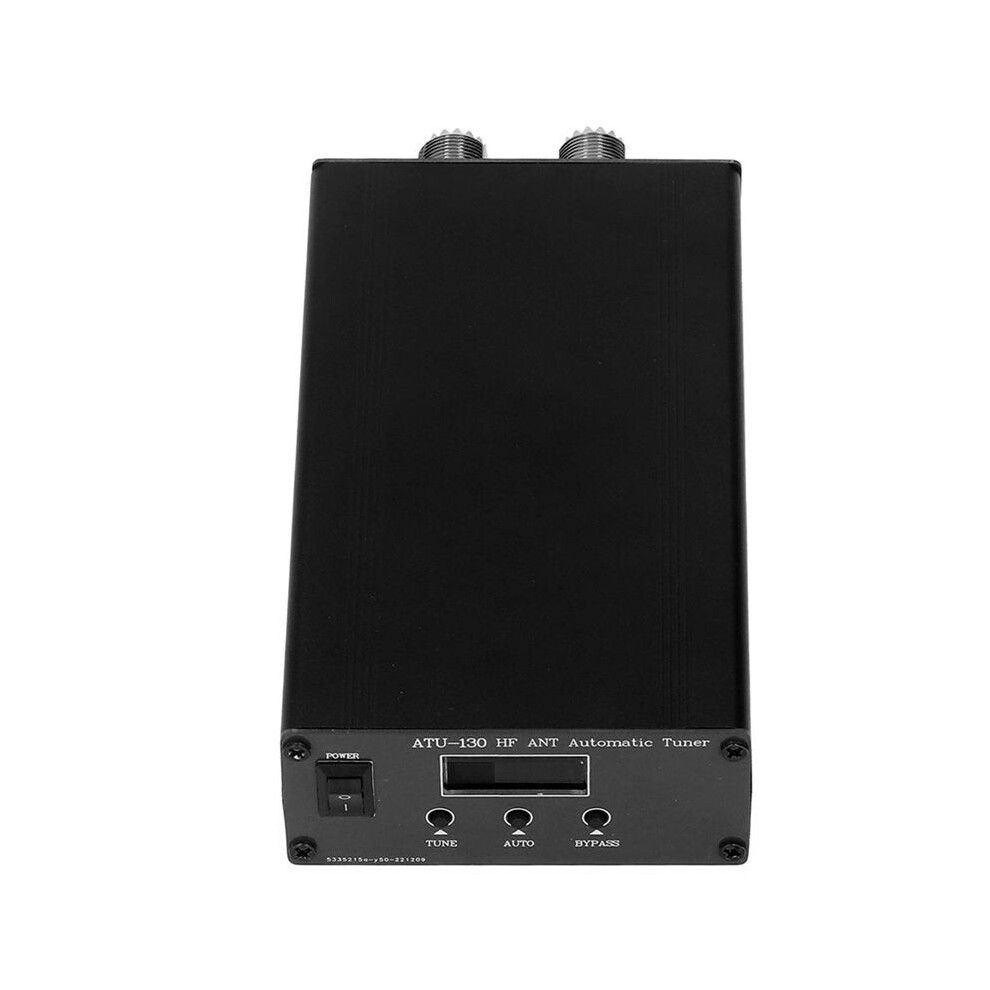

- ANTENNA TUNER: Miniature shortwave automatic antenna tuner, without any control line operation, suitable for most radio stations.

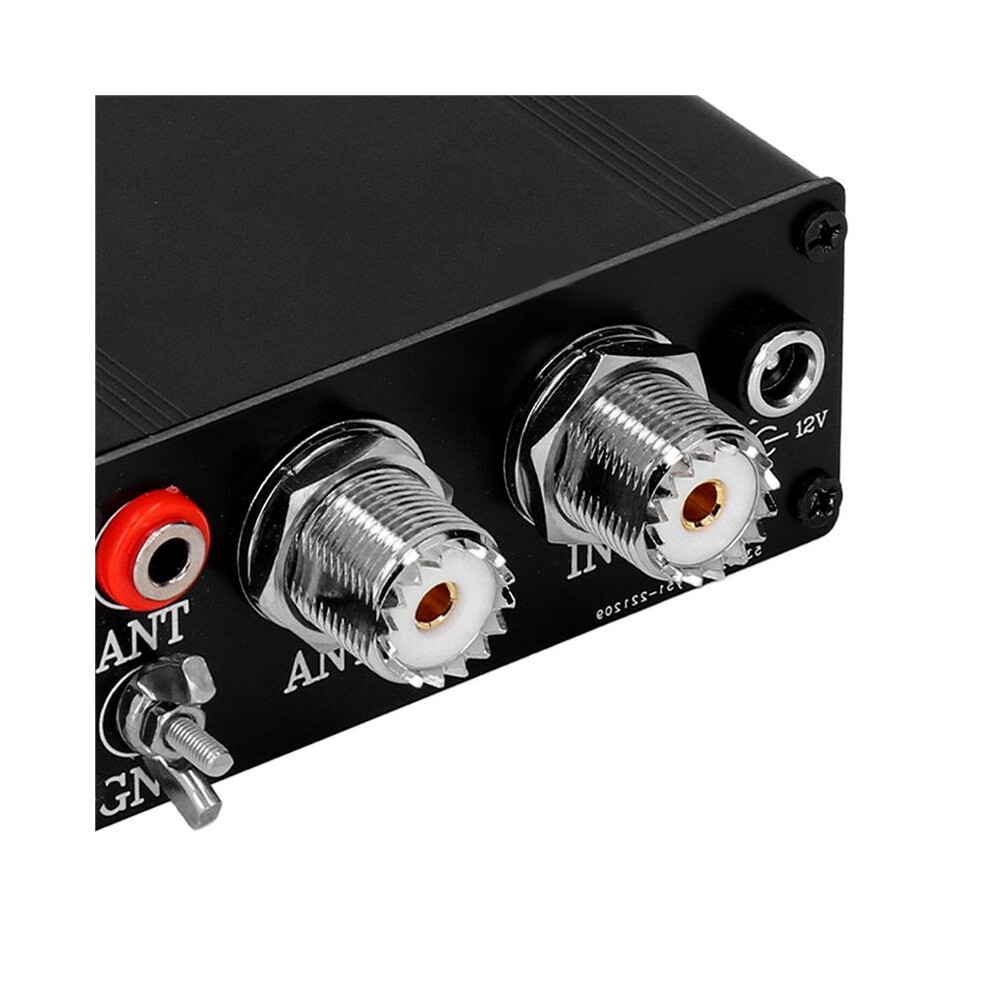

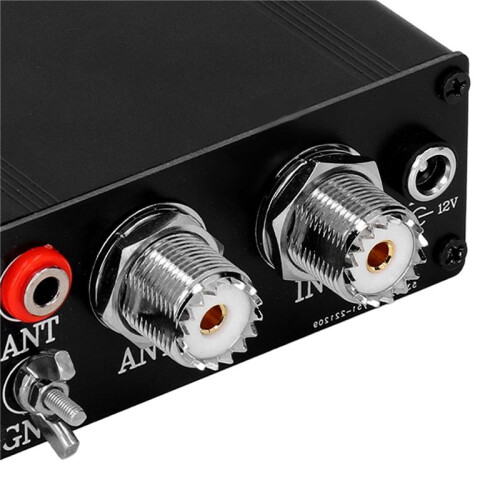

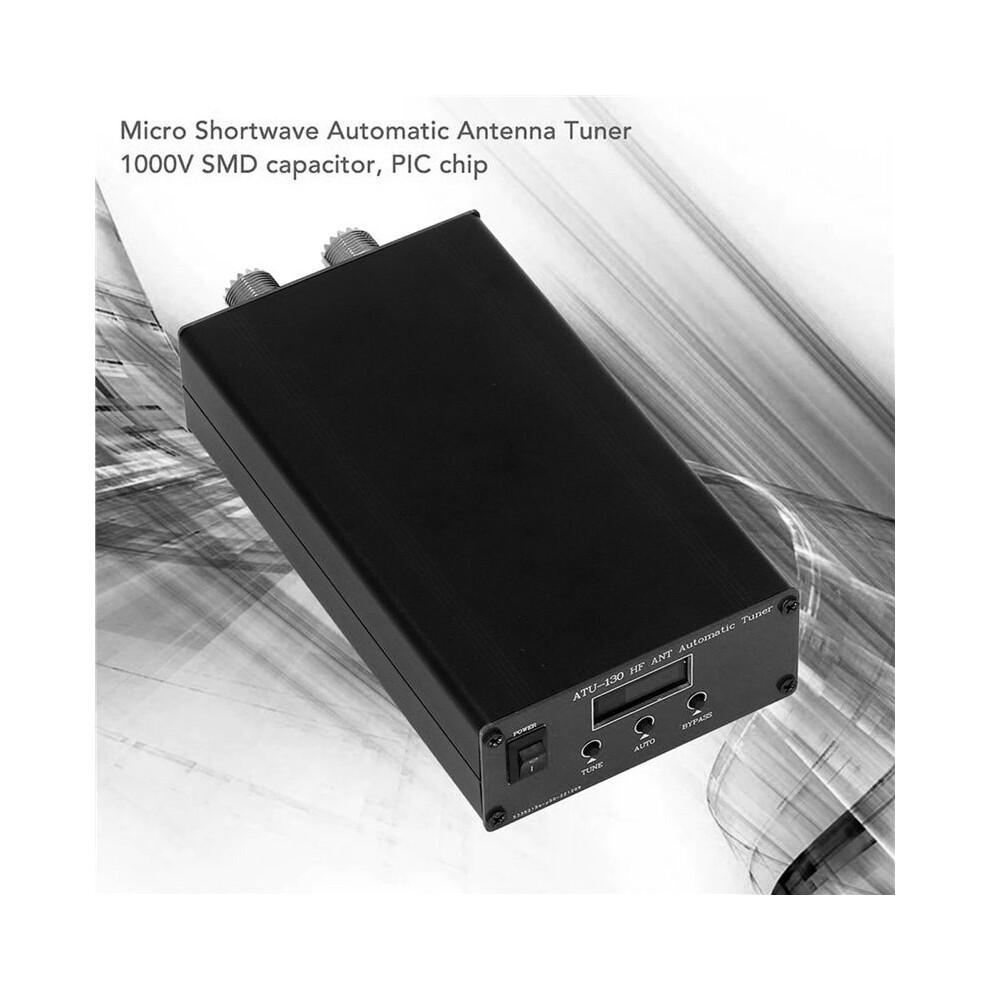

- EXCELLENT PARTS: Adopts C channel 1000V high voltage SMD capacitor, advanced PIC chip and UHF connector to ensure stable performance.

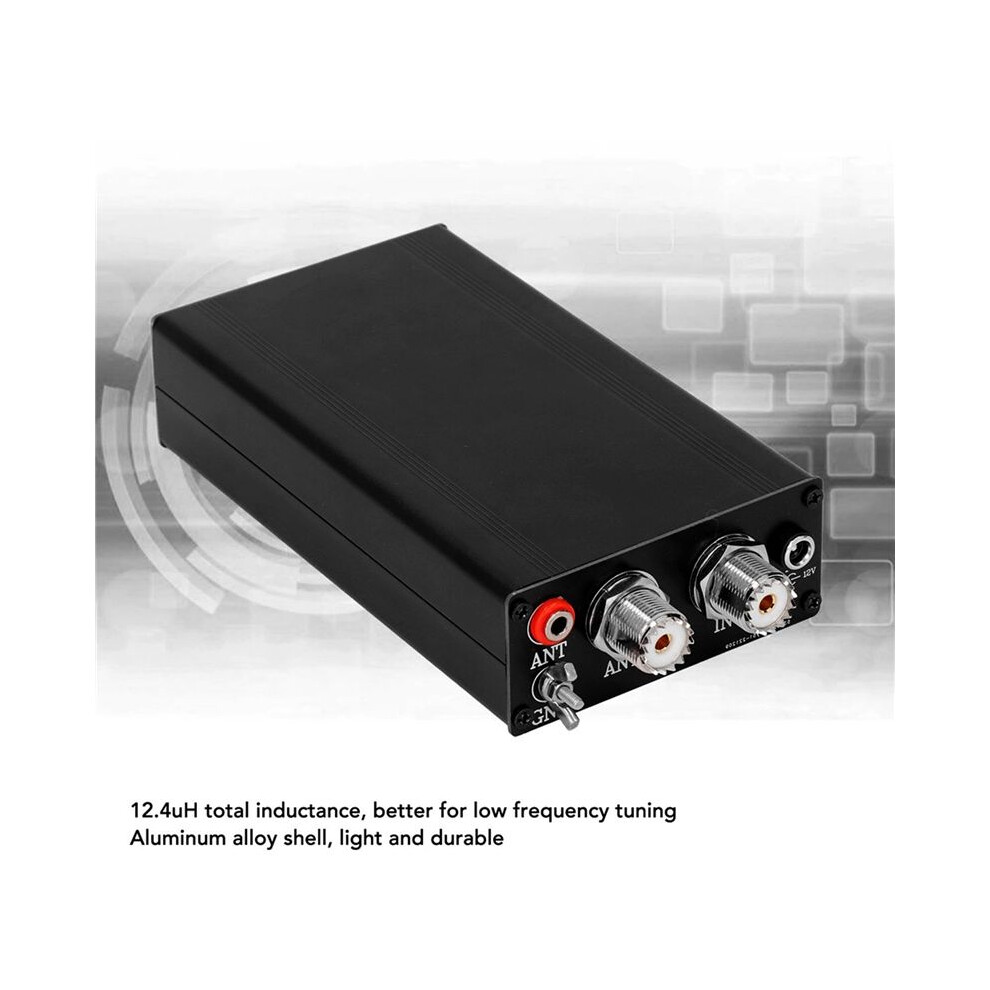

- GOOD PERFORMANCE: Higher level capacitance, larger magnetic ring, thicker wire diameter, greater power bearing capacity, total inductance 12.4uh.

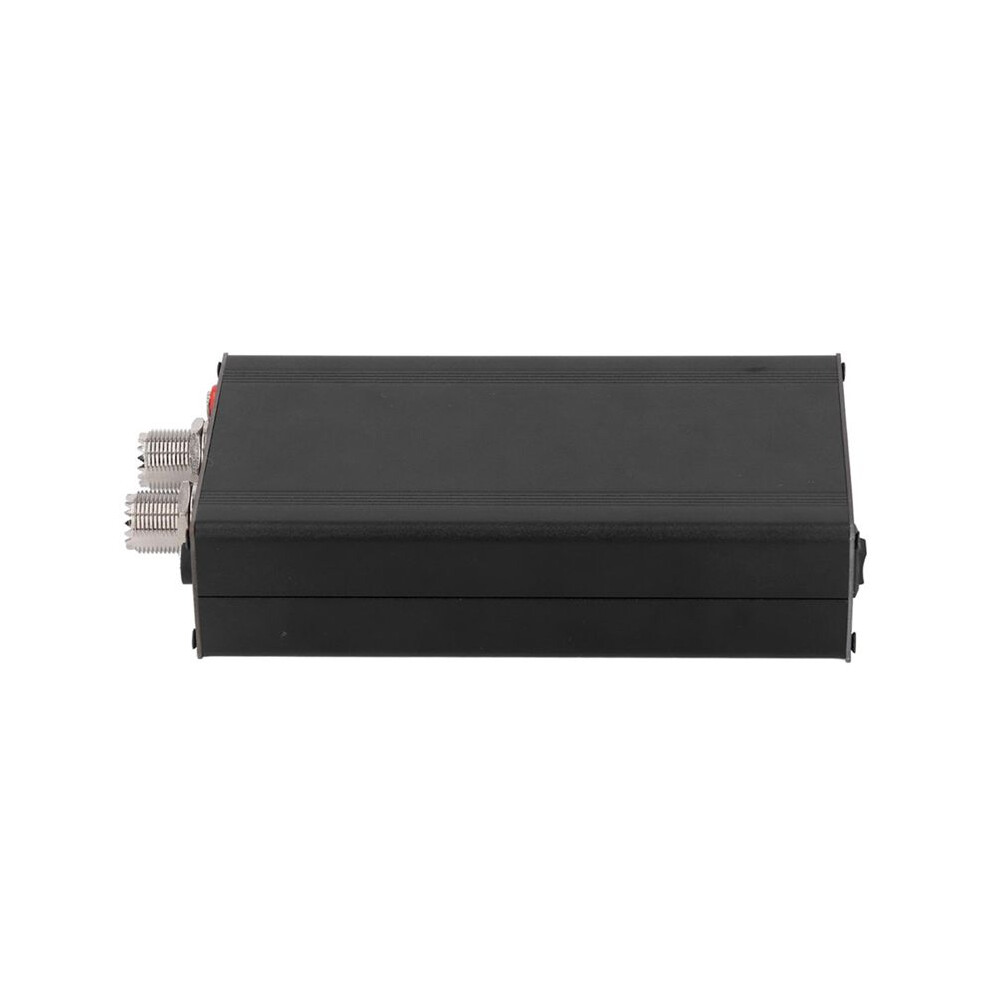

- ALUMINUM ALLOY: The shell of the antenna tuner is made of aluminum alloy, with light weight, fast heat dissipation and corrosion resistance.

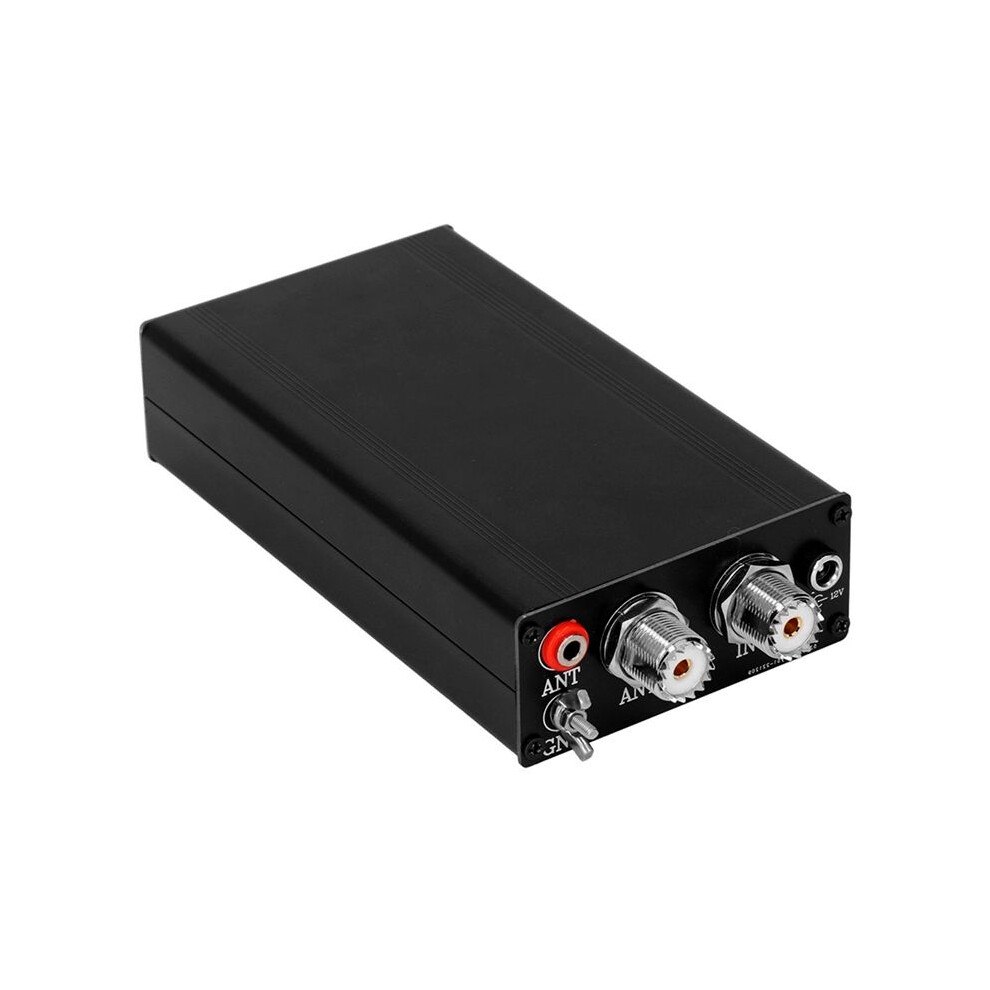

- COMPACT SIZE: The automatic antenna tuner has compact structure, convenient connection, portable design is suitable for home or vehicle use.
Descriere ATU-130 1.8‑50MHz 200W Micro-Shortwave Automatic Antenna Tuner 10‑15VDC Organic Light Emitting Diode Display
ANTENNA TUNER: Miniature shortwave automatic antenna tuner, without any control operation, suitable for most radio stations.
EXCELLENT PARTS: Adopts C channel 1000V high voltage SMD capacitor, advanced chip and UHF connector to ensure stable performance.
GOOD PERFORMANCE: Higher level capacitance, larger magnetic , thicker wire diameter, greater power bearing capacity, total inductance 12.4uh.
ALUMINUM ALLOY: The shell of the antenna tuner is made of aluminum alloy, with light weight, fast heat dissipation and corrosion resistance.
COMPACT SIZE: The automatic antenna tuner has compact structure, convenient connection, portable design is suitable for home or vehicle use.
Item Type: Automatic Antenna Tuner
Power Supply Voltage Range: 10-15VDC (+in the center)
Maximum Current Consumption: 500mA
Maximum Working Power: 150W
Starting Tuning Minimum Power: 5W
Minimum Measurable Power: 0.1W
Measurement Accuracy to 10W Power: 0.1W
Measurement Accuracy Greater Than 10W Power: 1W
Maximum Installed Inductance: 8.53μH
Minimum Installation Inductancee: 0.05μH
Has the function of power meter standing wave meter (according to BYPASS, straight through mode, one horizontal in the middle of the screen, the test value is approximate, and the accuracy is lower than that of professional high accuracy meter, for reference).
PIC18F2520, MCU (faster).
The maximum measurable value is SSB 275w. It is recommended that the SSB should not exceed 200w for a long .
For other continuous modes, the power shall not be greater than 100W (FT8, CW, FM, when the standing wave deviation is large before adjustment, the power shall be reduced as appropriate, and it is recommended to use 10min interval for 5min).
1.8-50MHz (specifically affected by antenna length and standing wave devia
Detalii
| OPC | PRMXGRF |
|---|---|
| Coduri | 6033968124963 (EAN) |
| Informații despre produs și siguranță |
Date despre produs
| Height | 6cm |
|---|---|
| Width | 10cm |
| Length | 21cm |
| Weight | 0.519kg |
| Colour | As Shown |
| Material | Aluminum Alloy |
