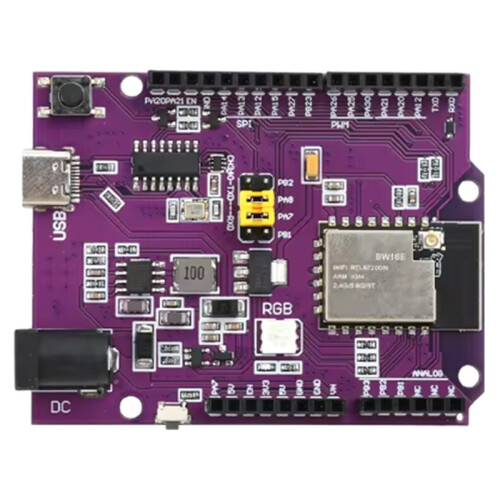

BW16 Development Board RTL8720DN Dual-Band WiFi 5.0 Module USB TYPE-C Onboard PCB Antenna, IPEX Antenna A

Descriere BW16 Development Board RTL8720DN Dual-Band WiFi 5.0 Module USB TYPE-C Onboard PCB Antenna, IPEX Antenna A

Development board model: BW16 development board;Suitable modules: BW16;Antenna form: onboard PCB antenna, IPEX antenna;Spectrum range: 2400-2483.5MHz or 5180-5825MHz; WiFi: Supports 802.11a/b/g/n;
: BLE5.0;Work environment:- 40~85;Storage environment:- 40C~125C,< 90%RH;Power supply range: Supply voltage 5V, current>500mA;
Supporting interfaces: UART/GPIO/ADC/PWM/IIC/SPI/SWD;I0 port quantity: 15 GPIO including (TX0 / RX0 and TX1 / RX1);Security: AES/DES/SHA;Flash: Default 4MB

1. Dual band Wi Fi+ 5.0: Supports 2.4GHz and 5GHz frequency bands, integrates BLE 5.0, and provides efficient wireless connectivity.
2. High performance dual core MCU: Built in ARM Cortex-M4F and Cortex-M0, balancing performance and low-power applications.
3. Rich interface selection: Supports multiple interfaces such as UART, GPIO, ADC, PWM, IIC, SPI, SWD, etc., making it easy to expand peripherals.
4. Flexible antenna options: Equipped with onboard PCB antennas and IPEX antennas to meet the needs of different application scenarios.
5. High reliability and wide temperature design: operating temperature -40 C~85 C, storage temperature -40 C~125 C, ensuring stability in harsh environments.
Color:
Material: plastic
Specification: IPEX

Package Contents:
1*BW16 Development Board
