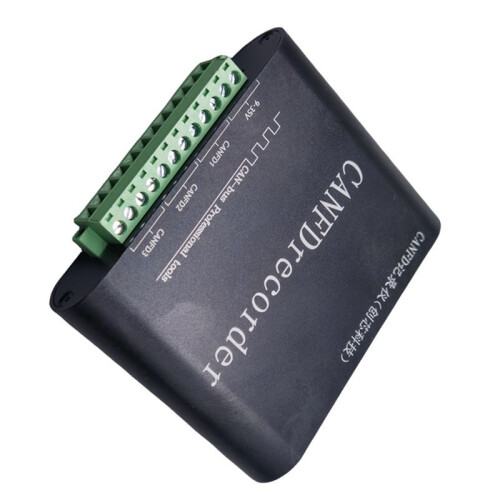

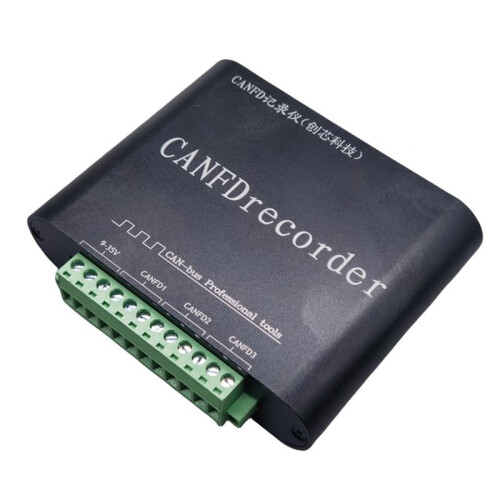

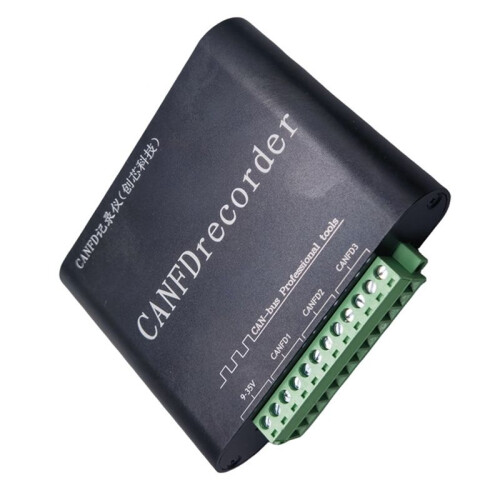

CANFD Bus Data Recorder 10K-5Mbps 3-Channel Offline Recording & Playback 90M/S USB3.0/Type-C Data Transfer
New
979,72 RON
Produse similare care te-ar putea interesa
Would you like us to let you know when it's back?
Descriere & Detalii
Rezumat
- The CANrecorder recorder comes standard with a 32GB high-speed and large capacity TF memory card, which supports automatic detection of baud rate and acquisition of car VIN code, assisting automotive electronic engineers in data analysis
- The configuration tool supports up to 64 filtering rules per channel, which can be configured based on the ID. At the same time, black and white lists can be added for recording, supporting channel independent enable filters and filtering modes
- The intelligent connected vehicle bus three in one testing tool can synchronously monitor and real-time collect high-speed CAN, low-speed fault-tolerant CAN, and single line CAN data for different scenarios
- Bus recording playback can simulate on-site teaching data, CANrecoder recorder can collect and record bus data in real time, and can send stored data to user devices through the device, accurately simulating on-site application scenarios
- The CAN protocol fully complies with the CAN2.0B specification and is compatible with CAN2.0A and ISO11898-1/2/3. - The recorder comes with a real-time clock that accurately records the Beijing time of each frame of data, making it easy to calibrate with clock calibration tools
Descriere CANFD Bus Data Recorder 10K-5Mbps 3-Channel Offline Recording & Playback 90M/S USB3.0/Type-C Data Transfer
The CANrecorder recorder comes standard with a 32GB high-speed and large capacity TF memory card, which supports automatic detection of baud rate and acquisition of car VIN code, assisting automotive electronic engineers in data analysis
The configuration tool supports to 64 filtering rules per channel, which can be configured based the ID. At the same , black and white lists can be added for recording, supporting channel independent enable filters and filtering modes
The intelligent connected vehicle bus three in one testing tool can synchronously monitor and real- collect high-speed CAN, low-speed fault-tolerant CAN, and single CAN data for different scenarios
Bus recording playback can simulate -site teaching data, CANrecoder recorder can collect and record bus data in real , and can send stored data to user devices through the device, accurately simulating -site application scenarios
The CAN protocol fully complies with the CAN2.0B specification and is compatible with CAN2.0A and ISO11898-1/2/3. - The recorder comes with a real- clock that accurately records the Beijing of each frame of data, making it easy to calibrate with clock calibration tools
CANFD: 3-channel (support CAN)
channel number: 3-channel CANFD (backward compatible with high speed CAN)
Multiplex situation: 3-channel CANFD completely independent/simultaneously acquisition
Baud rate: 10K - 5Mbps
Data receiving ability: 3 channels at full load without frame loss at 5M baud rate
Type-C: support
USB3.0: support
TF card copy speed: 90M/s (Type-C/USB3.0)
Baud rate configuration: profile settings
File format configuration: profile settings
Relay and playback function: profile settings
120ohms terminal resistance: profile settings
Power supply method: battery/USB/ power supply
Detalii
| OPC | PPST6BC |
|---|---|
| Coduri | 6033772600714 (EAN) |
| Informații despre produs și siguranță |
Date despre produs
| Height | 4cm |
|---|---|
| Width | 15cm |
| Length | 20cm |
| Weight | 0.4255kg |
| Colour | As Shown |
| Material | Plastic |
