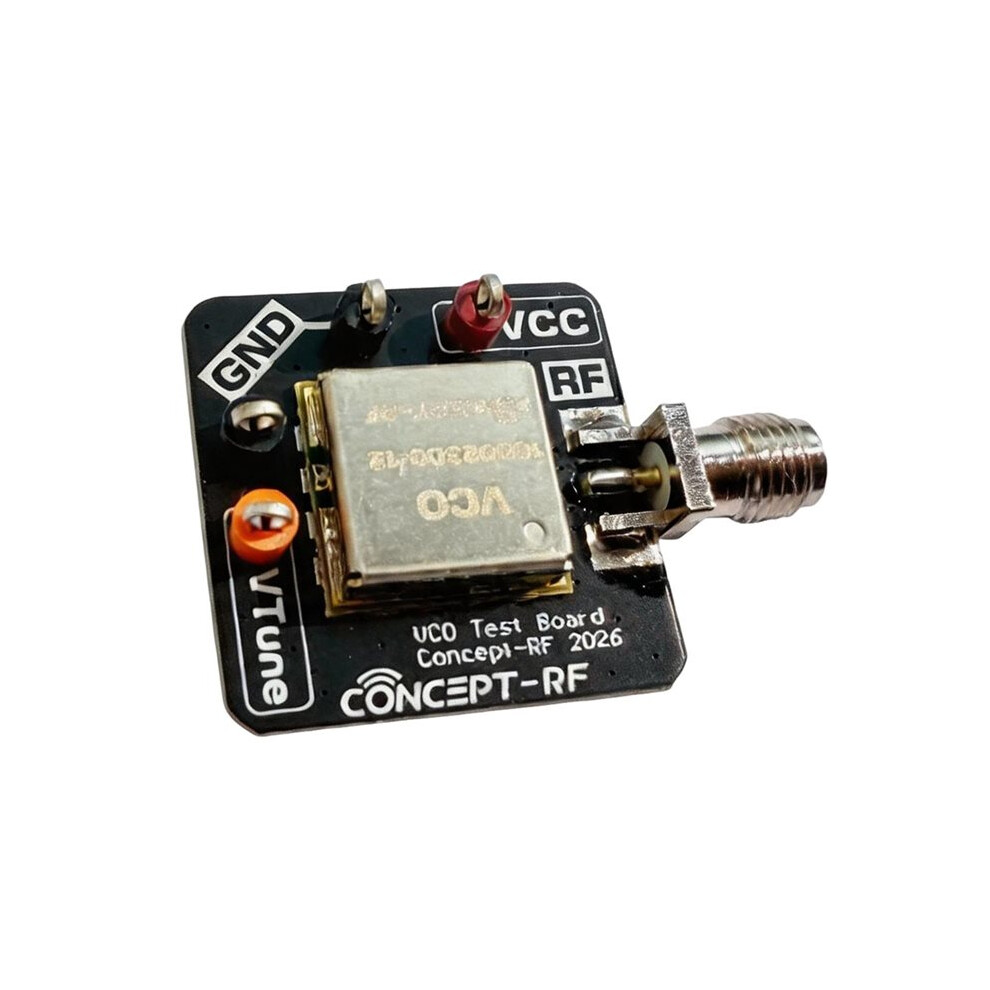

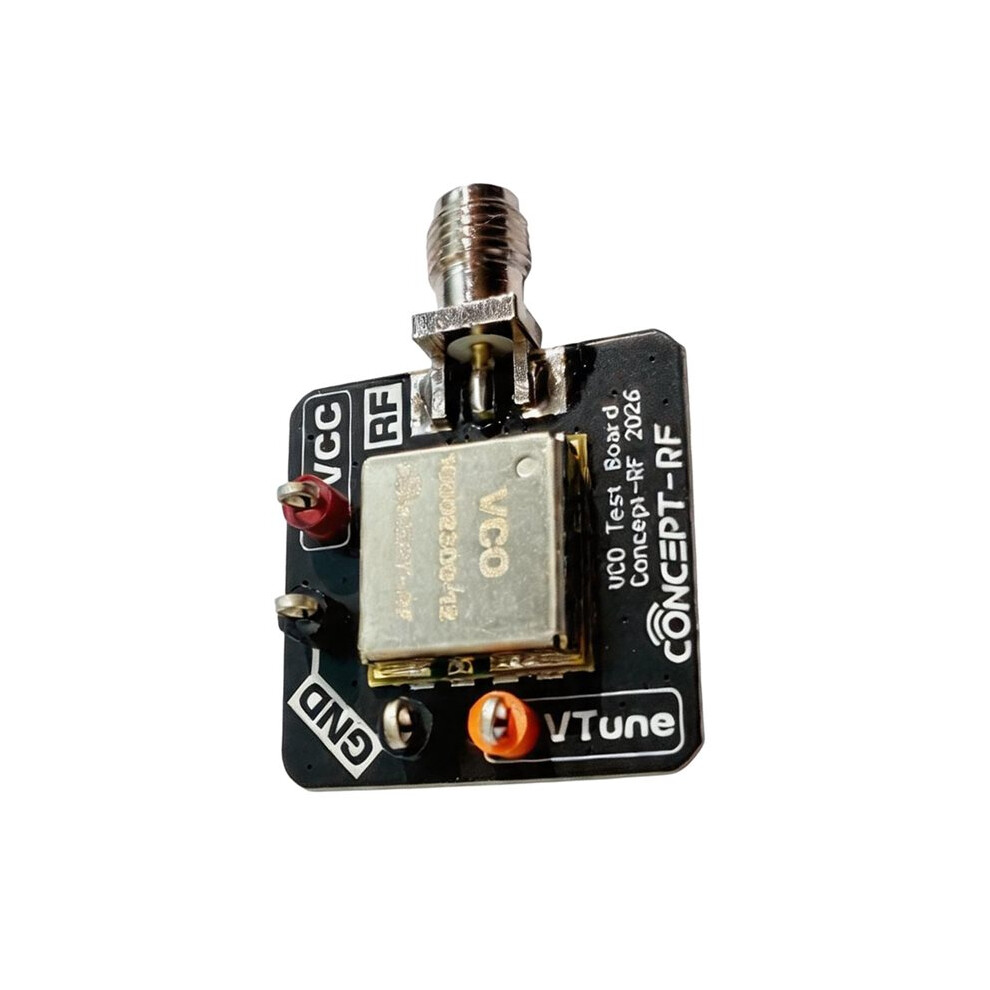

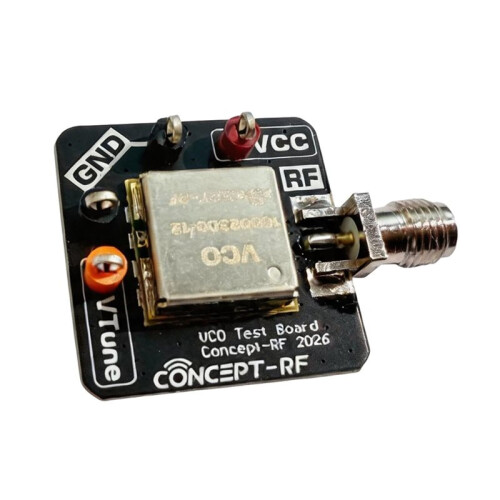

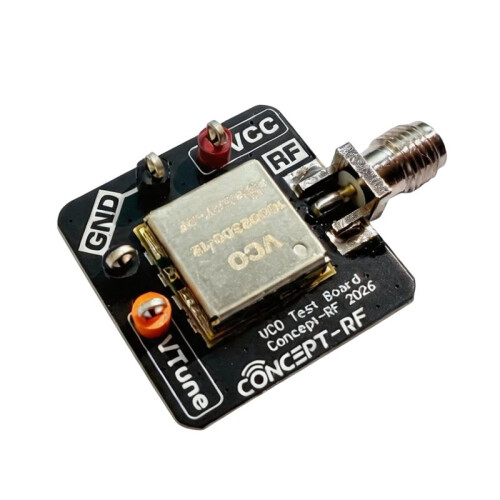

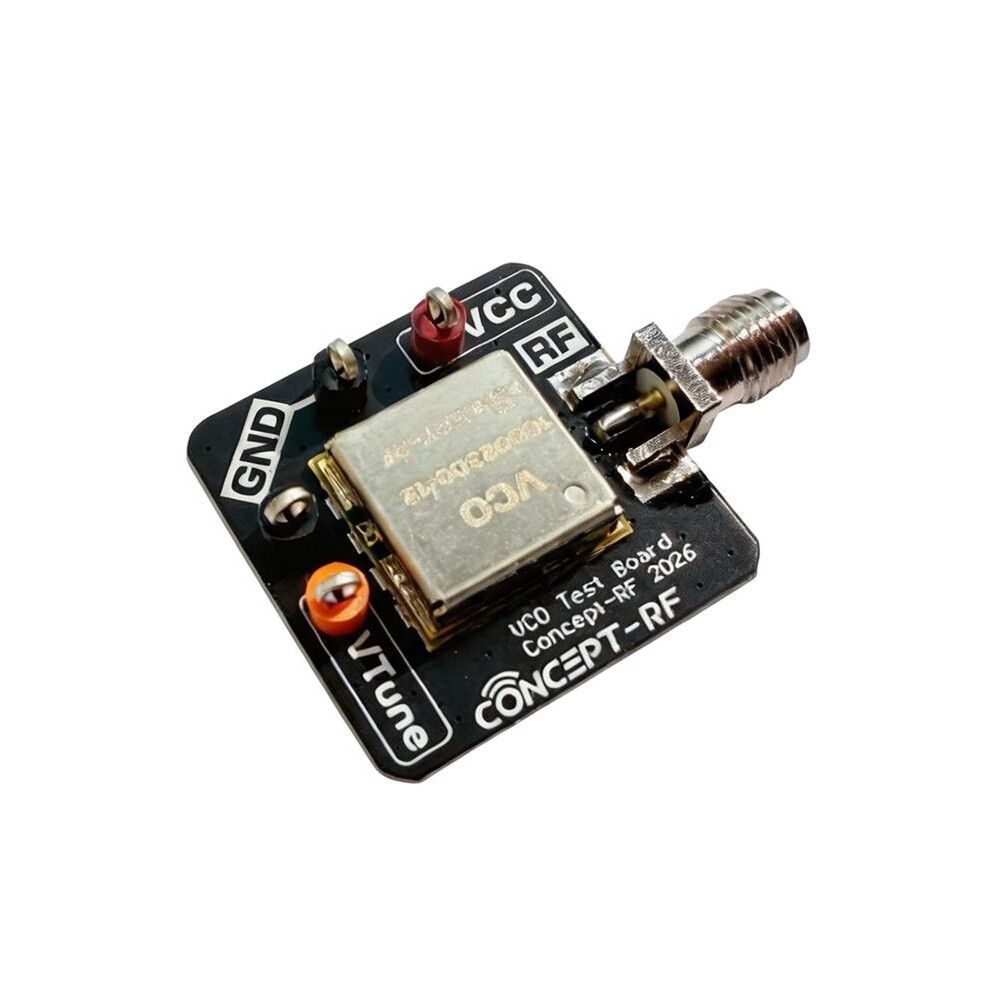

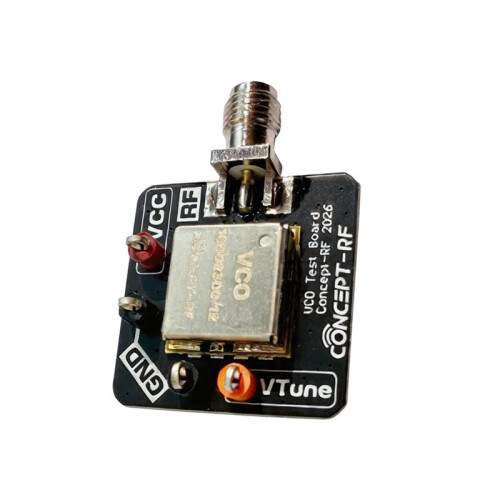

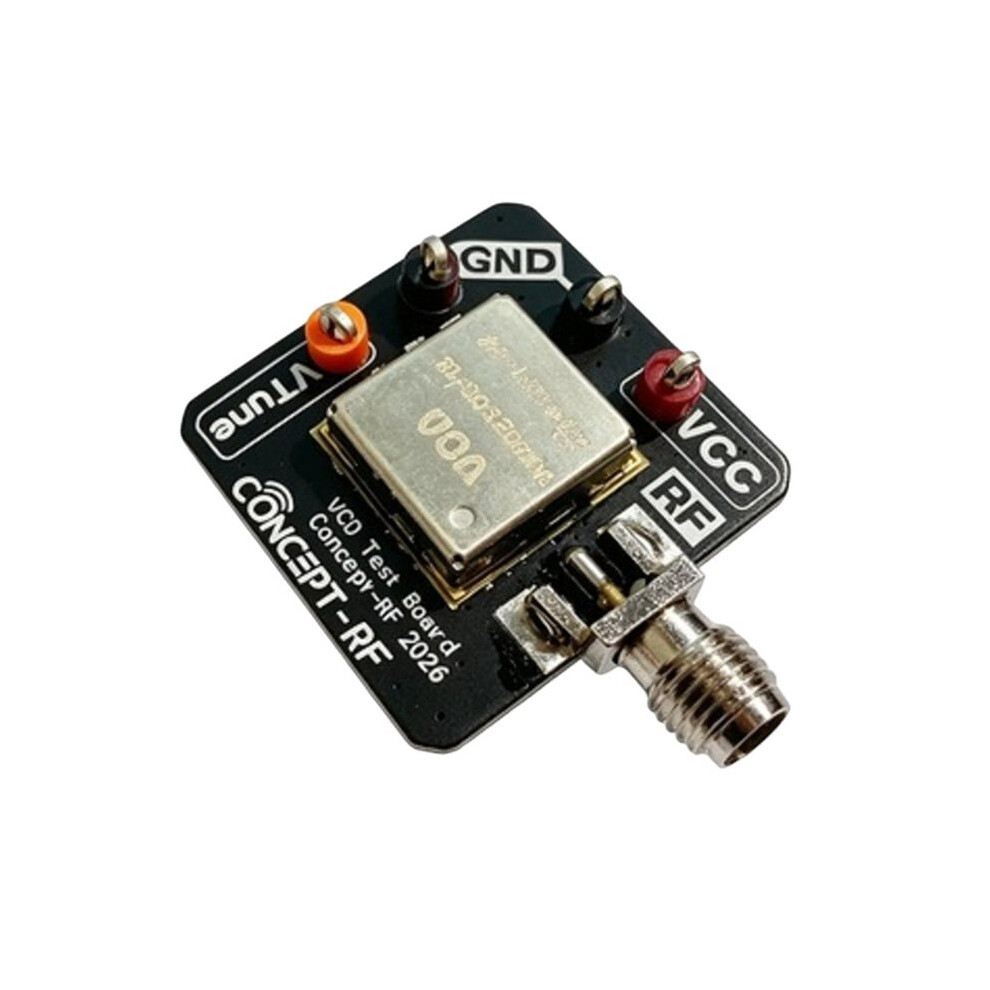

CONCEPT-RF 1000-2300MHz VCO Voltage Controlled Oscillator Replacement for SYNERGY DCMO100230-12

Descriere CONCEPT-RF 1000-2300MHz VCO Voltage Controlled Oscillator Replacement for SYNERGY DCMO100230-12

Wide frequency coverage: Nominally 1000-2300MHz continuously adjustable; actual usable range is usually wider, meeting multi-band requirements.
Direct replacement: Pin compatible, performance comparable to for SYNERGY DCMO100230-12, reducing replacement costs and design risks.
Low phase noise: Typical value -80dBc/Hz @10kHz offset, ensuring local oscillator signal purity.
High tuning voltage range: Tuning voltage 0.5V to 22V, adaptable to wide bandwidth adjustment.
Standard output power: 0dBm typical output, capable of directly driving most mixers and dividers.

This is a wideband voltage-controlled oscillator (VCO) , with a frequency tuning range covering 1000MHz to 2300MHz. It can be widely used in instrument local oscillators, communication equipment, RF front-ends, and other scenarios. This product can directly replace for SYNERGY DCMO100230-12, offering stable performance and high cost-effectiveness.
Stable power consumption: 12V supply voltage, operating current only 35mA, low heat generation, high reliability.
Power supply disturbance immunity: 50-100MHz/V (typical), insensitive to power supply fluctuations.
Compact package, suitable for space-constrained designs. , suitable for portable and airborne devices.

Additional Notes: This product can directly replace for SYNERGY DCMO100230-12 in some applications; actual testing and verification are recommended first.

Parameters
Tune Voltage: 0.5V - 22V
Supply Voltage: 12V
Operating Current: 35mA (Typical)
Output Power: 0dBm (Typical)
Frequency Ratio: 50 - 100MHz/V (Typical)
Output Impedance: 50Ω
Phase Noise: -80dBc/Hz @10kHz Offset (Typical)
Package: CK605
Color: Black
Material: PCB+Metal

Package Contents:
1 * Voltage Controlled Oscillator
