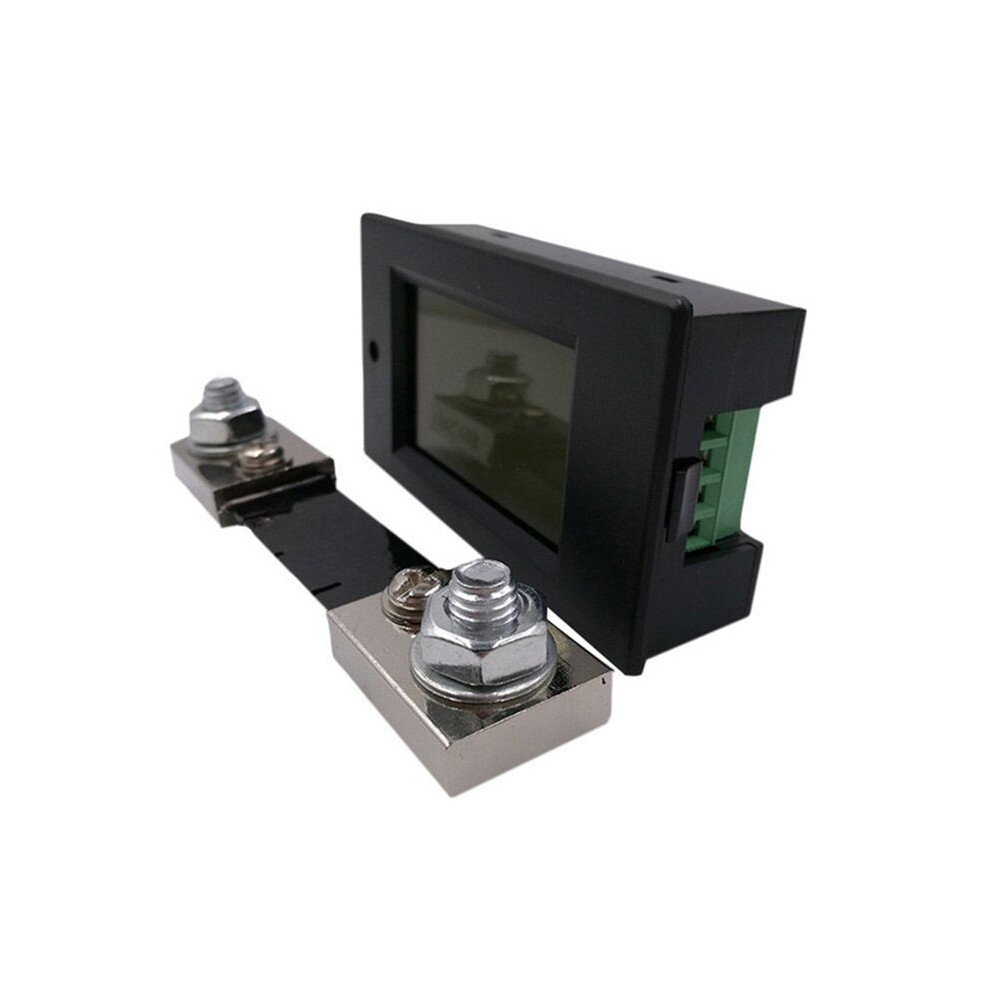

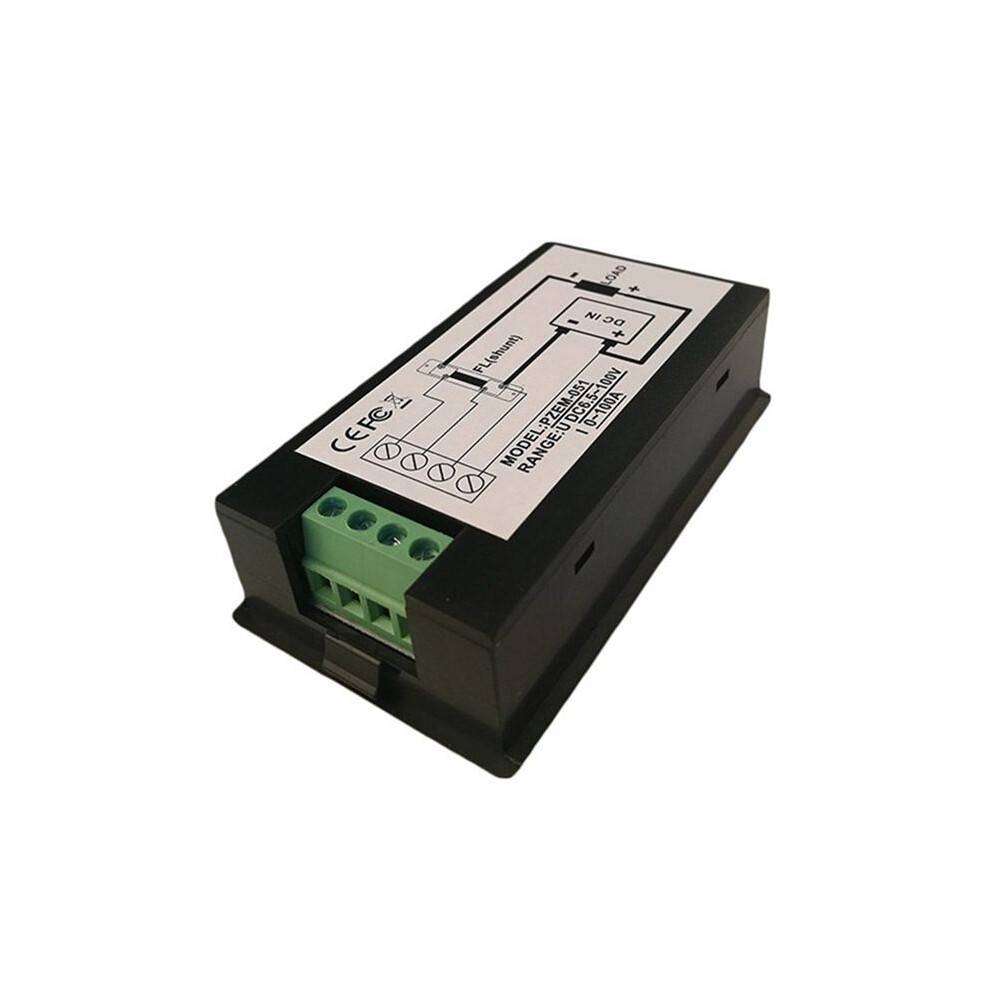

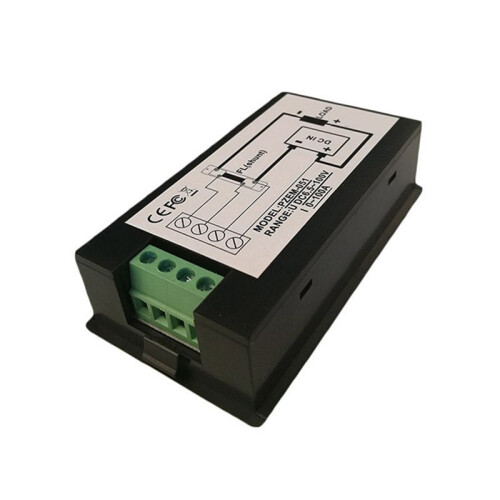

DC6.5-100V 0-100A LCD Display Digital Current Voltage Power Meter Multimeter Ammeter Voltmeter 100A Current Shunt

Descriere DC6.5-100V 0-100A LCD Display Digital Current Voltage Power Meter Multimeter Ammeter Voltmeter 100A Current Shunt

1. Voltage alarm function (over voltage alarm threshold, backlight and voltage flashing to alarm).
2. The reset function of key.
3. Store data when power off.
4. Backlight function.
Display format:1.Power:test range:0-10kW;Within 1KW,the display format is 0.0-999.9W;1KW and above,the display format is 1000-9999W.2.:test range:0-9999kWh;Within 10KWh,the display format is 0-9999Wh;10kWh and above,the display format is 10-9999kWh.

3.Voltage:test range:6.5-100V;Display format:6.50-99.99V
4.Current:test range:0-100A(0-20A);Display format:0.00-99.99
1.Reset
Step1:Long press the key until the power display area display "CLr",then release the key.
Step2:At this moment,the is flashing to prompt this is the reset state,if short press the key again,then the value is cleared and exit the reset flashing state.
Step 3:If there is no operation within 5 seconds,it means the value is not cleared and will exit the reset state.
2.Set voltage alarm threshold
Step1:Long press the key until the power display area display "SET",then release the key.
Step2:After enter this state,the voltage area display the current high voltage alarm value,the current area display the current low voltage alarm value and the last digit begin to flash,then you can short press to 1,when there is no operation over 3 seconds,it will the digit position automatically,from the high voltage alarm value to the low voltage alarm value,there are total six digits,the range of the voltage alarm threshold is 6.5 -99.9V;
Step3:After finish the setting,long press the key until the screen display "PASS" ,that means you set successfully and will exit the setting state automatically.
Colour:Black
Material:plastic

Package Contents:
1 * meter
1 * current shunt
