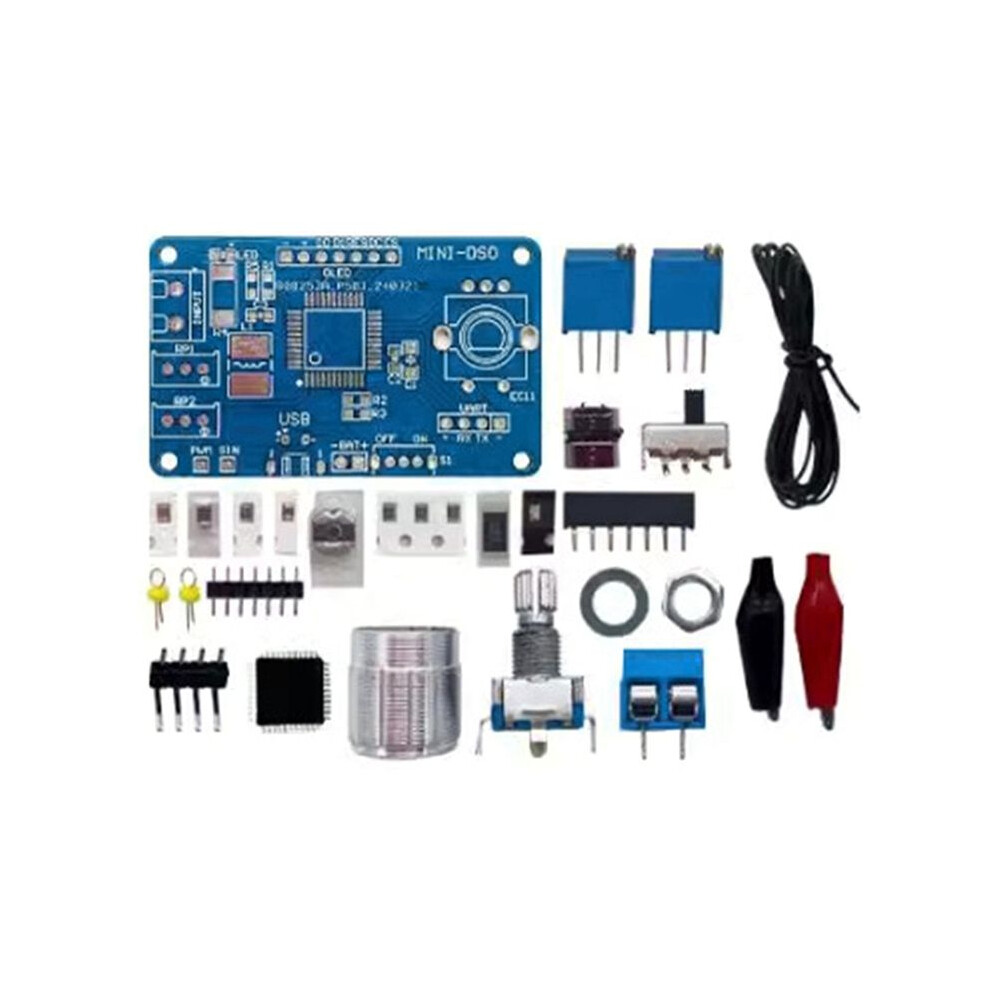

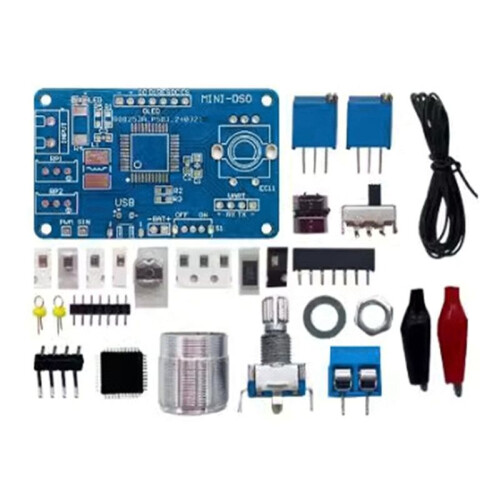

DIY Digital Oscilloscope Kit STC8K8A Microcontroller Electronic Soldering Practice Loose Parts

Descriere DIY Digital Oscilloscope Kit STC8K8A Microcontroller Electronic Soldering Practice Loose Parts

1. Indicator light: Usually, when the indicator light is , it indicates that the sampling is running,
2. There are three triggering modes: automatic mode, normal mode, and single mode
3. Trigger slope: The trigger slope determines whether the trigger point is the rising or falling of the signal
4. Trigger level: For repeated signals, the trigger level can stabilize their display. For a single signal, the trigger stage can capture it
5. Save Settings: When exiting the settings interface, all parameters of the settings interface and the main interface will be saved in EEPROM

Waveform generator: PWM (PWM generator) and SIN (sine wave generator), adjust RP1 and RP2 to change the amplitude respectively
Supply voltage: 5V(micro-usb)
Voltage range: 0-30V (LSB needs to be adjusted)
Level sampling: 10kHz 100us /div
Sec/div:500ms,200ms,100ms,50ms,20ms,
10ms, 5ms, 2ms, 1ms, 500us, 200us, 100us
Note:
Installation guide not included,
Please check as much as possible to make sure the item is what you need.
Tips: The product may be updated constantly ,Due To Different Batches, The Actual Product May Have Slight Differences Or Color Differences, Which Does Not Affect Use
Colour:Photo Color
Material:PCB

Package Contents:
1 x DIY Digital Oscilloscope Kit
