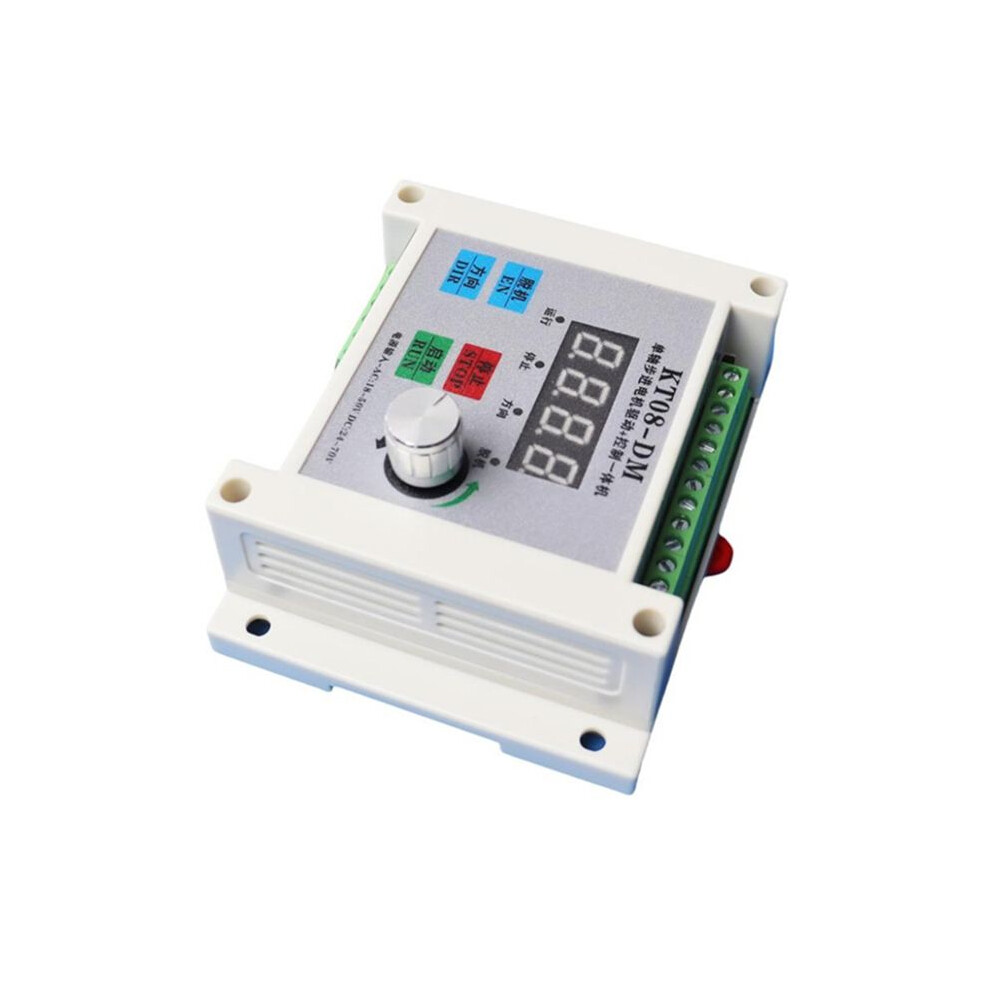

Driver Controller Integrated Stepper Motor Single Axis Pulse Generator KT08 Distance Travel/Angle/Direction
Brand Exogio
Nou
În stoc
De ce îți va plăcea să cumperi de la OnBuy:
- Câștigi Cashback la fiecare achiziție – folosește-l la următoarea comandă
- Livrare gratuită – la milioane de produse de pe site
- Clienții ne iubesc – 129,000 de recenzii cu evaluare “Excelent”
356,06 RON
492,64 RON
Reducere de 28%!
+21,21 RON livrare
1%
Câștigați 3,56 RON instant
Află mai multe
Prețurile articolelor vândute de OnBuy includ TVA.
Opțiuni de plată în rate fără dobândă disponibile
Vezi descrierea completă și detaliile produsului
Livrare: Standard (21,21 RON) | mar 4 - sâm 8 aug.
Returnări: 30 zile
Protecție la plată pentru 180 de zile
Cele mai populare în Huse pentru laptop
Descriere & Detalii
Rezumat
- KTO8-DM is a digital stepping motor driver+controller integrated machine, which adopts the latest 32-bit DSP digital processing technology, and the driver control algorithm adopts advanced variable current technology and advanced frequency conversion technology. The driver has less heat, less motor vibration and stable operation. Users can set any subdivision within 200-51200 and any current value within the rated current, which can meet the application needs of most occasions.
- Because of the built-in micro-segmentation technology, even under the condition of low segmentation, the effect of high segmentation can be achieved, and the low, medium and high-speed operation is very stable and the noise is ultra-small. The function of automatic parameter setting is integrated in the driver, which can automatically generate the optimal operating parameters for different motors and maximize the performance of the motors.
- The controller can control the machine and synchronously output and control the stepping motor and the servo motor. The motor speed is 0-4,000 rpm, the pulse is 50% square wave, and the frequency can reach 500KHz. External start/stop and direction can be controlled externally. It has the functions of speed regulation, timing and fixed length.
- Single-axis stepper controller
- Stepper motor driver controller
Descriere Driver Controller Integrated Stepper Motor Single Axis Pulse Generator KT08 Distance Travel/Angle/Direction
KTO8-DM is a digital stepping motor driver+controller integrated machine, which adopts the latest 32-bit DSP digital processing technology, and the driver control algorithm adopts advanced variable current technology and advanced frequency conversion technology. The driver has less heat, less motor vibration and stable operation. Users can set any subdivision within 200-51200 and any current value within the rated current, which can meet the application needs of most occasions.
Because of the built-in micro-segmentation technology, even under the condition of low segmentation, the effect of high segmentation can be achieved, and the low, medium and high-speed operation is very stable and the noise is ultra-small. The function of automatic parameter setting is integrated in the driver, which can automatically generate the optimal operating parameters for different motors and maximize the performance of the motors.
The controller can control the machine and synchronously output and control the stepping motor and the servo motor. The motor speed is 0-4,000 rpm, the pulse is 50% square wave, and the frequency can reach 500KHz. External start/stop and direction can be controlled externally. It has the functions of speed regulation, timing and fixed length.

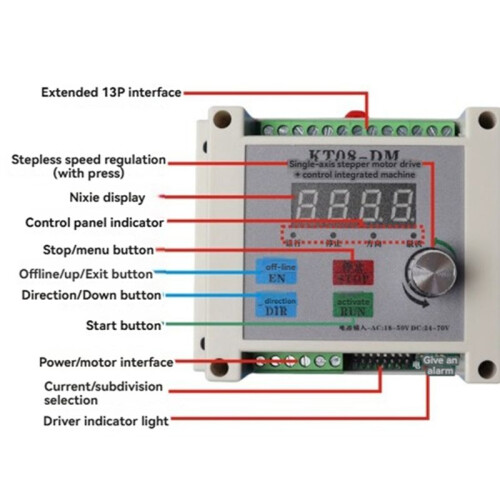

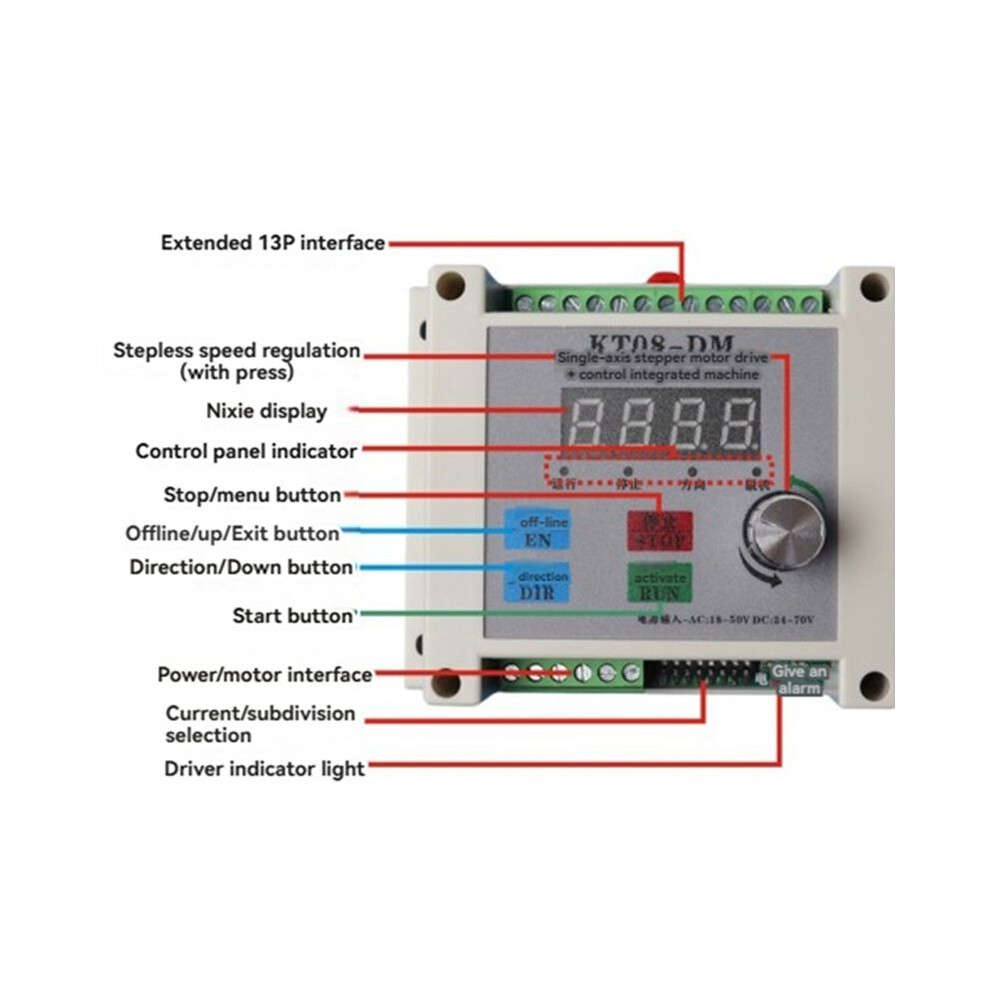

Features:
New 32-bit DSP technology
Ultra low vibration noise
Built-in high subdivision
Parameter power- automatically matches motor function.
Variable current control greatly reduces the heating of motor.
At rest, the current is automatically halved
Can drive 4, 6 and 8 wires two-phase stepping motor.
The voltage range is 24-700Vdc/ /20-50Vac AC, which is universal for AC and .
The current setting is convenient, and it can be arbitrarily selected between 2.1 and 5.6a.
The subdivision setting range is 200-51200, and the higher subdivision can be
Detalii
| OPC | PVXTYWS |
|---|---|
| Brand | Exogio |
| Coduri | 4714095955171 (EAN) |
| Informații despre produs și siguranță |

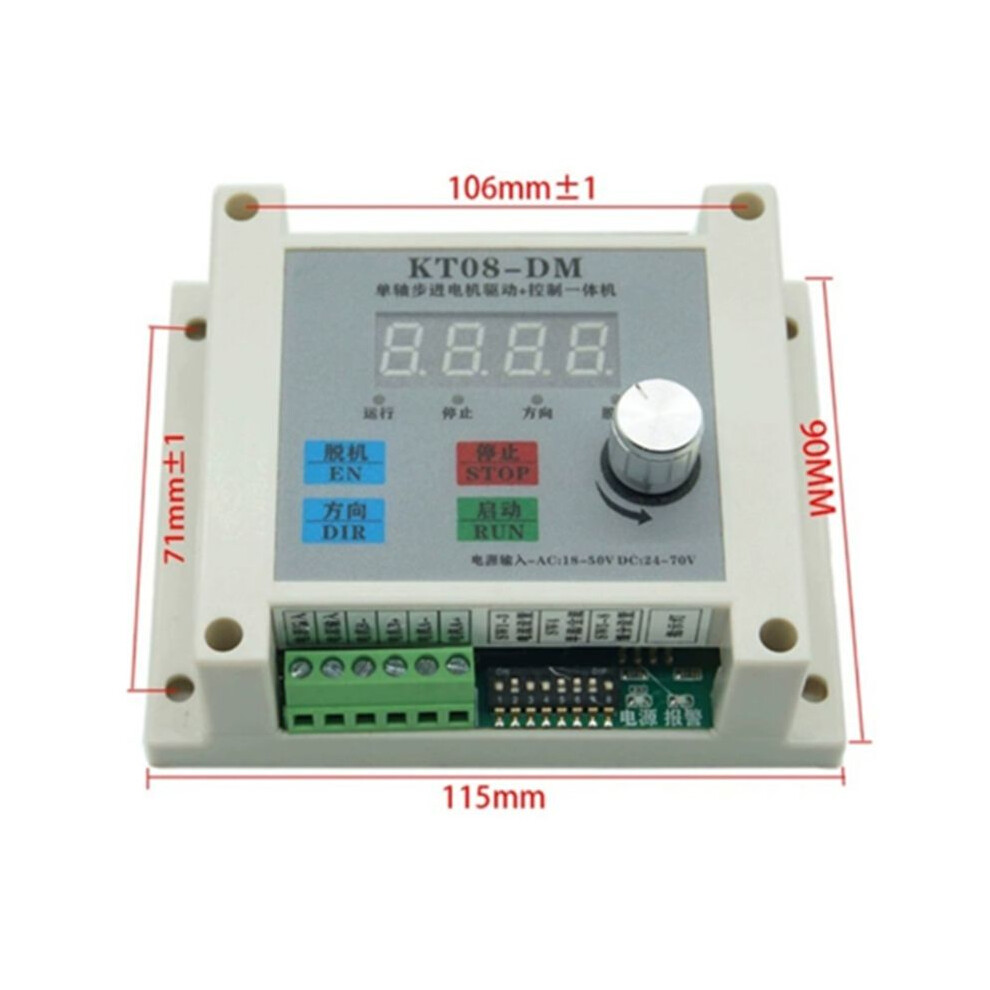

Date despre produs
| Height | 7cm |
|---|---|
| Width | 12cm |
| Length | 15cm |
| Weight | 1kg |
| Colour | As Shown |
| Material | ABS |
