ESP-Module-Prog-1 Burning Baseboard Designed for Modules Used As A Small Development Board Similar to ESP32-DevKitc

Descriere ESP-Module-Prog-1 Burning Baseboard Designed for Modules Used As A Small Development Board Similar to ESP32-DevKitc

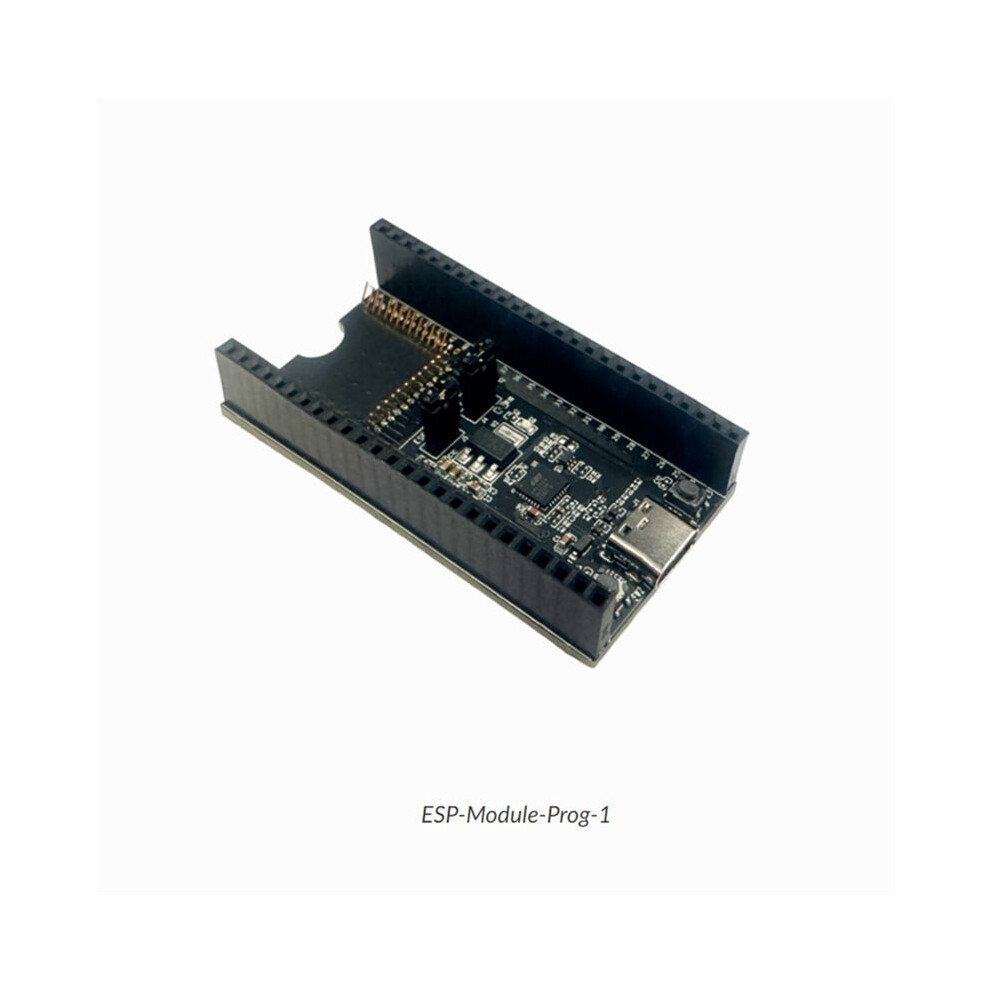

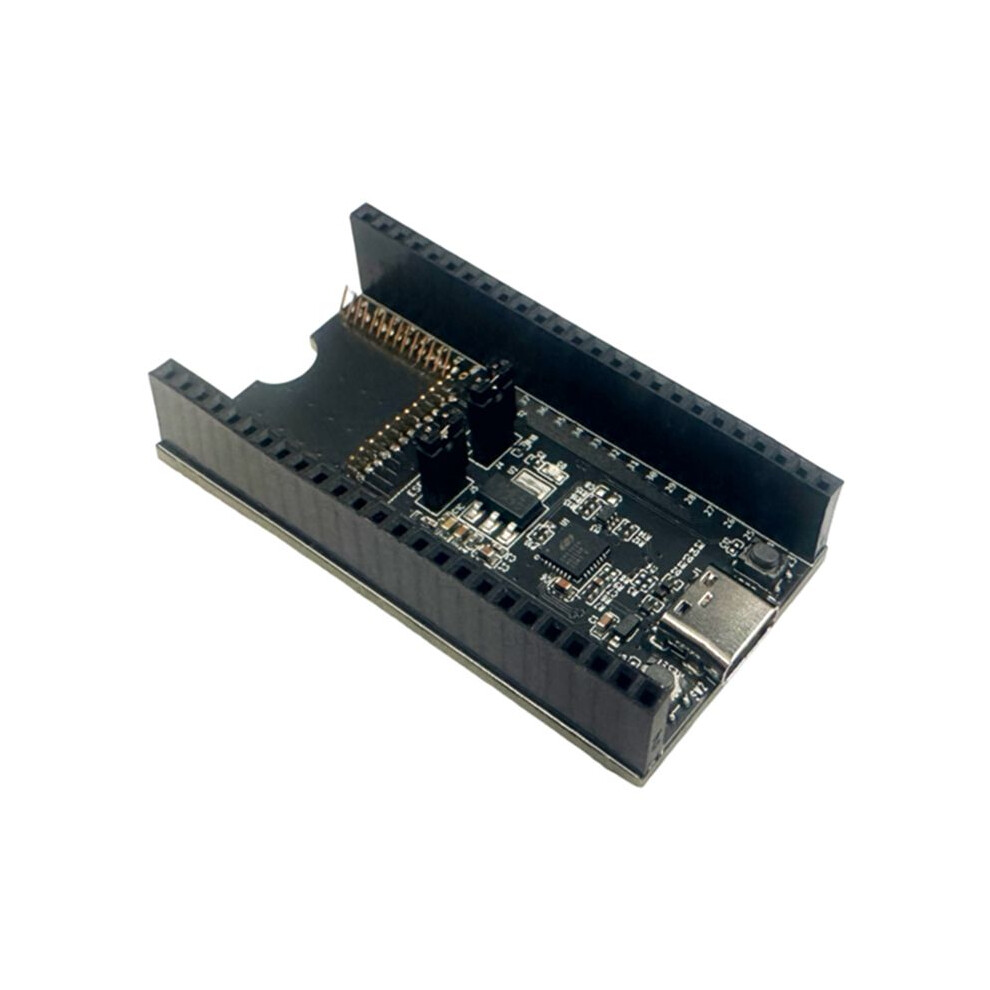

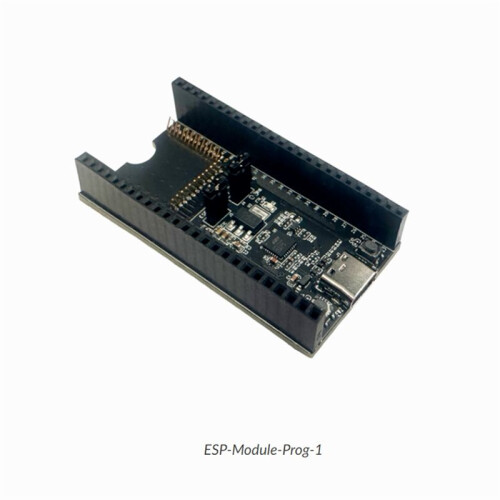

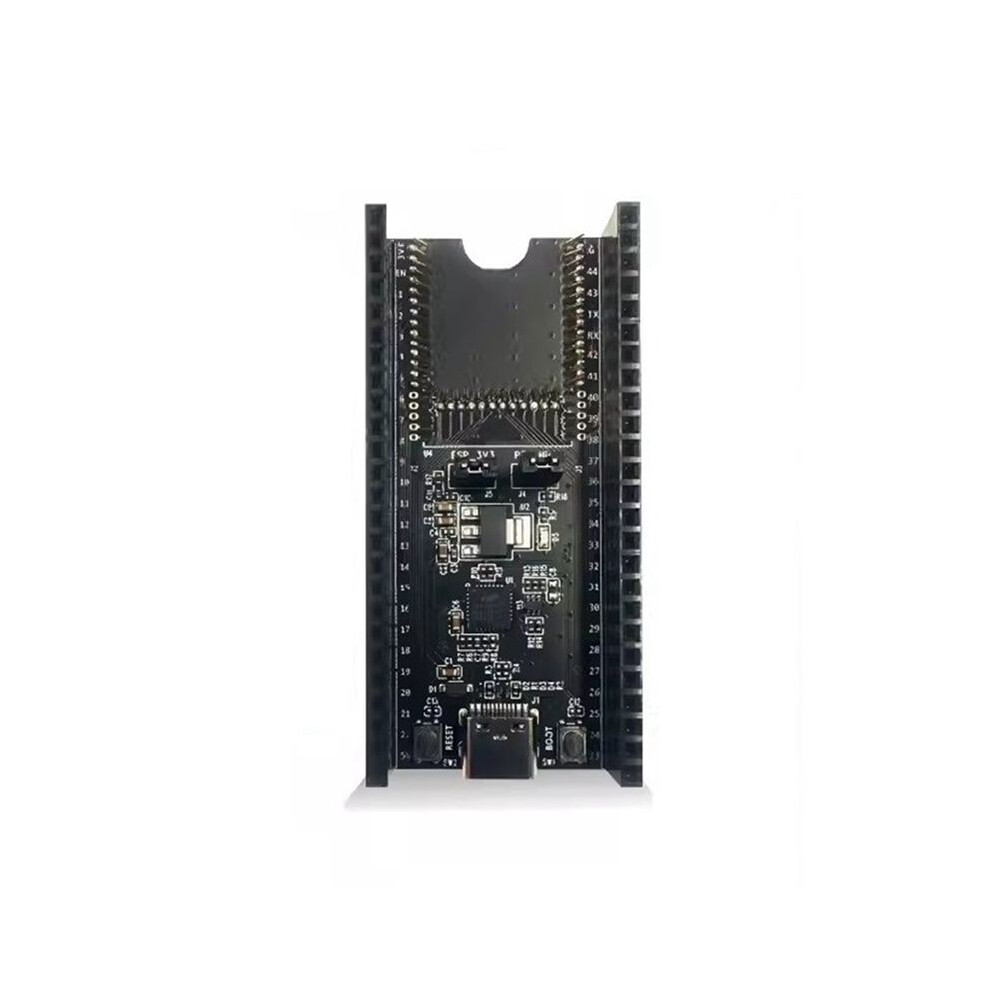

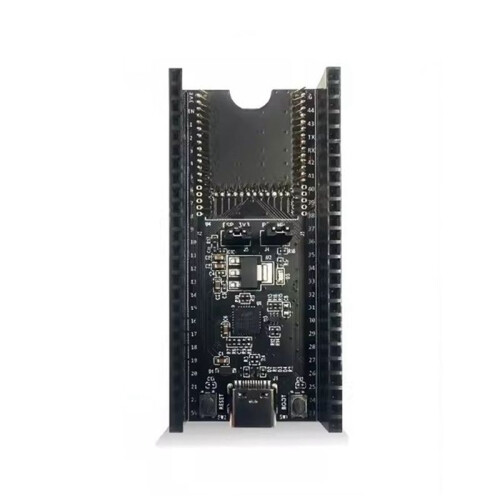

ESP-Module-Prog-1 is a burning board designed for modules. After the module is installed, it can be used as a small development board similar to ESP32-DevKitc.
No soldering required for programming: programming can be performed without soldering the module to the power and signal lines.
Supports programming of different module models.

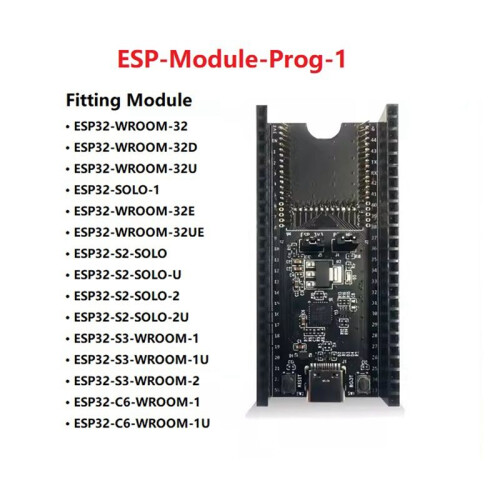

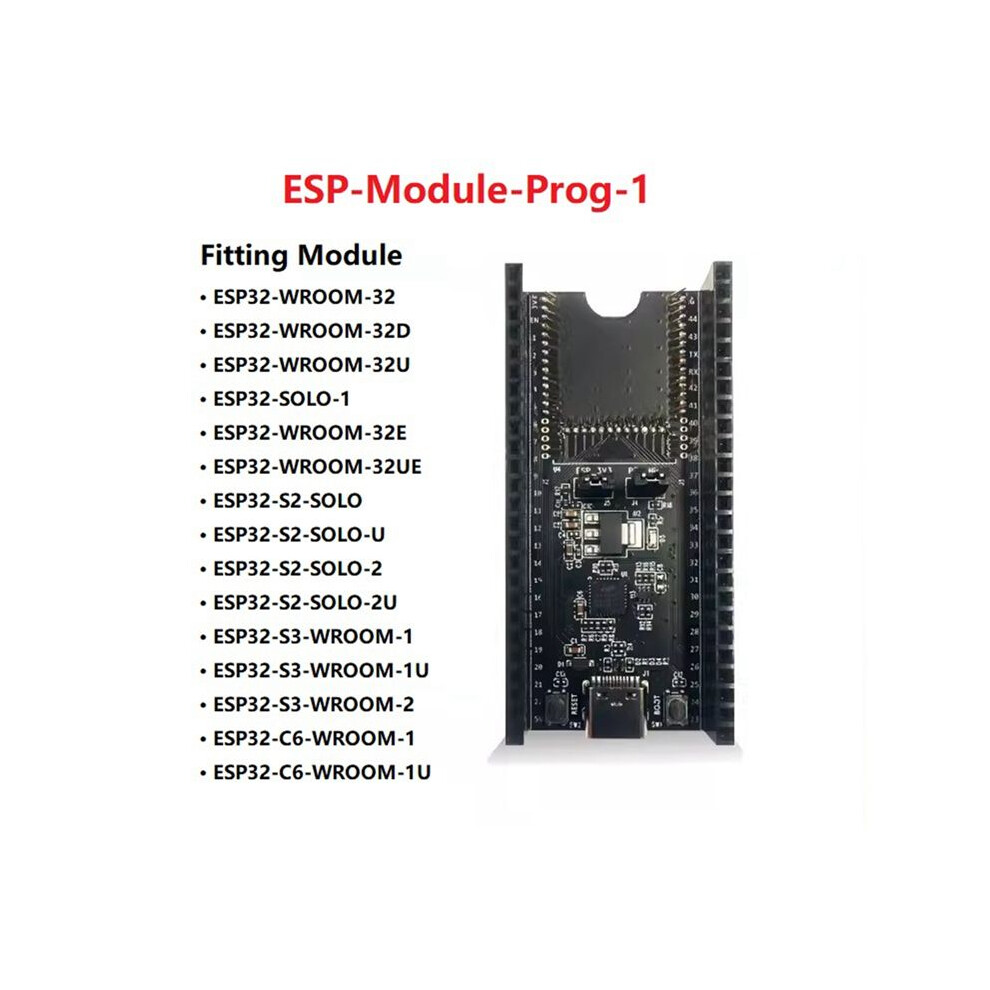

Compatible modules:ESP32-WROOM-32
ESP32-WROOM-32D
ESP32-WROOM-32U
ESP32-SOLO-1
ESP32-WROOM-32E
ESP32-WROOM-32UE
ESP32-S2-SOLO
ESP-Module-Prog-1
ESP32-S2-SOLO-U
ESP32-S2-SOLO-2
ESP32-S2-SOLO-2U
ESP32-S3-WROOM-1
ESP32-S3-WROOM-1U
ESP32-S3-WROOM-2
ESP32-C6-WROOM-1
ESP32-C6-WROOM-1U
Required hardware:
Any module listed above (not included)
USB-A to USB-C cable (not included)
Computer (Windows, Linux or macOS)
Please follow the steps below to install the module the ESP-Module-Prog-1 burning base:
Place the module gently the ESP-Module-Prog-1 burning base, and make sure the stamp hole above the module is aligned with the pin spring the base.
Press the module down, and you will hear a "click"sound, which means the module has been pressed into the base.
Check whether all the pin springs are inserted into the stamp holes. If you find any misalignment, use tweezers to push the pin spring into the stamp hole.
The hardware setup is complete, and you can proceed to the software setup.
Colour:Black
Material:PCB+electronic components

Package Contents:
1 x ESP-Module-Prog-1 burning baseboard
