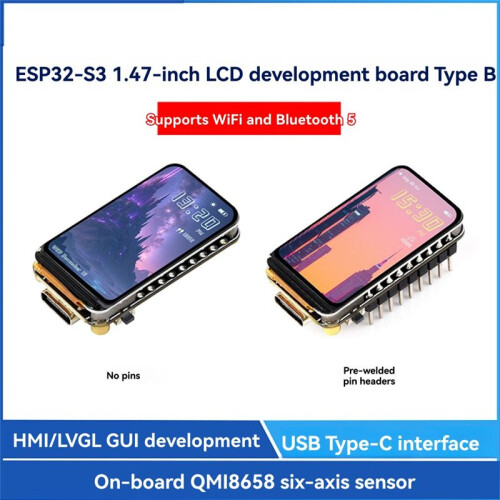

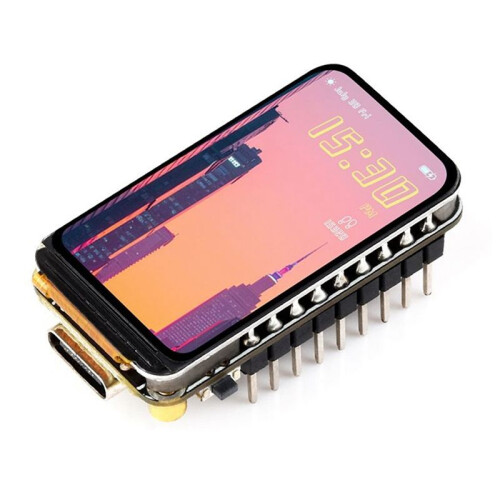

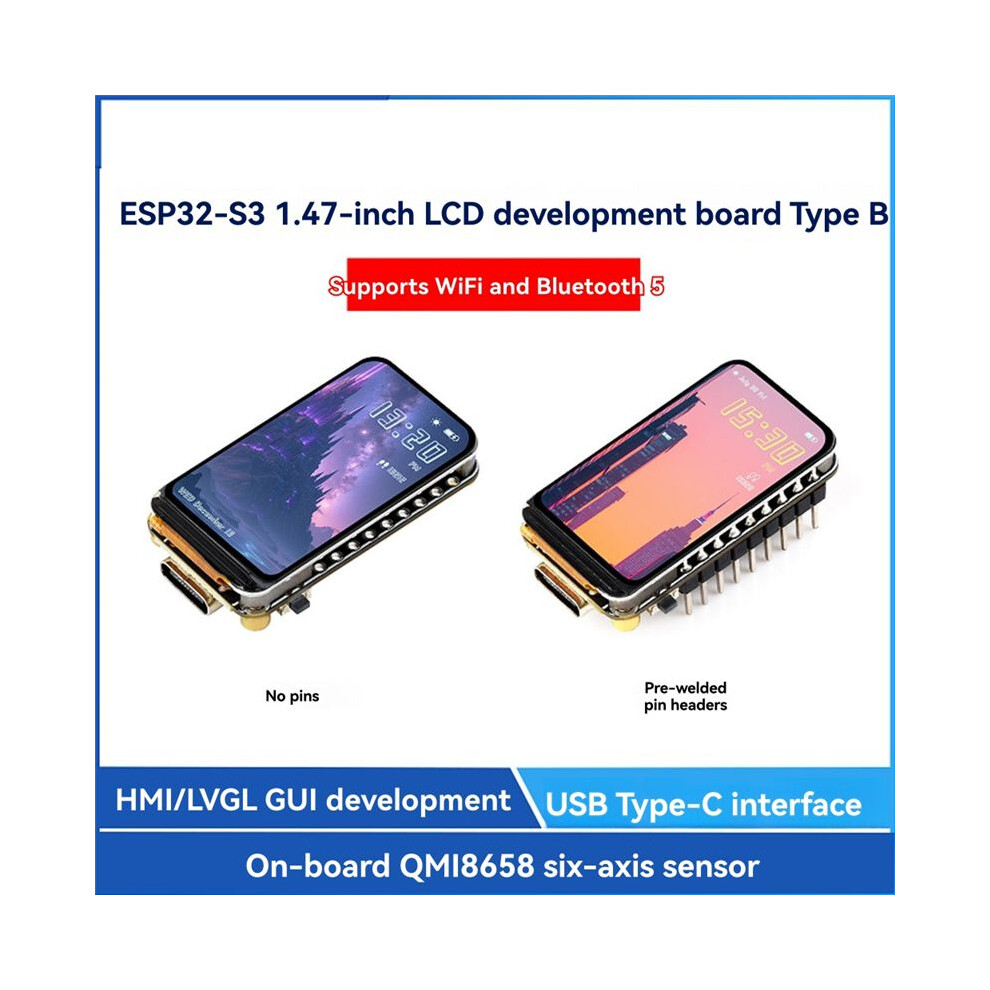

ESP32-S3 1.47-Inch Screen Development Board with Five-Point Touch, Supports WiFi and with Onboard Antenna B

Descriere ESP32-S3 1.47-Inch Screen Development Board with Five-Point Touch, Supports WiFi and with Onboard Antenna B

Equipped with a high-performance Xtensa 32-bit LX7 dual-core processor with a main frequency of to 240MHz.
Supports 2.4GHz Wi-Fi (802.11 b/g/n) and 5 (LE), with onboard antenna.
Onboard 512KB , 384KB ROM, 8MB PSRAM and 16MB Flash.
Onboard 1.47-inch LCD screen, 172x320 resolution, 262K color.
Lead out most GPIOs, integrated full-speed USB serial port.

This product is a microcontroller development board that supports 2.4GHz Wi-Fi and BLE 5. It integrates large-capacity Flash and PSRAM, has an onboard 1.47-inch LCD screen, can smoothly run GUI interface programs such as LVGL, and combines multiple peripheral interfaces to quickly develop HMI applications for ESP32-S3.
Onboard QMI8658 six-axis inertial measurement unit (3-axis acceleration, 3-axis gyroscope), which can detect device deflection status, step counting and other functions
Onboard RGB color lamp beads, with transparent acrylic interlayer to achieve cool lighting effects
Onboard Micro- card slot, can be connected to an external Card storage for pictures or files
Onboard battery charging management module allows access to batteries to power the device
Supports flexible clocks, multiple power modes and other accurate control to achieve multi-scenario low power consumption mode
Display size: 1.47 inches
Resolution: 172x320 pixels
Display chip: ST7789
Color range: 262K
Display interface: 3-wire SPI
Display panel: IPS
Due to different batches, there may be differences in product appearance, color, and printed text, which will not affect the use.

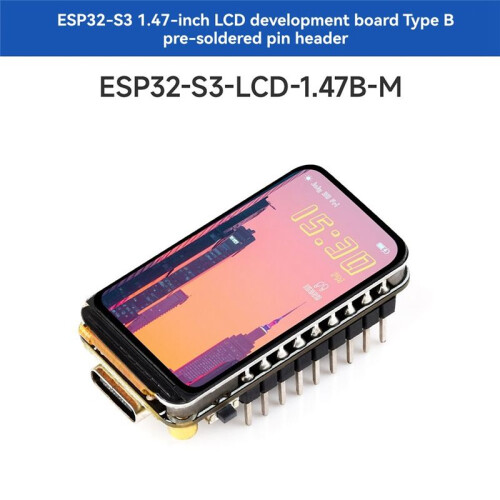

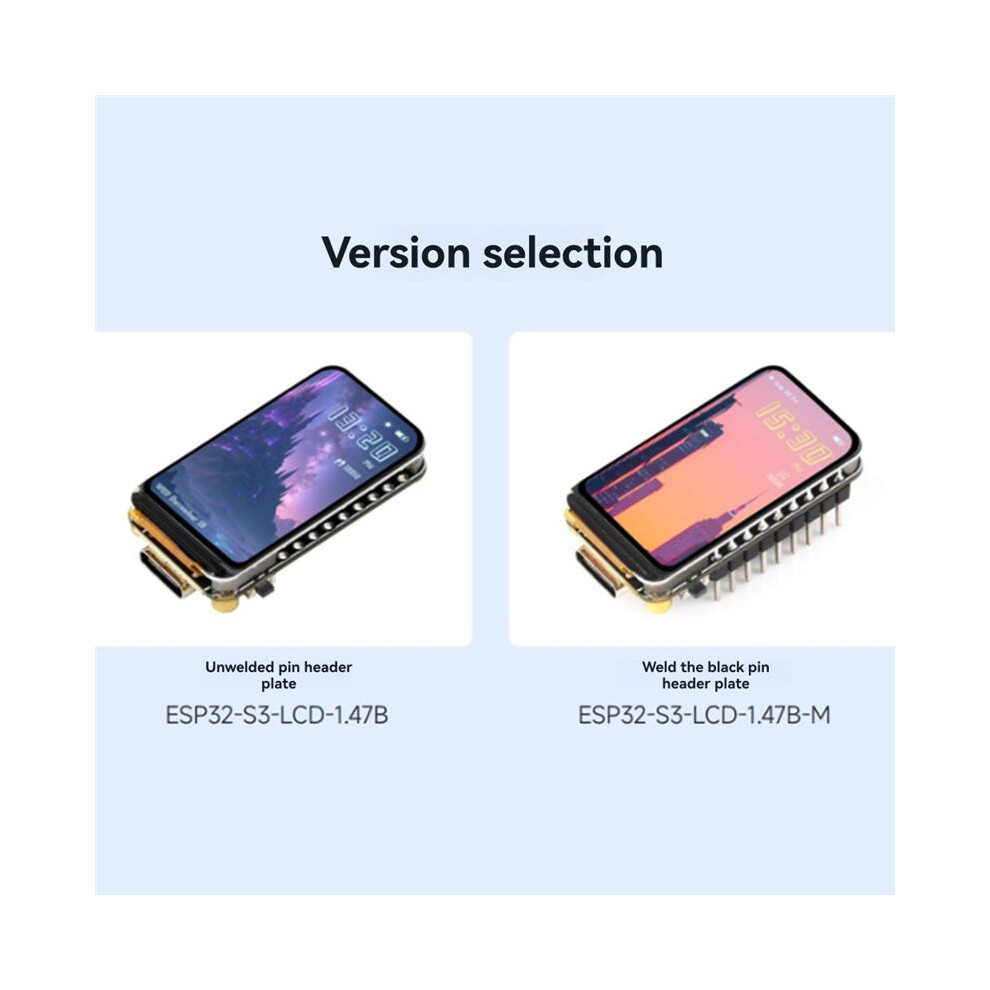

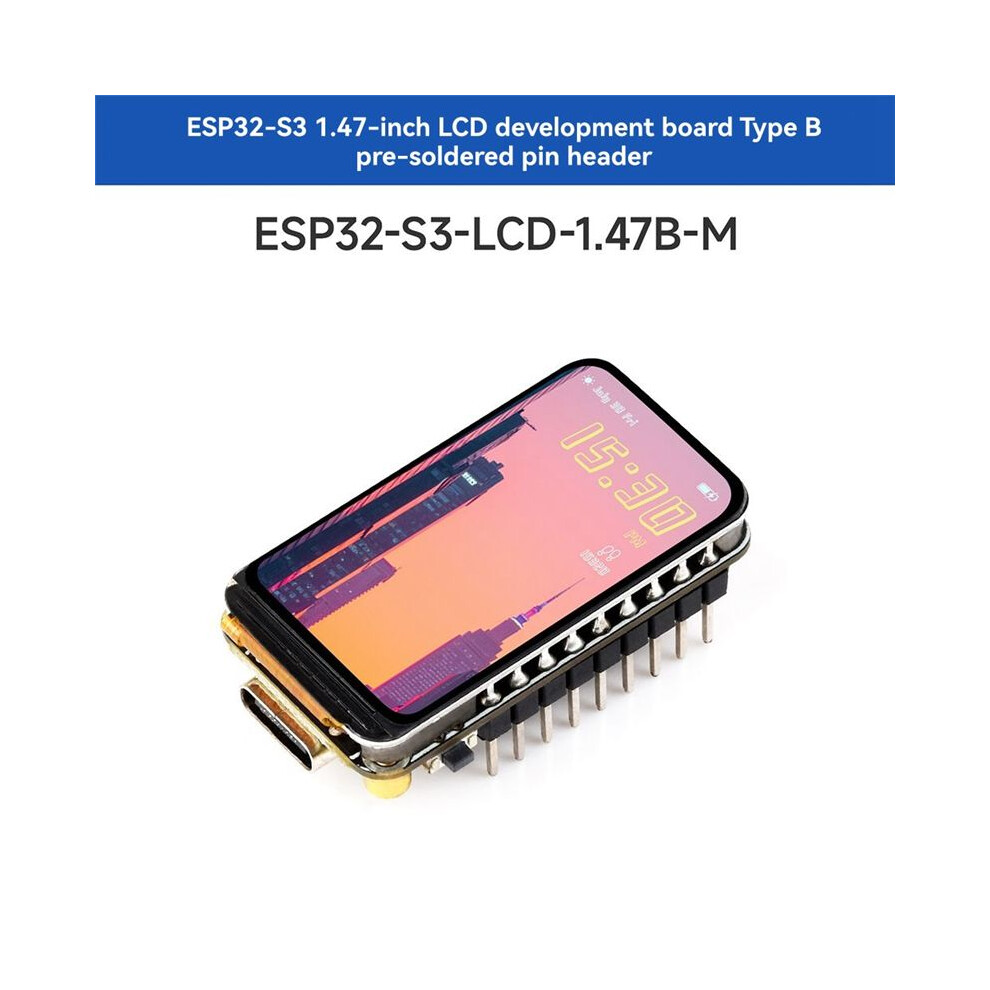

Specifications: B: Soldered black pin header version
Color: As Shown
Material: PCB

Package Contents:
1 x 1.47 inch screen development board kit
