Descriere & Detalii
Rezumat

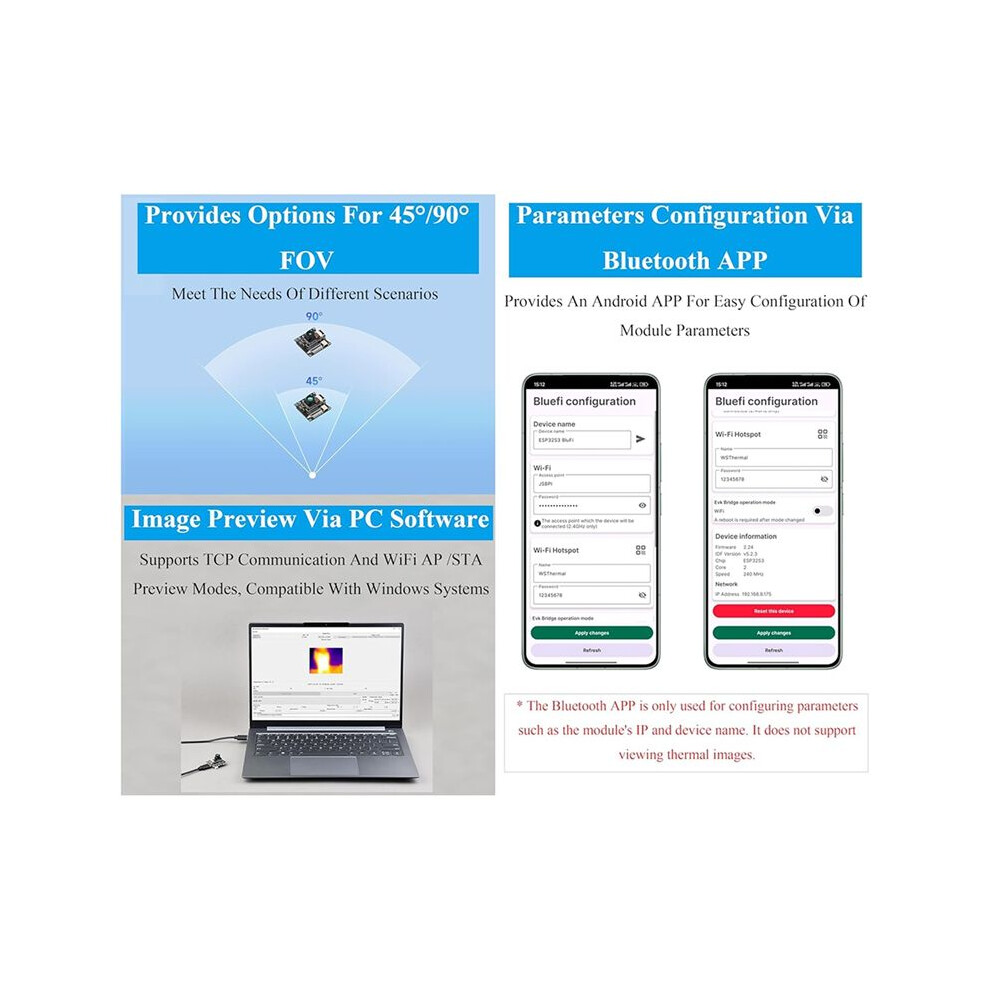

- This is a wireless IR thermal imaging camera 45°FOV (Field of View) based on the ESP32-S3-WROOM-1 chip, adopts the hybrid technology of microbolometer and thermopile pixel, features 80x62 array pixels. Compact size design, more space-saving, making it ideal for embedded applications.
- It will detect the IR distribution of objects in the field of view, turn the data into the surface temperature of the objects by calculation, and then generate thermal images. It integrates a recharge and discharge circuit, with onboard Li thi-um ba tte-ry header for flexible power supply.
- Equipped with ESP32-S3-WROOM-1 Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency, offering powerful data processing capabilities. Supports 2.4GHz WiFi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna.
- Built in 512KB of SRAM and 384KB ROM, with onboard 8MB PSRAM and an external 16MB Flash memory. Type-C connector, enhancing device compatibility and user convenience.
- Onboard RGB LED indicator for real-time monitoring the operating status of the module. Supports Ba tte-ry Power Supply: Onboard 3.7V MX1.25 Li thi um ba tte-ry recharge / discharge header for flexible power supply solution, extending device operation time. Onboard 2 x 10 solder pads, including 14 x GPIO, 1 x I2C, and 1 x UART, for external device expansion.
Descriere ESP32-S3 IR Thermal Imaging Camera Module,Equipped with ESP32-S3-WROOM-1,80x62Pixels IR Array,ExternalDevice Expansion A
This is a wireless IR thermal imaging camera 45FOV (Field of View) based the ESP32-S3-WROOM-1 chip, adopts the hybrid technology of microbolometer and thermopile pixel, features 80x62 array pixels. Compact size design, more space-saving, making it ideal for embedded applications.
It will detect the IR distribution of objects in the field of view, turn the data into the surface temperature of the objects by calculation, and then generate thermal images. It integrates a recharge and discharge circuit, with onboard Li thi-um ba tte-ry header for flexible power supply.
Equipped with ESP32-S3-WROOM-1 Xtensa 32-bit LX7 dual-core processor, to 240MHz main frequency, offering powerful data processing capabilities. Supports 2.4GHz WiFi (802.11 b/g/n) and 5 (LE), with onboard antenna.
Built in 512KB of and 384KB ROM, with onboard 8MB PSRAM and an external 16MB Flash memory. Type-C connector, enhancing device compatibility and user convenience.
Onboard RGB LED indicator for real- monitoring the operating status of the module. Supports Ba tte-ry Power Supply: Onboard 3.7V MX1.25 Li thi um ba tte-ry recharge / discharge header for flexible power supply solution, extending device operation . Onboard 2 x 10 solder pads, including 14 x GPIO, 1 x I2C, and 1 x UART, for external device expansion.
Specifications:A:Thermal-45 Camera ESP32 Module
Color:As Shown
Material:Metal
Package Contents:
1 * ESP32-S3 IR Thermal Imaging Camera Module
Detalii
| OPC | PWYQYJZ |
|---|---|
| Coduri | 6032515473783 (EAN) |
| Informații despre produs și siguranță |
Date despre produs
| Height | 4cm |
|---|---|
| Width | 10cm |
| Length | 14cm |
| Weight | 0.083kg |
| Colour | As Shown |
| Size | A |
| Material | Metal |
