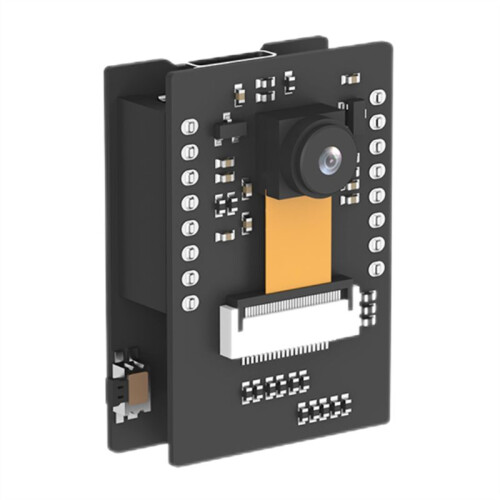

ESP32-S3 Wifi Camera Module AI Vision Module Support WiFi Video Transmission Face and Color Recognition Dual-Mode Kit

Descriere ESP32-S3 Wifi Camera Module AI Vision Module Support WiFi Video Transmission Face and Color Recognition Dual-Mode Kit

Tpye-C interface:Serial communication, firmware burning
Female header:Connect ESP32S3-Cam module
Reset button:Description Press to restart the program
IIC/UART Interface:Secondary development interface, connected with the main control
User Button:Description User-defined extension development

Camera parameters
Pixel:200W
Field of View Angle:123
Pin description
ESP32 S3-Cam vision module parameters
Dimensions: 27x42x19mm
Power supply range: 4.75-5.25V
Operating temperature: -20-70
Storage environment: -40 to 125 Greater than 90%RH
The default SPI Flash is 32Mbit
RAM Internal 520KB+ external 8MPSRAM
4.2BR/EDR and BLE standards
The serial port rate supports 115200bps by default
Image output format JPEG (OV2640 only supported)BMP GRAYS
WiFi 802.11b /g/n/e/i
Supports interfaces UART, SPi, I2C, and PWM
Number of I/O 9
Antenna form Onboard PCB antenna gain 2dB
The spectrum ranges from 2400 to 2483.5MHz
Colour:As Shown
Material:plastic

Package Contents:
1 * ESP32S3-CAM Vision Module

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
