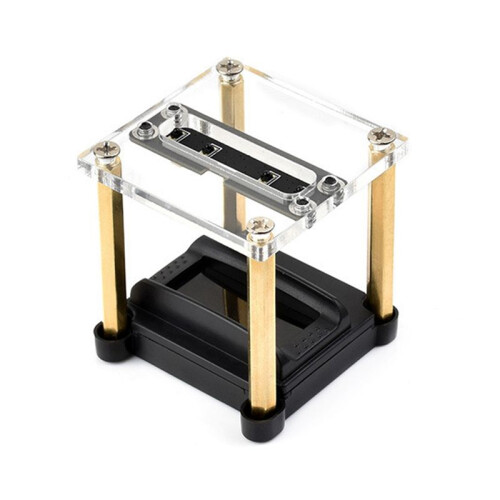

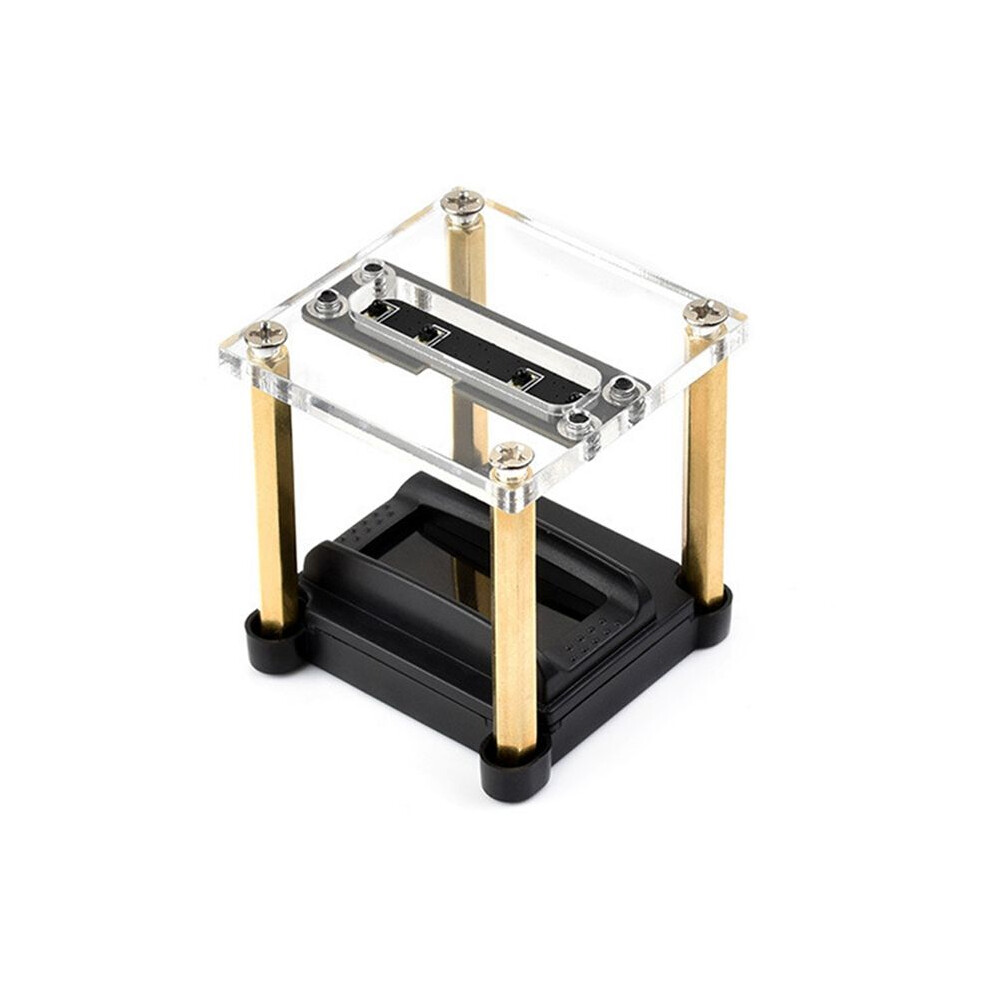

Finger Vein Scanner Module 192MHz 32-Bit ARM Cortex-M4F Support 100 ID User Capacity for Door Lock

Descriere Finger Vein Scanner Module 192MHz 32-Bit ARM Cortex-M4F Support 100 ID User Capacity for Door Lock

This product is a finger vein recognition module based a 32-bit ARMCortex-M4F processor with a main frequency of to 192MHz, supporting floating-point operations and DSP instruction sets, and can efficiently run biometric algorithms
The module adopts a light-board separated structure design, which is easy to embed into various terminal devices and improve the integration of the whole machine
The module interface is compatible with the fingerprint recognition industry standard protocol, has good platform adaptability and scalability, and supports rapid development and deployment
The vein module adopts a closed design method, with no exposed devices except the wiring terminals, and the waterproof level reaches IP56, with industrial-level three-proof standards
It is widely used in door locks, push-pull or hidden handles, small lockers, access control and attendance systems and other security equipment to help achieve high-precision and high-reliability identity authentication solutions

SOC:192MHz 32-bit ARM Cortex-M4F microprocessor
User capacity: 100 IDs
Recognition speed: Less than 1s
Comparison method: 1:1 or 1:N
Vein template data: single template less than equal 1K bytes
False acceptance rate (FAR): Less than 0.0001% (at high security level)
False rejection rate (FRR): 0.01% (at higher security level)
Communication interface:
USB: Adaptive USB driver-free (Windows)
UART: 3.3V TTL, default baud rate: 57600bps
Operating voltage: 3.3V (3%)
Operating current: 19.5mA
Sleep current: less than equal 5uA
Fireproof grade: UL94-5VB
Waterproof grade: IP56 (except port and light board)
The product appearance and printed words may vary depending the batch, but this does not affect use.
Colour:Black
Material:plastic

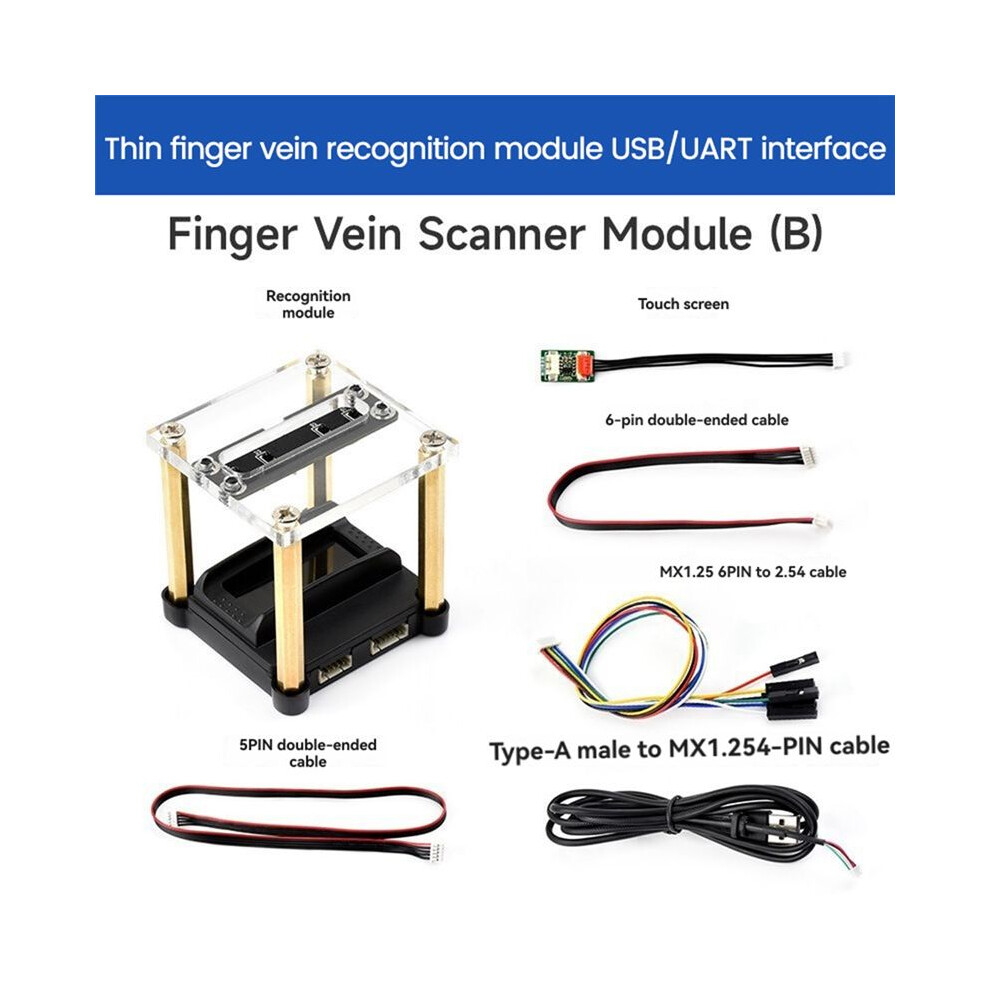

Package Cont
