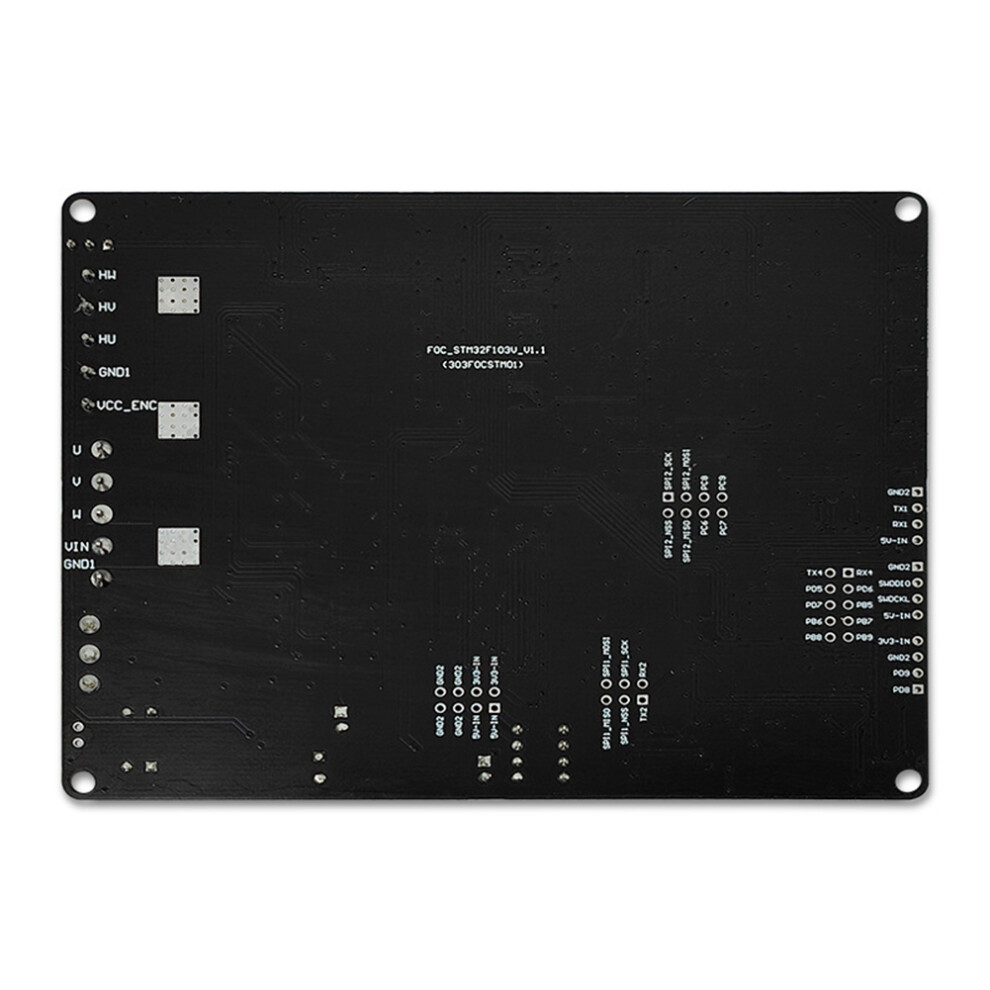

FOC Brushless Motor Driver Board BLDC Current Voltage Isolation Acquisition STM32F103VET6
În stoc
De ce îți va plăcea să cumperi de la OnBuy:
- Câștigi Cashback la fiecare achiziție – folosește-l la următoarea comandă
- Livrare gratuită – la milioane de produse de pe site
- Clienții ne iubesc – 132,000 de recenzii cu evaluare “Excelent”
Prețurile articolelor vândute de OnBuy includ TVA.
Opțiuni de plată în rate fără dobândă disponibile
Vezi descrierea completă și detaliile produsului
Livrare: Standard (45,39 RON) | vin 4 - joi 10 sept.
Vândut de: CollBea
Returnări: 30 zile
Protecție la plată pentru 180 de zile
Rezumat
- Adopt STM32F103VET6 as the main control MCU
- Use PWM signal isolation drive, logic chip with short circuit protection for upper and lower tubes
- 3-way discrete high and low side gate driver IR2110 and 6 NMOS tubes form BLDC drive circuit, with Hall encoder isolation circuit and hardware overcurrent protection circuit with rapid response
- Can be used to control the smooth and high-precision operation of Hall sensor BLDC brushless motor within 3000RPM 10A
- Reserve bus voltage isolation detection, NTC thermal protection detection, three-phase back electromotive force isolation detection, three-phase current isolation detection circuit to facilitate secondary development
Descriere FOC Brushless Motor Driver Board BLDC Current Voltage Isolation Acquisition STM32F103VET6
Adopt STM32F103VET6 as the main control MCU
Use PWM signal isolation drive, logic chip with short circuit protection for upper and lower tubes
3-way discrete high and low side gate driver IR2110 and 6 NMOS tubes form BLDC drive circuit, with Hall encoder isolation circuit and hardware overcurrent protection circuit with rapid response
Can be used to control the smooth and high-precision operation of Hall sensor BLDC brushless motor within 3000RPM 10A
Reserve bus voltage isolation detection, NTC thermal protection detection, three-phase back electromotive force isolation detection, three-phase current isolation detection circuit to facilitate secondary development
Adopts STM32F103VET6 Arm 32-bit Cortex-M3 CPU
Adopts 3-way IR2110STRPBF gate driver, PWM isolation circuit, short-circuit prevention logic circuit, and 6 NMOS tubes to form the BLDC drive part
Supports 3000RPM brushless motor with Hall encoder by default
Supports maximum load current by default: 10A, exceeding 10A will automatically trigger hardware short-circuit protection
Power supply voltage: DC12-40V;
Onboard 5V and 3.3V isolated power output
Colour:Black
Material:PCB
Package Contents:
1 x Brushless Motor Control Driver Board
Detalii
| OPC | PWTWVNK |
|---|---|
| Coduri | 6031153668667 (EAN) |
| Informații despre produs și siguranță |
Date despre produs
| Height | 2cm |
|---|---|
| Width | 12cm |
| Length | 15cm |
| Weight | 0.078kg |
| Colour | Black |
| Material | PCB |
