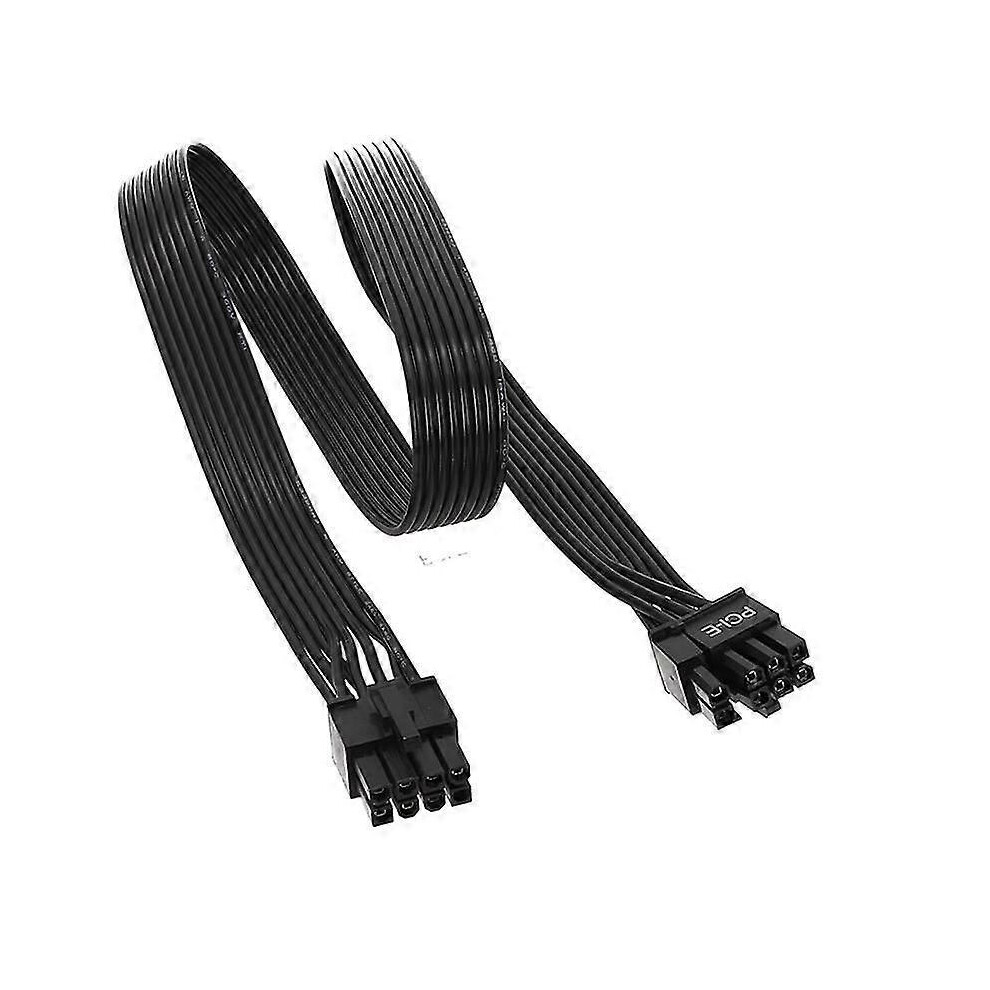

For Corsair PCI-E GPU Power Cable 8-PIN to 6+2PIN Graphics Card Module Cable

Descriere For Corsair PCI-E GPU Power Cable 8-PIN to 6+2PIN Graphics Card Module Cable

For Corsair PCI-E GPU Power Cable 8-PIN to 6+2PIN Graphics Card Module Cable Features: 1. UL1007 18AWG tinned copper core with high current terminals, current up to 10A 2. Compatible with Corsair Modular Power Supplies: AX1600i (Titanium), AXi, AX (Titanium and Platinum), HXi, HX (Platinum and Gold), RMi, RMX, RM, SF, CS-M, CX-M, TX-M 3. Compatible with Thermaltake modular power supplies: RGB GOLD, RGB PLATINUM, ARGB GOLD, Toughpower TF1 GF1 PF1 GF3 SFX 4. Compatible with ARESGAME Modular Power Supplies: AGK750, AGK850, AGT1000, AGS750, AGS850 5. NOT COMPATIBLE WITH CORSAIR PSU: AX1200, AX (Gold), HX (Bronze and White). Not compatible with other brands of modular power supplies! 6. Please insert the [PSU] single male connector into the modular power supply; please insert the 6+2 pin [PCI-E] into the GPU (graphics card) 7. Warm Tips: The difference between Corsair Type-3 and Type-4 specifications is the MB module cable. the Type-3 MB module cable is a 14+10PIN design, while the Tpye-4 MB module cable is an 18+10PIN design. The EPS (CPU) cable and the PCIE (GPU) cable are the same for both Type-3 and Type-4. The Type-3 and Type-4 EPS (CPU) cables and PCIE (GPU) cables are identical. Specification: Product Name GPU power cable 8pin to 6+2PIN graphics card module cable Product length: single head 60/80cm, double head 60+15cm/60+20cm Cable type: 2468-18AWG 41*0.16TS safety wire Conductor material: tinned copper Wire Color: Black Product interface: 8PIN PSU/6+2PIN PCI-E Product role: 8PIN PSU directly connected to the power module end of the 8PIN interface, turn out the magic 8PIN 6+2PIN PCI-E interface, to the graphics card 8PIN or 6PIN power supply! Package Includes: 1* Power Cord Note: There may be slight size deviations due to manual measurement, different measuring methods and tools. The picture may not reflect the actual color of the item because of different photographing light, angle and display monitor.
