For Display Base FPGA-GW1NR 720P (1280x720) Max Output,Built-in LT8618SX,Compatible with for M5Stack ATOM Series

Descriere For Display Base FPGA-GW1NR 720P (1280x720) Max Output,Built-in LT8618SX,Compatible with for M5Stack ATOM Series

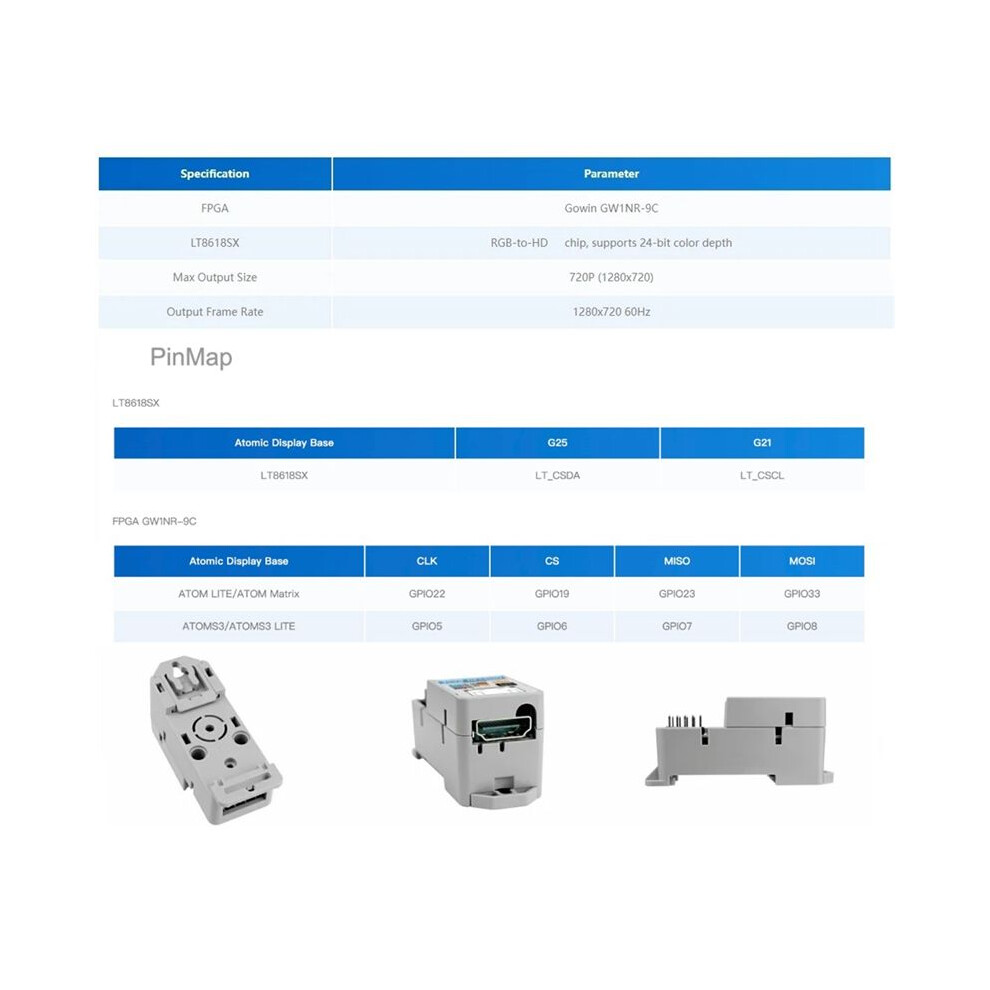

Uses FPGA (Gowin GW1NR-9C)
Built-in LT8618SX RGB-to-high-definition multimedia signal chip (supports 24-bit color depth)
SPI interface (FPGA) + I2C interface (LT8618SX)
Maximum 720P (1280x720) image output
Various output modes with optimized frame rates of to 12 - 16 FPS

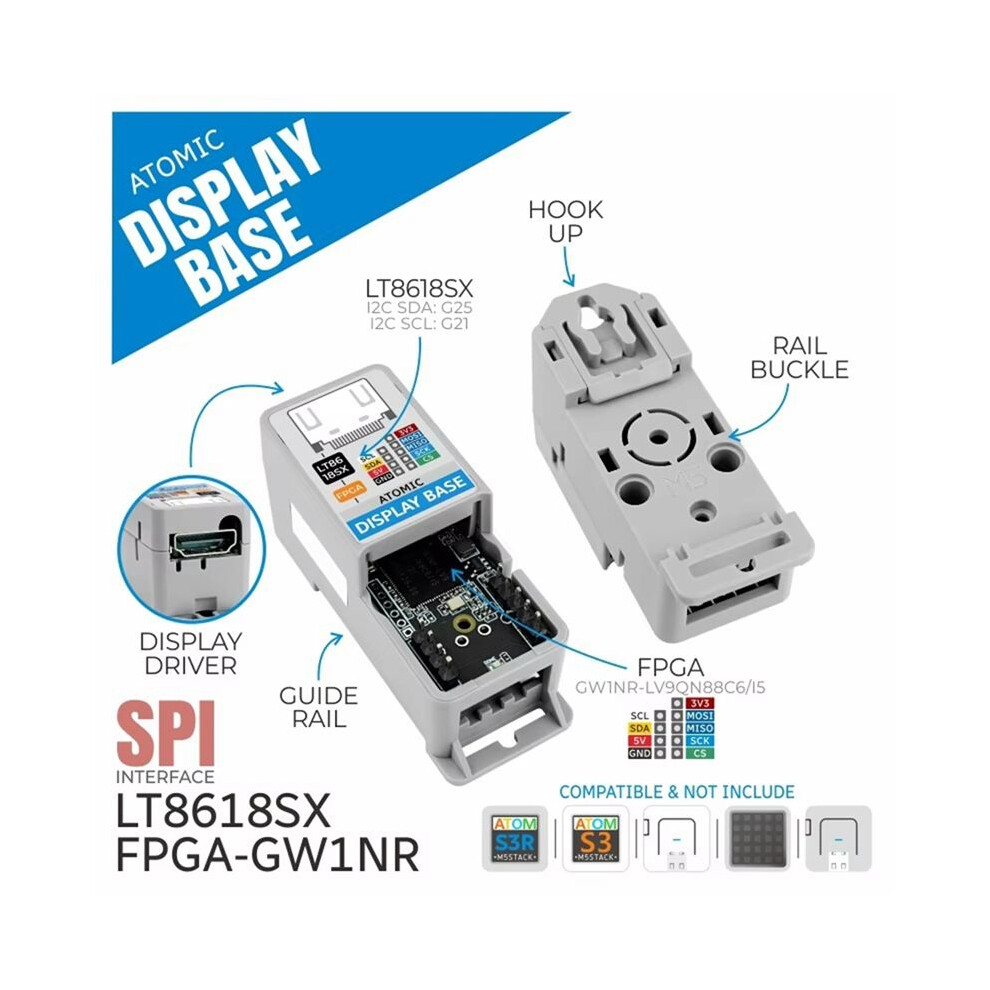

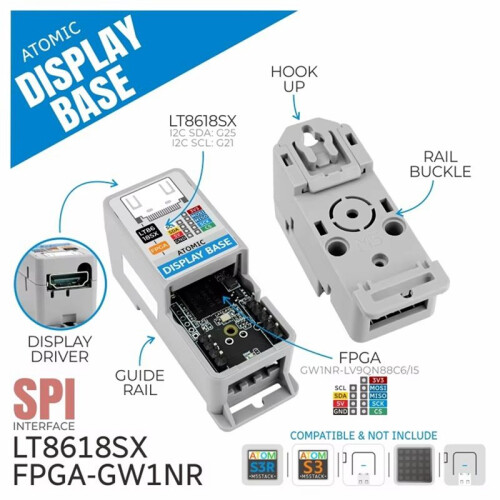

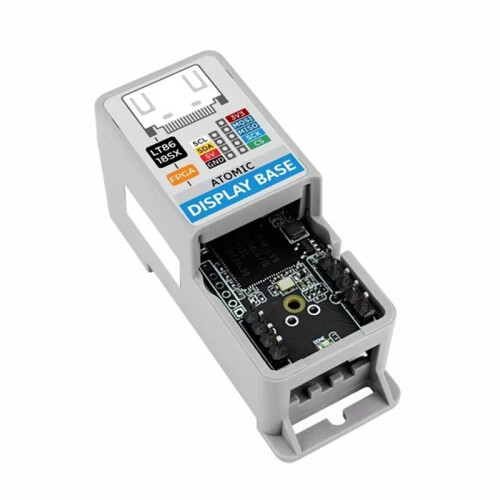

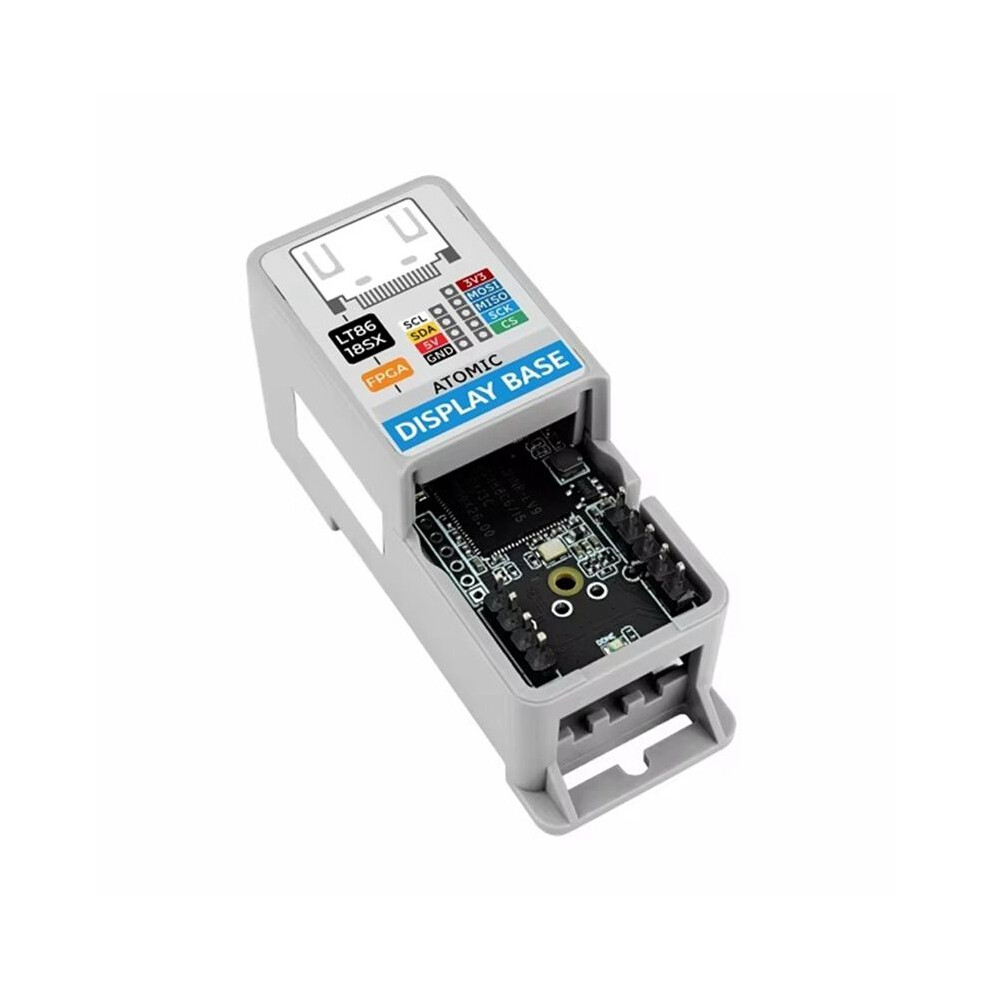

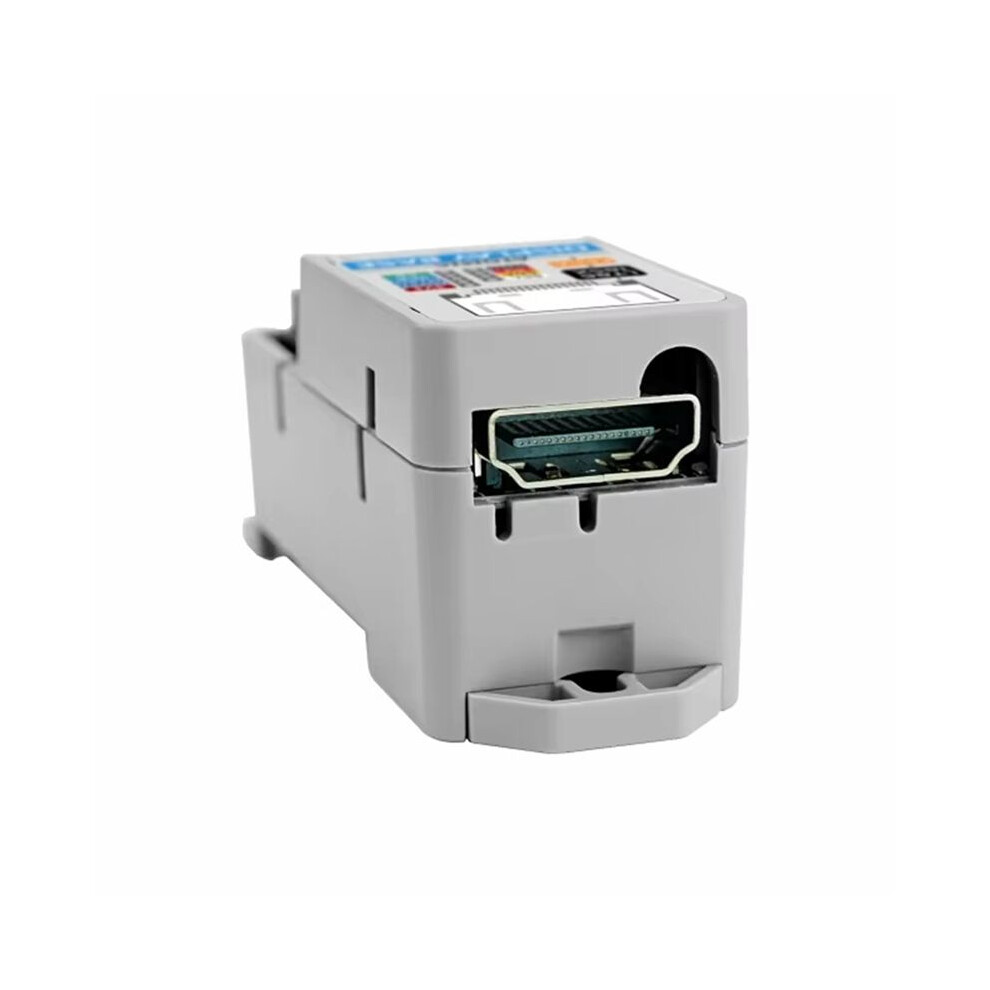

for Display Base is a high-definition display driver unit that uses FPGA to emulate traditional SPI TFT-LCD data output, supporting to 720P (1280x720) image output. It achieves broad compatibility for display output through a dedicated RGB-to-high-definition multimedia signal chip. Users can pair it with the ATOM series hosts to meet different memory and application requirements.
The for Display Base can replace traditional PC-controlled display panel solutions, offering a more cost-effective option.
It is widely applicable in industrial control displays, home information screens, education and conference presentations, and remote monitoring displays.
Note: for Display Base requires a display with adaptive resolution scaling. Some displays without this feature may experience display abnormalities.
Development platforms: for , ESP32-IDF (UIFlow not yet supported)
Different batches may have different printing screens, but it does not affect the use
Applications:
Display input signal source
High-definition data dashboard
Colour:Grey
Material:plastic

Package Contents:
1 x for Display Base
