For M5Stack RollerCAN Unit W/ BLDC Motor(STM32) Brushless Motor Motion Kit CAN/I2C Control
Nou
În stoc
De ce îți va plăcea să cumperi de la OnBuy:
- Câștigi Cashback la fiecare achiziție – folosește-l la următoarea comandă
- Livrare gratuită – la milioane de produse de pe site
- Clienții ne iubesc – 129,000 de recenzii cu evaluare “Excelent”
636,19 RON
+34,00 RON livrare
1%
Câștigați 6,36 RON instant
Află mai multe
Prețurile articolelor vândute de OnBuy includ TVA.
Opțiuni de plată în rate fără dobândă disponibile
Vezi descrierea completă și detaliile produsului
Livrare: Standard (34,00 RON) | mie 5 - mar 11 aug.
Returnări: 30 zile
Protecție la plată pentru 180 de zile
Descriere & Detalii
Rezumat

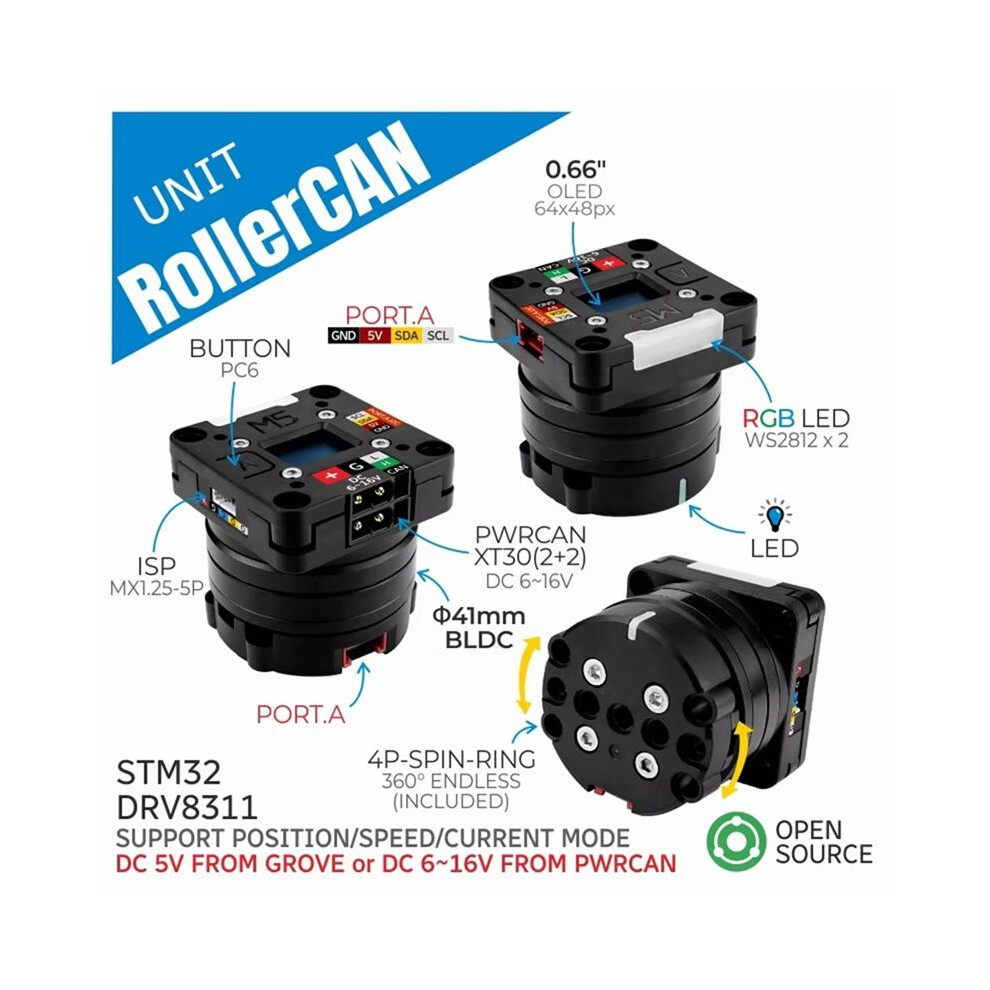

- RollerCAN Unitis a brushless DC motor motion control kit with multiple integrated control functions, designed for efficient motion control. It supports 6-16V DC power input (via the CAN interface) or 5V input (via the Grove interface) and can automatically adjust the power factor to ensure optimal performance.
- Built-in FOC closed-loop drive system, using 3504200KV brushless motor, the maximum continuous working phase current is 0.5A without forced heat dissipation, short-term 1A, the driver uses a magnetic encoder as feedback, supports current, speed, and position three-loop control to ensure precise control.
- The device axis can be equipped with an electric slip ring. The top Grove interface of the slip ring version remains connected to the bottom, and additional modules can be expanded on the top while supporting 360° rotation to ensure power supply and data transmission of the rotating part.

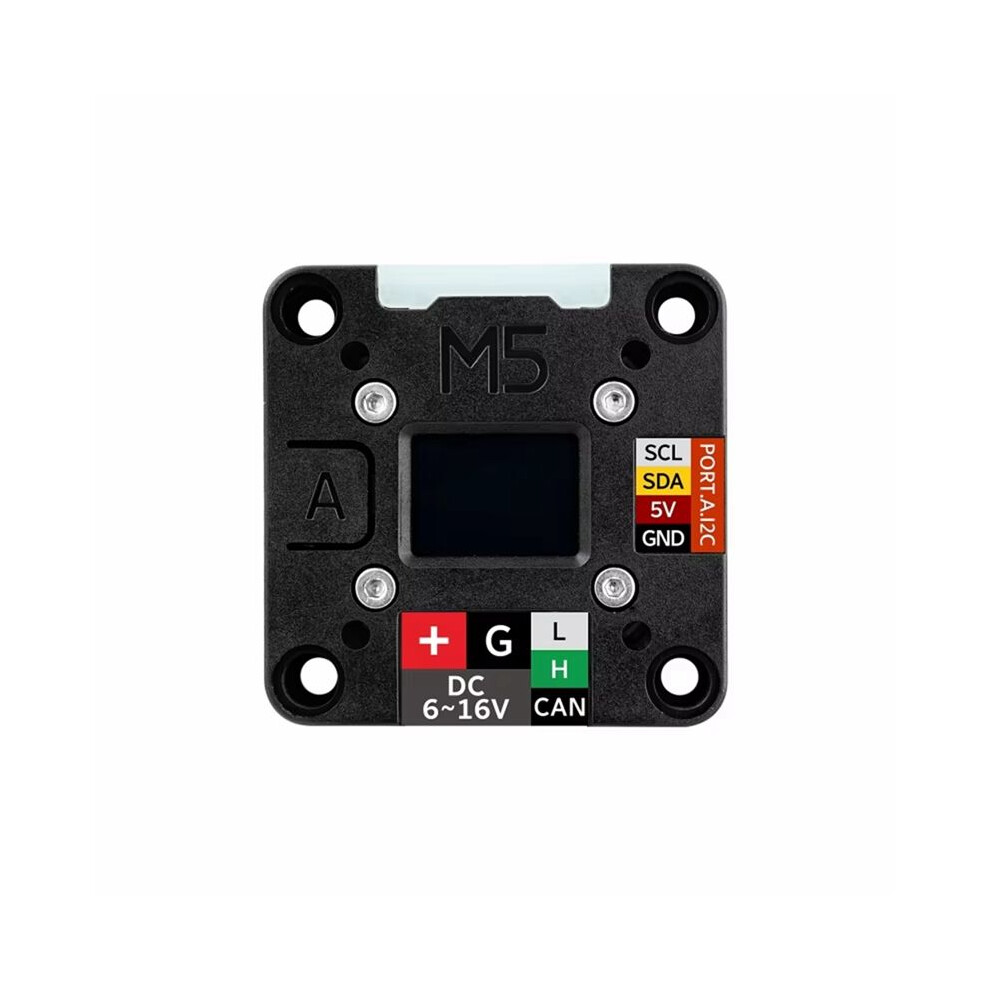

- The back of the unit is equipped with a 0.66-inch OLED display to show the device's status in real-time. It also includes an RGB indicator and function button for easy human-machine interaction. The base of the product is designed with LEGO-compatible mounting holes and M3 screw holes for quick assembly and integration.
- The hardware and software of RollerCAN Unit are fully open-source, supporting motion control and parameter adjustments via the CAN or I2C bus, and offering SWD and SWO debugging interfaces to enhance developer flexibility. This product is widely used in machine joints, motion control, industrial automation, and visual demonstration projects.
Descriere For M5Stack RollerCAN Unit W/ BLDC Motor(STM32) Brushless Motor Motion Kit CAN/I2C Control
RollerCAN Unitis a brushless motor motion control kit with multiple integrated control functions, designed for efficient motion control. It supports 6-16V power input (via the CAN interface) or 5V input (via the Grove interface) and can automatically adjust the power factor to ensure optimal performance.
Built-in FOC closed-loop drive system, using 3504200KV brushless motor, the maximum continuous working phase current is 0.5A without forced heat dissipation, short-term 1A, the driver uses a magnetic encoder as feedback, supports current, speed, and position three-loop control to ensure precise control.
The device axis can be equipped with an electric slip ring. The top Grove interface of the slip ring version remains connected to the bottom, and additional modules can be expanded the top while supporting 360 rotation to ensure power supply and data transmission of the rotating part.
The back of the unit is equipped with a 0.66-inch OLED display to show the device's status in real-. It also includes an RGB indicator and function button for easy human-machine interaction. The base of the product is designed with -compatible mounting holes and M3 screw holes for quick assembly and integration.
The hardware and software of RollerCAN Unit are fully open-source, supporting motion control and parameter adjustments via the CAN or I2C bus, and offering SWD and SWO debugging interfaces to enhance developer flexibility. This product is widely used in machine joints, motion control, industrial automation, and visual demonstration projects.
Power supply voltage: The power supply cannot exceed 16V. When the voltage exceeds 18V, the motor fault code E:1 will be displayed, the motor will not work, "Over Voltage" will be displayed, and the LED light will be .
Colour:Black
Material:plastic+metal
Package Contents
Detalii
| OPC | PWVMXQ7 |
|---|---|
| Coduri | 6032766390358 (EAN) |
| Informații despre produs și siguranță |
Date despre produs
| Height | 5.2cm |
|---|---|
| Width | 7.5cm |
| Length | 17cm |
| Weight | 0.16kg |
| Colour | Black |
| Material | plastic+metal |
