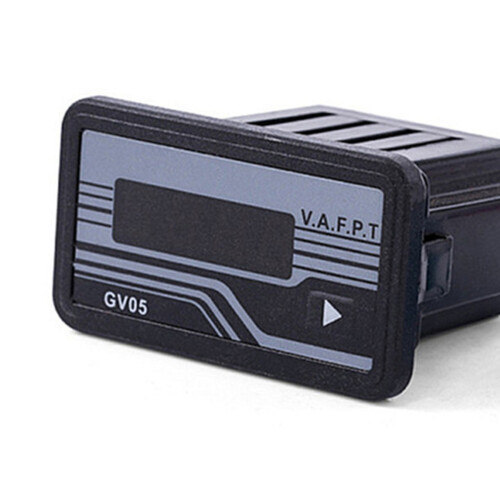

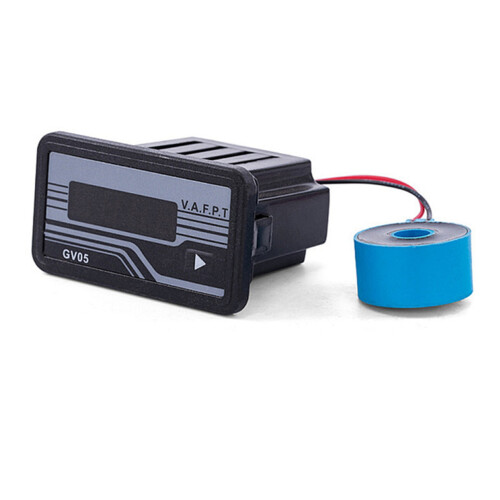

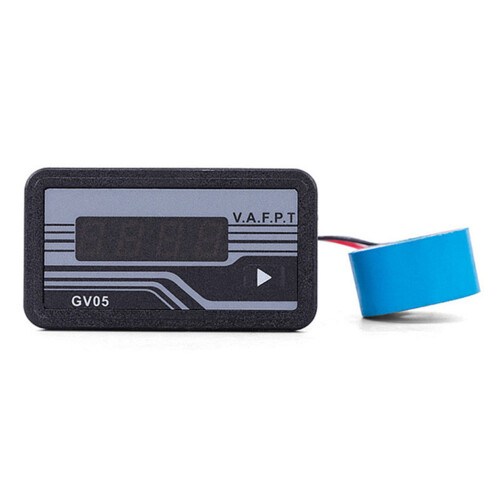

GV05 Generator Digital Voltage Current Power Frequency Monitoring Meter Current Voltage Frequency Meter AC220V

Descriere GV05 Generator Digital Voltage Current Power Frequency Monitoring Meter Current Voltage Frequency Meter AC220V

Voltage, frequency and accumulating can be checked and demonstrated in the mean .
Results shown by 4-position digital LED tube.
Self-recycling of parameters.
With page turning buttons.
Extra working power is not needed.

GV05 is one light module used for checking and demonstrating voltage, current,power,frequency and accumulating of generator. This module can replace old meters, for it can be one with multiple functions. It uses normal screw for connection which is more convenient for installation.
Power Supply: AC165~275V/ AC280~450V
Consuming power: max. 1 W
Temperature: -40~75
Size (W*H*D):60mm x 33mm x 51mm
Installation Size (W*H): 51mm x 26mm
Range and Accuracy:
AC voltage: phase voltage AC165-260V, voltage AC300-450V; deviation less than equal 1%
Power: 0~6Kw/0-10Kw/0-18Kw, deviation less than equal 2%
Frequency: 45-70HZ, deviation less than equal 0.5%
Accumulated : 0-9999hours (min:0.1hours), deviation less than equal 1%
Parameter Display:
Phase voltage
Current
Power
Frequency
Run
Accumulating
Colour:Photo Color
Material:plastic

Package Contents:
1 x Digital Display Meter
