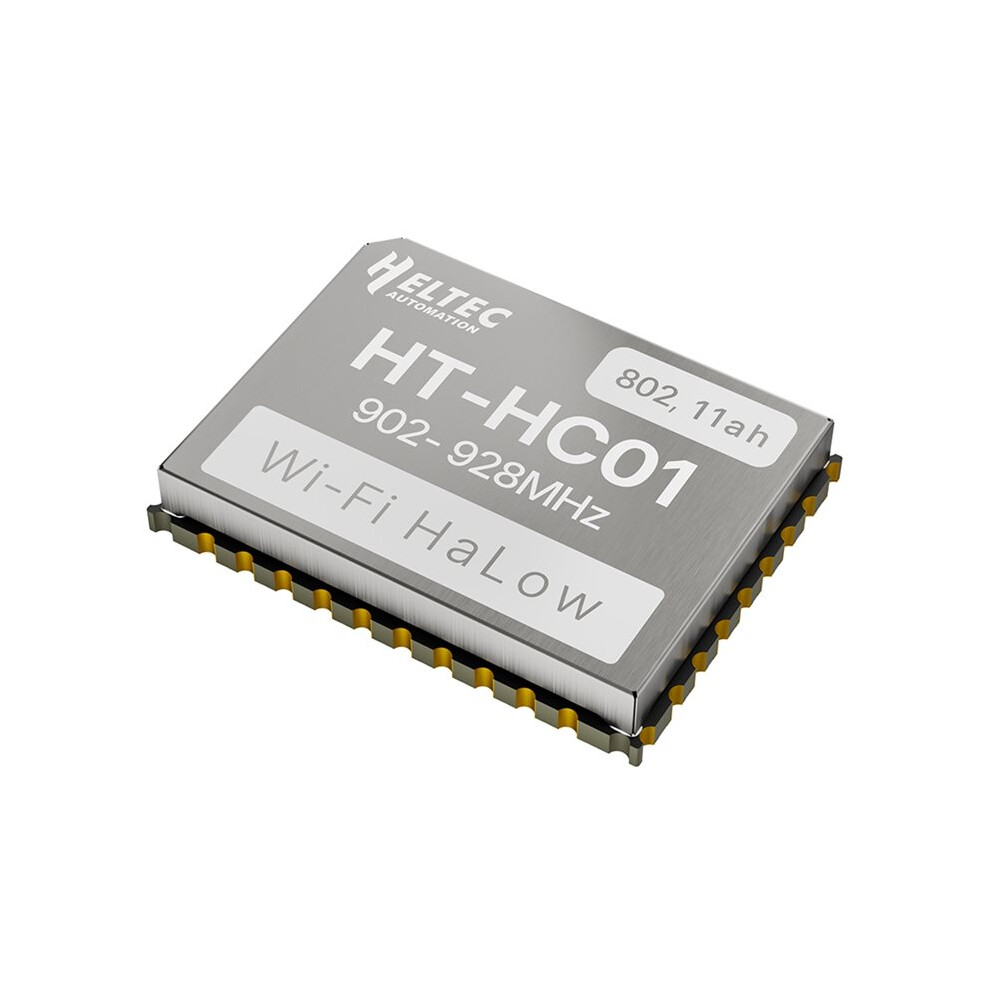

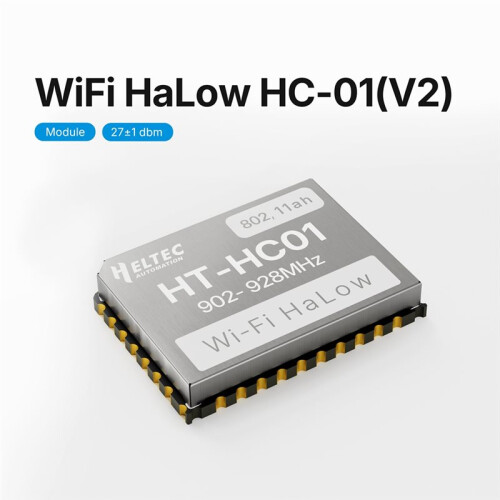

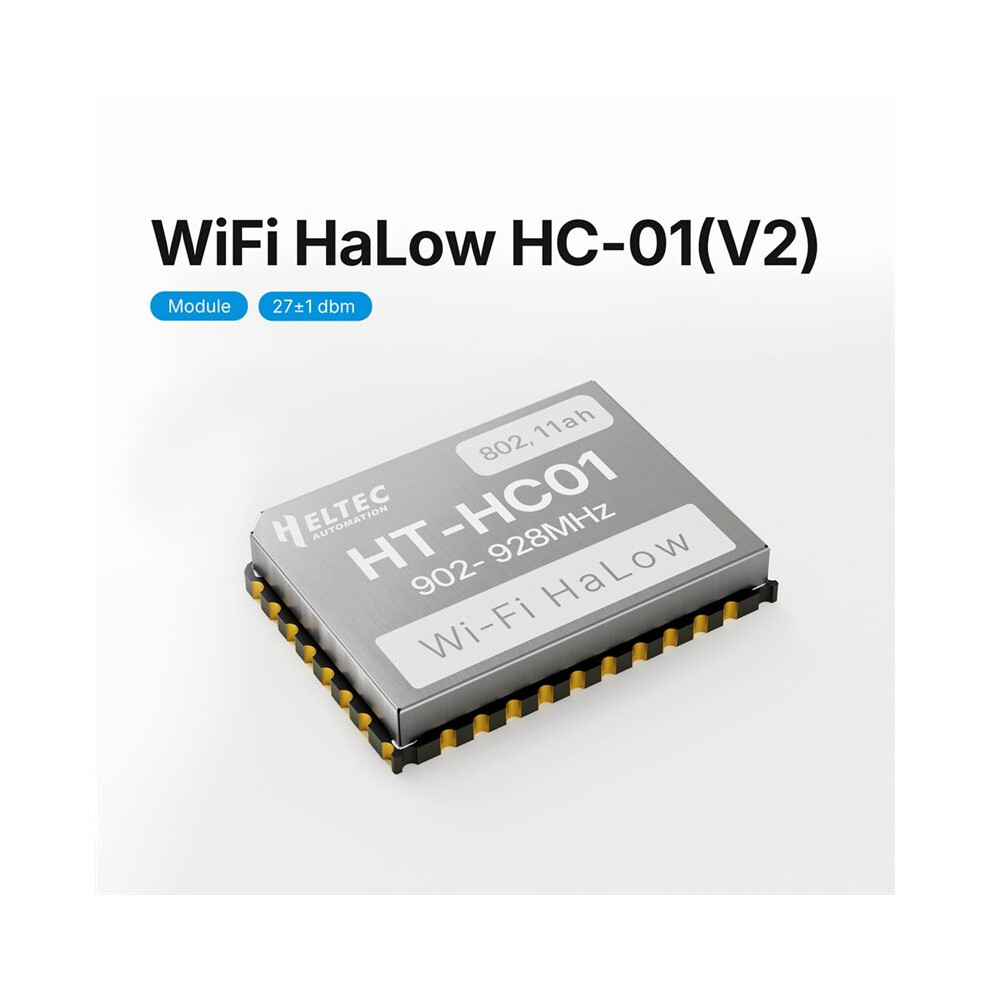

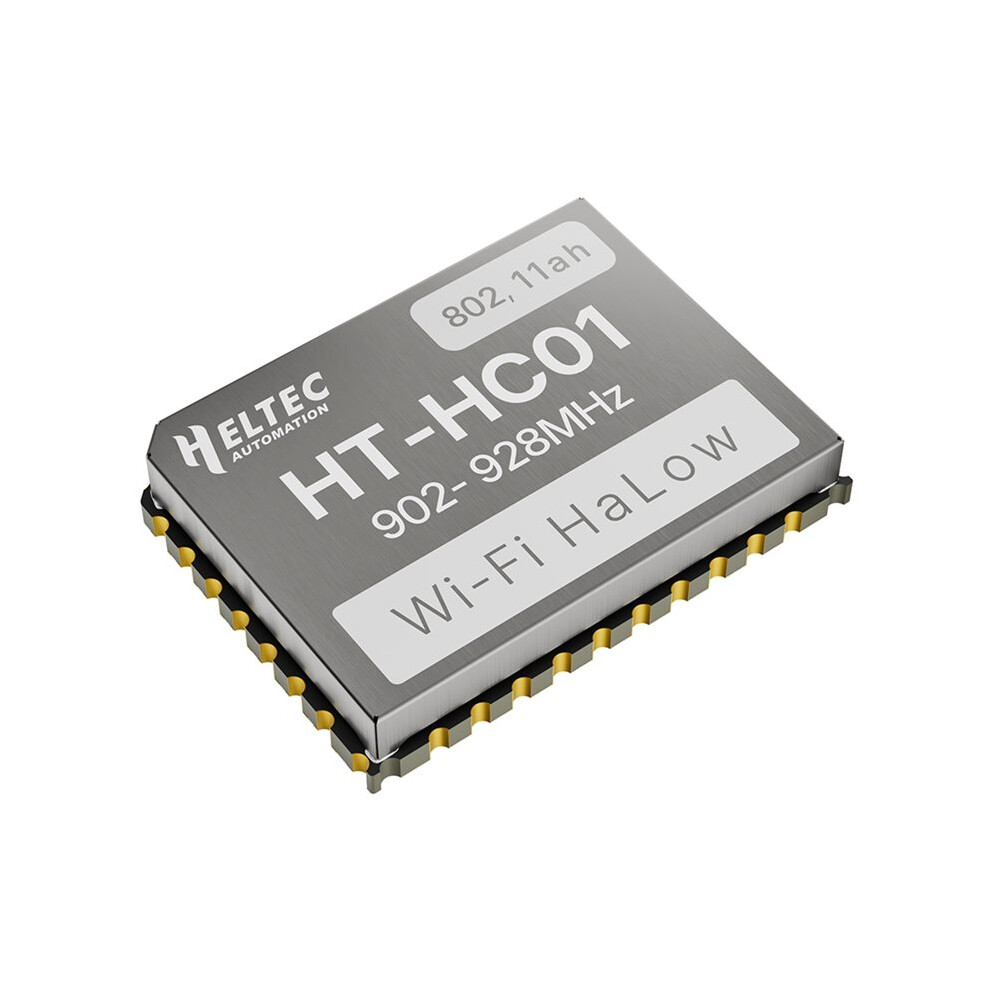

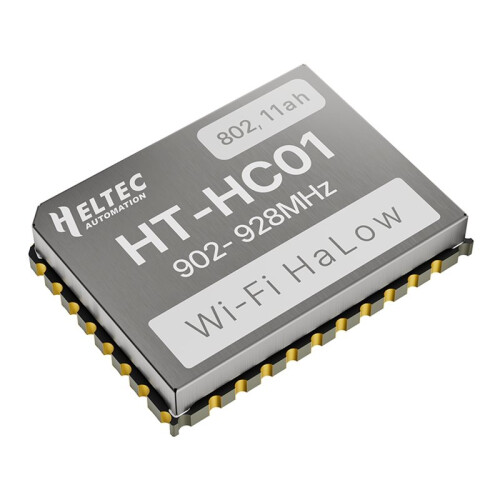

H ELTEC AUTOMATION HT-HC01 V2 Wi-Fi HaLow Module 27dBm Sub Wi-Fi MESH Long Range High-Speed Data Transfer Wireless Access IoT

Descriere H ELTEC AUTOMATION HT-HC01 V2 Wi-Fi HaLow Module 27dBm Sub Wi-Fi MESH Long Range High-Speed Data Transfer Wireless Access IoT

HT-HC01 V2 is a Wi-Fi HaLow module with excellent RF performance, which operates in 863-870MHz and 902 - 928MHz, with maximum data rates of 32.5Mbps and to 1-2km transmission range.
It uses LLC package, small size and rich pin, can be very convenient to integrate in a variety of PCB.
It includes ultra-long range PA, high linear LNA, T/R switching, 32 MHz crystal oscillator, and is designed to simplify Wi-Fi HaLow connectivity to external hosts for applications.
It meets IEEE 802.11ah standard, which is specifically designed for battery-operated devices, allowing them to remain in longer sleep and idle states without frequent wake-ups.
This significantly reduces power consumption and extends the device's battery life.
Main Features
Long-range transmission, to 1km or and further within the visual distance.
Channel bandwidth options of 1/2/4/8 MHz.
Support Sub-1 GHz frequency bands, frequency range: 902~928 MHz.
Max output power:271dBm.
Hibernate mode (internal / external wake).
802. 11ah OFDM PHY supporting WFA HaLow certification.
802. 11ah supporting WFA HaLow certification.
High data rate, Maximum physical air interface rate: 32 Mbps.
Wide spectrum of security features.

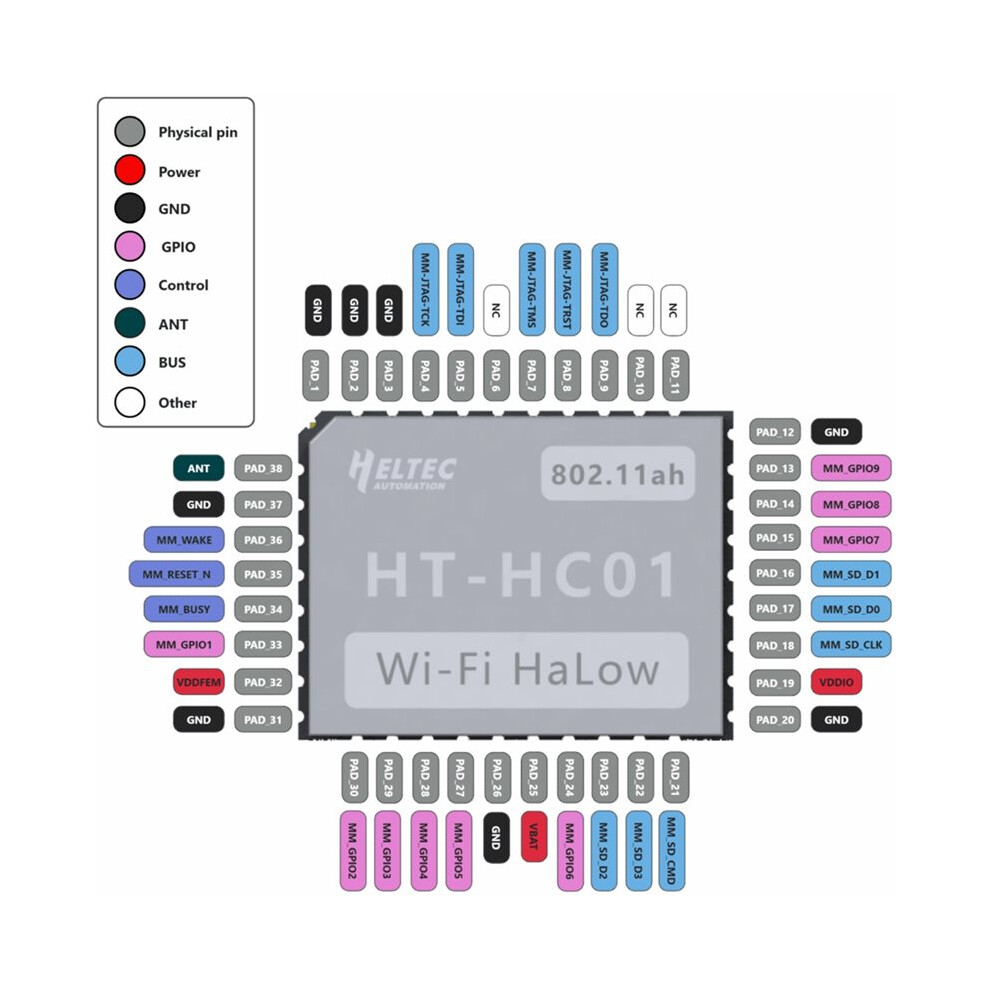

Support for various interface options, include SDIO 2.0, 2* UART.

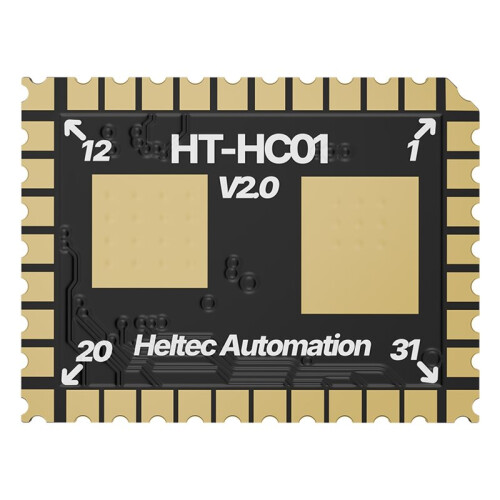

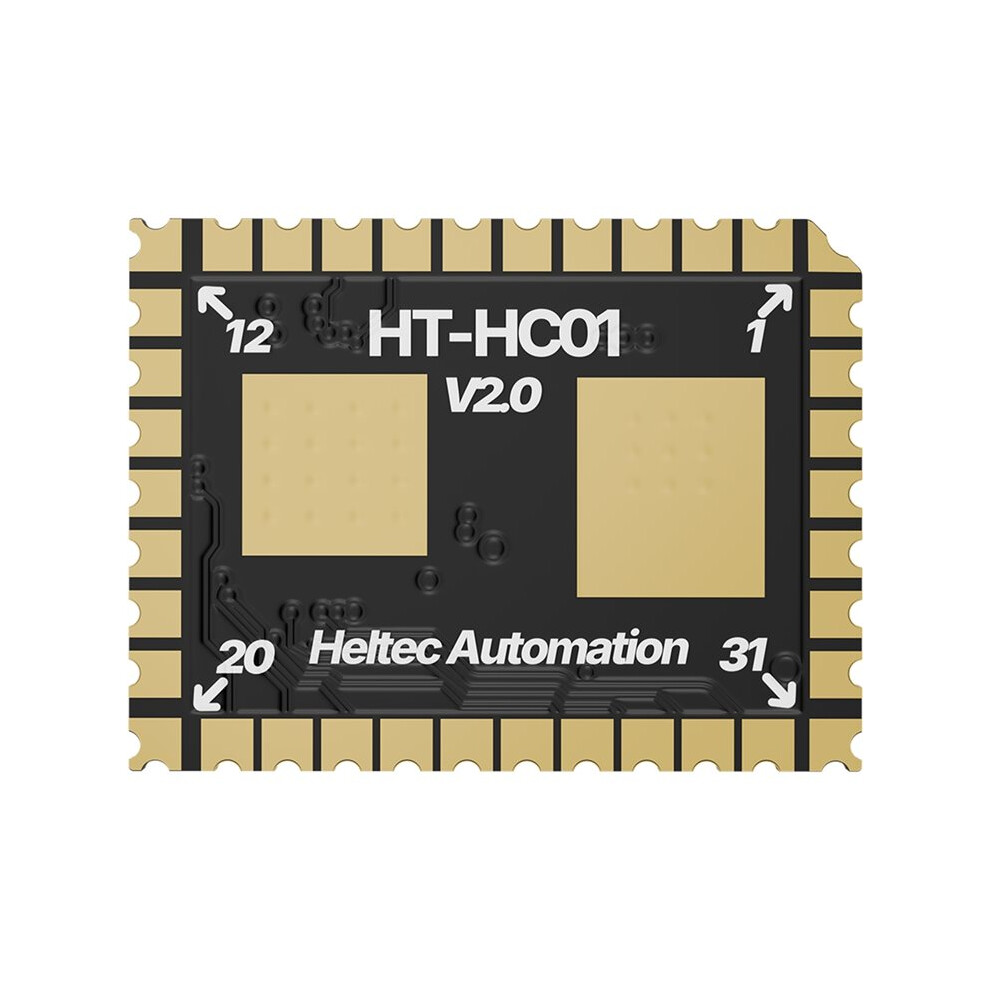

1.27mm stamp hole design, easy to integrate.
Integrated - converter supporting VDD supply from 3.0V to 3.6V, VFEM power supply from 5V.
Color: Black
Material: PCB+Metal

Package Contents:
1 * Wi-Fi HaLow Module
