Handheld Oscilloscope 3.2Inch TFT Display 10MHz Bandwidth Automotive Oscilloscope 48MSa/S Sampling Rate Trigger Function
Nou
În stoc
De ce îți va plăcea să cumperi de la OnBuy:
- Câștigi Cashback la fiecare achiziție – folosește-l la următoarea comandă
- Livrare gratuită – la milioane de produse de pe site
- Clienții ne iubesc – 130,000 de recenzii cu evaluare “Excelent”
405,45 RON
427,26 RON
Reducere de 5%!
+35,00 RON livrare
1%
Câștigați 4,05 RON instant
Află mai multe
Prețurile articolelor vândute de OnBuy includ TVA.
Opțiuni de plată în rate fără dobândă disponibile
Vezi descrierea completă și detaliile produsului
Livrare: Standard (35,00 RON) | mie 5 - lun 10 aug.
Returnări: 30 zile
Protecție la plată pentru 180 de zile
Cele mai populare în Conducători industriali
Descriere & Detalii
Rezumat

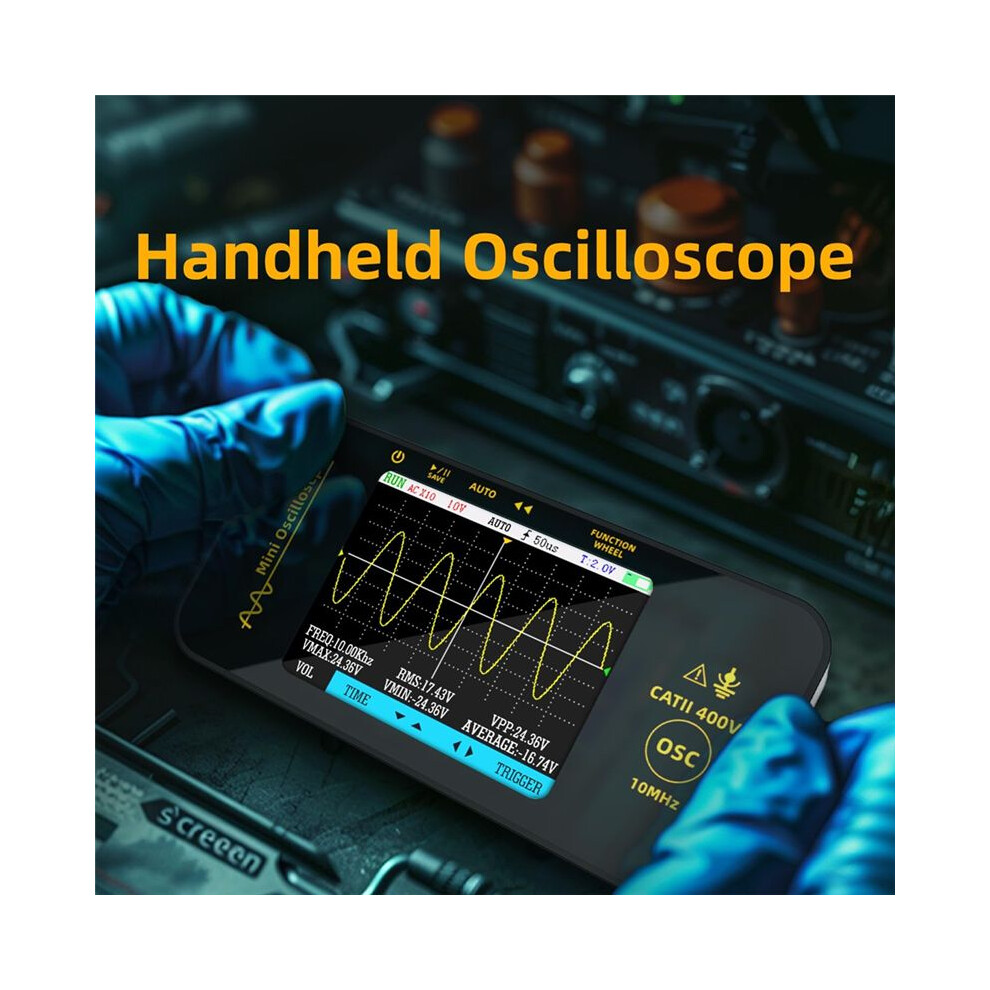

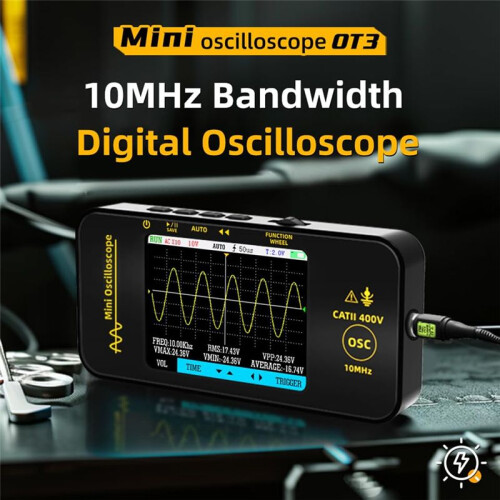

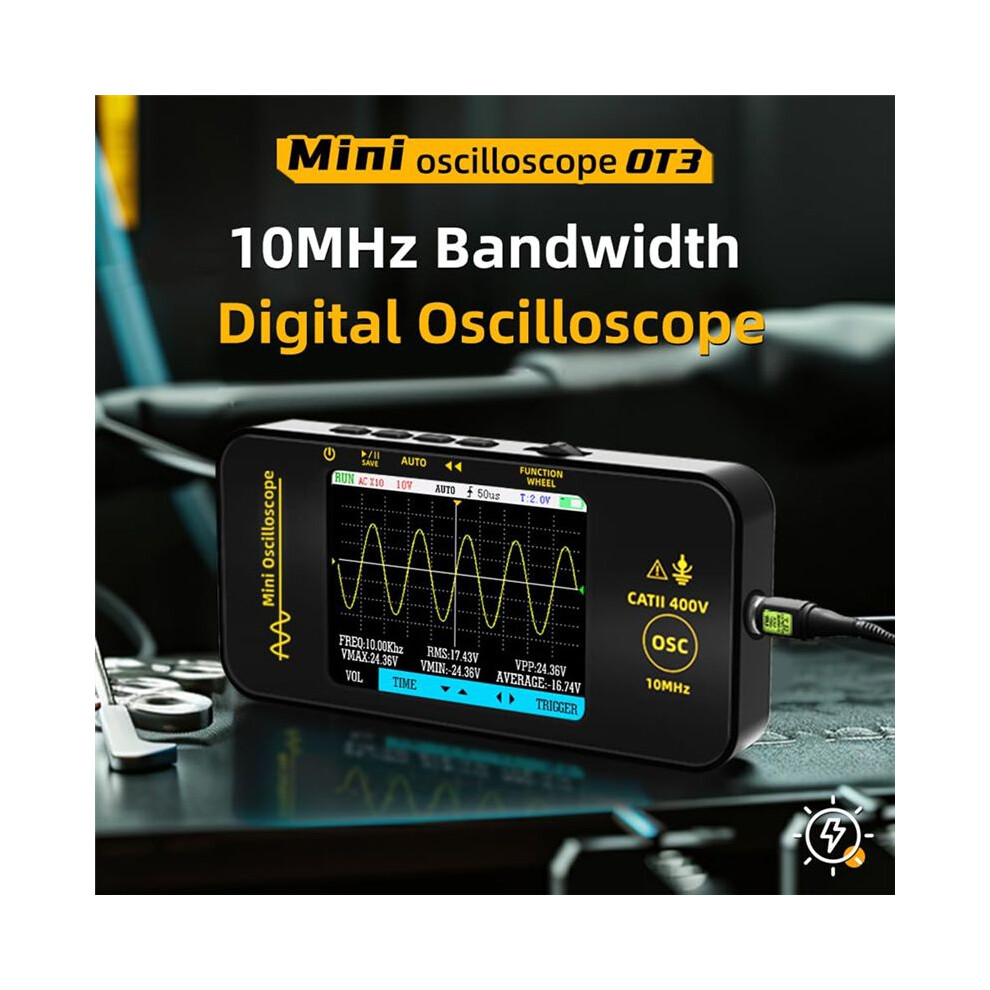

- Handheld Oscilloscope: The OT3 digital oscilloscope has a bandwidth of 10MHz, a high sampling rate of 48MSa/s, and can measure voltages up to 400V.
- Professional design: The portable oscilloscope has complete triggering function (single/normal/automatic), suitable for periodic analog and non-periodic digital signals.

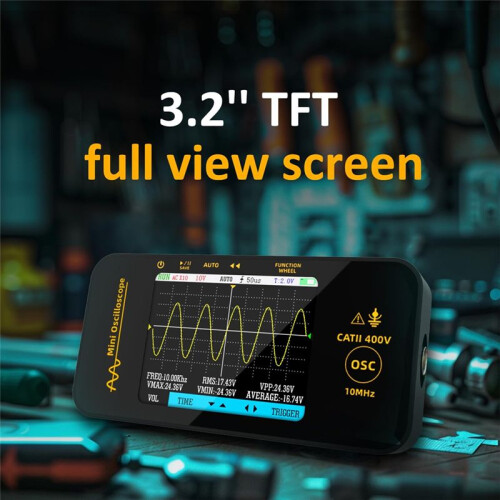

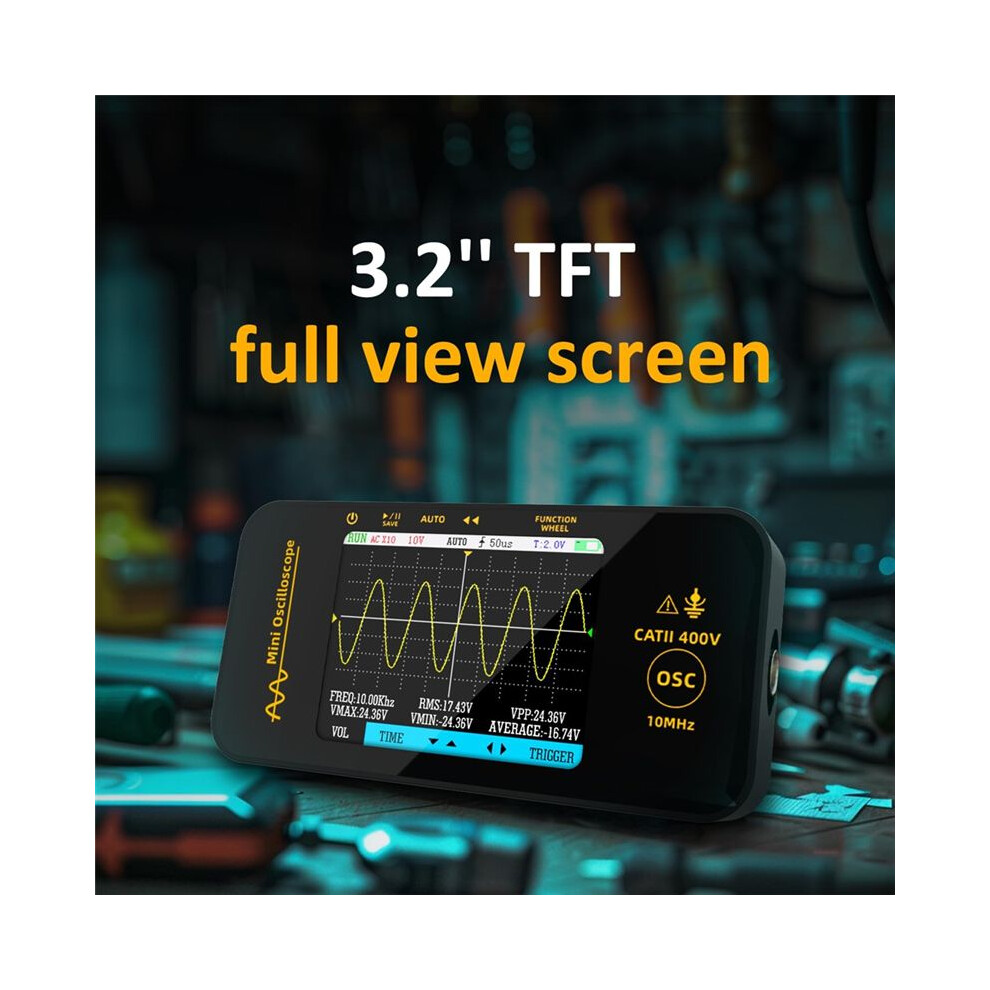

- [3.2-inch TFT color screen] The full view display of this flat-panel oscilloscope ensures clearer signal monitoring, and intuitive buttons and menu navigation simplifies operation.

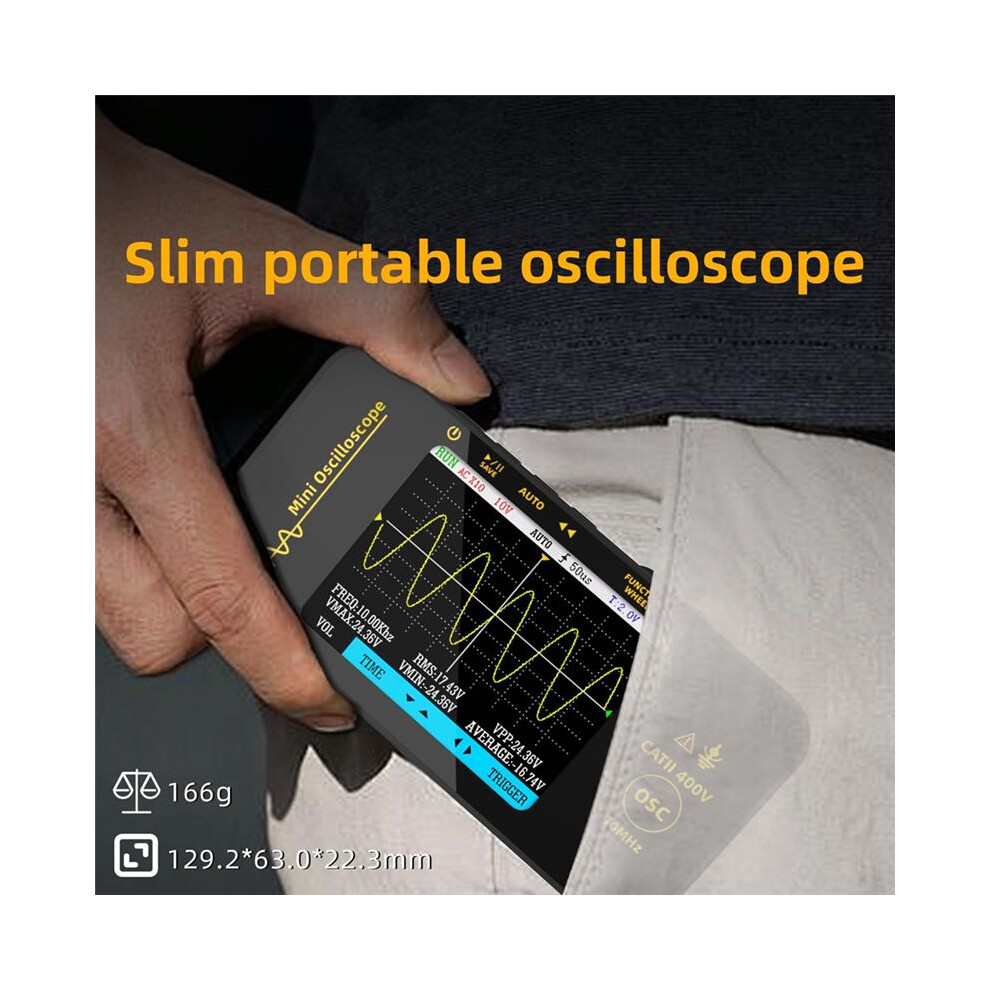

- [Slim and Light Body] This flat-panel oscilloscope uses a thin and light body, which is compact and exquisite, and is easy to use.Free EVA storage bags, making it more convenient to go out.

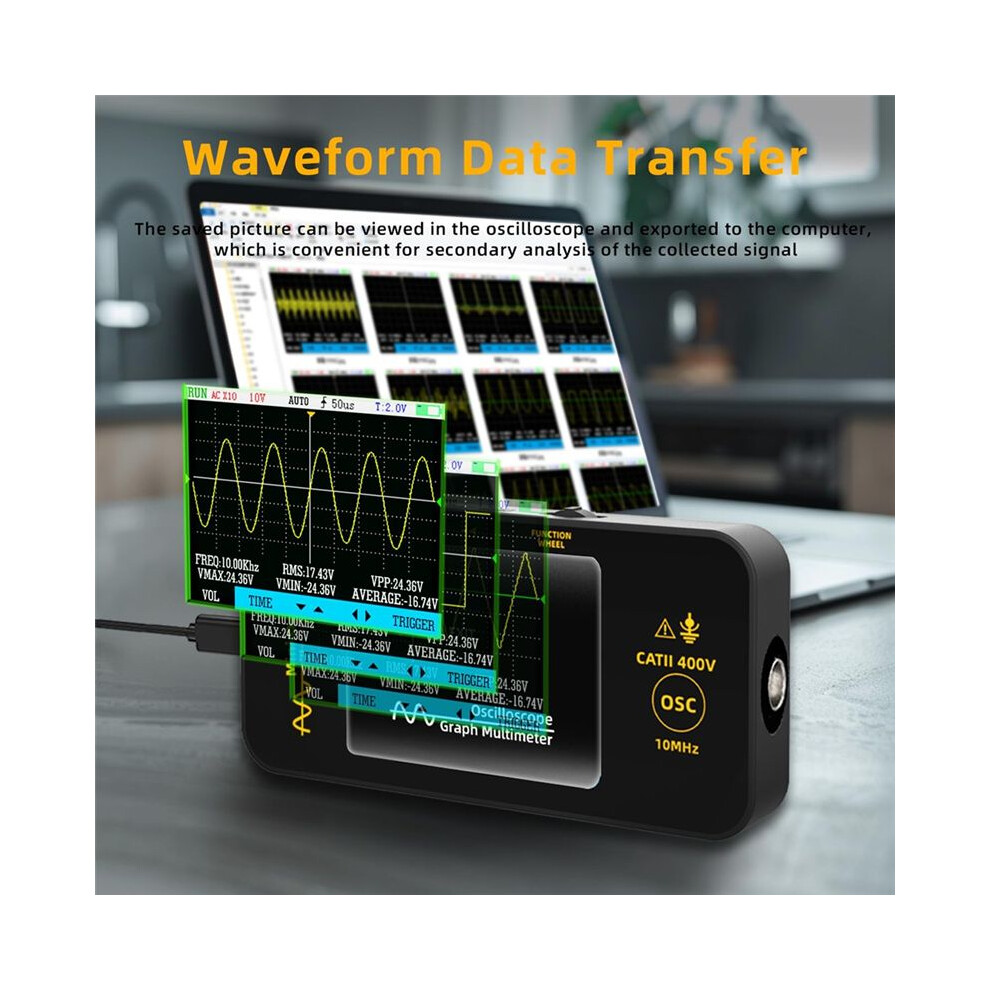

- Longer battery life: The car oscilloscope has built-in 1000mAh high-quality lithium battery, so there is no need to change the battery frequently.The Type-C interface supports data transmission and charging, firmware upgrade
Descriere Handheld Oscilloscope 3.2Inch TFT Display 10MHz Bandwidth Automotive Oscilloscope 48MSa/S Sampling Rate Trigger Function
Handheld Oscilloscope: The OT3 digital oscilloscope has a bandwidth of 10MHz, a high sampling rate of 48MSa/s, and can measure voltages to 400V.
Professional design: The portable oscilloscope has complete triggering function (single/normal/automatic), suitable for periodic analog and non-periodic digital signals.
[3.2-inch TFT color screen] The full view display of this flat-panel oscilloscope ensures clearer signal monitoring, and intuitive buttons and menu navigation simplifies operation.
[Slim and Light Body] This flat-panel oscilloscope uses a thin and light body, which is compact and exquisite, and is easy to use.Free EVA storage bags, making it more convenient to go out.
Longer battery life: The car oscilloscope has built-in 1000mAh high-quality lithium battery, so there is no need to change the battery frequently.The Type-C interface supports data transmission and charging, firmware upgrade
Support Chinese and English switching, auto range, true RMS value display, screen backlight, support data hold, low battery alert, formatting, can be set to automatic shutdown.
1200mA lithium battery lasting battery life
Ultra-thin body, the whole body is equipped with soft silicone cover, shockproof and drop-proof.
With high-end EVA storage bag, more portable.
Display: 3.2-inch TFT color screen
Bandwidth: 10MHz real- sampling
Real- sampling rate: 48MSa/s
Number of channels: 1 channel AC
Input impedance: 1MΩ, @16pF
Probe attenuation: x1, x10
Maximum input voltage: x1 range 40V, x10 range 400V ( + AC )
Horizontal sampling rate range: 1.5Sa/s-48MSa/s
Vertical sensitivity: 20mV/div-10V/div
Size: 129.2x63.0x22.3mm
Weight: 268g
Colour:As Shown
Material:Plastic
Package Contents:
1 x OT3 portable oscilloscope
1 x Oscilloscope prob
Detalii
| OPC | PT7YCC5 |
|---|---|
| Coduri | 6032218163509 (EAN) |
| Informații despre produs și siguranță |
Date despre produs
| Height | 5cm |
|---|---|
| Width | 10cm |
| Length | 18cm |
| Weight | 0.3485kg |
| Colour | As Shown |
| Material | Plastic |
