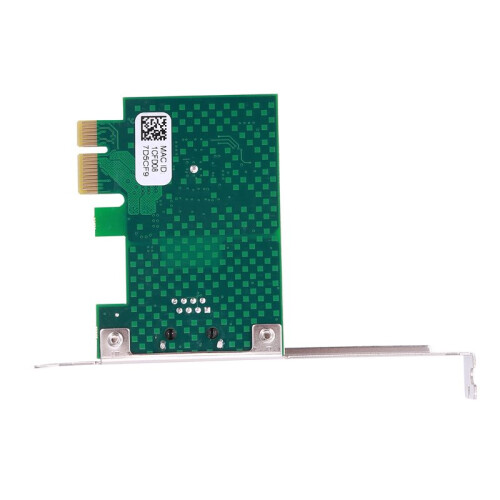

I225-V Network Card, Pci-E I225 2.5G Ethernet Server Network Card for Desktop Computers

Name: I225-V Network Card, Pci-E I225 2.5G Ethernet Server Network Card for Desktop Computers
Brand: Typecat
SKU: PNVDYSD
Price: 215.31 RON
Availability: OutOfStock

Brand Typecat

New

215,31 RON

Produse similare care te-ar putea interesa

Carduri de interfață de rețea

Would you like us to let you know when it's back?

Adaugă în coș

Descriere & Detalii

Rezumat

product description:PCI-E Intel I225 2.5G Ethernet server network card, using high-performance Intel I225-V Ethernet controller.Intel I225-V controller has a Base-T copper network interface, which can provide a compact single-port integrated multi-gigabit (up to 2.5G)-MDI (copper cable) standard for 2500BASE-T, 1000BASE-T, and 100BASE-TX IEEE802.3 Ethernet interface, 10BASE-TE connection.
It can also support Intel vPro technology on specific Intel platforms.PCI-E Intel I225 2.5G Ethernet server network card, designed for: any mobile device, desktop, workstation, value server or industrial design with strict space constraints
Specifications:Compliant with PCI Express specification revision 3.1 (5.0GT/s);MDI (copper) standard IEEE802.3 Ethernet interface, up to 2.5Gb/s;Compliant with single port 1GbE RJ45 port (copper cable);Compliant with MDI standard IEEE802.3 Ethernet interface (IEEE802.3bz, IEEE802.3ab, IEEE802.3u and IEEE802.3) for 2500BASE-T, 1000BASE-T, 100BASE-TX, 10BASE-TE applications
IEEE802.3 autonegotiator;Compliant with IEEE802.3x and IEEE802.3z flow control support, with software controllable RX threshold and TX pause frame;Automatic cross detection function (MDI / MDI-X);IEEE 1588 protocol and 802.1AS implementation
wifi card for pc

Descriere I225-V Network Card, Pci-E I225 2.5G Ethernet Server Network Card for Desktop Computers

product description:PCI-E I225 2.5G Ethernet server network card, using high-performance I225-V Ethernet controller. I225-V controller has a Base-T copper network interface, which can provide a compact single-port integrated multi-gigabit ( to 2.5G)-MDI (copper cable) standard for 2500BASE-T, 1000BASE-T, and 100BASE-TX IEEE802.3 Ethernet interface, 10BASE-TE connection.
It can also support vPro technology specific platforms.PCI-E I225 2.5G Ethernet server network card, designed for: any mobile device, desktop, workstation, value server or industrial design with strict space constraints
Specifications:Compliant with PCI Express specification revision 3.1 (5.0GT/s);MDI (copper) standard IEEE802.3 Ethernet interface, to 2.5Gb/s;Compliant with single port 1GbE RJ45 port (copper cable);Compliant with MDI standard IEEE802.3 Ethernet interface (IEEE802.3bz, IEEE802.3ab, IEEE802.3u and IEEE802.3) for 2500BASE-T, 1000BASE-T, 100BASE-TX, 10BASE-TE applications
IEEE802.3 autonegotiator;Compliant with IEEE802.3x and IEEE802.3z flow control support, with software controllable RX threshold and TX pause frame;Automatic detection function (MDI / MDI-X);IEEE 1588 protocol and 802.1AS implementation

Support sensitive network (TSN) function;Support IEEE802.3az Efficient Ethernet (EEE) full wake LAN;Support TCP / UDP, IPv4 checksum offloading (Rx / Tx) transmission segment offloading (TSO) (IPv4, IPv6);Supports data packets to 9.5KB jumbo frame
technical parameter
Applicable network: multi-gigabit server network card
Main controller: (R) I225-V
Bus type: PCI Express X1, 2.5GT/s
Media interface: copper cable, RJ45
Transmission rate: 2.5G/1000/100Mbps
Network topology: 2500BASE-T, 1000BASE-T, 100BASE-TX, 10BASE-TE, IEEE 802.3bz, IEEE 802.3, IEEE 802.3x, IEEE
