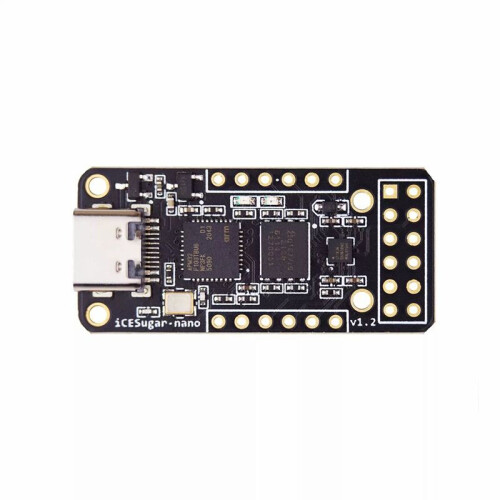

ICESugar- FPGA Development Board Open Source RISC-V ICE40LP1k Standard PMOD Connector -Board ICELink Debugger
În stoc
De ce îți va plăcea să cumperi de la OnBuy:
- Câștigi Cashback la fiecare achiziție – folosește-l la următoarea comandă
- Livrare gratuită – la milioane de produse de pe site
- Clienții ne iubesc – 126,000 de recenzii cu evaluare “Excelent”
Prețurile articolelor vândute de OnBuy includ TVA.
Opțiuni de plată în rate fără dobândă disponibile
Vezi descrierea completă și detaliile produsului
Livrare: Standard (Gratuit) | vin 26 iun. - mie 1 iul.
Returnări: 30 zile
Protecție la plată pentru 180 de zile
Cele mai populare în Circuit Board Opto-Electronică
Rezumat
- Features:
- iCE40LP1k main chip, 1280 LUT, 8KB SRAM, PLL
- On-board iCELink debugger, supporting drag-and-drop programming and CDC serial port
- Lead out 14 usable IOs with one 2 x 6 Pin PMOD connector and two 1 x 6 Pins PMOD connectors
- Totally use open source tool chain to develop
Descriere ICESugar- FPGA Development Board Open Source RISC-V ICE40LP1k Standard PMOD Connector -Board ICELink Debugger
Features:
iCE40LP1k main chip, 1280 LUT, 8KB , PLL
-board iCELink debugger, supporting drag-and-drop programming and CDC serial port
Lead out 14 usable IOs with one 2 x 6 Pin PMOD connector and two 1 x 6 Pins PMOD connectors
Totally use open source tool chain to develop
Introduction

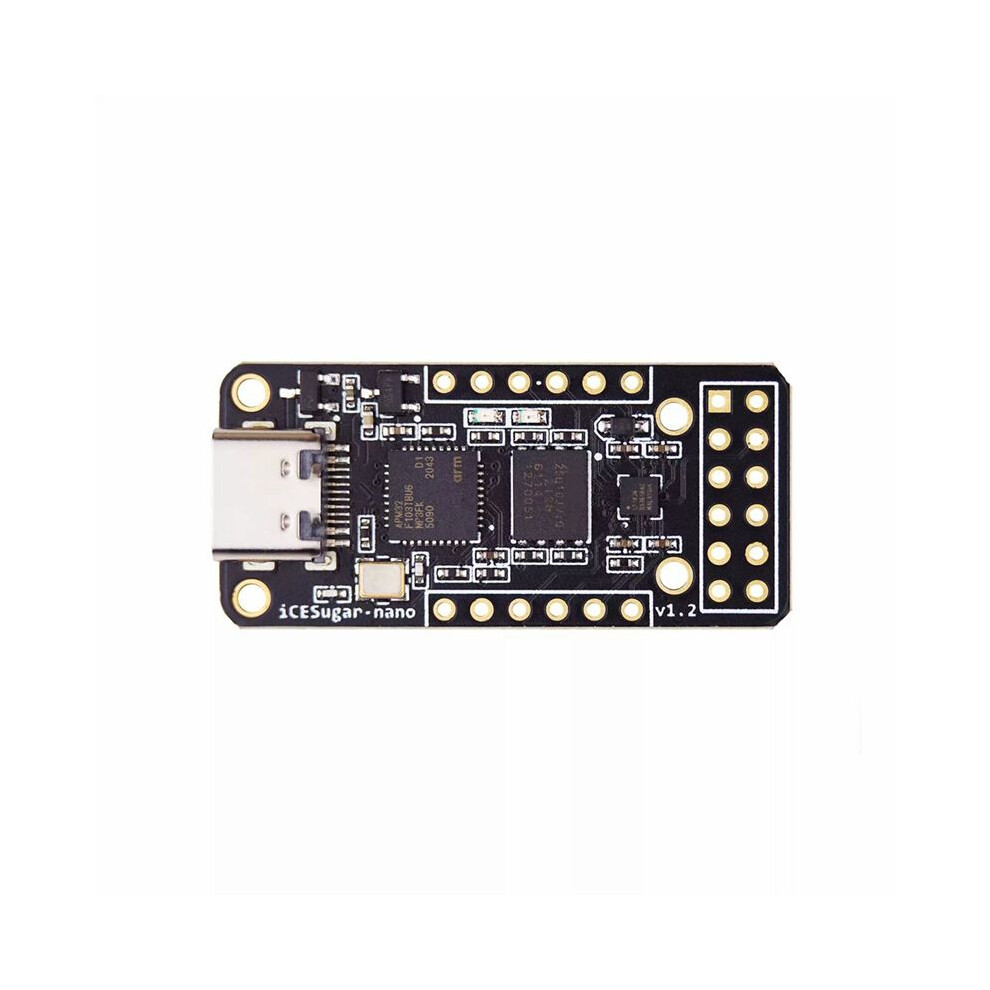

iCESugar- is an open source FPGA development board based Lattice iCE40LP1k-CM36. It's fully supported by the open source toolchain (yosys & nextpnr & icestorm). All the IOs are led out with 3 standard PMOD connectors.
The -board debugger iCELink based ARM Mbed DAPLink supports drag-and-drop programming. You can just drag the FPGA bitstream into the virtual disk to program. Besides, the iCELink provides a adjustable clock to FPGA and a additional USB CDC serial port direct connecting to FPGA. Just with one TYPE-C cable, you can start to develop and test the board.
-board 2MB SPI-Flash W25Q16
Color: Black
Material: PCB
Package Contents:
1 x iCESugar- Development Board
Detalii
| OPC | PVBDKCV |
|---|---|
| Brand | Torribaly |
| Coduri | 4713060402535 (EAN) |
Date despre produs
| Height | 1cm |
|---|---|
| Width | 8cm |
| Length | 11cm |
| Weight | 0.0095kg |
| Colour | Black |
| Material | PCB |
