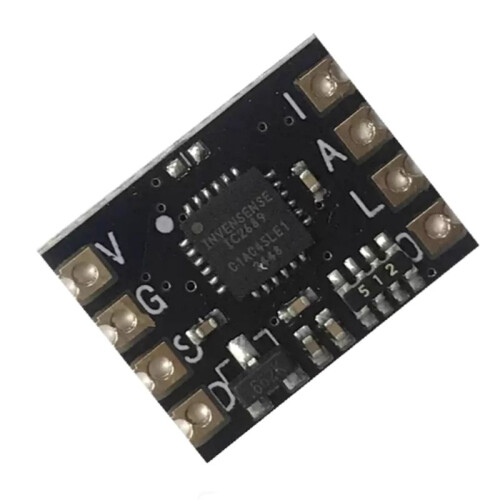

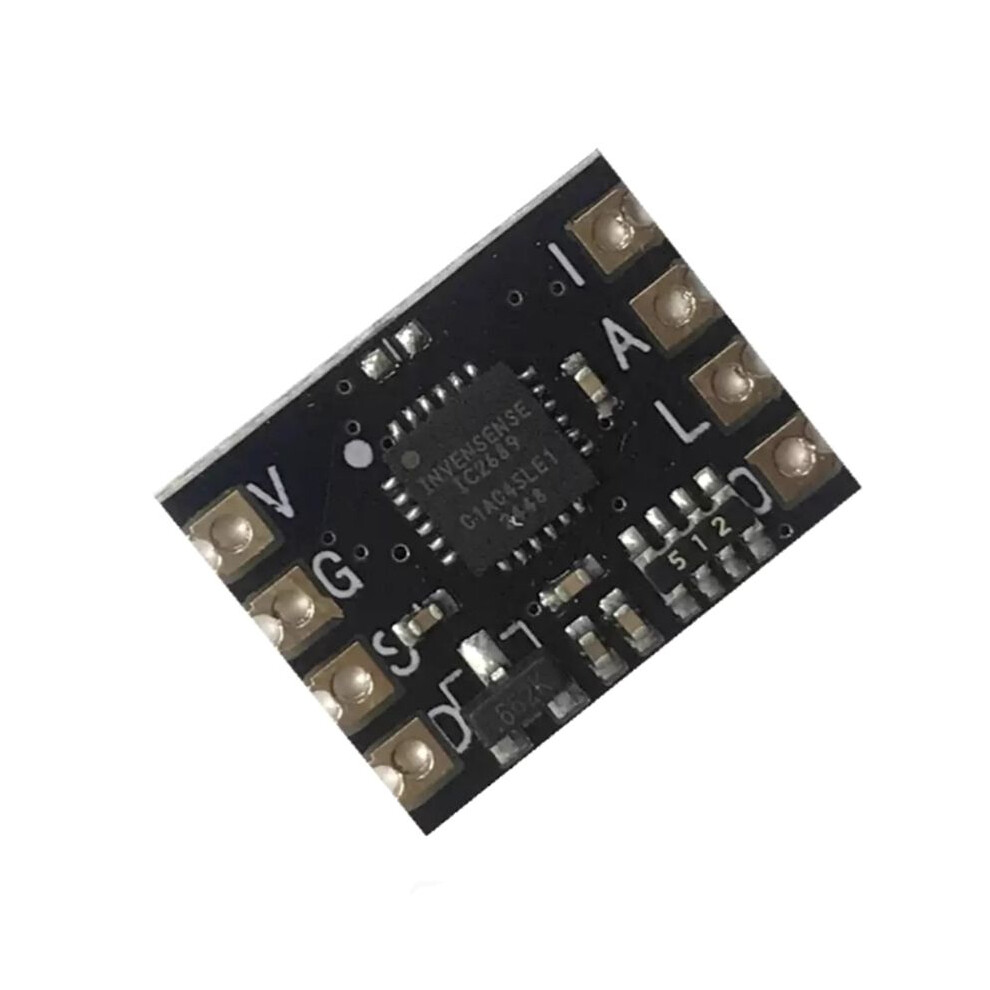

ICM-20689 Module / High-Performance 6-Axis MEMS Motion Tracking / Accelerometer / Gyroscope / Motion Processing

Descriere ICM-20689 Module / High-Performance 6-Axis MEMS Motion Tracking / Accelerometer / Gyroscope / Motion Processing

1.The ICM-20689 is a 6-axis motion tracking device that combines a 3-axis gyroscope, a 3-axis accelerometer, and a Digital Motion Processor (DMP) in a small 4x4x0.9mm (24-pin QFN) package.
2.A large 4K-byte FIFO reduces traffic the serial bus interface and reduces power consumption by allowing the system processor to burst read sensor data and then enter a low-power mode.
3.Gyroscope with programmable FSR of 250/s, 500/s, 1000/s, and 2000/s.
4.Accelerometer with programmable FSR of 2g, 4g, 8g, and 16g.
5.EIS FSYNC support.

The ICM-20689 includes an -chip 16-bit ADC, a programmable digital filter, an embedded temperature sensor, and programmable interrupts. The device has an operating voltage range as low as 1.71V. Communication include 2C and 8MHz high-speed SPI.
User-programmable interrupts
Motion wake- interrupts for low-power operation of the application processor
4K-byte FIFO buffer enables the application processor to read data in batches
-chip 16-bit ADC and programmable filter
Host interface: 8MHz SPI or 400kHz Fast Mode 2C
Digital output temperature sensor
VDD operating range of 1.71V to 3.45V
MEMS structure sealed and bonded at the wafer level
Applications:
Mobile phones and tablets
Drones
Motion-based game controllers
3D remote controls and 3D mice for internet-connected DTVs and set-top boxes
Wearable sensors for health, fitness, and sports
Functional Description:This module reads data via the I2C interface. The I2C device address is 7 bits long, with the last bit of the 7-bit address determined by the level of the ADO pin. ADO is pulled down to ground by default. Data from the 3-axis gyroscope and 3-axis accelerometer can be read via I2C.
Color: Black
Material: plastic

Package Contents:
1 x ICM-20689
