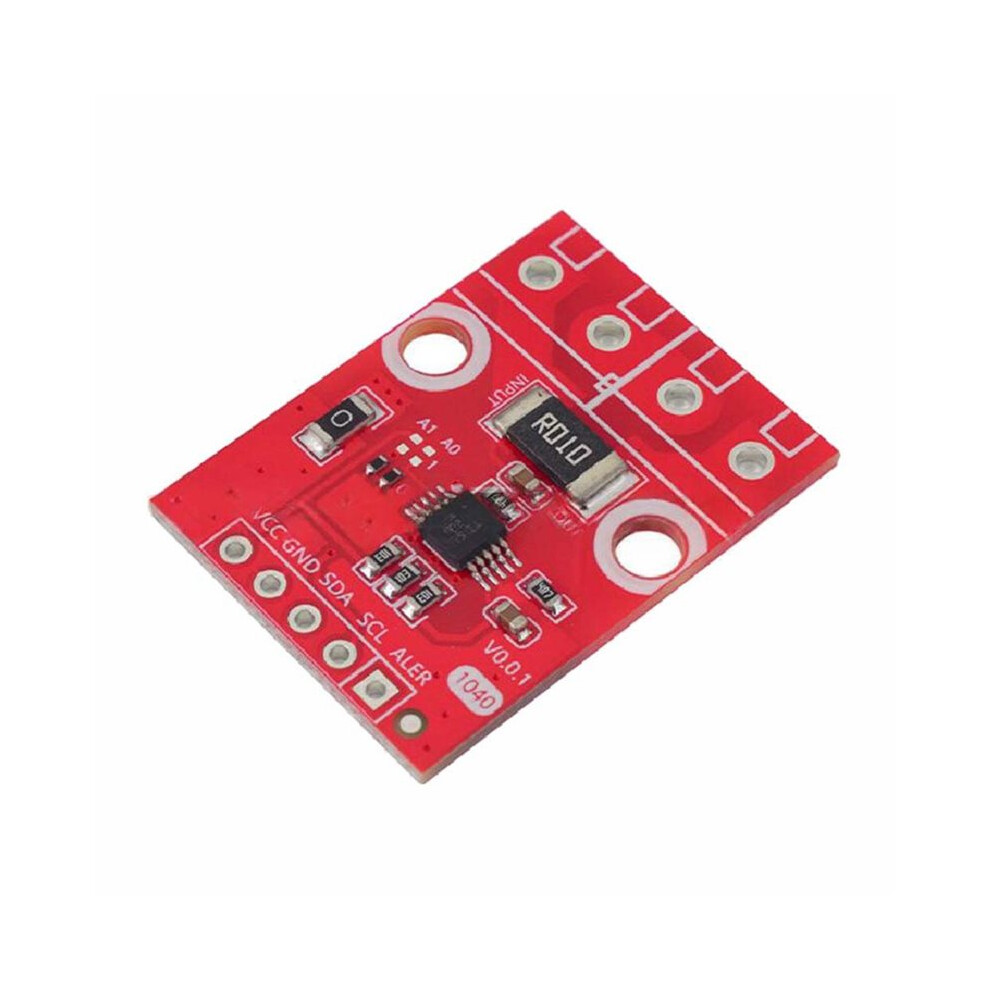

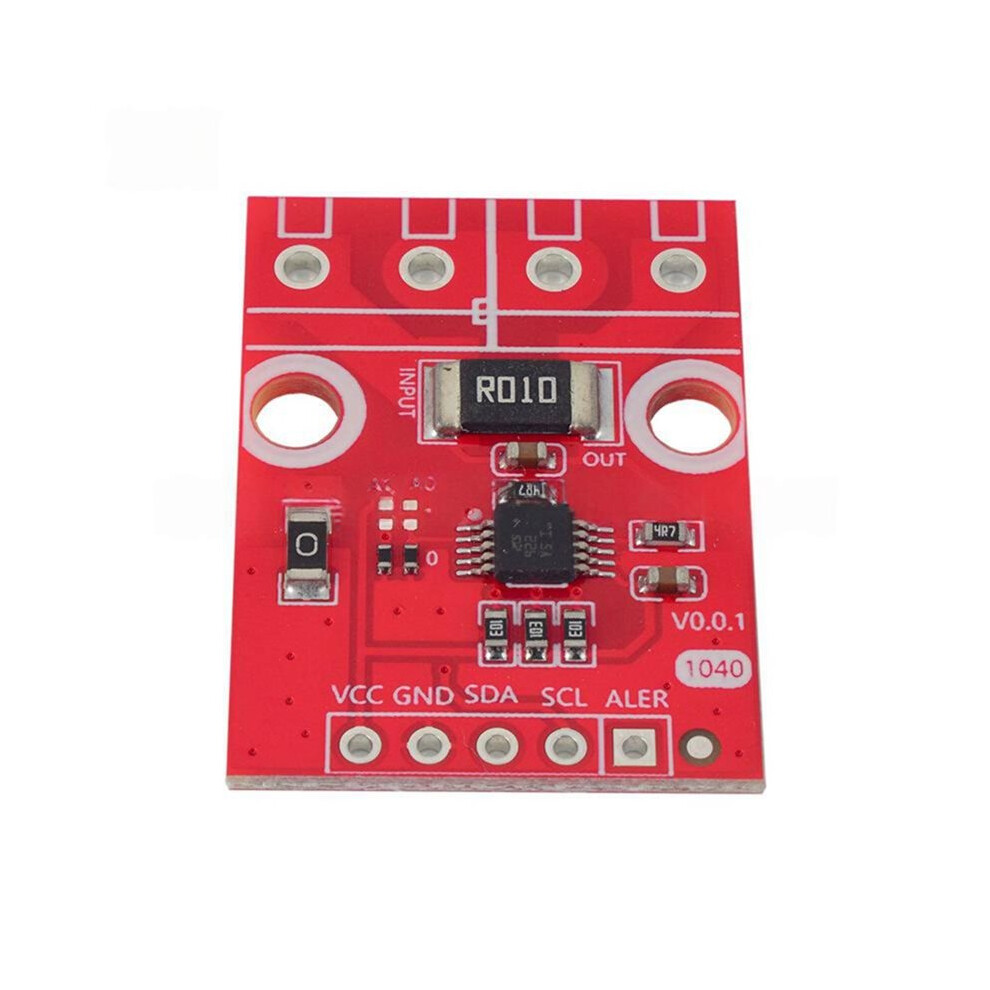

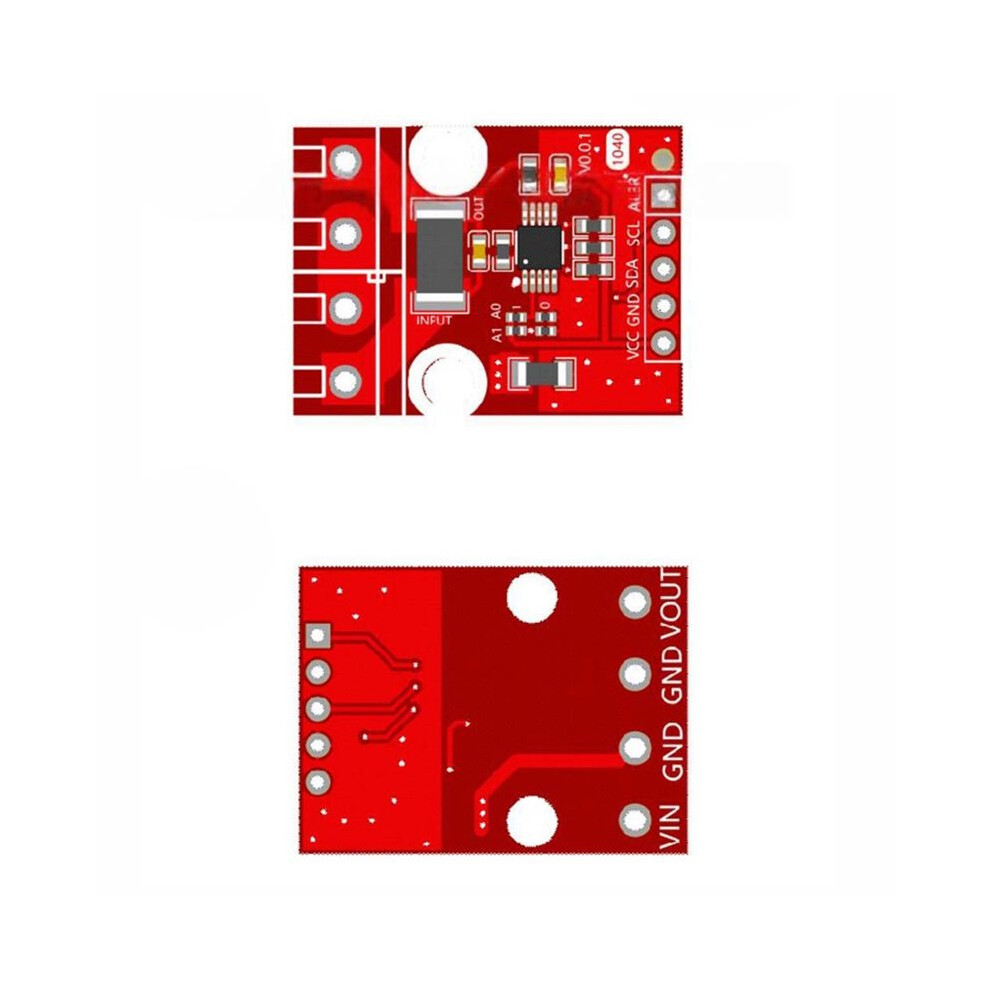

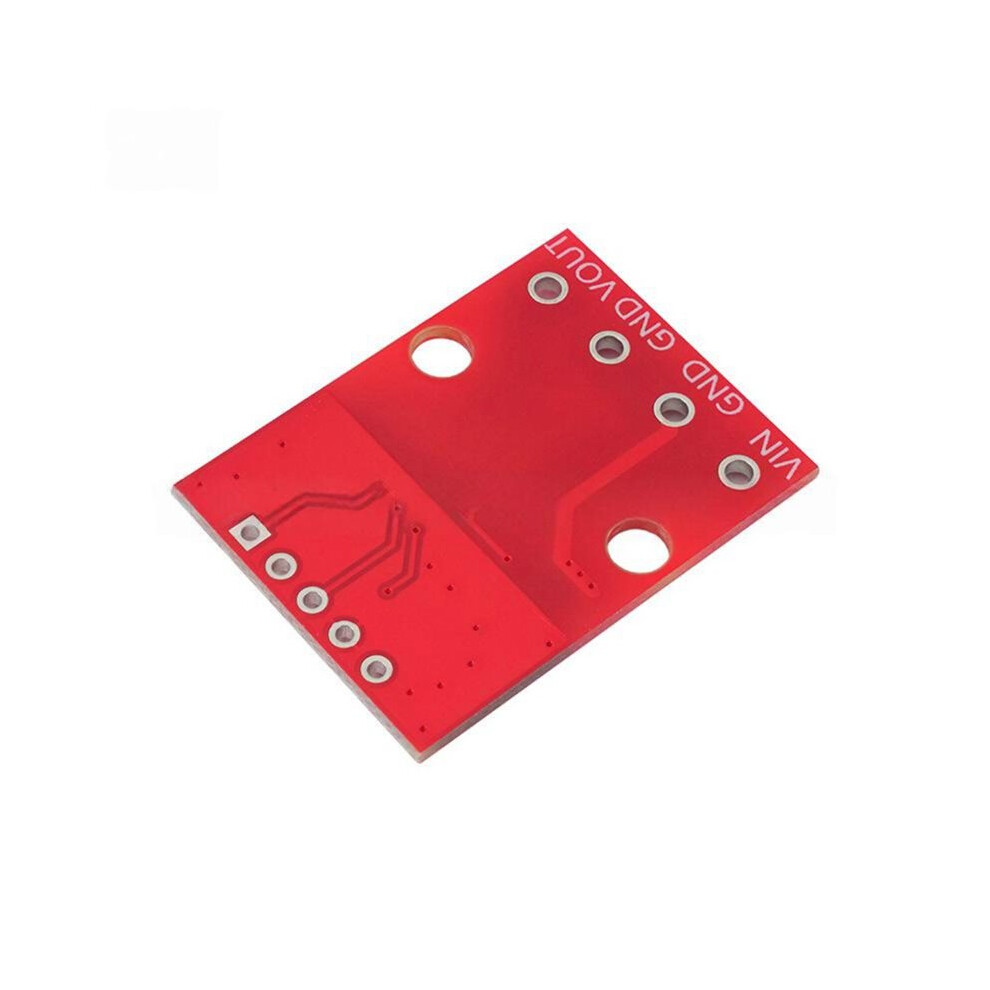

INA226 High-Precision Voltage and Current Module 0-36V Current and Voltage Monitoring Sensor Module IIC Interface

Descriere INA226 High-Precision Voltage and Current Module 0-36V Current and Voltage Monitoring Sensor Module IIC Interface

Equipped with the high-performance INA226 monitoring IC, this module provides accurate, real- measurement of bus voltage, shunt voltage, current and power. Ideal for applications that require precise power analysis, battery monitoring and power optimization.
Supports bidirectional current flow monitoring, allowing you to measure charging and discharging currents or power in both directions. Suitable for power supply systems, battery charge/discharge tests, motor drive monitoring and metering projects.
Built-in programmable alert (ALERT) pin supports setting threshold values for over-voltage, under-voltage, over-current and over-power conditions. When the measured value exceeds or falls below the set threshold, the alert output can be used to trigger protection circuits, indicators or MCU interrupts, improving system safety.
Combines voltage, current and power metrics into a digital power meter solution. Suitable for long-term data logging, efficiency analysis and load profiling. Users can read measurement data via I2C and record or display it in real for testing and development.

Color: As Shown
Material: PCB

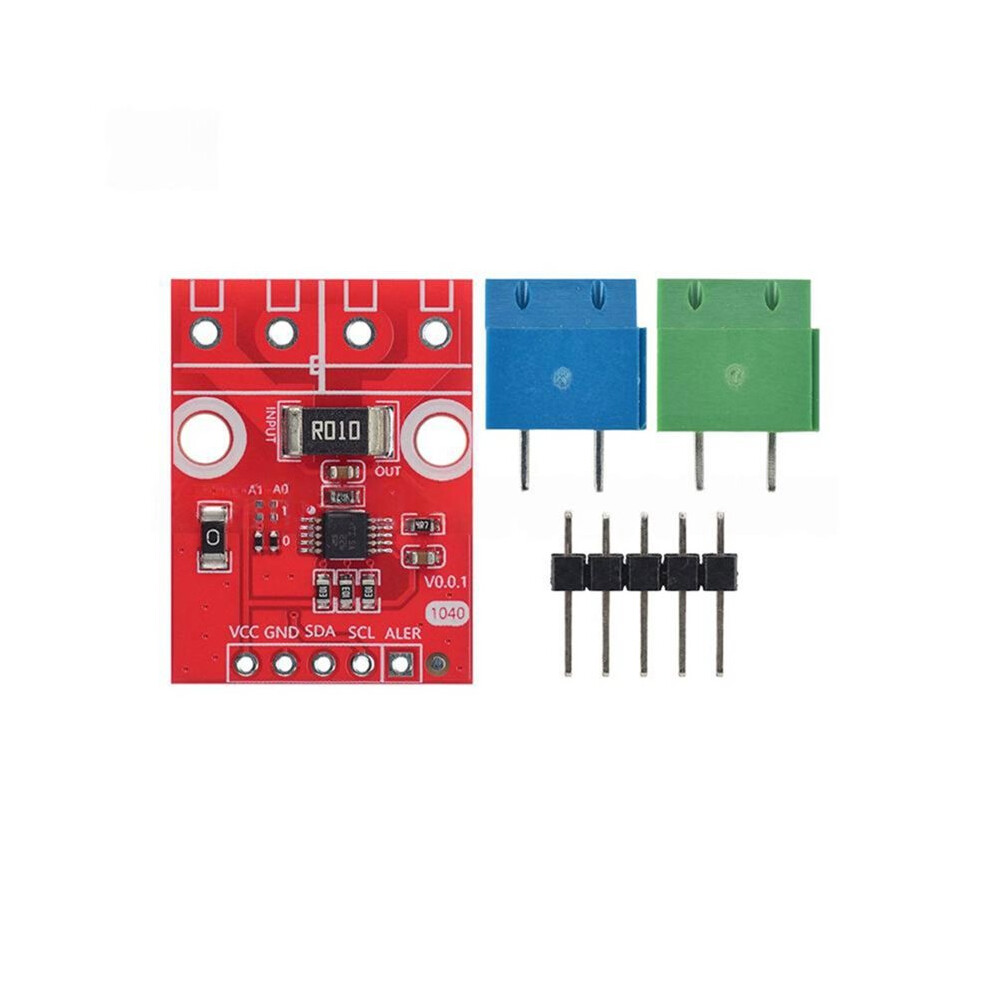

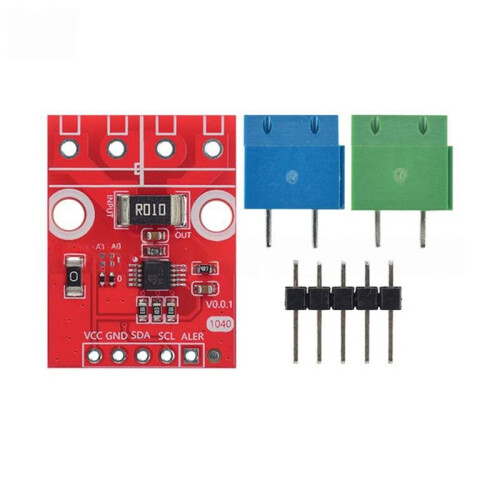

Package Contents:
1*Module
