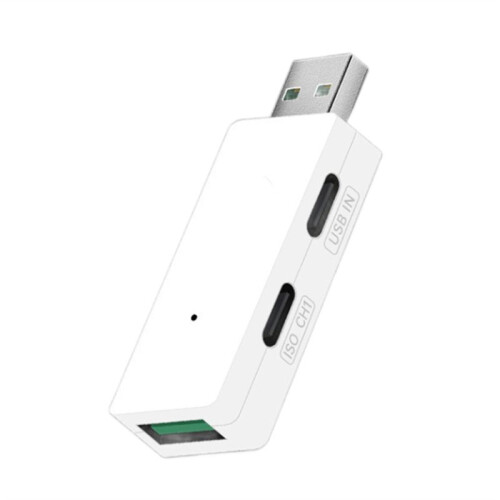

Industrial USB 2.0 Hub Isolator Port 3 480Mbps Data Transfer Auto Detect R2LB Professional

Descriere Industrial USB 2.0 Hub Isolator Port 3 480Mbps Data Transfer Auto Detect R2LB Professional

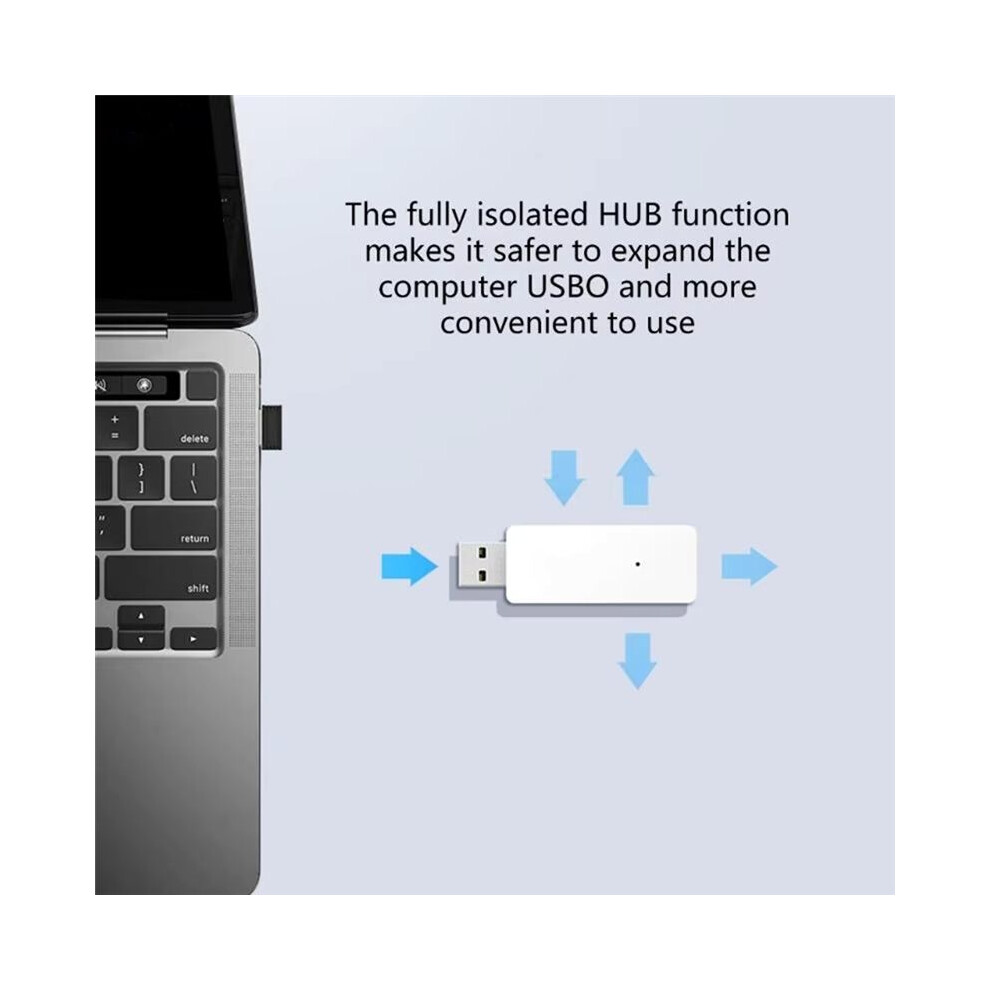

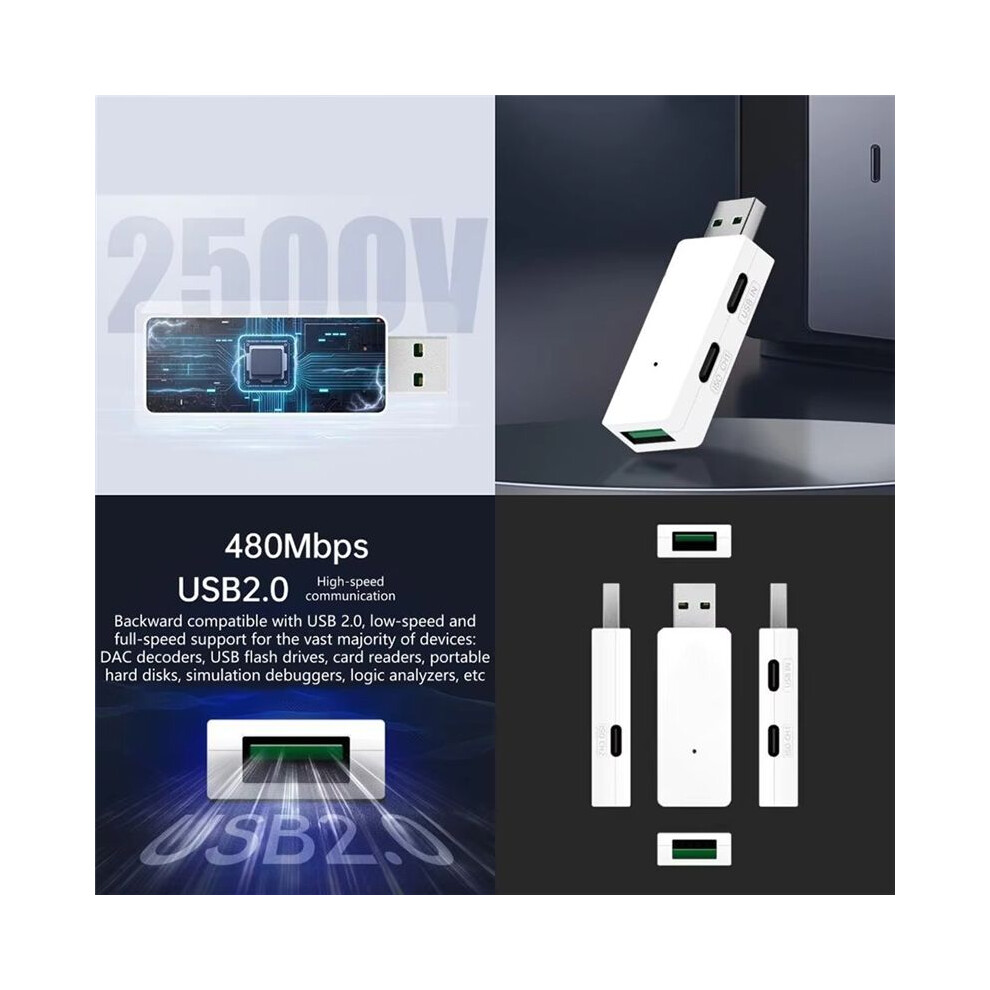

The Industrial USB 2.0 Isolator Hub (HUB23) delivers 480Mbps fast speed data transfer through its three port expansionFeaturing automatic detection for low/full/fast speed connection across multiple USB transmission mode.
Engineered with plastic housing and multiple protections (short circuits/ESD/over current), operates driverless for instantly use functionality.
Driverless: Not need to install driver, more convenient to use..

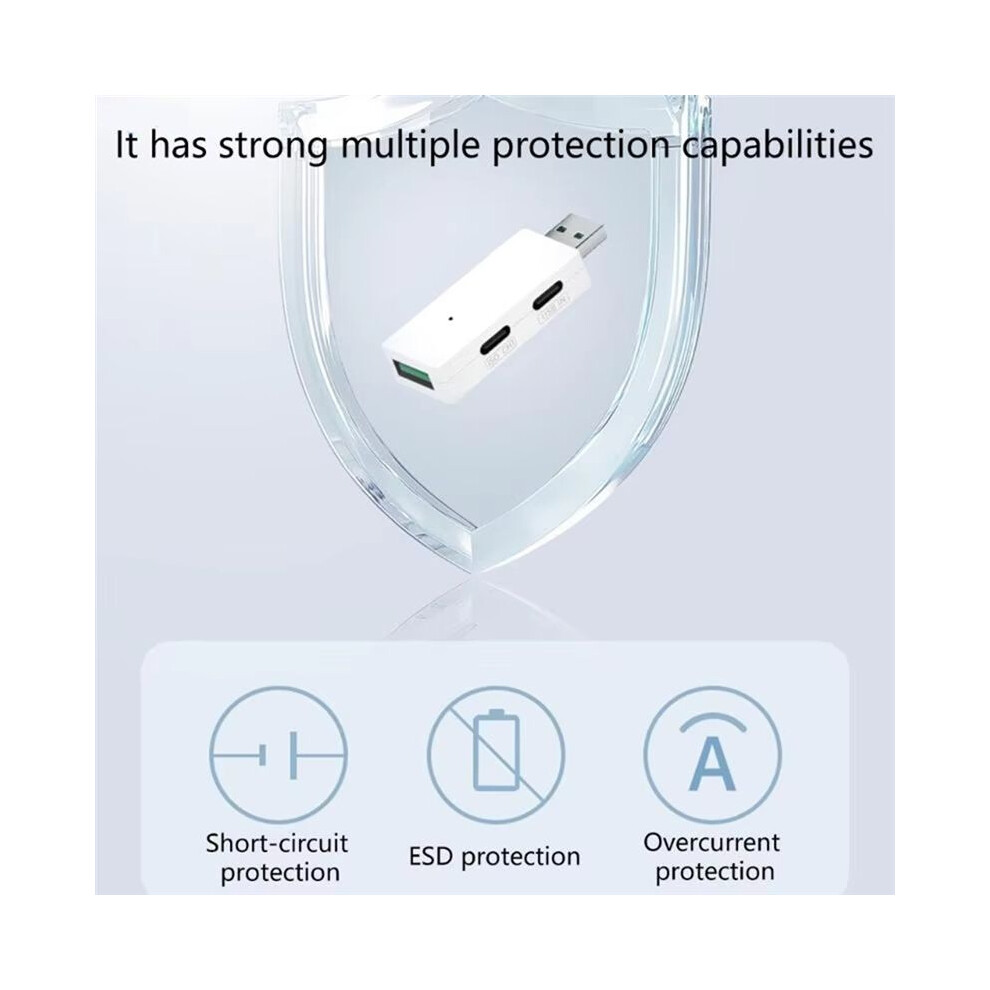

Provides short-circuits protections, ESD (electrostatic discharge) protections and over-currents protections..
Portable: small size, easy to carry.

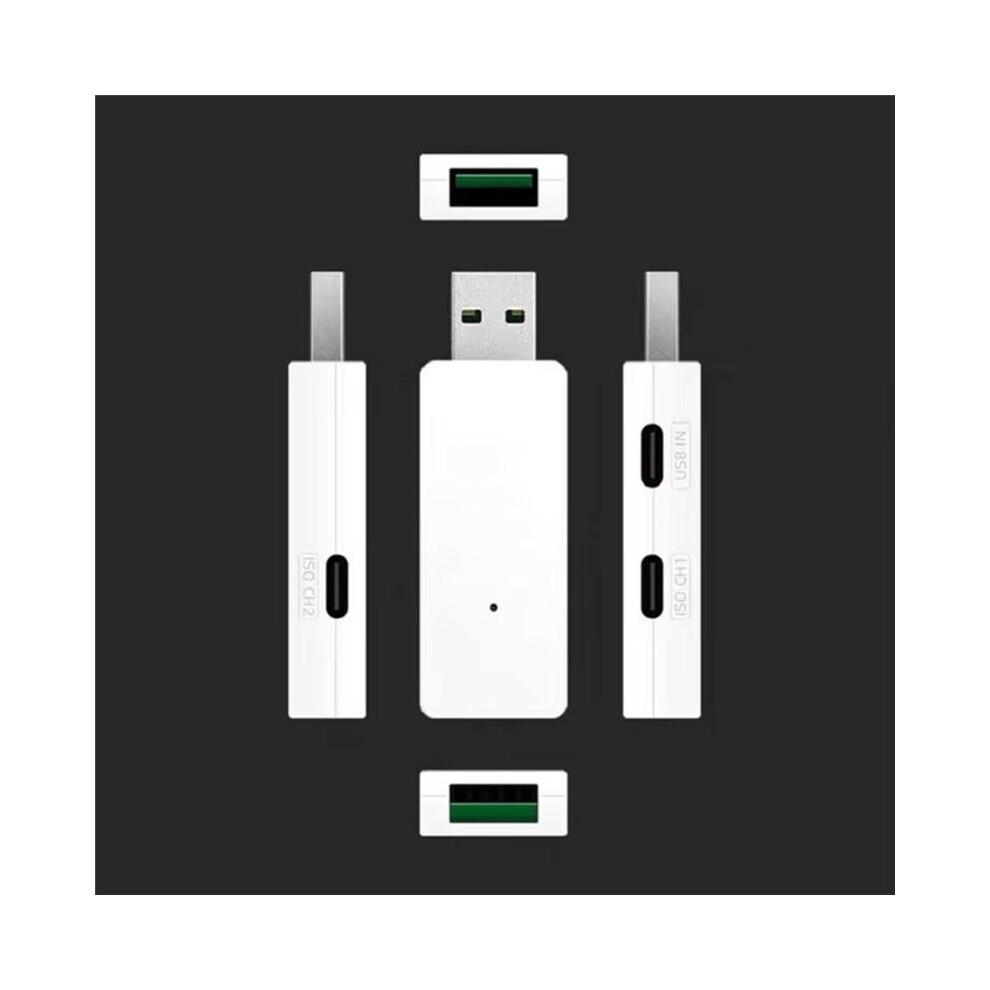

Interfaces type: Standard USB-A interfaces standard type c interfaces, supports forward and reverse pluggings.
Communication interfaces: USB2.0, automatically detects low-speed, full-speed and fast speed connection.
Power supply voltages 5V (from the USB port of the computer host)

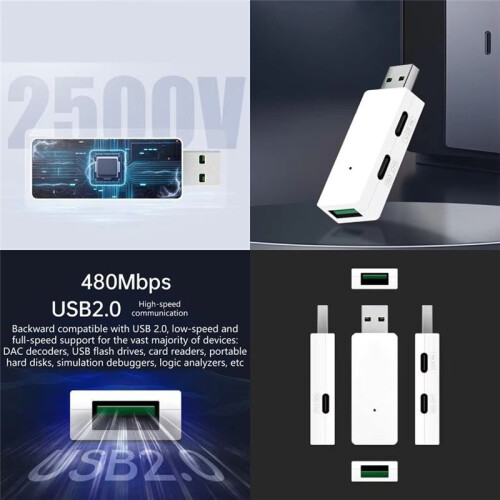

Isolation voltages: ADUM3165: 3.75kV, power module: 2.5kV
Isolated outputs: 500mA@5V ( 2.5W)
Operating temperature: 20C 70C

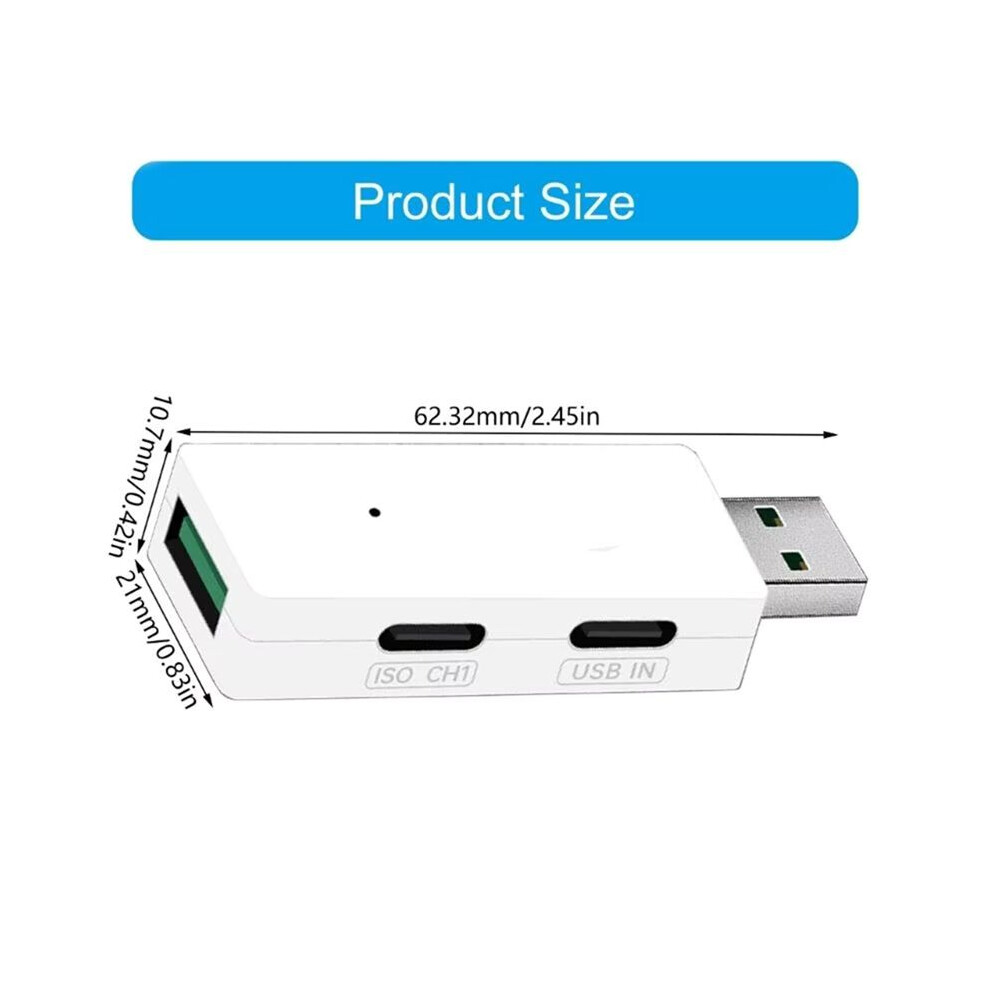

Module size: about 62.32x21x10.7mm/2.45x0.83x0.42in
Note:
The USB-A port and type c port the input terminals cannot be used at the same , and the input voltages cannot 5.5V!
The USB-A port and type c port the input terminals cannot be used at the same , otherwise the device will not be recognized!
The output terminals of type c port can be connection to a 5V power supply, and the input voltages cannot 5.5V.

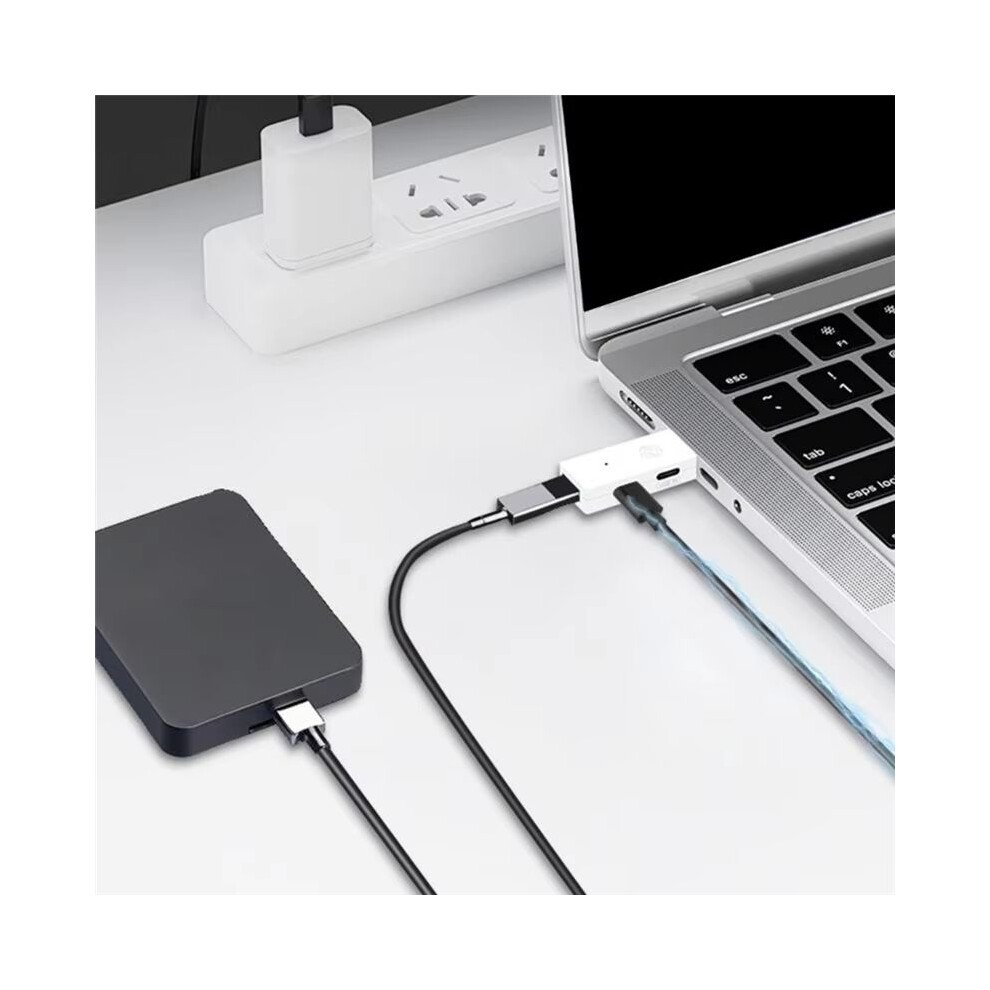

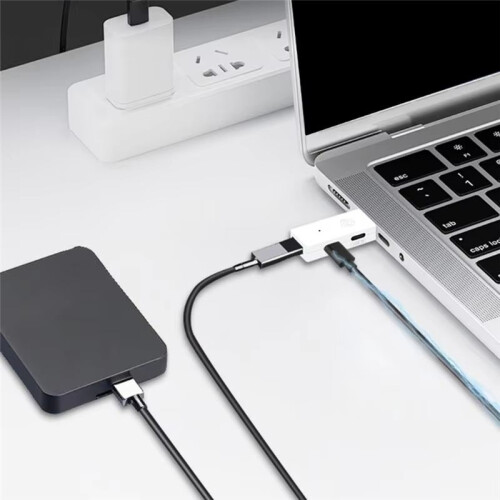

If you need to drive a mobile hard disk, please a separate 5V power supply to the output and ensure sufficient voltages through external power supply.
After the isolator works normally, there will be a certain amount of heat, which is a normal phenomenon.
The USB isolator cannot be used a win11 computer, otherwise the computer will crash and
Color: White
Material: plastic
