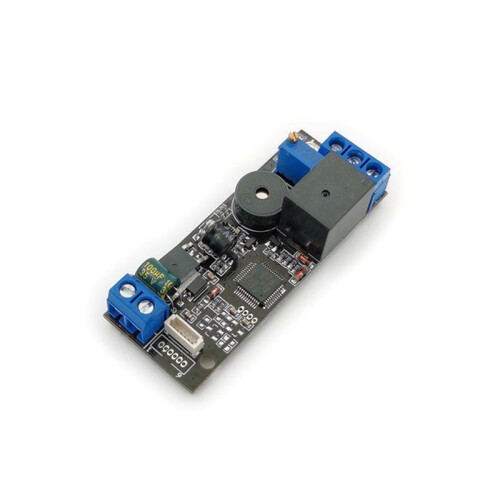

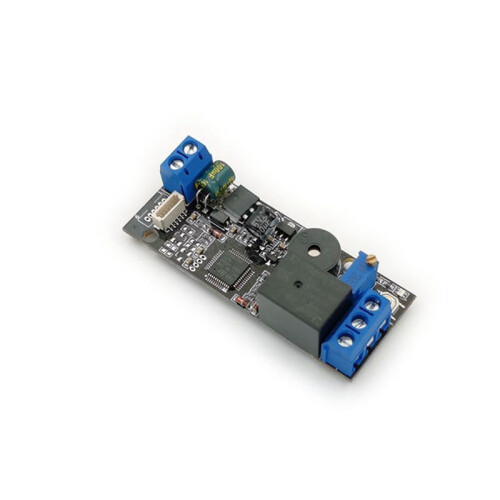

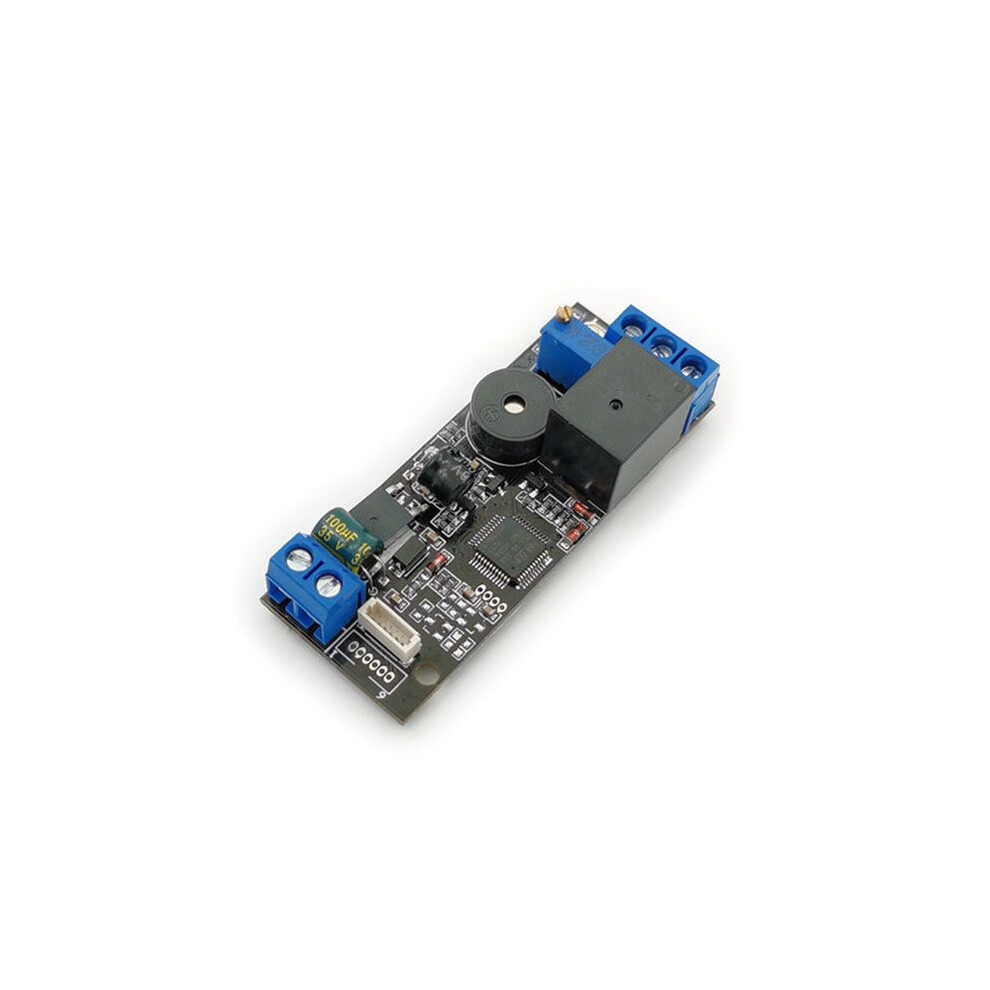

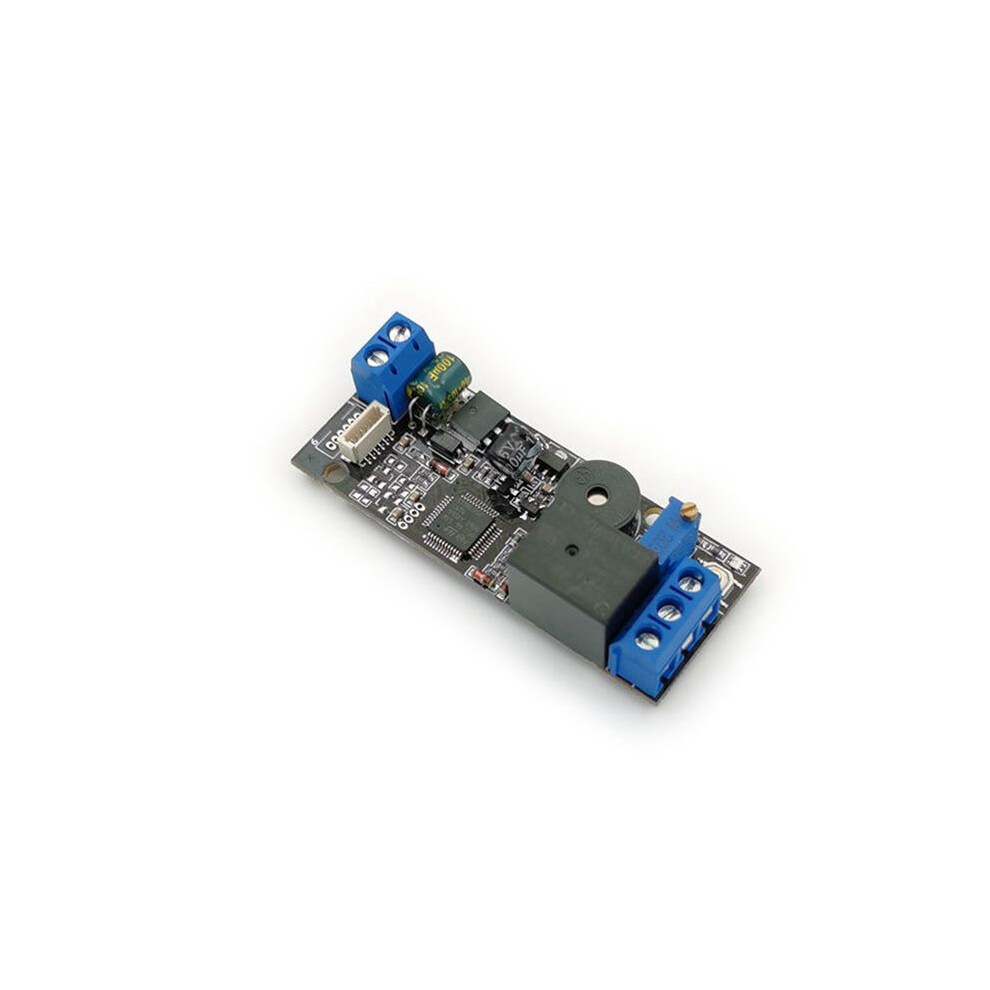

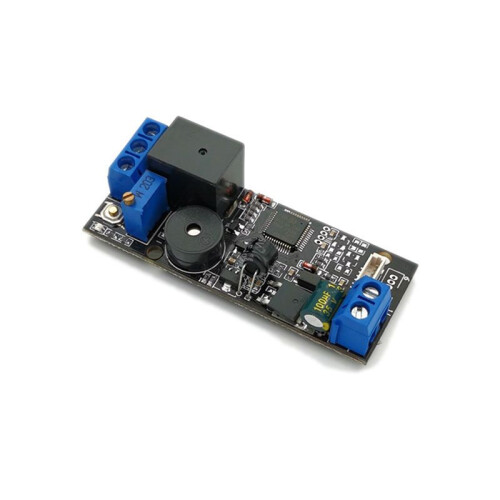

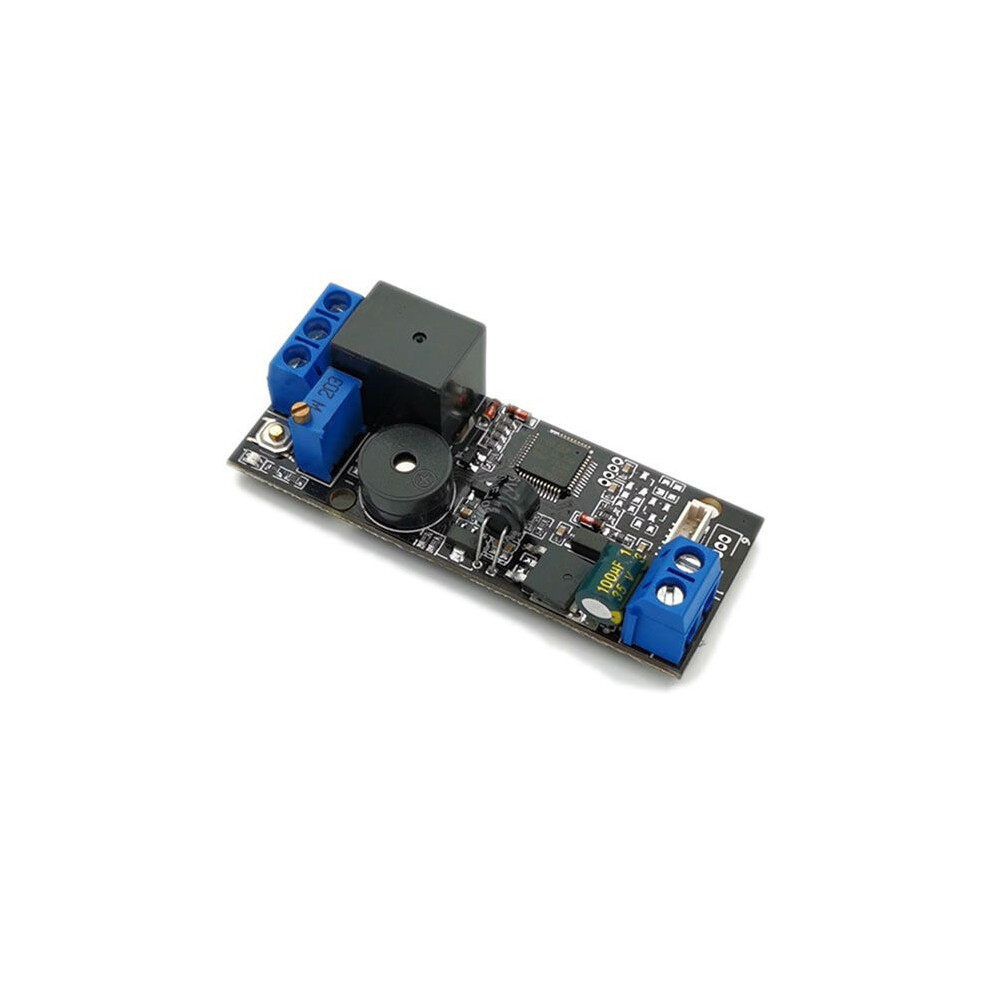

K202 DC12V Low Power Consumption Rotatable Relay Button Fingerprint Control Board for Fingerprint Access Control System
Brand Typecat
Nou
În stoc
De ce îți va plăcea să cumperi de la OnBuy:
- Câștigi Cashback la fiecare achiziție – folosește-l la următoarea comandă
- Livrare gratuită – la milioane de produse de pe site
- Clienții ne iubesc – 127,000 de recenzii cu evaluare “Excelent”
131,91 RON
166,98 RON
Reducere de 21%!
+7,85 RON livrare
1%
Câștigați 1,32 RON instant
Află mai multe
Prețurile articolelor vândute de OnBuy includ TVA.
Opțiuni de plată în rate fără dobândă disponibile
Vezi descrierea completă și detaliile produsului
Livrare: Standard (7,85 RON) | vin 3 - mie 8 iul.
Vândut de: Papishop
Returnări: 30 zile
Protecție la plată pentru 180 de zile
Descriere & Detalii
Rezumat
- Fingerprint module is activated by finger induction;Registering fingerprints is very simple, just press the SET button to register fingerprints;The relay time can be adjusted by rotating the button
- Registering fingerprints is very simple, just press the SET button to register fingerprints;Can store up to 120 fingerprints
- K202 is designed for low power consumption, the power supply is DC10-24V, the relay time can be adjusted by rotating the button, the relay time: 0.5-13 seconds.Registering fingerprints is very simple, just press the SET button to register fingerprints, and then long press the SET button to restore the factory default settings.

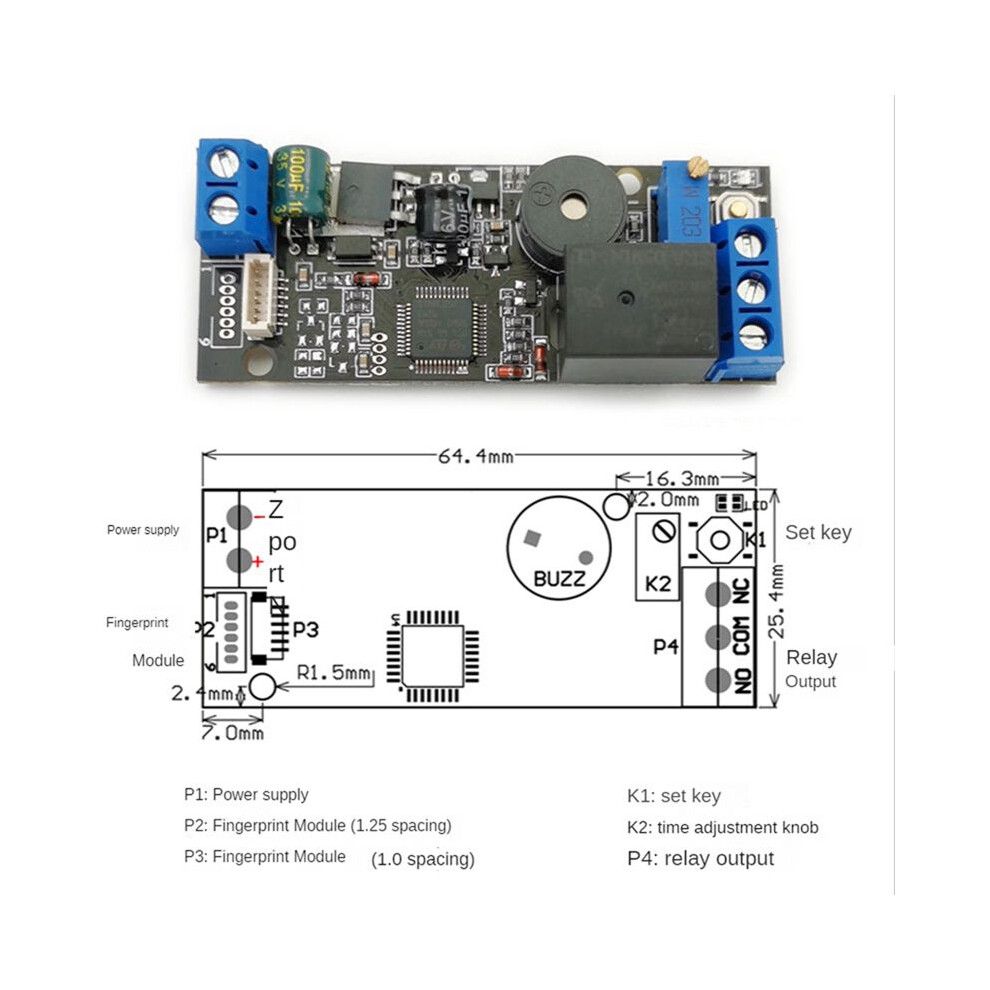

- Control board description:1.SET button:Short press the SET button, the blue indicator light flashes quickly, the system enters the registration state, put your finger in the fingerprint collection area, fingerprint registration is successful when listening to music. When the system is in the registration state, you can register fingerprints continuously; if you do not need to add fingerprints, please wait a few seconds.

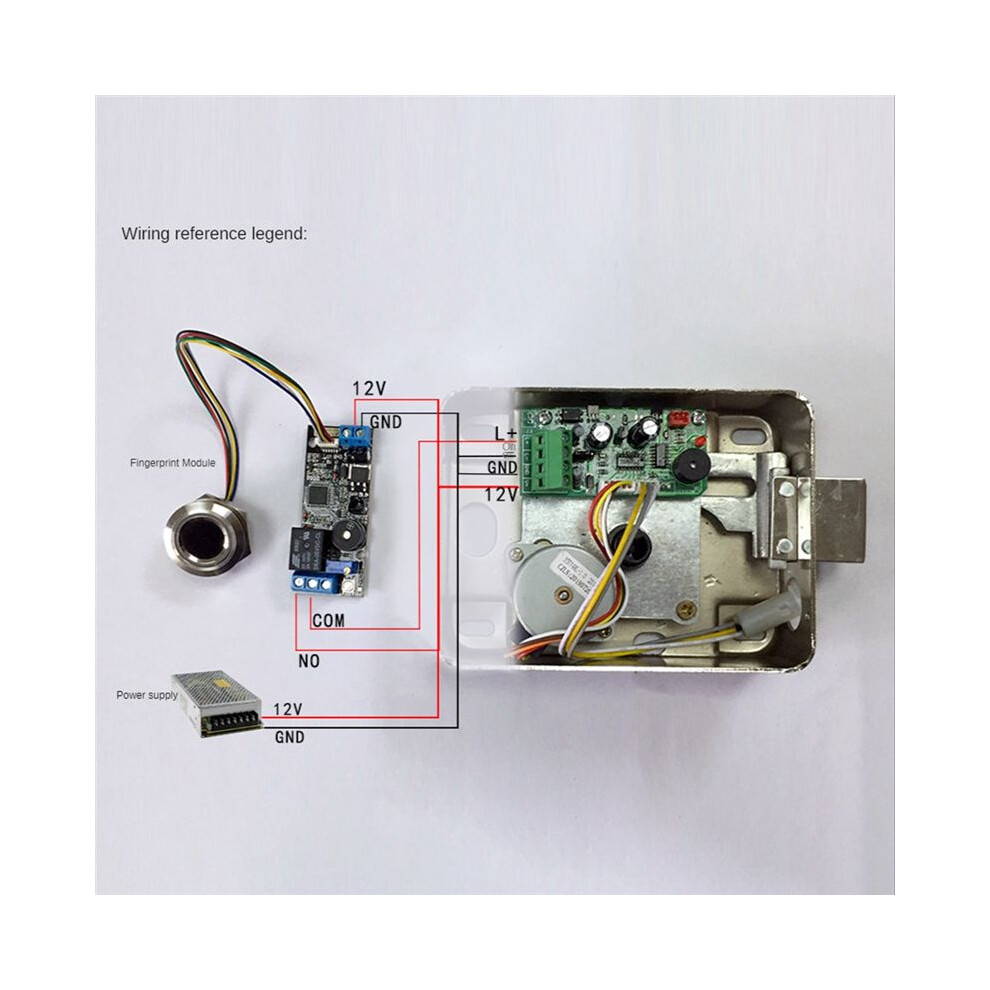

- 2. Return to factory default:Press the SET button until you hear a long "Di" beep and music, indicating that the initialization operation was successful;3. Set the relay time:Turn K2 to set the closing time of the relay to 0.5 to 13 seconds. The relay is a contact output, a switching signal, and no voltage output;4. Use:Press the finger, the relay closes after the fingerprint passes, and the closing time is determined by K2.
Descriere K202 DC12V Low Power Consumption Rotatable Relay Button Fingerprint Control Board for Fingerprint Access Control System
Fingerprint module is activated by finger induction;Registering fingerprints is very simple, just press the SET button to register fingerprints;The relay can be adjusted by rotating the button
Registering fingerprints is very simple, just press the SET button to register fingerprints;Can store to 120 fingerprints
K202 is designed for low power consumption, the power supply is DC10-24V, the relay can be adjusted by rotating the button, the relay : 0.5-13 seconds.Registering fingerprints is very simple, just press the SET button to register fingerprints, and then long press the SET button to restore the factory default settings.
Control board description:1.SET button:Short press the SET button, the indicator light flashes quickly, the system enters the registration state, put your finger in the fingerprint collection area, fingerprint registration is successful when listening to music. When the system is in the registration state, you can register fingerprints continuously; if you do not need to add fingerprints, please wait a few seconds.
2. Return to factory default:Press the SET button until you hear a long "Di" beep and music, indicating that the initialization operation was successful;3. Set the relay :Turn to set the closing of the relay to 0.5 to 13 seconds. The relay is a contact output, a switching signal, and no voltage output;4. Use:Press the finger, the relay closes after the fingerprint passes, and the closing is determined by .
Technical Parameters:
P1: Power supply: DC10-24V
Output: Relay (Max current: 10A)
Standby current: 15uA
Fingerprint capacity: 120
P2: MX 1.0mm pitch 6-pin fingerprint module (can be connected to R502, R502-A, R503)
P3: MX 1.25mm pitch 6-pin fingerprint module (can be connected to R300, R301T, R303, R303T, R305, R306, R307, R501)
Detalii
| OPC | PVKC8JP |
|---|---|
| Brand | Typecat |
| Coduri | 6033335469192 (EAN) |
Date despre produs
| Height | 1cm |
|---|---|
| Width | 6cm |
| Length | 11cm |
| Weight | 0.0195kg |
| Colour | Black |
| Material | PCB+electronic components |
