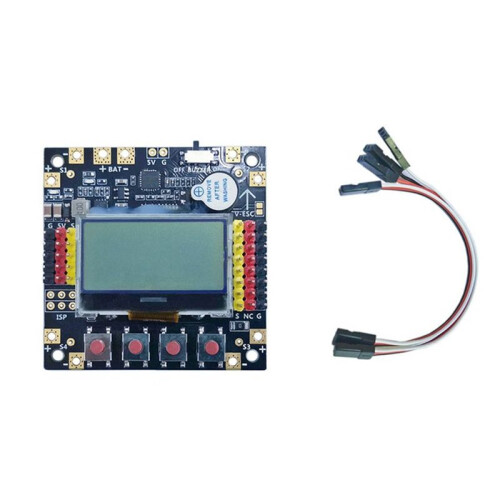

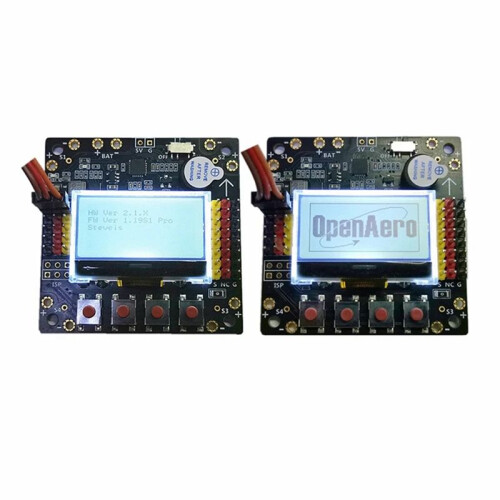

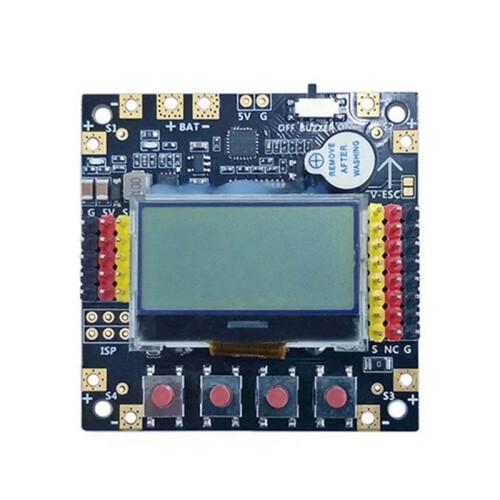

KK2.1.5 KK2 Flight Controller Board V1.19S1PRO for FPV Racing Drone RC Airplane A

Descriere KK2.1.5 KK2 Flight Controller Board V1.19S1PRO for FPV Racing Drone RC Airplane A

The KK2.1.5 Flight Controller is equipped with an integrated power distribution board (PDB), -board , and buzzer for streamlined installation and convenience.
The advanced self-balancing feature ensures smooth and stable flight, making it ideal for both beginners and experienced drone enthusiasts.
Powered by a reliable Atmega module and features gyro from InvenSense Inc., and accelerometer from Anologue Devices Inc.
The flight controller accepts firmware updates, for enhanced performance and features.
All settings and adjustments can be made directly the flight controller's built-in LCD screen with four buttons, eliminating the need for a separate computer unless a firmware upgrade is necessary.

Item Name: KK2.1.5

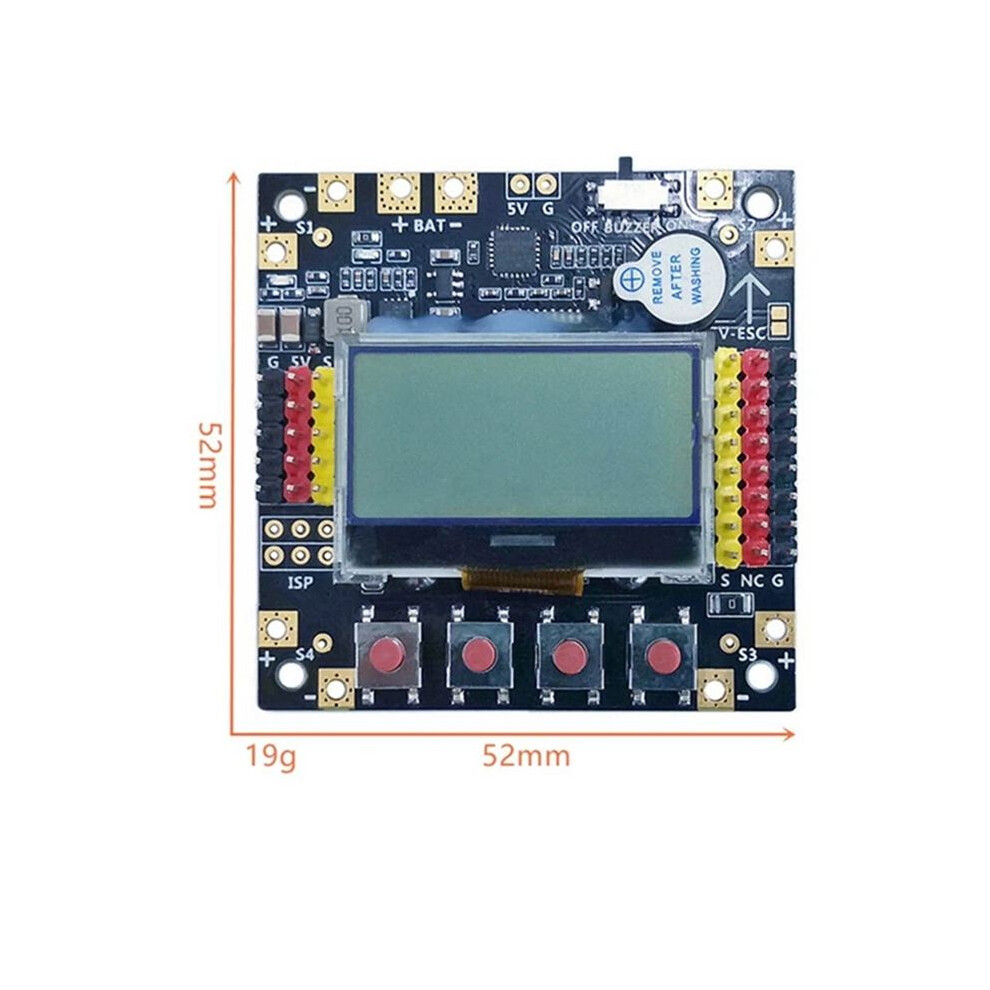

Dimensions: 52mm x 52mm x 12mm
Weight: 19g
Integrated Module: Atmega
Gyroscope: InvenSense Inc.
Accelerometer: Anologue Devices Inc.
Self-Balancing Feature: Yes
Input Voltage: 2-6S lithium battery or ESC-BEC 5V, but it is not allowed to provide two power supplies to flight control at the same
Output BEC: 5V 2A
Receiver Signal: 1520us (5 channels in total)
Signal to ESC (Servo): 1520us
Firmware: A: V1.19S1PRO
Built-in Airplane Mode:
Twin-rotor Tri-rotor
Y6 four-axis + four-axis X
Six axis + Six axis X
Eight-axis + Eight-axis X
X8 +X8 X
H8 H6
V8V6
Aero 1S Aileron
Aero 2S Aileron
Flying wing
Single axis 2M 2S
Single axis 1M 4S
V-tail four-axis
Due to different batches, there may be differences in product appearance, The colors of buttons and other small parts may vary, which will not affect the use
Colour:Black
Material:PCB

Package Contents:
1 x Flight Controller Board Kit
