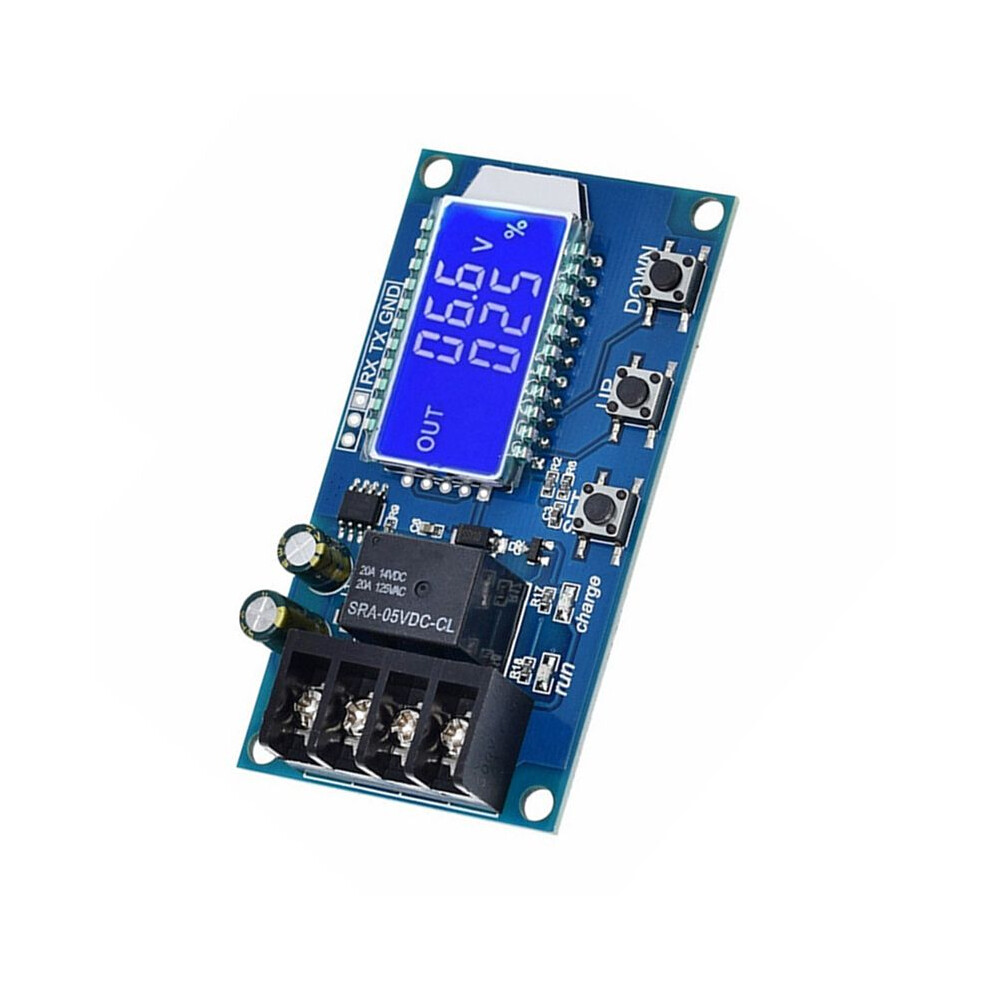

Lead-Acid Lithium Battery Charger Module 6-60V 10A LCD Display Control Overcharge Protection Board Automatic Charging

Descriere Lead-Acid Lithium Battery Charger Module 6-60V 10A LCD Display Control Overcharge Protection Board Automatic Charging

1. Any 1.6-60V battery and lithium battery can be used;
2. LCD display, battery voltage, charging percentage and charging are clear at a glance;
3. The function is very powerful and can automatically control charging.
4. Charging can be controlled; 5. Corresponding parameters can be set and uploaded through the serial port
Product name:CNC charging module;Product model:XY-L10A;Control voltage:DC6-60V;Control current:10A

Control accuracy:0.1V
Output type:direct output
Colour:
Material:Metal + Plastic
Description:
1. Function description
a)Automatic charging control function:
By setting the upper limit voltage and lower limit voltage dn; when the battery voltage the lower limit voltage dn,the relay is turned and the charger starts charging the battery; when the battery voltage the upper limit voltage ,the relay is turned off to complete an automatic charge;
b)Charging control function:
How to turn the control function?
After entering the parameter settings,if the parameter OP is not set to 0,the control function will be enabled. The default parameters of OP are:--:--h,and the control function will not be enabled by default;
2. Parameter settings
a)By long pressing the SET button,enter the parameter setting interface,the LCD will display SET;
b)After entering the parameter setting interface,short press the SET key to the set parameters;
c)After selecting the parameters,you can set them through the /DOWN keys,supporting short press and long press (rapid increase or decrease);
d)If you want to set other parameters,repeat steps b) and c);
e)After all parameter settings are completed,press and hold the SET key to exit and save;

Package Contents:
1 * Module
