LT3042 Regulated Low Noise High-Precision Linear Positive Voltage Power Supply Upgrade DAC 5V

Descriere LT3042 Regulated Low Noise High-Precision Linear Positive Voltage Power Supply Upgrade DAC 5V

Low RMS Noise: 0.8μVRMS (10Hz to 100kHz)
Low point noise: 2nV/Hz (at 10kHz)
High PSRR: 79dB (at 1MHz)
100μA SET pin current: 1% initial accuracy
High bandwidth: 1MHz

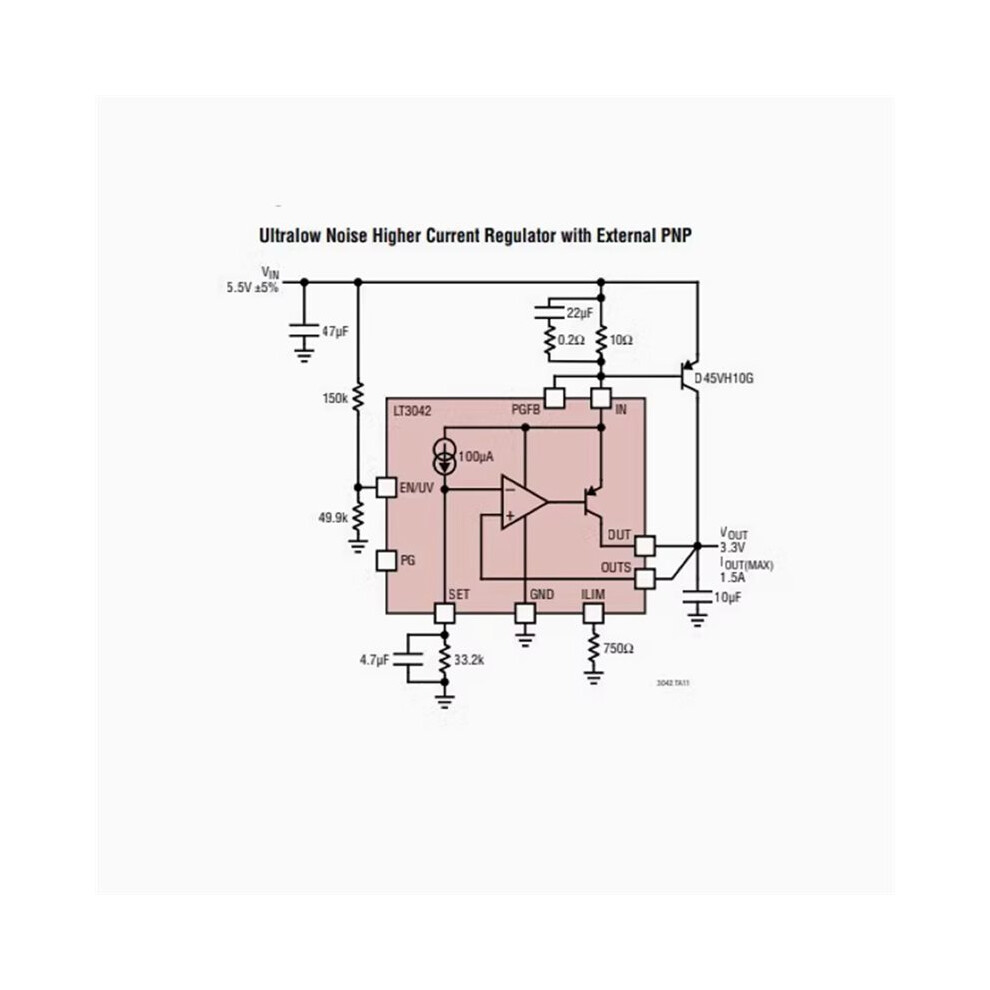

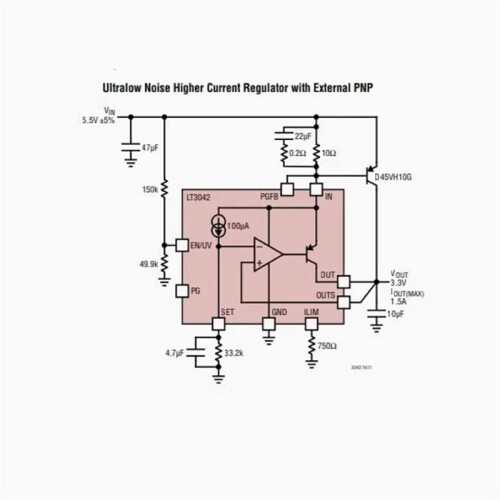

This product adopts the official recommendation method of Linear Technology's high-end linear voltage regulator chip LT3042+PNP expansion, which can provide a power supply with close to 0 noise, and can output a large current of 1.5A. It can supply power for high-precision measuring instruments, noise-sensitive RF applications, and DAC audio decoders and other equipment. The noise is as low as 1uV, which is 2-3 levels lower than the regulated noise of LM317 LM78XX. Very good for making audio equipment reach the background pitch black.

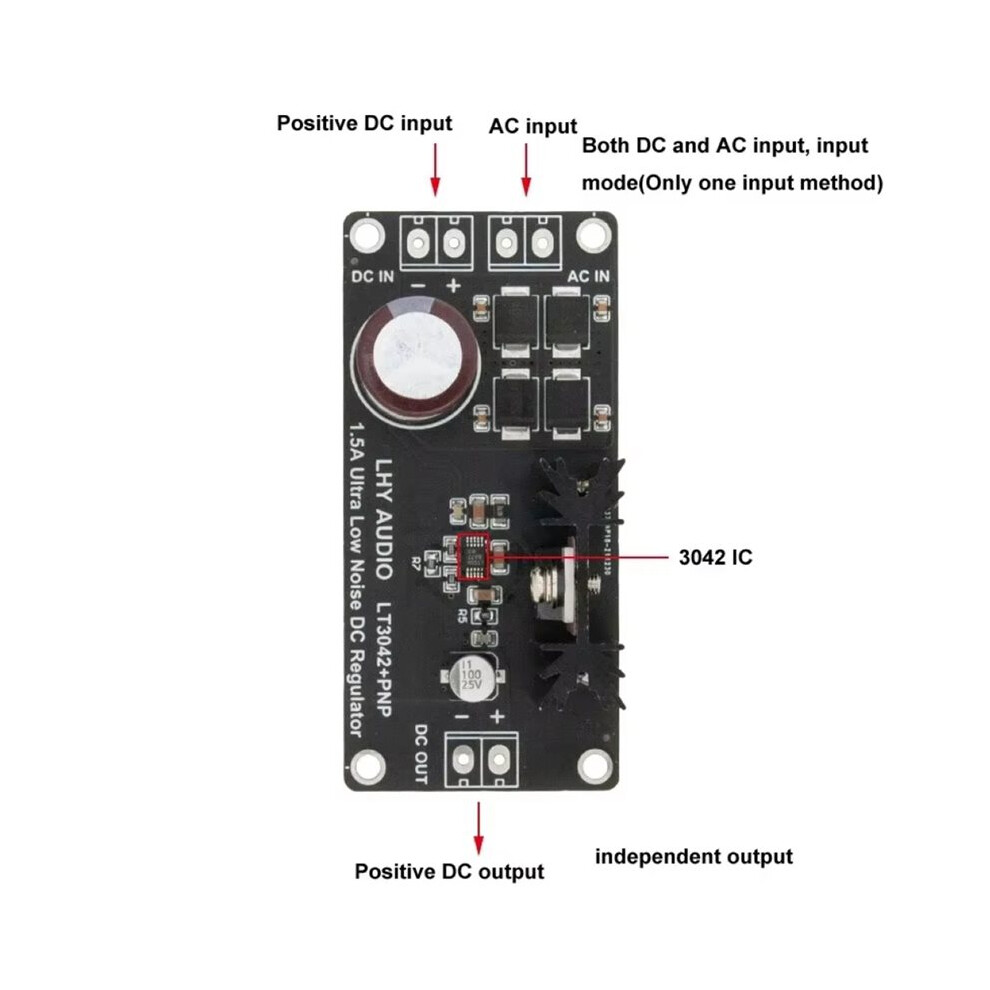

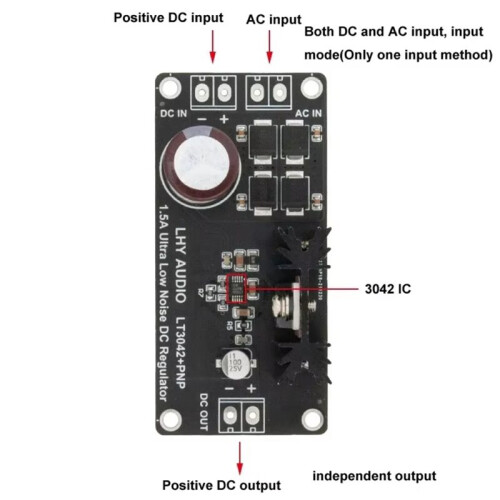

There are two input modes: and AC, and one group of positive voltage independent outputs. Please note the required voltage when shooting.

Input method: ( 3.3V- 20V) / AC (AC 3V-AC 13V)
Output current: 1.5A
output mode: independent output
output: 5v (factory default 5.0V)
Color: As Shown
Material: PCB
Specification: 5V

Package Contents:
1*module
