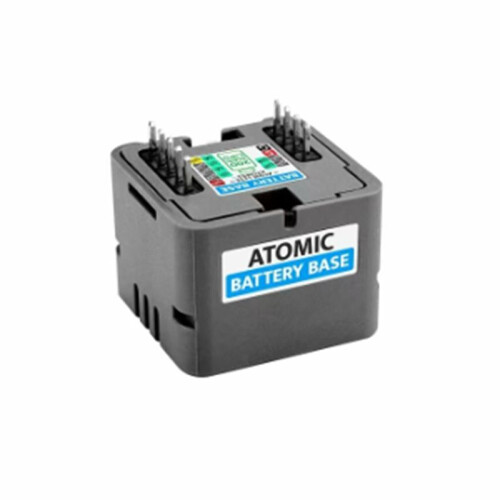

M5Stack Battery Base 200mAh Rechargeable Battery for IoT Devices Portable Tomic Battery Base

Descriere M5Stack Battery Base 200mAh Rechargeable Battery for IoT Devices Portable Tomic Battery Base

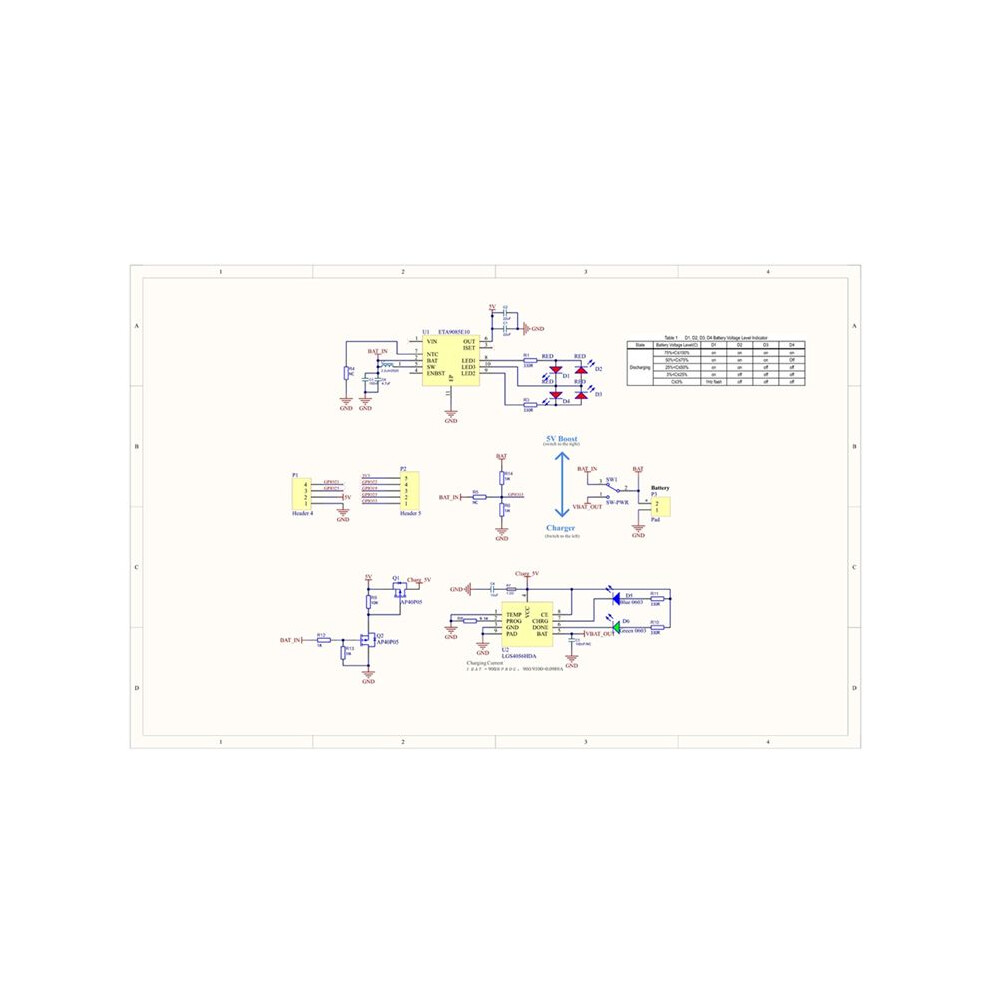

Battery Base is a portable power base designed specifically to power Atom series products. It features the ETA9085E10 high-efficiency boost converter solution and the LGS4056HDA linear charging management chip, with a built-in 200mAh rechargeable battery.

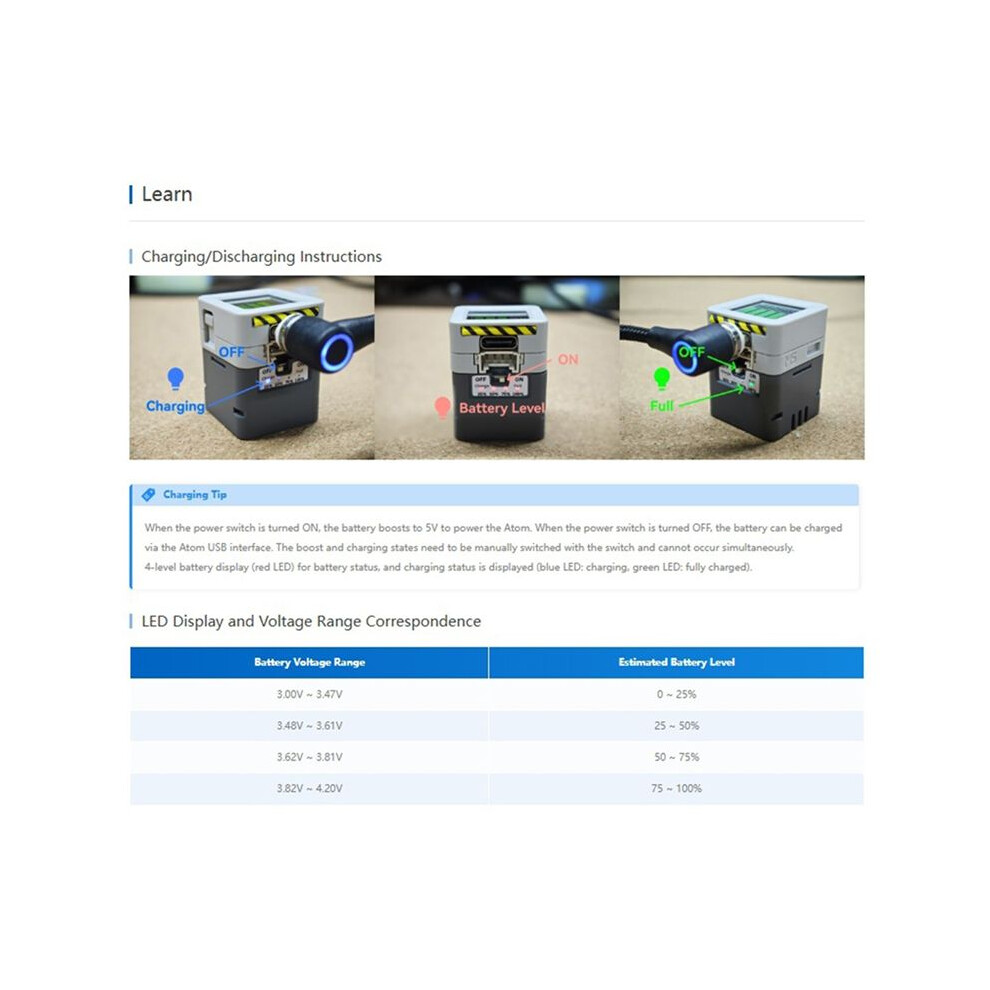

It provides stable 5V boosted output and ensures safe and efficient battery charging management. The product includes a built-in battery voltage detection circuit with an LED battery level indicator to display the battery's status in real-.
It comes with a Battery Charge and discharge dip that supports one-touch switching between boost and charging modes, meeting the needs of portable power applications. It is suitable for IoT devices, portable electronic products, and other applications requiring a stable power supply.

ETA9085E10 high-efficiency boost converter chip
LGS4056HDA charging chip
Built-in 200mAh rechargeable battery
Battery voltage ADC detection

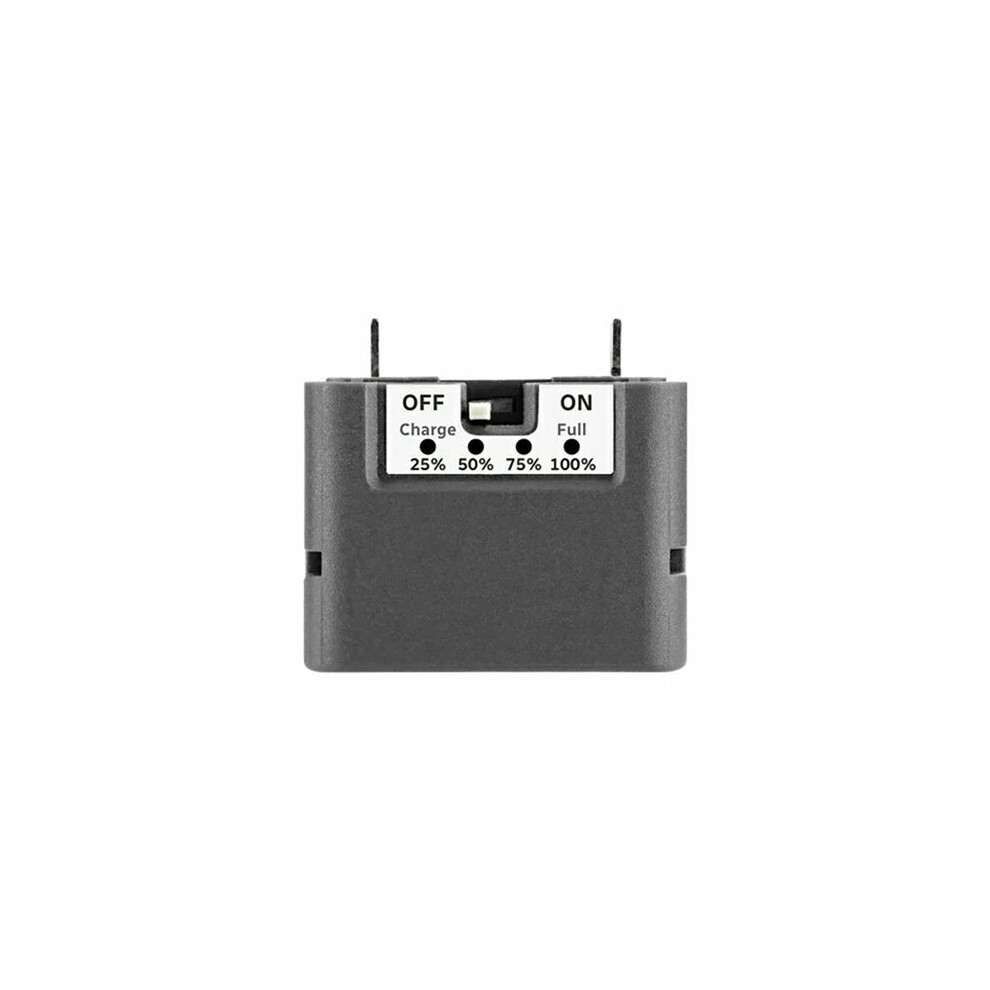

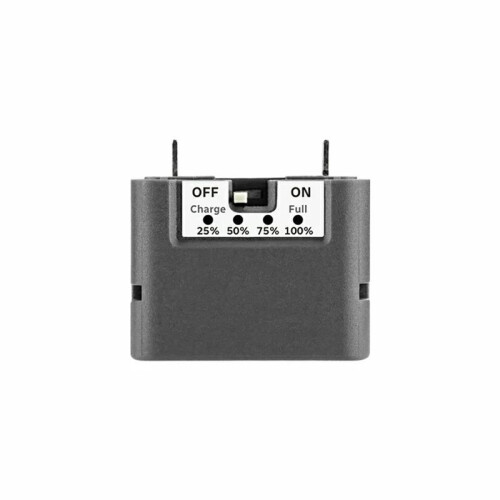

LED battery level indicator
Battery Charge and discharge dip
Notes

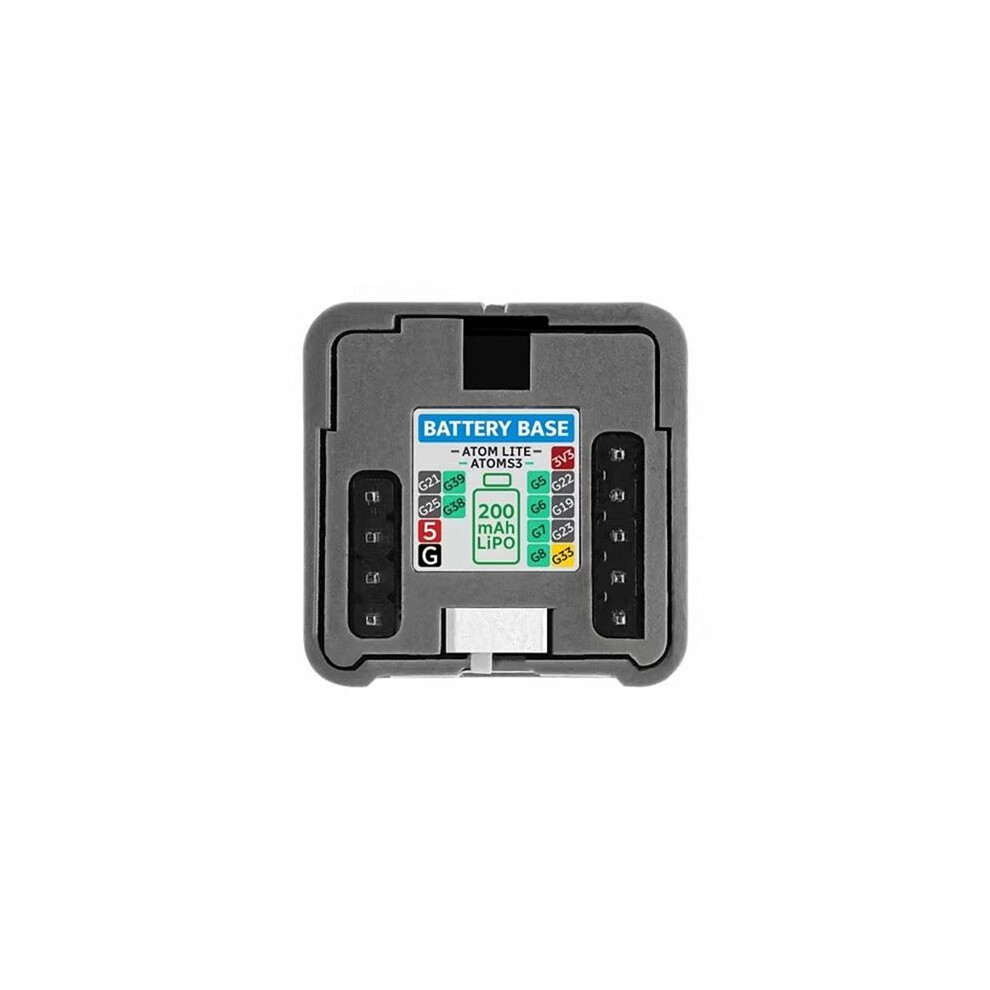

If you want to use it with the Echo Base voice dock, you need to cut off all the pins the right side of the battery dock (as shown below). When using it with the Atom Echo, you need to cut off the G33 pin. After the pin is cut off, the battery dock is only used for power supply and the battery voltage status cannot be read.
Due to different batches, there may be differences in product appearance and printed text, which will not affect use
Color: As shown
Material: ABS

Package Contents:
1 x Battery Base
