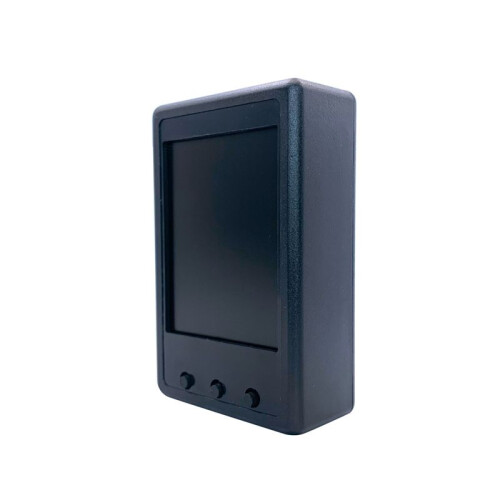

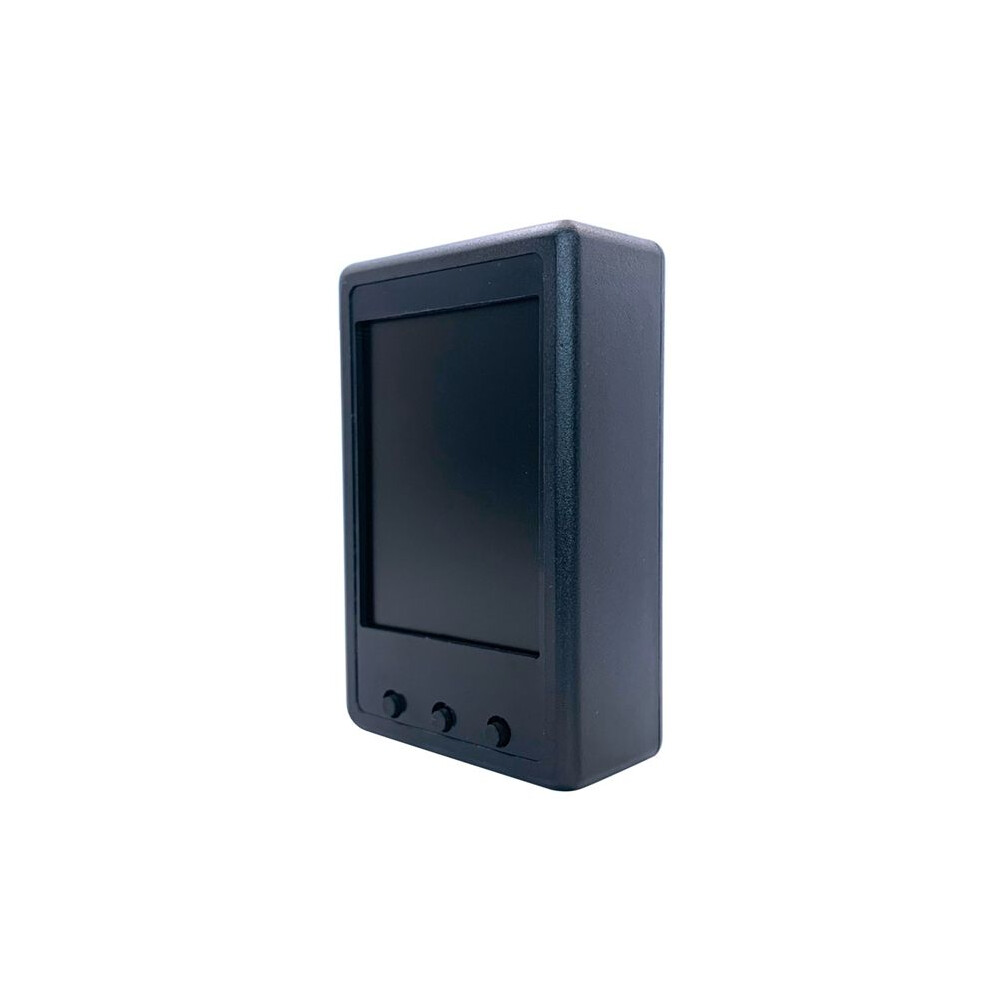

MLX90640 32X24 Infrared Thermal Imager Handheld Thermograph Camera Infrared Temperature Sensor PCB Circuit Testing

Descriere MLX90640 32X24 Infrared Thermal Imager Handheld Thermograph Camera Infrared Temperature Sensor PCB Circuit Testing

Features: With the housing, you can use it directly, the sensors resolution is 24 x 32 dot matrix. Built-in rechargeable lithium battery, mciro-USB interface, interface voltage does not exceed 5V.
The response frequency is 8Hz, the target temperature measurement ranges is -40~+300, and the use environment is 0~50.
The emissivity can be adjusted from 0.01 to 1.00 range.
Sensors probe field angle, default 35 degrees x 55 degrees MLX90640 ESF-BAB probe. 2.4 inch LCD screen resolution is 320 x 240, the screen shows the highest temperature, the lowest temperature, the center point temperature, displays each coordinate point.
The measurement accuracy is 2.

With a screenshot function, you can pause the picture for analysis.
With the screen color corresponding to the temperature adjustment function, you can set the temperature to display different colors.
With USB data transmission interface, can upgrade the system later, free to update the internal system, the default system version 1.0.
Can be applied to human body temperature detection, printed circuit board component heating temperature detection, floor heating temperature detection, automotive parts temperature detection, electrical temperature detection, air conditioning and microwave oven detection, etc.
Specifications:
Material: ABS
Color: black
Display: 2.4 inch color display, 320 x 240
Resolution: 32 x 24
FOV/Shortest length: 55 x 35
Temperature ranges: -40~300
Measurement accuracy: 2
Imaging frequency: 8Hz
Emissivity: 0.01~1.00 adjustable
Focus mode: fixed
Power supply: 1 x lithium battery, 1000mAh (included)
Working temperature: 0~50
Storage temperature: -40~70
Humidity: Less than 90% RH
Item size: 79 x 50 x 32mm / 3.1 x 2.0 x 1.3in
Item weight: 66g / 2.3ounc
