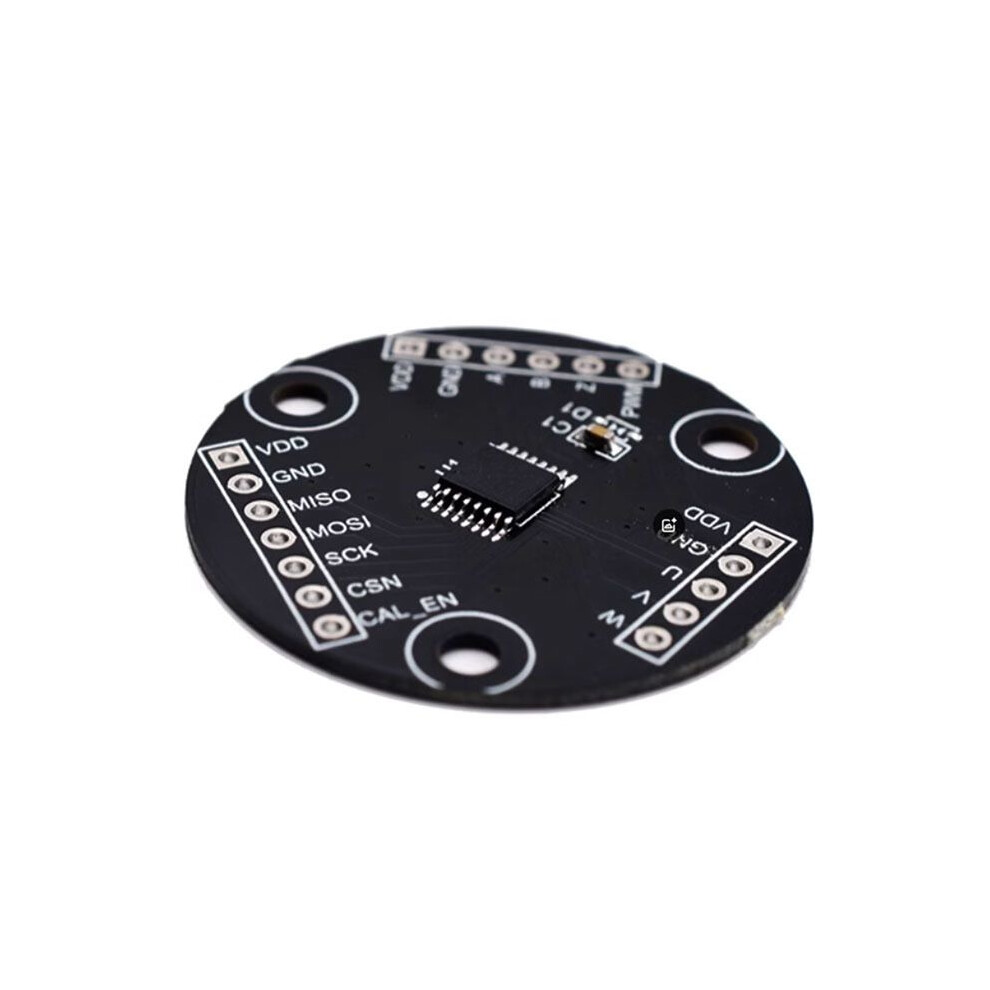

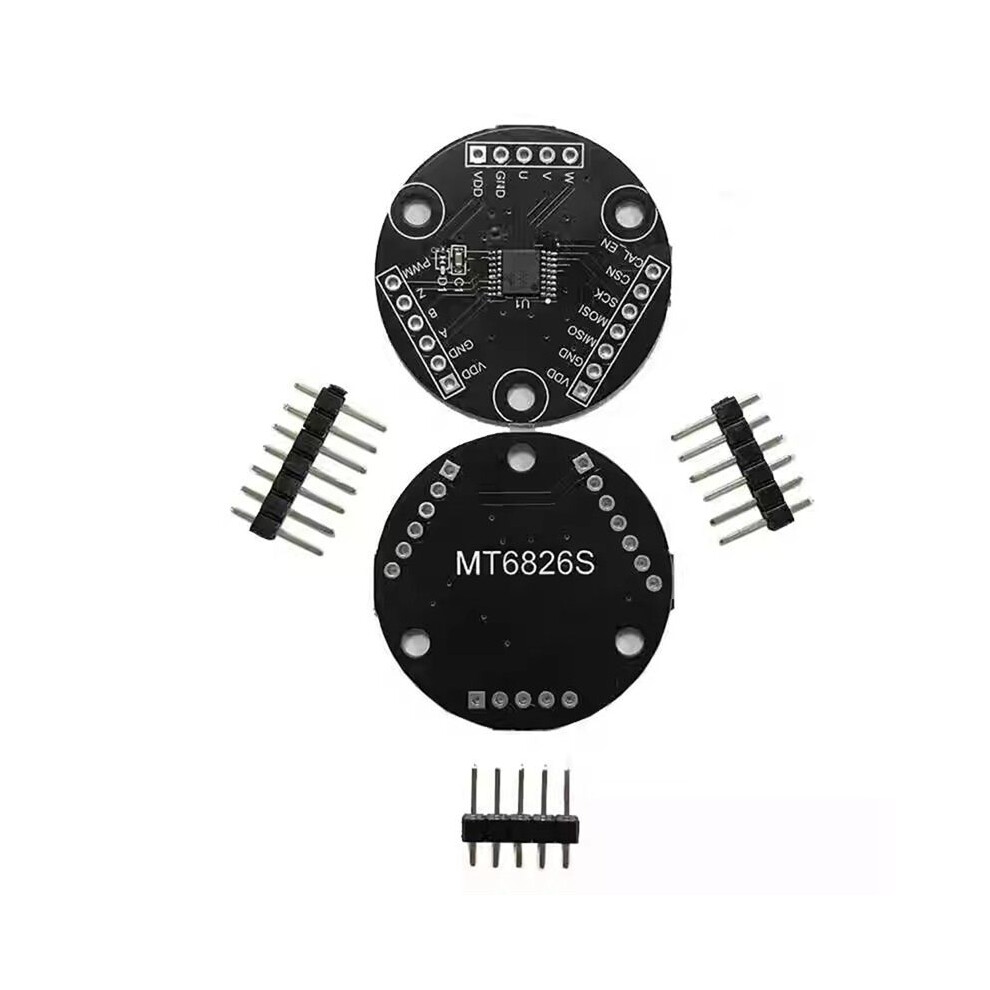

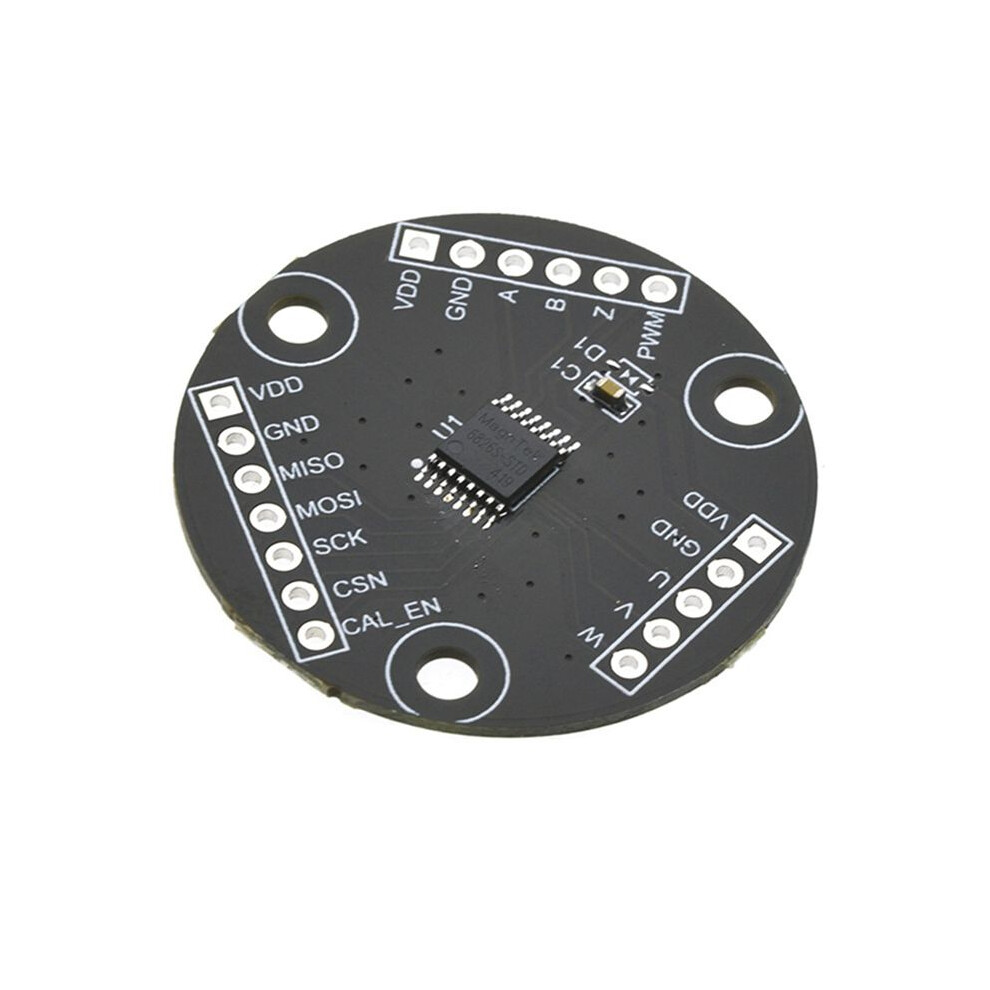

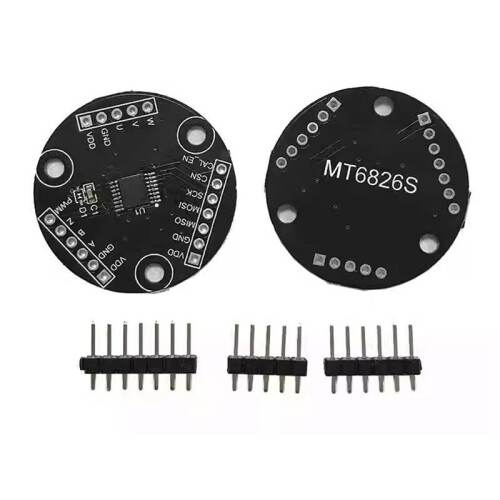

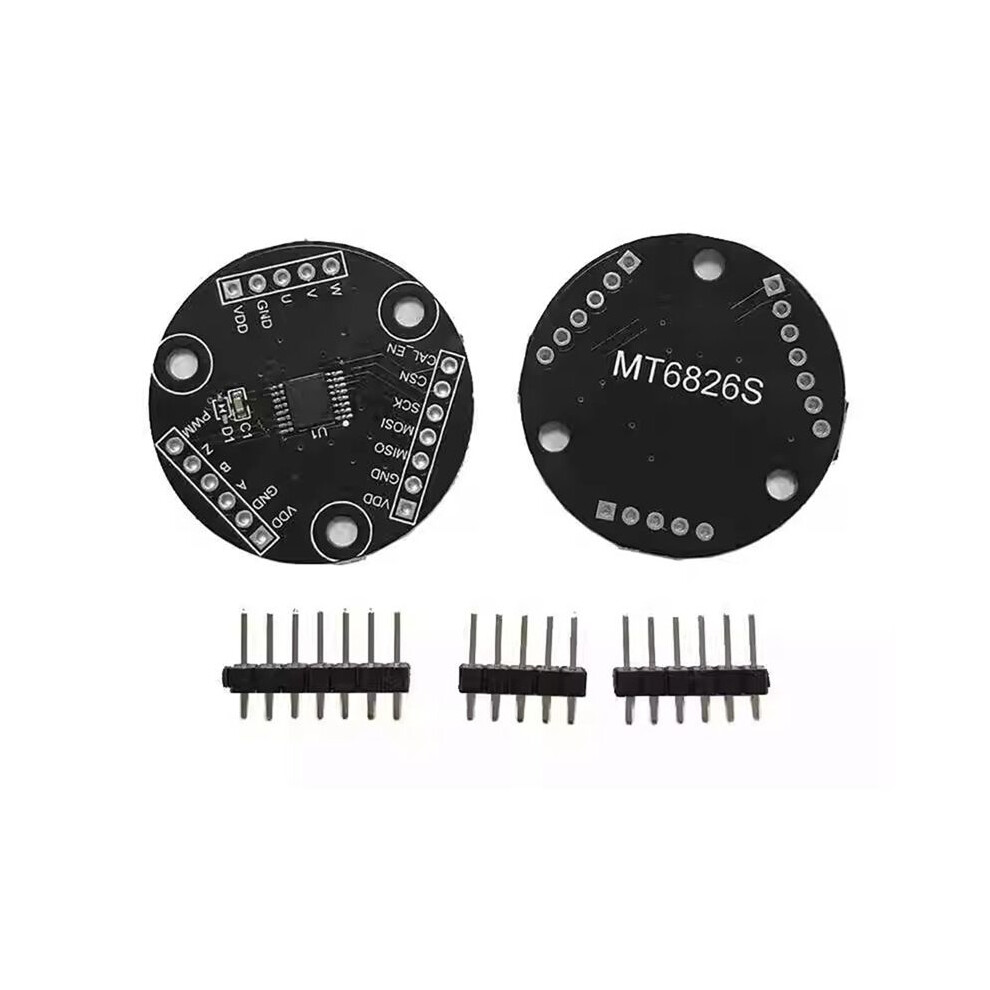

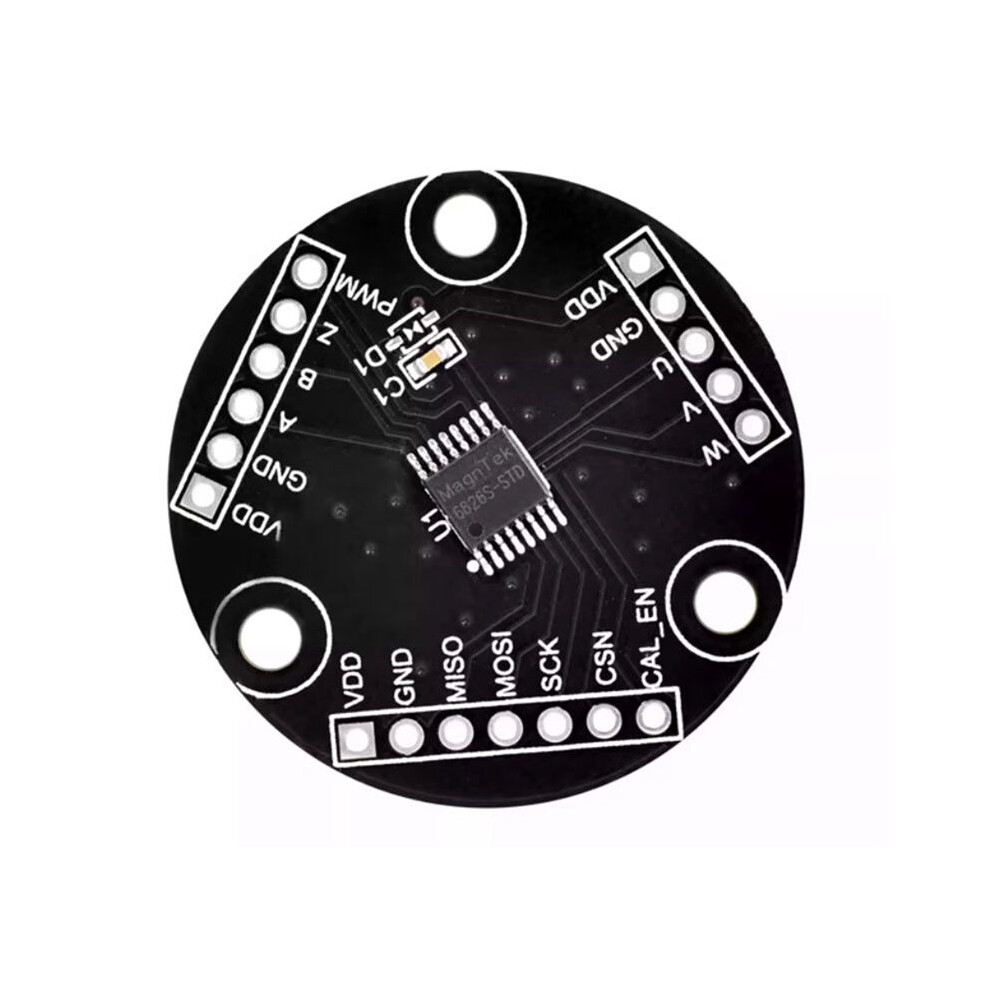

MT6826S High Precision High Speed Magnetic Encoder Magnetic Induction Angle Measurement Sensors Module ABZ UVW
Brand ISTOVO
Nou
În stoc
De ce îți va plăcea să cumperi de la OnBuy:
- Câștigi Cashback la fiecare achiziție – folosește-l la următoarea comandă
- Livrare gratuită – la milioane de produse de pe site
- Clienții ne iubesc – 130,000 de recenzii cu evaluare “Excelent”
155,96 RON
194,95 RON
Reducere de 20%!
+21,21 RON livrare
1%
Câștigați 1,56 RON instant
Află mai multe
Prețurile articolelor vândute de OnBuy includ TVA.
Opțiuni de plată în rate fără dobândă disponibile
Vezi descrierea completă și detaliile produsului
Livrare: Standard (21,21 RON) | vin 14 - joi 20 aug.
Returnări: 30 zile
Protecție la plată pentru 180 de zile
Descriere & Detalii
Rezumat
- The MT6826S is a member of the fourth-generation magnetic angle encoder IC family. It utilizes anisotropic magnetoresistive (AMR) technology and proprietary signal processing techniques to achieve 0° to 360° angle measurement.
- The chip consists of a pair of for AMR Wheatstone bridges and a signal processing ASIC circuit.
- As the magnetic field parallel to the chip surface rotates, the chip can output angular signals such as ABZ, UVW, and PWM.
- To overcome the precision loss caused by magnets and installation, MT6826S provides. A simple client self calibration function that can achieve an angle accuracy of Less than ± 0.07 ° after calibration is completed.
- The MT6826S chip is suitable for various application scenarios with high-speed and high-precision control requirements, such as closed circuits Loop stepper motor.
Descriere MT6826S High Precision High Speed Magnetic Encoder Magnetic Induction Angle Measurement Sensors Module ABZ UVW
The MT6826S is a member of the fourth-generation magnetic angle encoder IC family. It utilizes anisotropic magnetoresistive (AMR) technology and proprietary signal processing techniques to achieve 0 to 360 angle measurement.
The chip consists of a pair of for AMR Wheatstone bridges and a signal processing ASIC circuit.
As the magnetic field parallel to the chip surface rotates, the chip can output angular signals such as ABZ, UVW, and PWM.
To overcome the precision loss caused by magnets and installation, MT6826S provides. A simple client self calibration function that can achieve an angle accuracy of Less than 0.07 after calibration is completed.
The MT6826S chip is suitable for various application scenarios with high-speed and high-precision control requirements, such as closed circuits Loop stepper motor.
1. Based AMR technology, provide absolute angle measurement from 0 to 360
2. Working voltage: 3.3-5.0V
3. Working temperature -40 C-125 C
4. The system delay is as low as 2US and can support speeds to 120000 revolutions per minute
5. Incremental output ABZ supports 1 ^ 1024 lines of arbitrary resolution
6. Incremental output UVW supports any polarity from 1 to 16
7. Applications: Industrial sewing machines, closed-loop stepper motors
Color: Black
Material: PCB

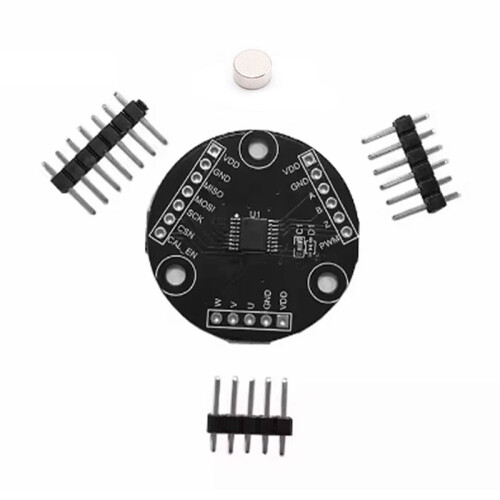

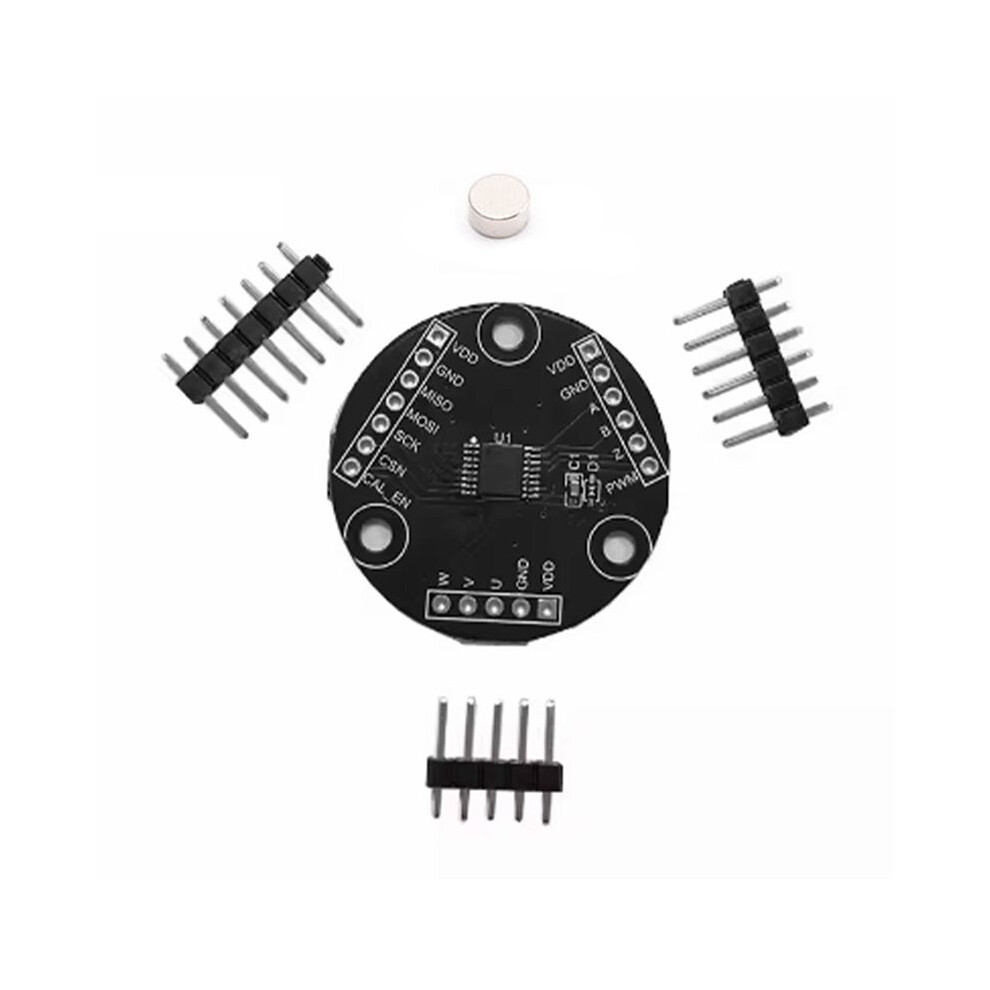

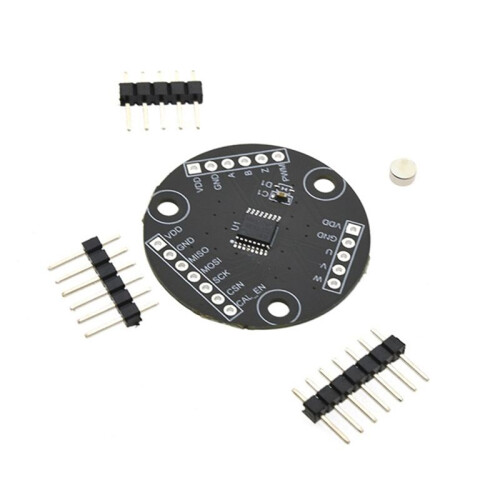

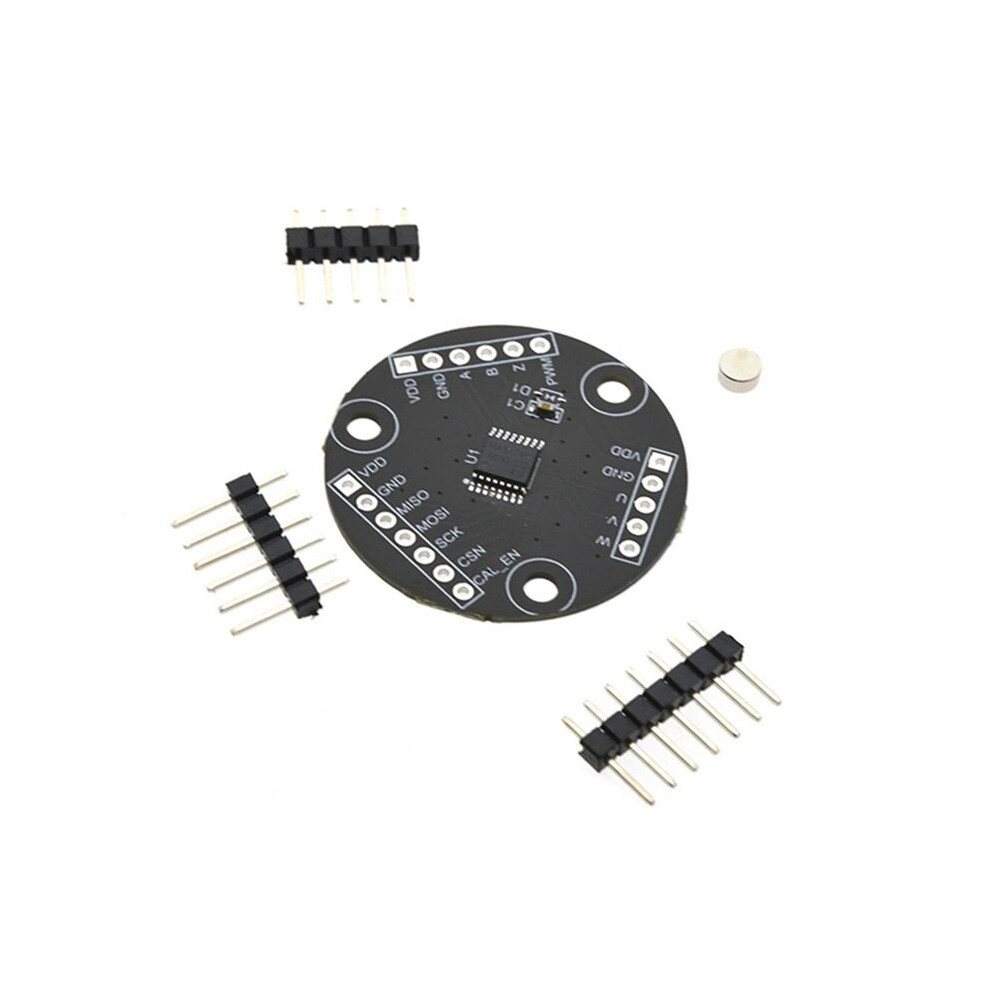

Package Contents:
1 x Magnetic encoder
1 x Magnet
3 x pin
Detalii
| OPC | PPZHDYM |
|---|---|
| Brand | ISTOVO |
| Coduri | 6034175882189 (EAN) |
| Informații despre produs și siguranță |
Date despre produs
| Height | 1cm |
|---|---|
| Width | 4cm |
| Length | 6cm |
| Weight | 0.0045kg |
| Colour | Black |
| Material | PCB |
