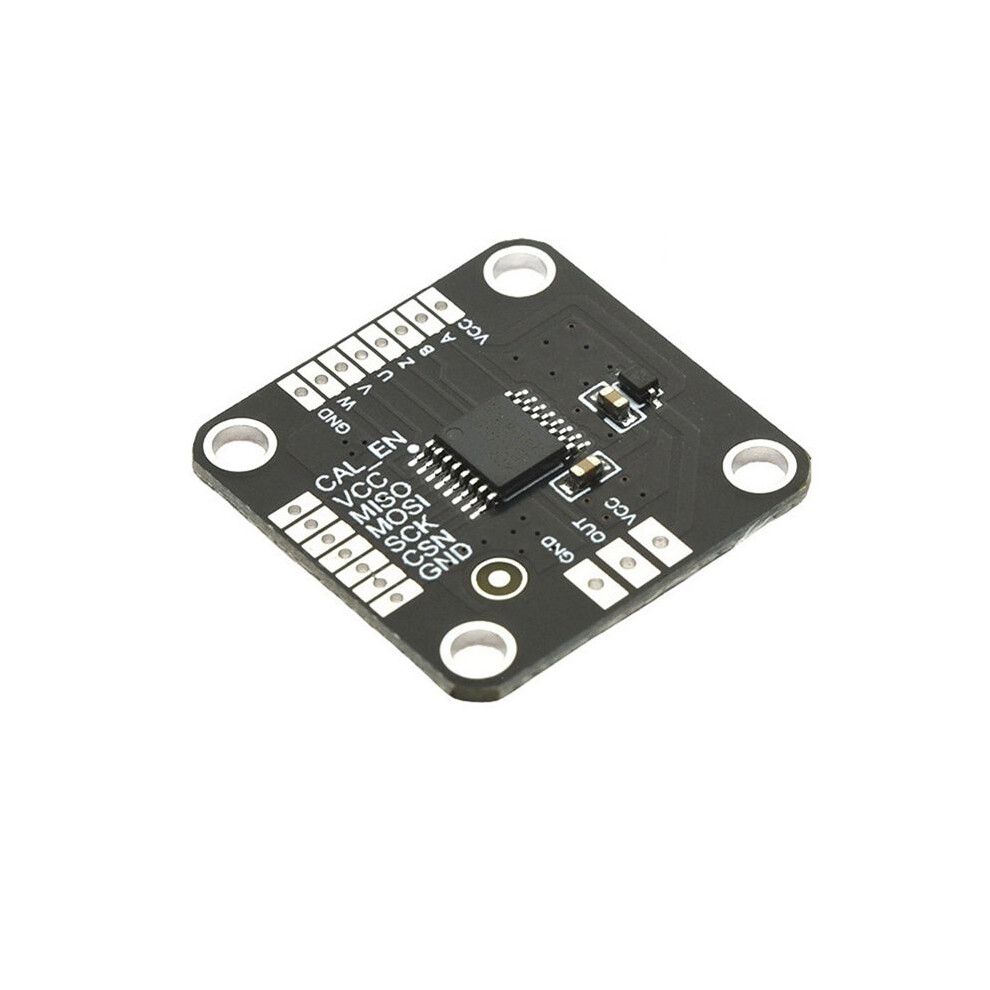

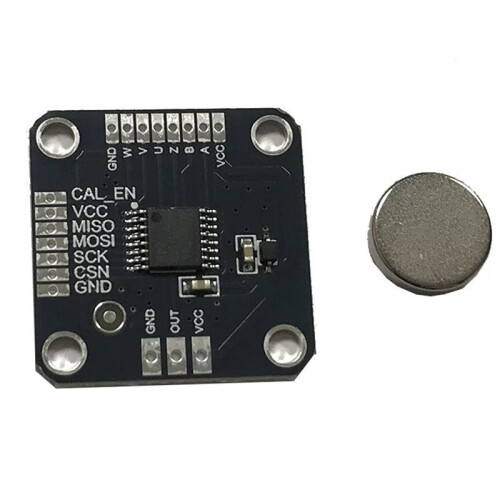

MT6835 Magnetic Encoder Module 21-Bit High Precision PWM/SPI Interface for Brushless Motor Replace for AS5048 A
Brand ISTOVO
Nou
În stoc
De ce îți va plăcea să cumperi de la OnBuy:
- Câștigi Cashback la fiecare achiziție – folosește-l la următoarea comandă
- Livrare gratuită – la milioane de produse de pe site
- Clienții ne iubesc – 126,000 de recenzii cu evaluare “Excelent”
131,64 RON
167,86 RON
Reducere de 22%!
Livrare GRATUITĂ
1%
Câștigați 1,32 RON instant
Află mai multe
Prețurile articolelor vândute de OnBuy includ TVA.
Opțiuni de plată în rate fără dobândă disponibile
Vezi descrierea completă și detaliile produsului
Livrare: Standard (Gratuit) | mie 17 - lun 22 iun.
Returnări: 30 zile
Protecție la plată pentru 180 de zile
Cele mai populare în Amplificatoare auto
Descriere & Detalii
Rezumat
- The MT6835 chip is fourth-generation magnetic Angle encoder IC, an upgraded version of the MT6825, based on Anisotropic Magnetoresistive. The AMR (abbreviated as AMR) technology and proprietary signal processing technology have achieved absolute Angle measurement from 0° to 360°.
- This chip consists of a pair of AMR Wheatstone Bridges and a signal processing ASIC circuit. As the magnetic field parallel to the chip surface rotates, the chip can output Angle signals such as ABZ/UVW and PWM. Users can also read the 21-bit absolute Angle data inside the chip through the SPI interface that supports a clock as high as 16MHz.
- Supports a maximum rotational speed of 120,000 revolutions per minute. The MT6835 chip can be applied to various scenarios with high-speed and high-precision control requirements, such as closed-loop stepper motor control, 2500-line servo, and 17-bit absolute value servo motor control, etc.
- Brushless Motor Magnetic Encoder
- Replacement for AS5048
Descriere MT6835 Magnetic Encoder Module 21-Bit High Precision PWM/SPI Interface for Brushless Motor Replace for AS5048 A
The MT6835 chip is fourth-generation magnetic Angle encoder IC, an upgraded version of the MT6825, based Anisotropic Magnetoresistive. The AMR (abbreviated as AMR) technology and proprietary signal processing technology have achieved absolute Angle measurement from 0 to 360.
This chip consists of a pair of AMR Wheatstone Bridges and a signal processing ASIC circuit. As the magnetic field parallel to the chip surface rotates, the chip can output Angle signals such as ABZ/UVW and PWM. Users can also read the 21-bit absolute Angle data inside the chip through the SPI interface that supports a clock as high as 16MHz.
Supports a maximum rotational speed of 120,000 revolutions per minute. The MT6835 chip can be applied to various scenarios with high-speed and high-precision control requirements, such as closed-loop stepper motor control, 2500- servo, and 17-bit absolute value servo motor control, etc.
Based AMR technology, it provides absolute Angle measurement from 0 to 360
Operating voltage: 3.3-5.0V
Operating temperature: -40 to 125
Typical values of linearity deviation Less than 0.5 (factory value), typical values of linearity deviation Less than 0.07 (typical value self-calibration), typical values of linearity deviation Less than 0.02 (typical NLC self-calibration)
The system delay is 2us to 10us, and it can support a maximum rotational speed of to 120,000 revolutions per minute
It provides a standard 4-wire SPI interface (with a maximum clock of 16MHz) to read 21-bit Angle data inside the chip
The incremental output ABZ supports any resolution from 1 to 8192 lines
The incremental output UVW supports any pair from 1 to 16
It provides a 12-bit PWM output
Specifications: A: SPI+AB:8192
Color: Black
Material: PCB

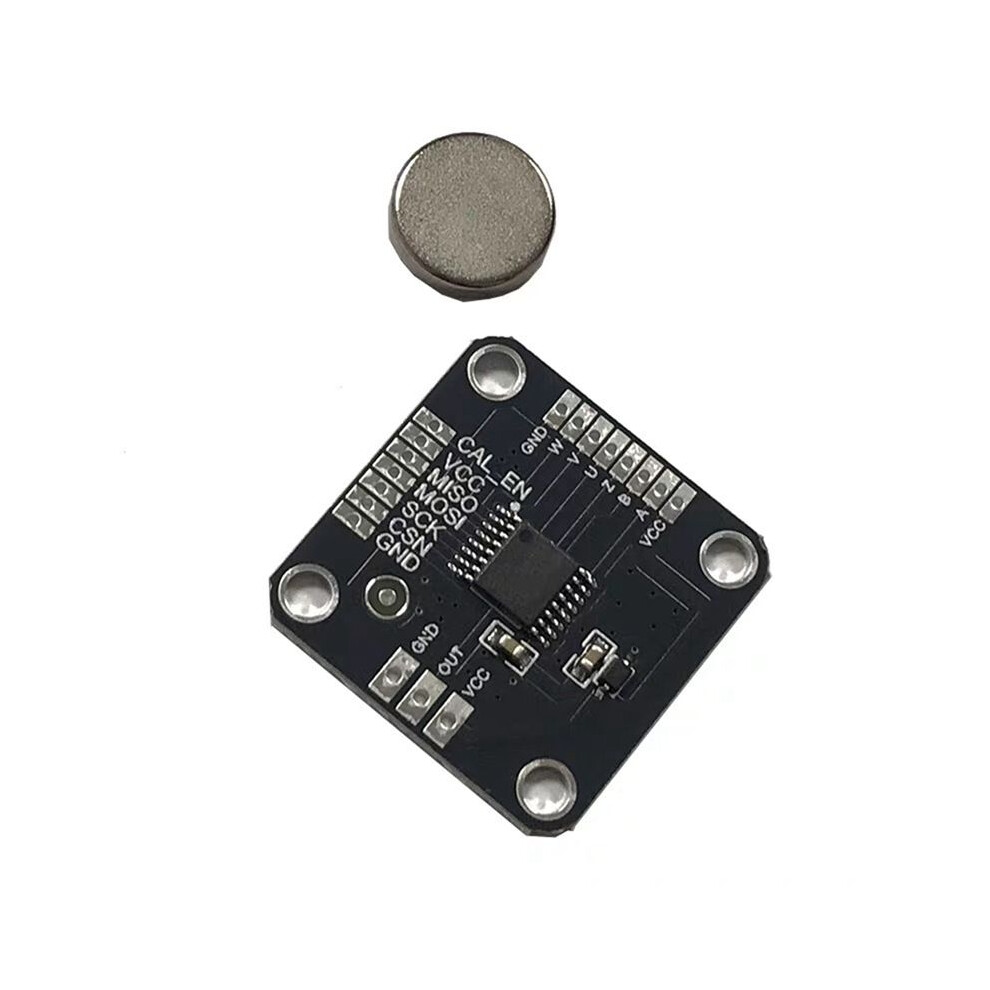

Package Contents:
1 * Magnetic Encoder
1 * Magnet
Only the above package content, other products are not included.
Note: L
Detalii
| OPC | PPZHDYJ |
|---|---|
| Brand | ISTOVO |
| Coduri | 6031445597101 (EAN) |
Date despre produs
| Height | 2cm |
|---|---|
| Width | 6cm |
| Length | 12cm |
| Weight | 0.0065kg |
| Colour | Black |
| Size | A |
| Material | PCB |
