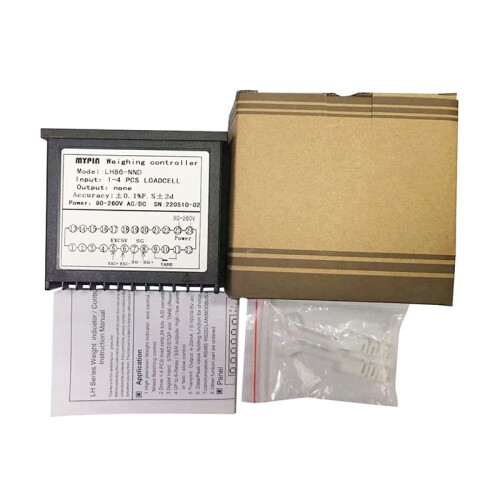

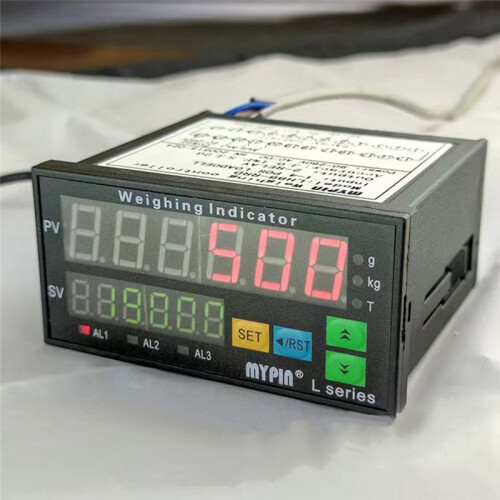

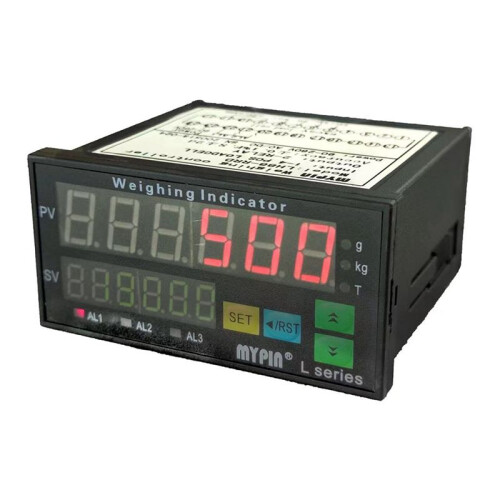

MYPIN LH86-NND Digital Weighing Controller Meter Filling Control Instrument LED Display Controller 1-4 Load Cell

Descriere MYPIN LH86-NND Digital Weighing Controller Meter Filling Control Instrument LED Display Controller 1-4 Load Cell

1. Directly connected with the load cell or other load cell, fast response, high precision, stable measurement, with adjustment functions such as tare weight removal, display correction, etc., with 6-way control for start/stop, fast forward/ It can be used for automatic control of various industries such as quantitative/batching/floor scale/weighbridge, cement, food packaging, chemical batching, etc., Filling control table, with terminal reset and start function.
2. Input: It can be directly connected to one or four weighing (force measuring) sensors, or other signals such as 0-70mV 4-20mA 0-10V, with 4 relay outputs, high/low/fast/slow.
3. Analog output: isolated current transmission output 4-20mA or 0-10V, the output range can be set arbitrarily; Digital output: to 6 channels of various control outputs can be set arbitrarily, used for various ingredients and force measurement control, with complete functions;
4. External power supply for isolated sensors, +12/40mA or 150mA or two-wire 24V/30mA, etc.
5. Accuracy: five digits 0.1% or six digits 0.05%, floating decimal setting, accurate and stable measurement

6. Wide power supply: Conventional: 90-260V AC/, with RS485, RS232 communication interface
type:LH86-NND
Colour:black
Material:ABS+metal
Size:96 x 48 x 80mm

Package Contents:
1 x Weighing Controller Meter
2 x Bracket
1 x English manual
