Descriere & Detalii

Rezumat

PTC08 is an industrial-grade image acquisition and processing module that integrates image capture, shooting control, data compression, and serial transmission. Its built-in high-performance digital signal processing chip enables high-ratio compression of raw images. The output images adopt the standard JPEG format, ensuring easy compatibility with various image processing software.
The module features a standard three-wire RS-232 communication interface and a simple image transmission protocol, allowing seamless connectivity with computers and embedded systems. Additionally, it includes a reserved infrared fill-light interface, which supports external infrared light panels for clear imaging under various lighting conditions.
camera module
serial port camera module
PTC08 camera module

Descriere PTC08 Serial Camera Serial Port Camera Module RS232

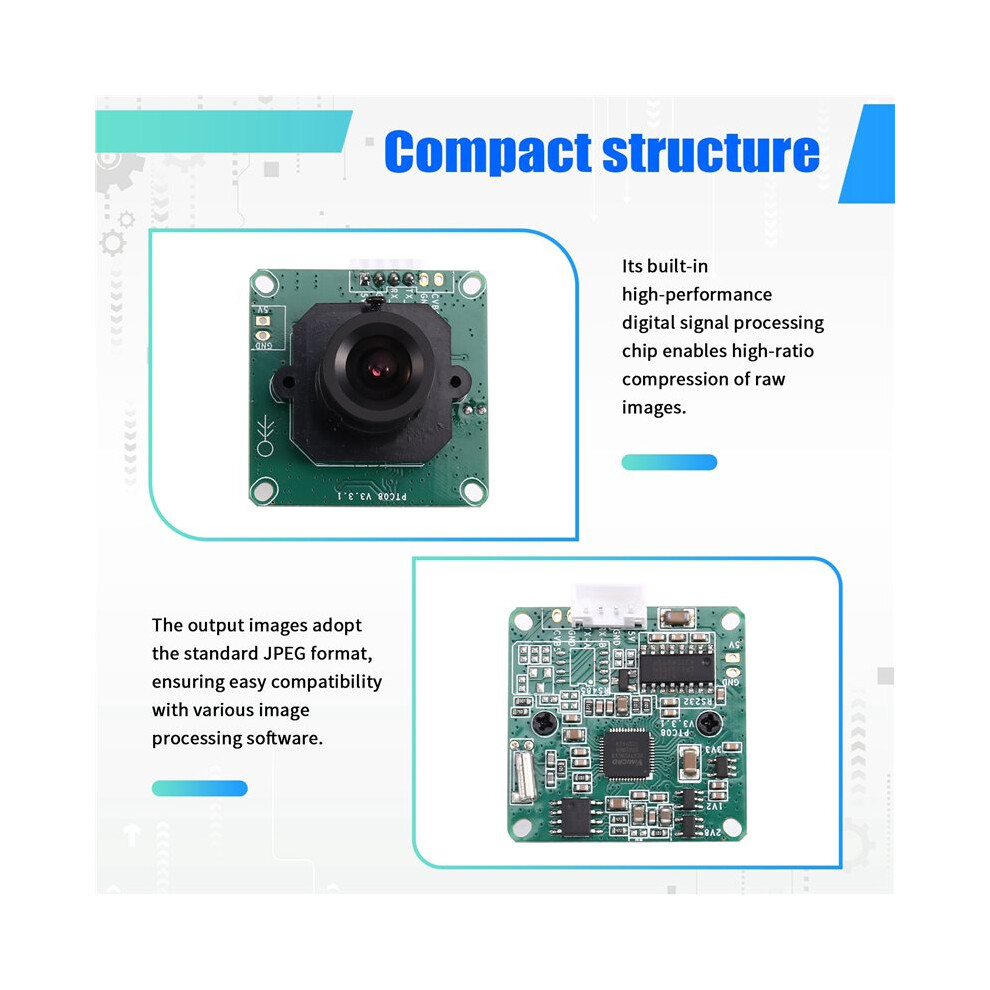

PTC08 is an industrial-grade image acquisition and processing module that integrates image capture, shooting control, data compression, and serial transmission. Its built-in high-performance digital signal processing chip enables high-ratio compression of images. The output images adopt the standard JPEG format, ensuring easy compatibility with various image processing software.
The module features a standard three-wire -232 communication interface and a simple image transmission protocol, allowing seamless connectivity with computers and embedded systems. Additionally, it includes a reserved infrared fill-light interface, which supports external infrared light panels for clear imaging under various lighting conditions.

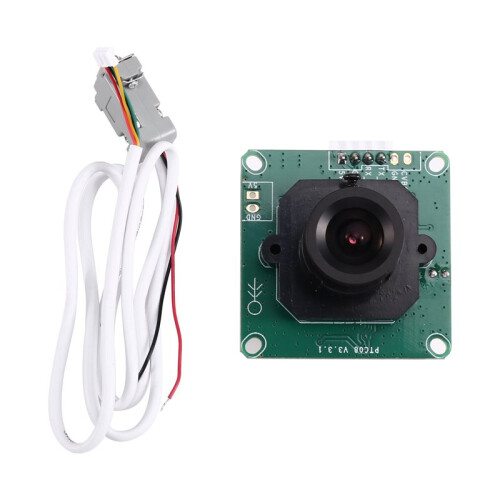

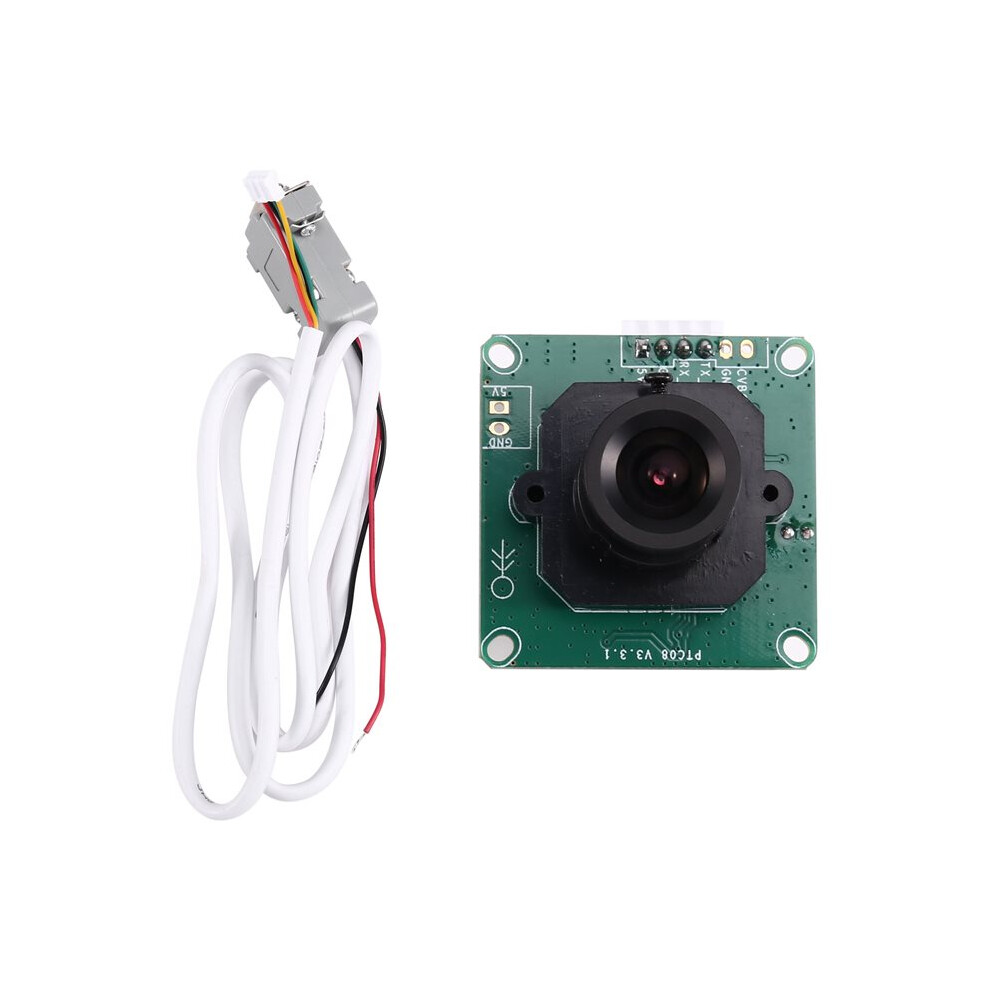

The PTC08 Serial Camera Module consists of two main parts: the module body and the serial connection cable. These two components are linked via a 4-pin 2.0mm pitch standard connector, which allows for easy plugging and unplugging.
Module board size: 32mm x 32mm
Image sensor type: CMOS 1/4 inch

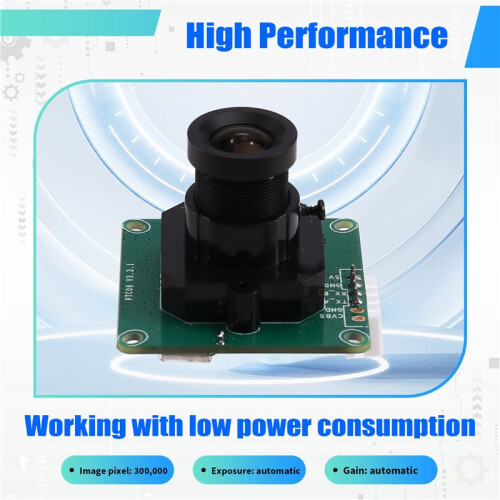

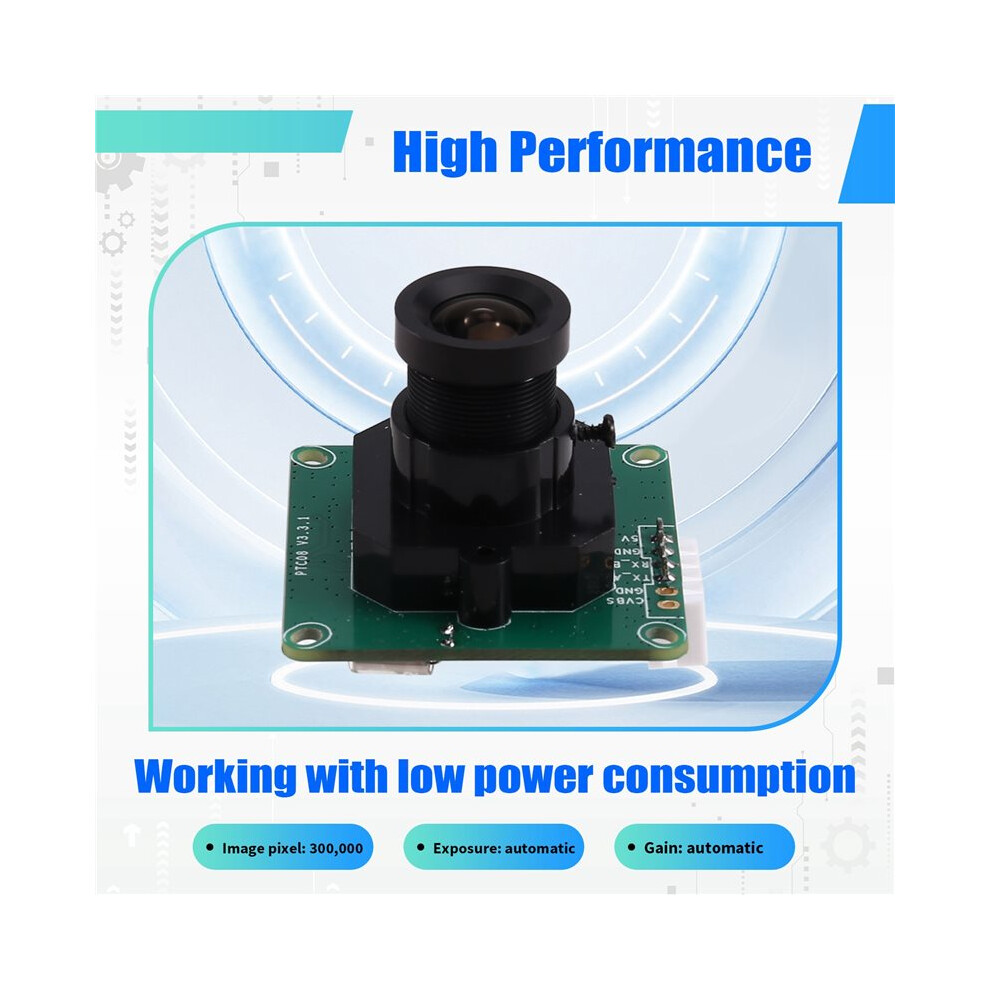

Image pixel: 300,000
Pixel size: 5.6um x 5.6um
Output format: standard JPEG/M-JPEG.
White balance: automatic
Exposure: automatic
Gain: automatic
Shutter: electronic rotary shutter
Signal to noise ratio: 45DB
Dynamic range: 60DB
Maximum analog gain: 16DB
Frame rate: 640*480 30fps
Scanning mode: scanning
Monitoring distance: about 10 meters. Max. 15m, adjustable
Image size: VGA(640x480), QVGA(320x240)
Serial port rate: 38400 by default and 115200 by maximum.
Operating current: 75MA
Working voltage: +5V
Communication interface: RS232 (three-wire TX, RX, GND)
Color:As Shown
Material:PC

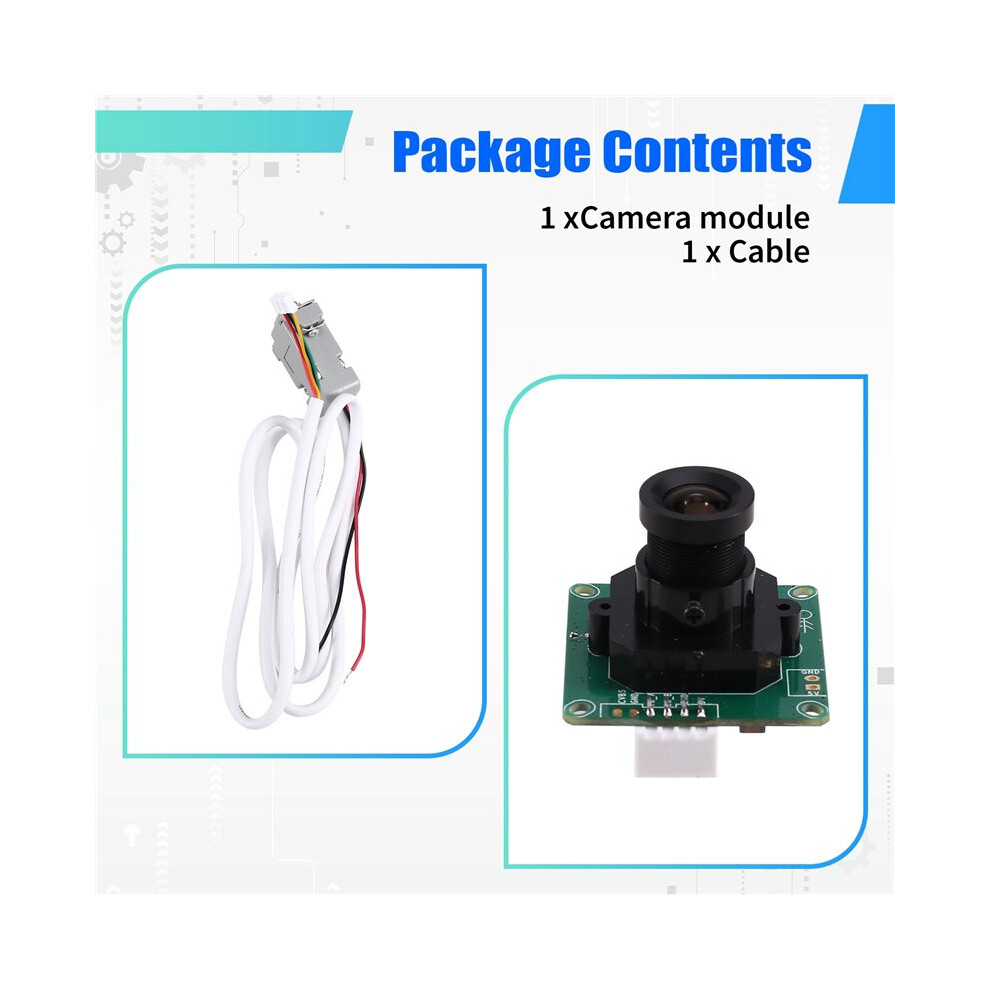

Package Contents:
1 * Camera module
1 * Cable

Detalii

OPC	PSX5BBZ
Coduri	4713805139276 (EAN)

Imagini produs

PTC08 Serial Camera Serial Port Camera Module RS232 1

PTC08 Serial Camera Serial Port Camera Module RS232 2

Date despre produs

Height	7cm
Width	8cm
Length	13cm
Weight	0.084kg
Colour	As Shown
Material	PC
