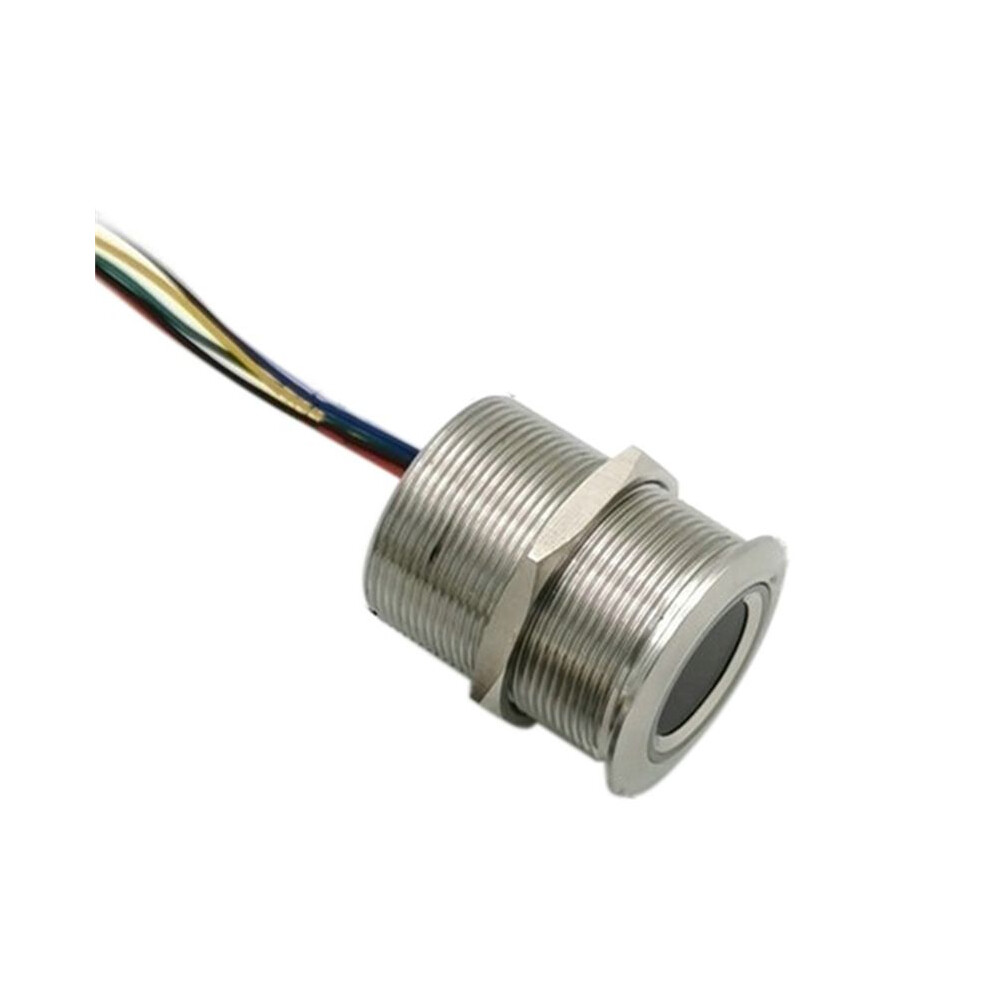

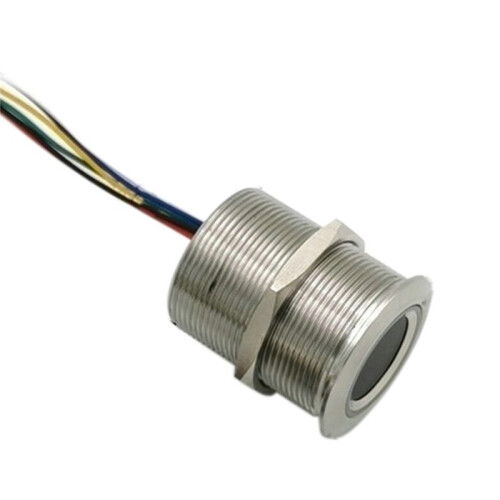

R503 Circular Round RGB Ring Indicator LED Control DC3.3V MX1.0-6Pin Capacitive Fingerprint Module Sensor Scanner, 32Mm

Descriere R503 Circular Round RGB Ring Indicator LED Control DC3.3V MX1.0-6Pin Capacitive Fingerprint Module Sensor Scanner, 32Mm

1. Integrated image collecting and algorithm chip together, integration
2. The flexibility to adapt to the conditions was the fingers, whether it is dry fingers, wet fingers, light texture fingerprints fingers, and old fingers, all have high recognition rate
3. The main application areas: can be embedded into a variety of end products, such as: access control, attendance, safety deposit box
4. The R503 fingerprint module has a built-in algorithm chip
5. The interface spacing is 1.0mm, and the length is 20cm. Thread diameter is 25mm, easy to install.

Supply voltage: 3.3V
Working current: 30mA (typ.)
current: 40mA
Fingerprint image entry : Less than 0.3 seconds
Acquisition window area: 15mm in diameter
Image pixel: 192*192 pixel
Image Resolution: 508dpi
Match method:
Comparison method (1:1)
Search method (1:N)
Storage capacity: 200 pieces
Security level: five (from low to high: 1, 2, 3, 4, 5)
False Recognition Rate (FAR): Less than 0.0001%
Authentic rejection rate (FRR): Less than 1.0%
Search : Less than 0.3 seconds (1:1000, average)
Host computer interface: RS232 (TTL logic level, 3.3V)
Communication baud rate: (9600xN)bps where N=1~12 (default value N=6, ie 57600bps)
working environment:
Temperature: -20Celsius-+45Celsius
Relative humidity: 10%RH-85%RH (non-condensing)
Colour:silver
Material:Plastic + Metal
Size:Fingerprint module height: 32mm

Package Contents:
1 x Barcode Scanner Module

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
