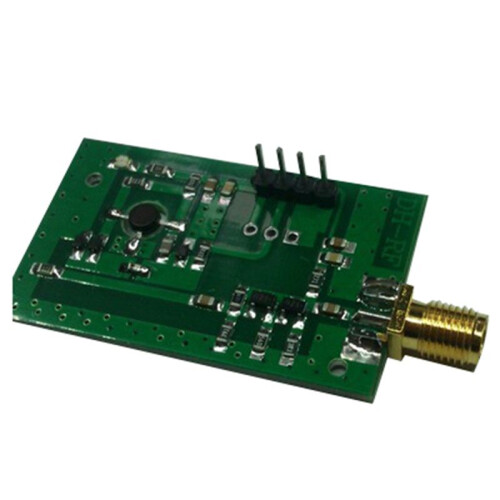

Rf Voltage Controlled Oscillator Frequency Source Broadband Vco 515Mhz---1150Mhz

Nou

În stoc

De ce îți va plăcea să cumperi de la OnBuy:

Câștigi Cashback la fiecare achiziție – folosește-l la următoarea comandă
Livrare gratuită – la milioane de produse de pe site
Clienții ne iubesc – 126,000 de recenzii cu evaluare “Excelent”

Vezi descrierea completă și detaliile produsului

Cantitate

109,99 RON

196,49 RON Reducere de 44%!

+30,00 RON livrare

1% Câștigați 1,10 RON instant Află mai multe

Adaugă în coș

Prețurile articolelor vândute de OnBuy includ TVA.

Opțiuni de plată în rate fără dobândă disponibile

Vezi descrierea completă și detaliile produsului

Livrare: Standard (30,00 RON) | sâm 13 - mar 16 iun.

Vândut de: YPDblue

Returnări: 30 zile

Protecție la plată pentru 180 de zile

Adaugă în coș

Cele mai populare în Controlere de ventilator pentru computer

Controlere de ventilator pentru computer

Descriere & Detalii

Rezumat

Microwave broadband transistor is optimized by computer simulation, this product mainly realizes the generation of broadband RF signal, the output frequency range can cover 515MHz---1150MHZ, such a wide range can be used as RF product test source.
Can also do a variety of communication modulation VCO, can be used as a built-in oscillator of RF, the signal of two such a wide range of VCO into the mixer, you can generate DC --- 500MHZ of various frequency signals, so as to achieve the role of generating new frequencies, the application is very wide.
RF indicators are as follows:
Frequency range: 515MHZ-1150MHZ
Output power: 7dBm, which is 5 milliwatts.

Descriere Rf Voltage Controlled Oscillator Frequency Source Broadband Vco 515Mhz---1150Mhz

Microwave broadband transistor is optimized by computer simulation, this product mainly realizes the generation of broadband RF signal, the output frequency range can cover 515MHz---1150MHZ, such a wide range can be used as RF product test source.
Can also do a variety of communication modulation VCO, can be used as a built-in oscillator of RF, the signal of two such a wide range of VCO into the mixer, you can generate --- 500MHZ of various frequency signals, so as to achieve the role of generating new frequencies, the application is very wide.
RF indicators are as follows:
Frequency range: 515MHZ-1150MHZ
Output power: 7dBm, which is 5 milliwatts.

Output harmonics: -22dBc
Supply voltage: 12V, current 50 mA
Frequency regulation voltage range: 0-12V
Output RF interface: SMA female
Material: PCB
Color as shown

Package Contents:
1 x Rf Voltage Controlled Oscillator

Detalii

OPC	PTGTM8W
Coduri	6031146287622 (EAN)

Date despre produs

Height	2cm
Width	8cm
Length	11cm
Weight	0.008kg
Colour	as shown
Material	PCB
