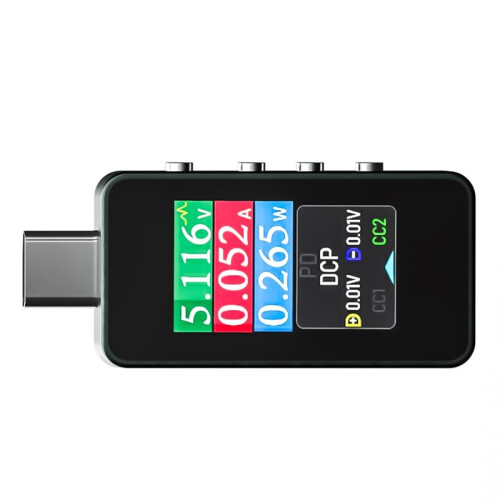

RK-C1 Power Meter Color Screen Fast Charging Tester Voltage Ammeter 8A Gravity-Rotation Tester

Descriere RK-C1 Power Meter Color Screen Fast Charging Tester Voltage Ammeter 8A Gravity-Rotation Tester

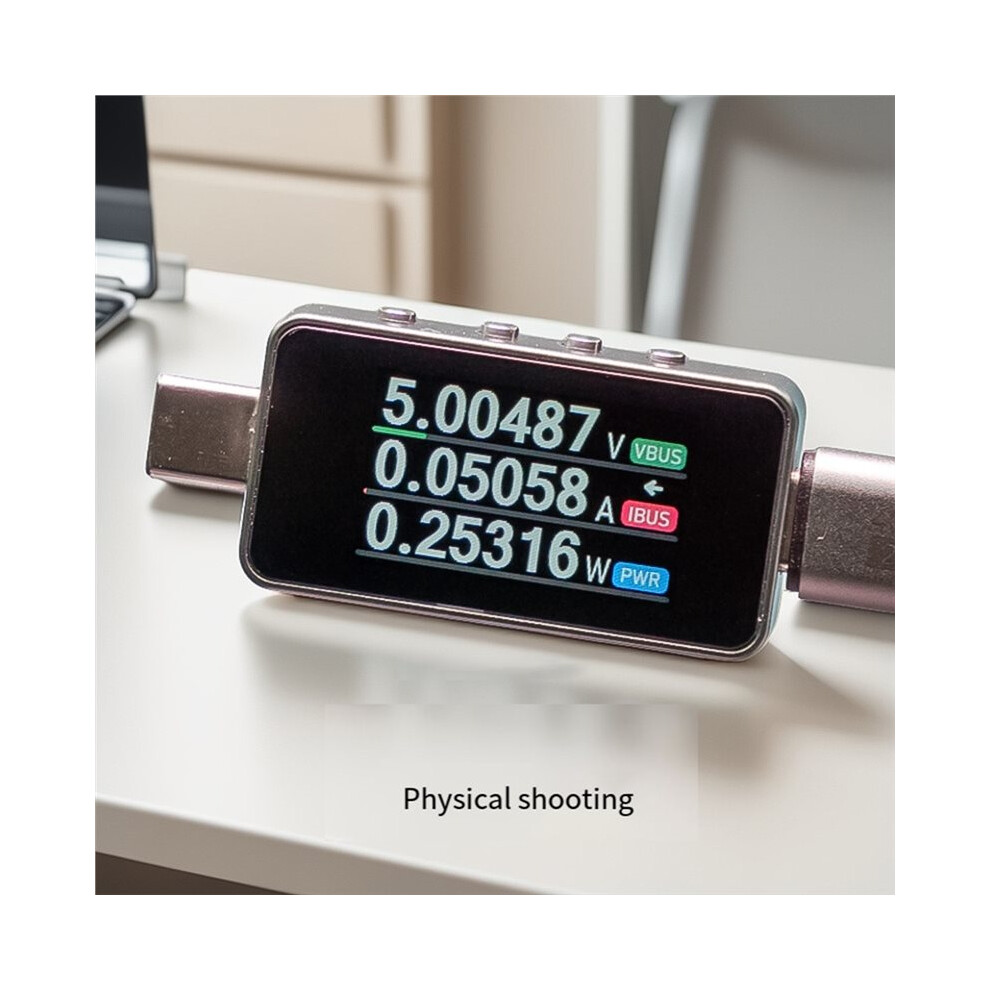

The RK-C1 Type-C Multifunctional Tester features a 1.14-inch high-definition screen, a high-end main control chip, and a dedicated 16-bit ADC sampling chip. It also includes a dedicated PD physical layer protocol chip for real- monitoring of voltage, current, power, capacity, waveform, fast charging protocol, and other data.
The high-definition integrated laminated screen is a 1.14-inch true-color TFT display with a high-transparency glass cover, ensuring accurate color reproduction. It supports automatic detection and decoy testing of multiple protocols, making it suitable for various testing applications.
High-end main control chip with independent ADC sampling; smooth page switching for a better visual experience; 16-bit ADC sampling chip for more accurate measurement data.

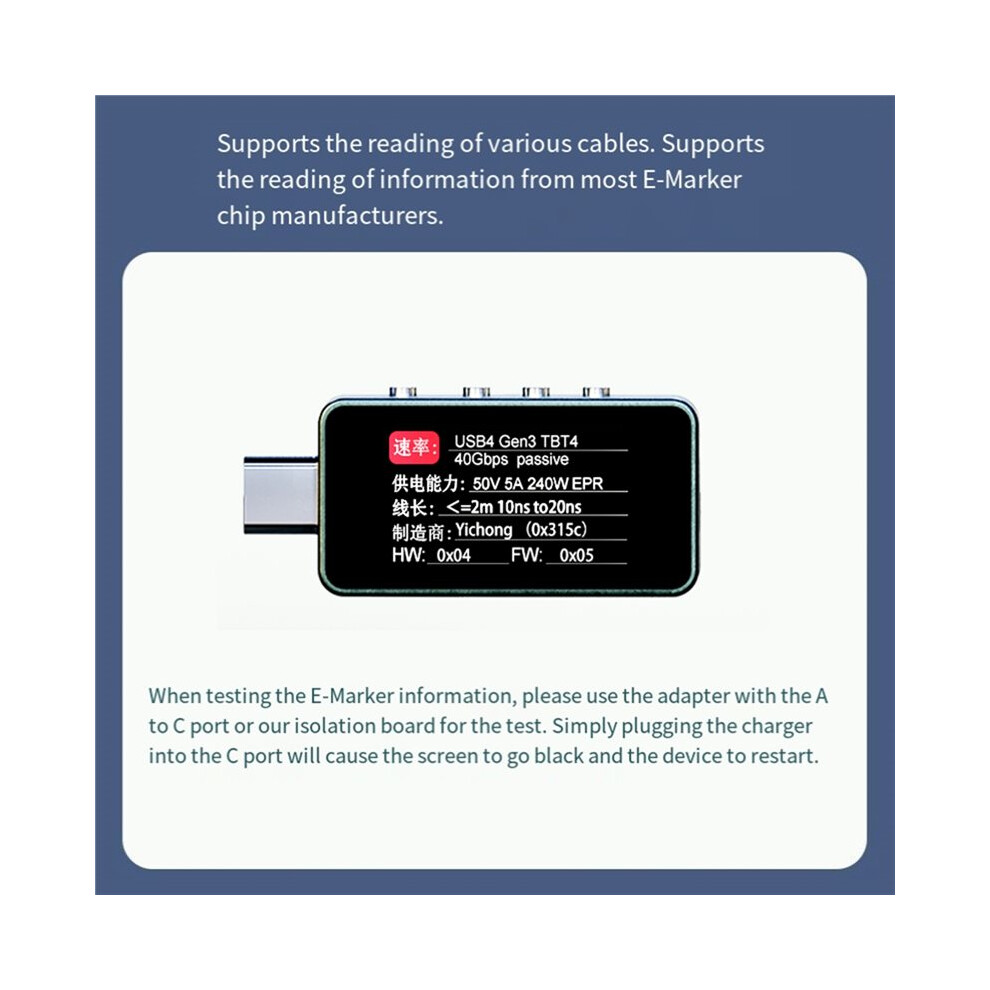

Supports E- reading for various cables.

Supports information reading from most E- chip manufacturers.
Product Model: RK-C1
Voltage Measurement Range: DC3.6-28.00V
Current Measurement Range: 0-8A (short- 10A)
Power Measurement Range: 0-240W
Capacity Cumulative Range: 0-9999Wh
Temperature Measurement Range: NC
Operating Temperature Range: 0~80
Screen Refresh Rate: Greater than 200ms
Interface Transmission Rate: USB4.0
Display: 1.14-inch IPS True Color Screen
Voltage Measurement Accuracy: Less than 0.01V
Current Measurement Accuracy: 0.5% of range
Temperature Measurement Accuracy: NC
Measurement Rate: Less than 100ms
Self-Consuming Current: Less than 0.050A
Product Dimensions: 50.5x22.8x8.3mm
High-concerned chemical: None
Electronic: No
DIY Supplies:Electrical
Color: As Shown
Material: Aluminum Alloy

Package Contents:
1 * Power Meter
