RP2350-Tiny Kit Development Board for Raspberry Pi USB Type C Interface 520KB 2MB Flash RP2350-Tiny-Kit

Descriere RP2350-Tiny Kit Development Board for Raspberry Pi USB Type C Interface 520KB 2MB Flash RP2350-Tiny-Kit

Unique dual-core, dual-architecture, equipped with dual-core ARM Cortex-M3 processor and dual-core Hazard 3 RISC-V core processor, clock running frequency to 150MHZ.
Built-in 520KB and 4MB -chip Flash.
Onboard FPC 8PIN interface, USB Type-C interface can be brought out through the adapter board.
Stamp hole design, can be directly soldered and integrated into the user's self-designed baseboard.
USB 1.1 host and device support.

Support low-power sleep and hibernation modes.
Can be identified as a large-capacity storage through USB for drag-and-drop download of programs.

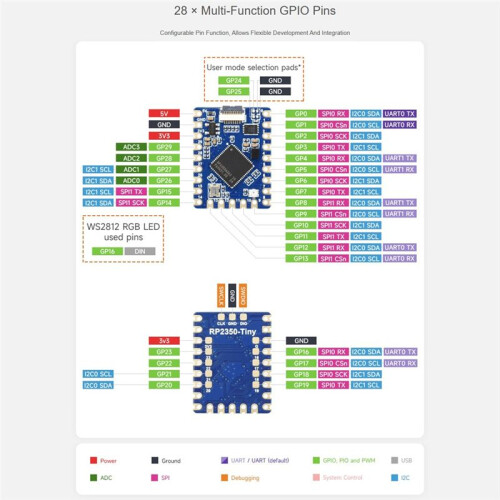

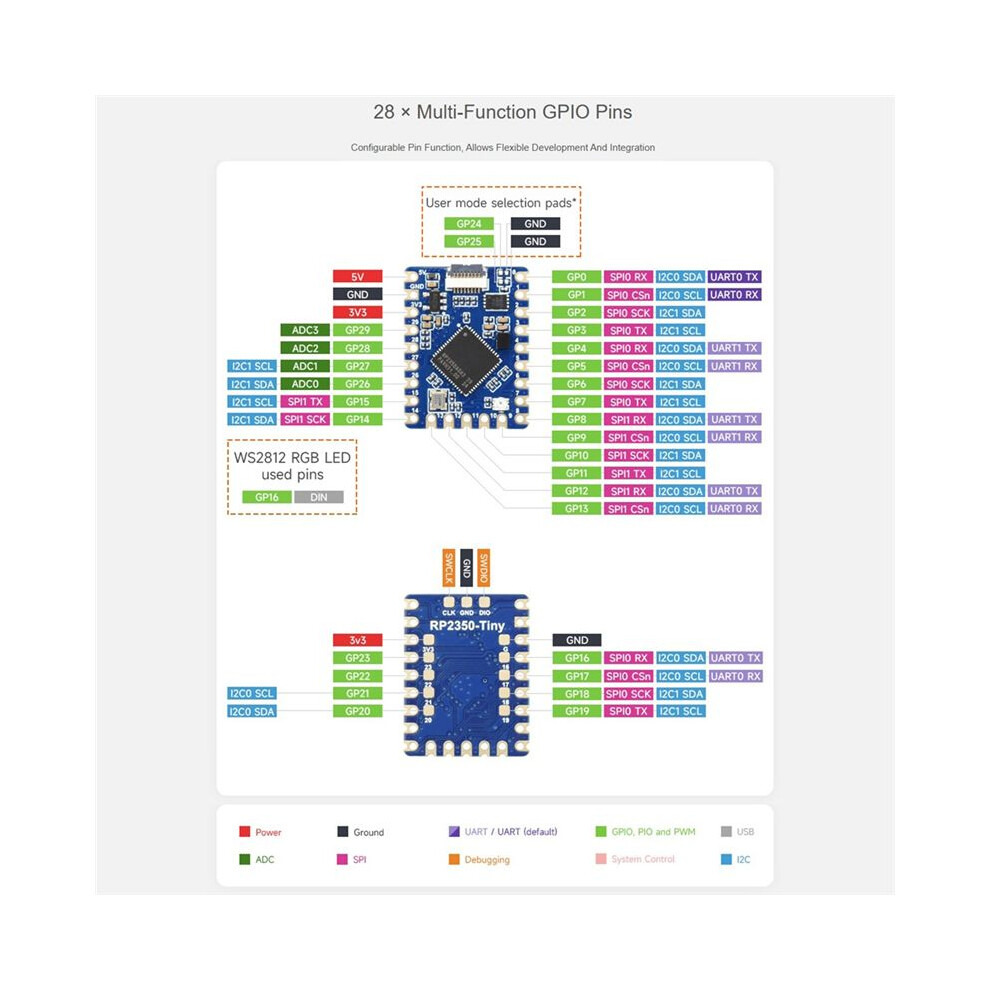

Lead out 28 multi-function GPI0 pins (20 can be brought out through pin headers, and the rest can only be soldered
lead out.
2 SPI, 2 I2C, 2 UART, 4 12-bit ADC, 16 controllable PWM channels.
Accurate -chip clock and timer.
Temperature sensor.
-chip accelerated floating-point library.
12 programmable IO (PIO) state machines for custom peripheral support.
Colour:
Material:PCB
The actual product may have slight color difference or difference, which will not affect the use

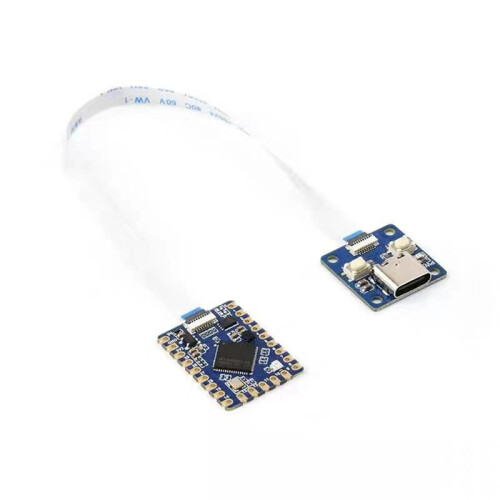

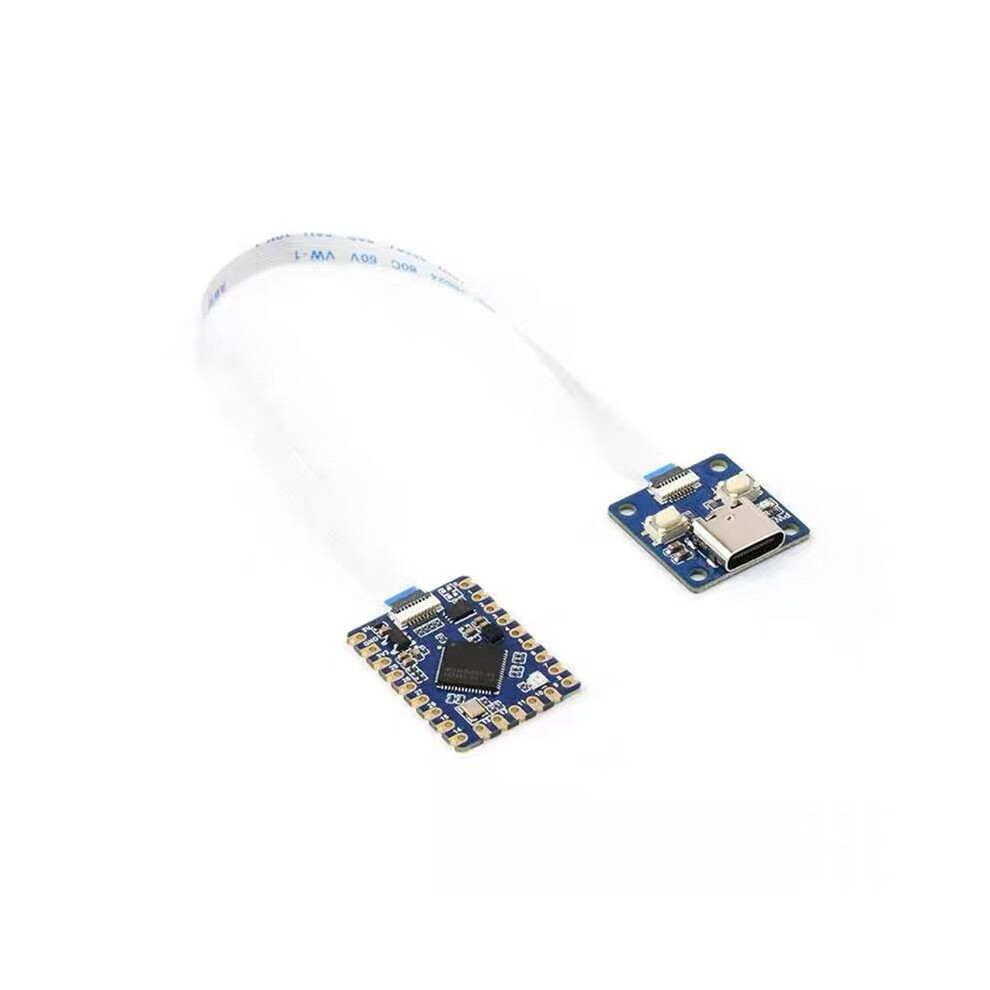

Package Contents:
1 * Development Board
1 * adapter board
1 * FPC
