Serial Data Logger Open Source Data Recorder Naze32 F3 ATmega328 Support Micro- Module for

Descriere Serial Data Logger Open Source Data Recorder Naze32 F3 ATmega328 Support Micro- Module for

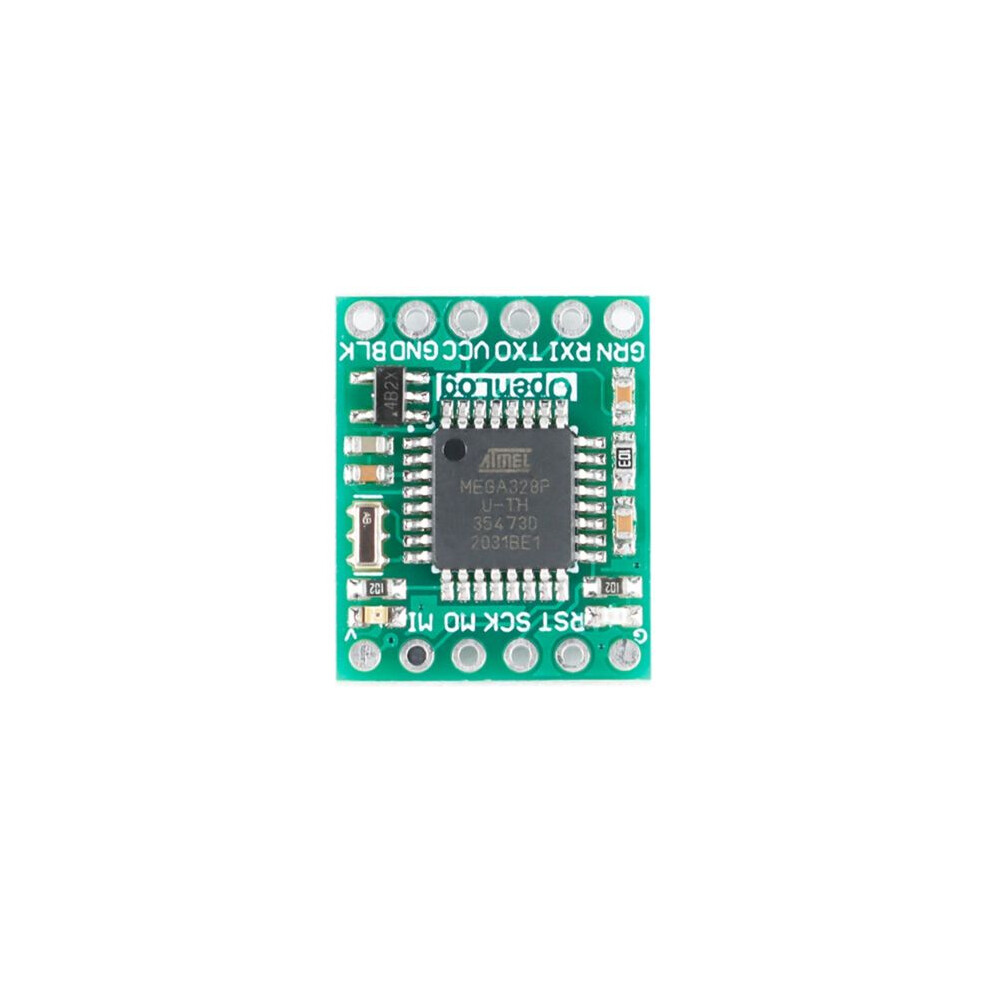

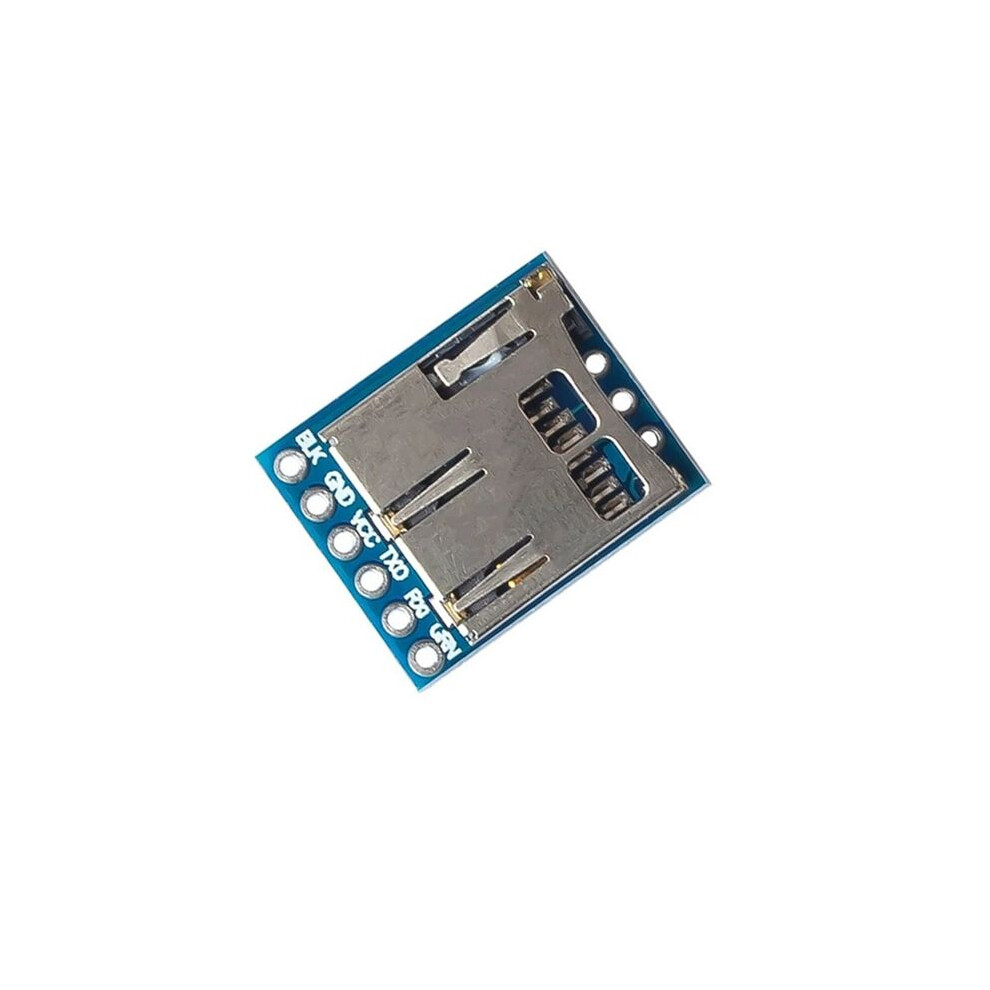

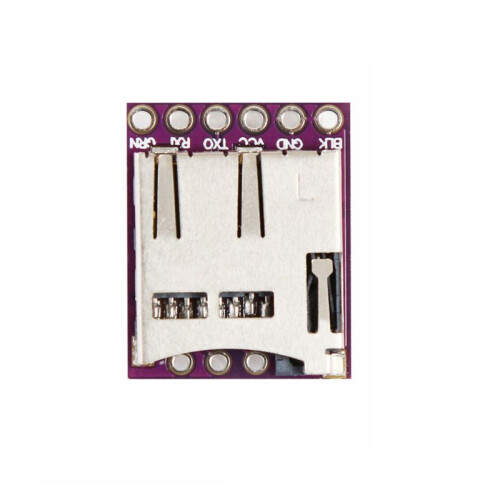

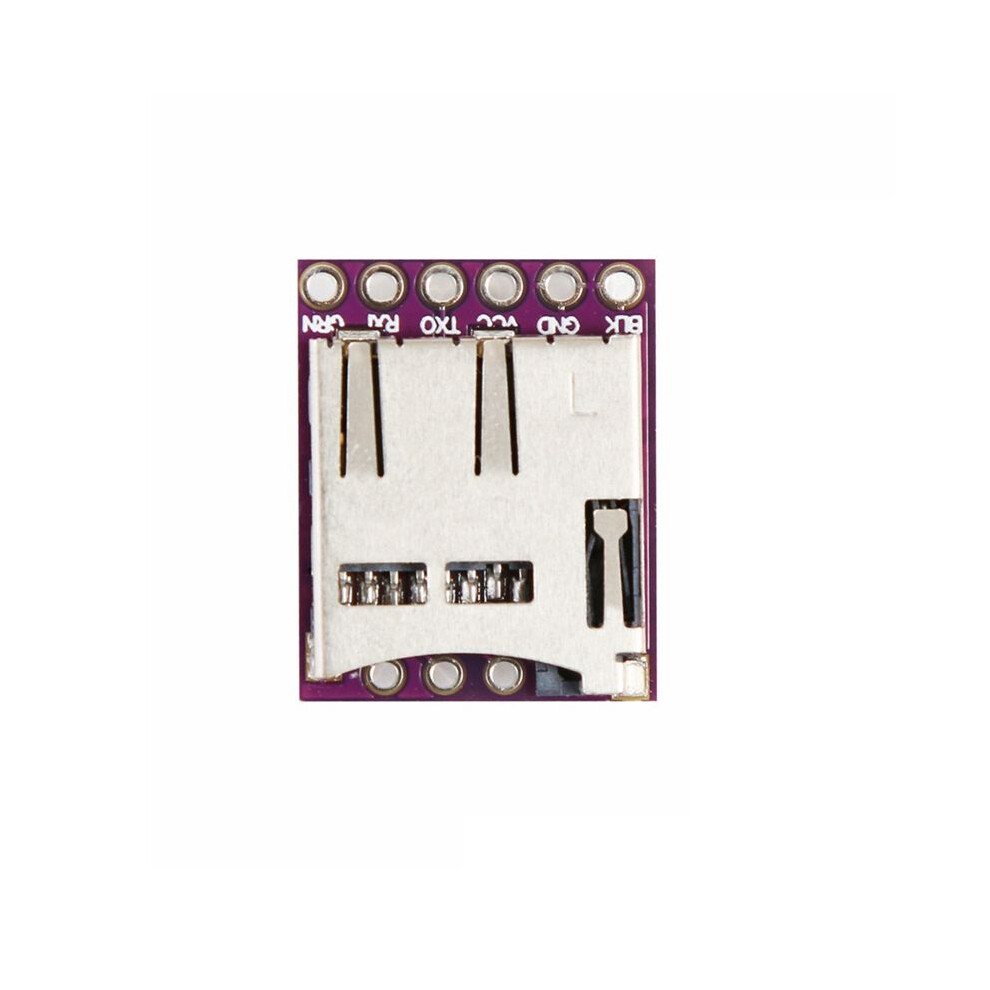

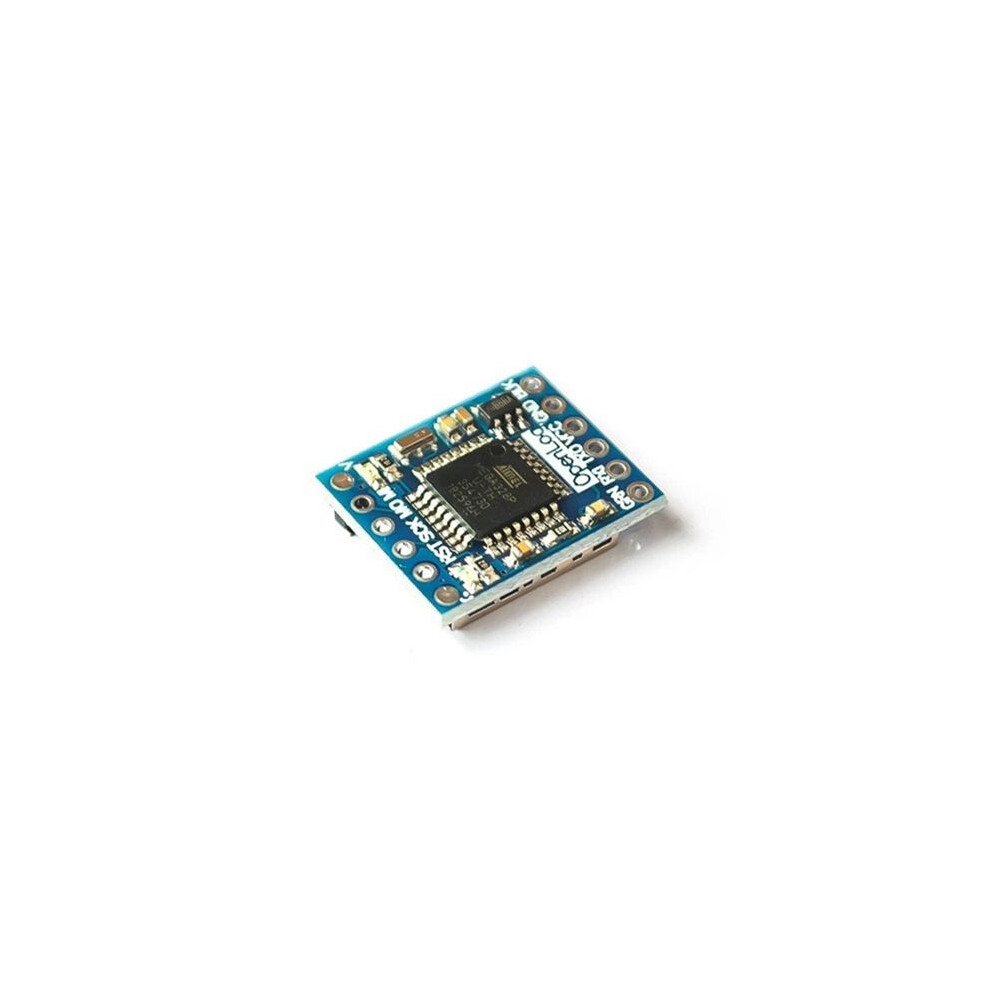

This product is a data recorder, which can be recorded the memory card through the UART universal serial port. This function is similar to the black box to record the data from the main device to the serial port and save the data in text form the memory card.
This product can be used for the flight control board with cleanflight firmware, connecting to the corresponding serial port, and by setting the software cleanflight configurator of the host computer, the important running data of the UAV can be recorded the memory card.
flight data recorder software is used to the flight records.
Note: after the first plug in the memory card, the memory card will produce the config.txt file, which changes the baud rate parameter of the serial port. This parameter can be modified. Please keep the baud rate of the flight control or the main circuit's serial port to be consistent with the baud rate of the recorder.

Parameters:
Input voltage 3.3V~12V (recommended as 3.3V~5V)
The memory format is FAT32, supporting the maximum 64GB memory
UART serial interface
Baud rate adjustable
The default bootloader is pro atmega328P 5V 16mhz
tip: Different batches may have different appearance, which does not affect use.
Material: PCB
colour: random color
Note: randomly colored. Cannot be chosen the specific color.

Package Contents:
1 x Serial Data Logger with pin
