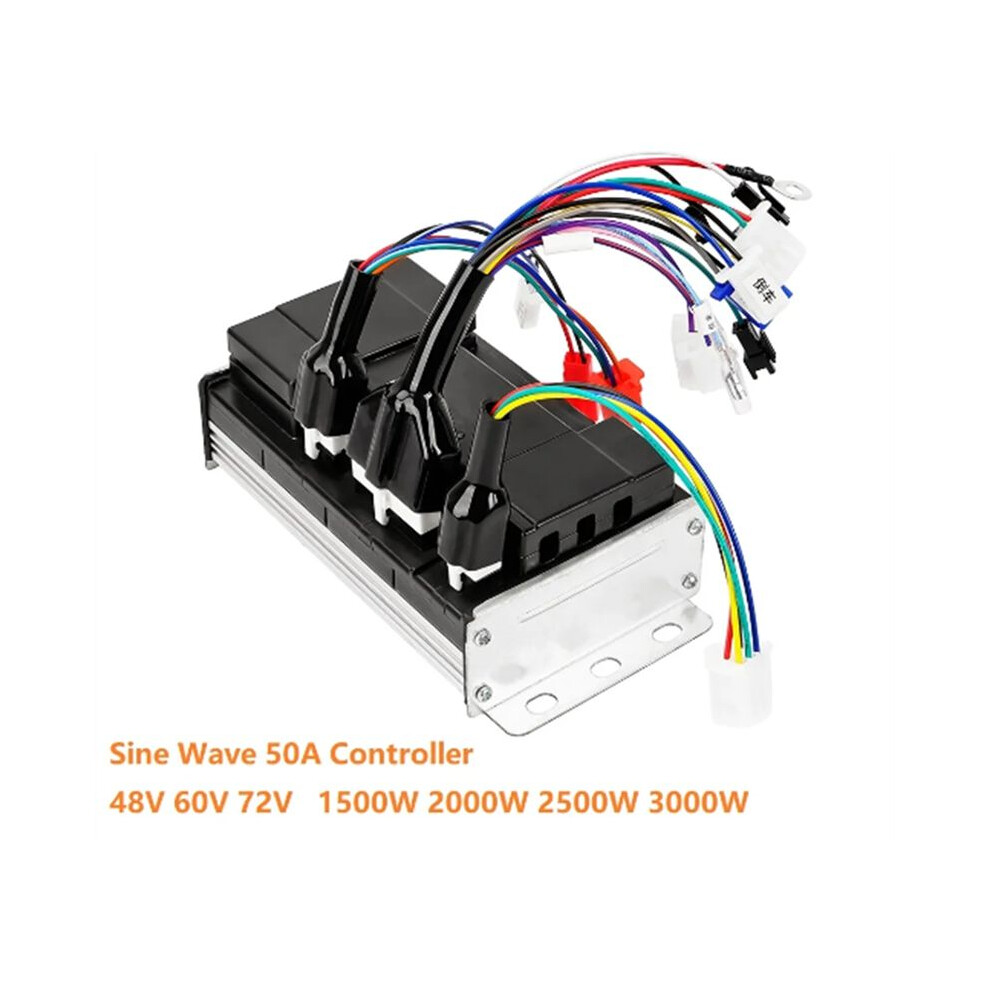

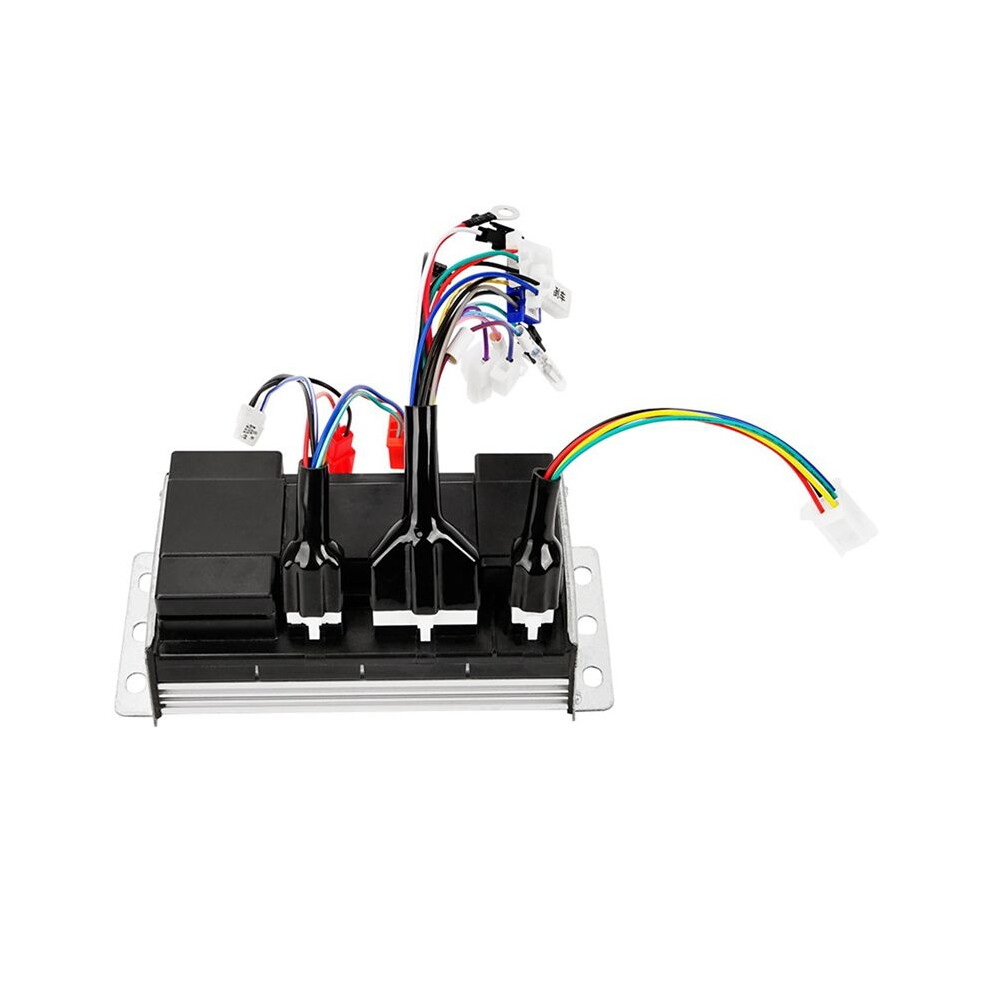

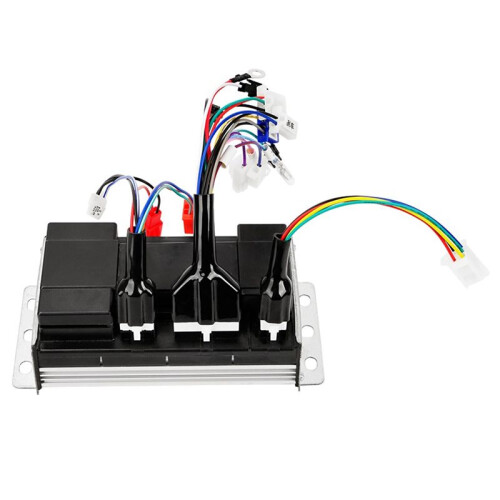

Sine Wave Controller 48V 60V 2500W 72V 3000W Electric Bicycle Brushless Controller 50A Scooter Motor Controller

Descriere Sine Wave Controller 48V 60V 2500W 72V 3000W Electric Bicycle Brushless Controller 50A Scooter Motor Controller

Controller:Sine wave
Voltage:36v-84v universal, after connecting the learning , identify the voltage according to the battery condition.
Power:1000W-3000W
Current Limit:Rated current 45A, maximum output 50A.

Due to different product batches, the appearance may be different, which does not affect use.
Since the process is die-casting and injection molding, the product itself will have small flaws, which will not affect use.

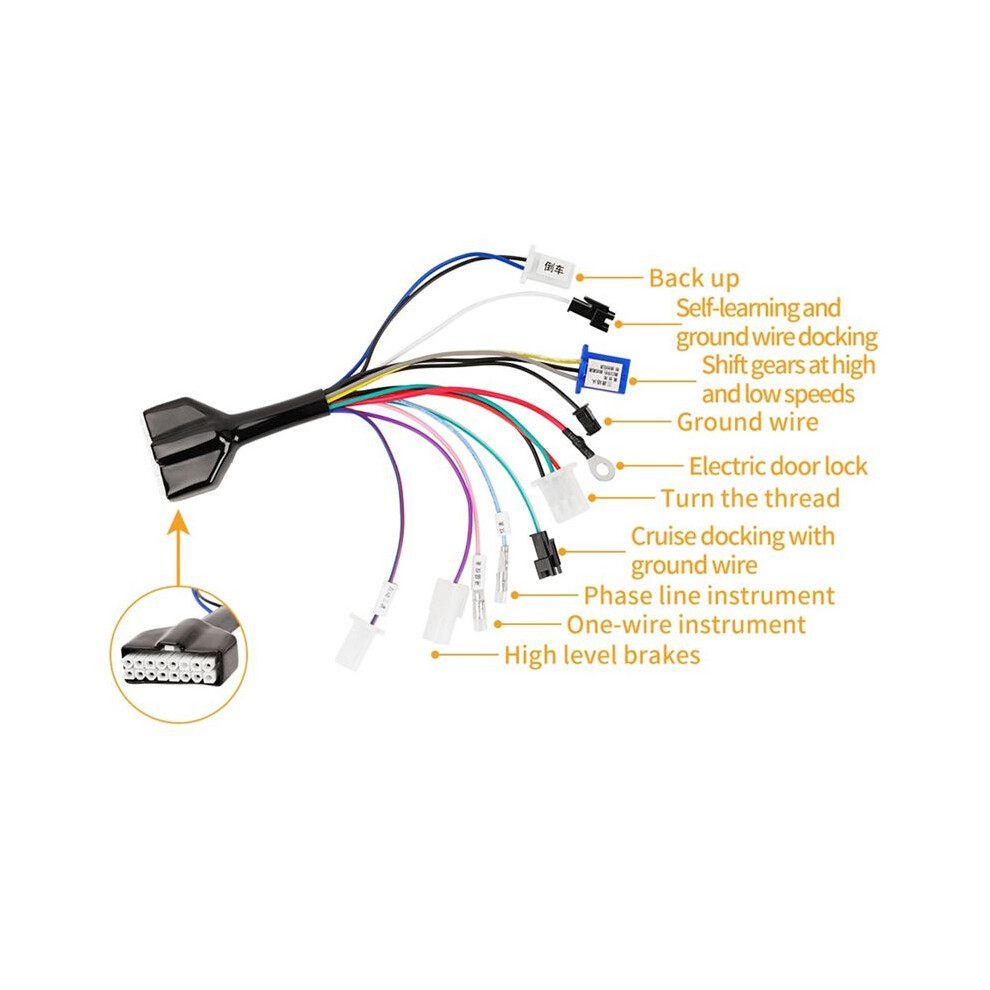

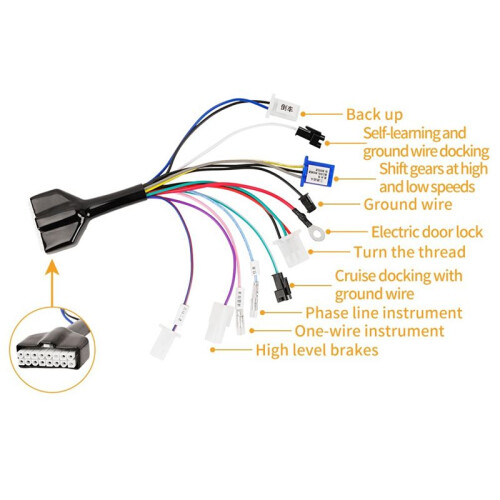

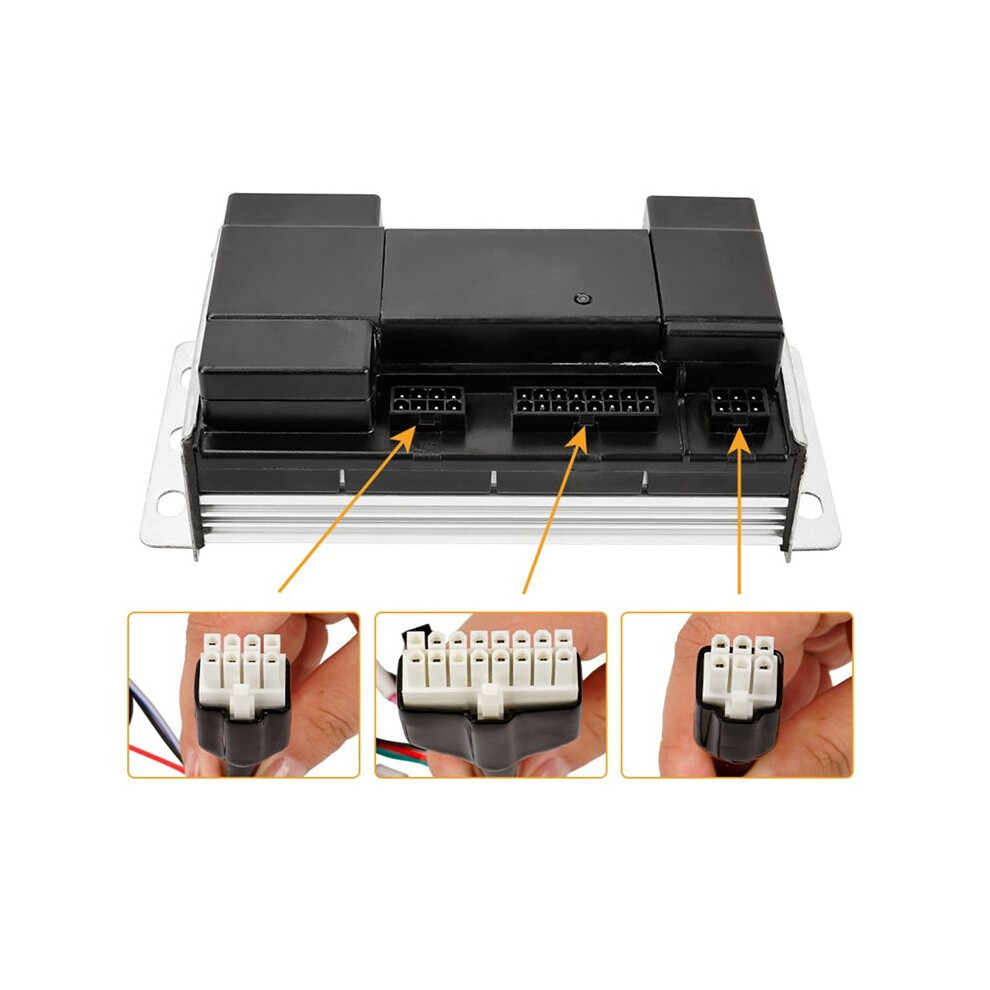

How to connect?

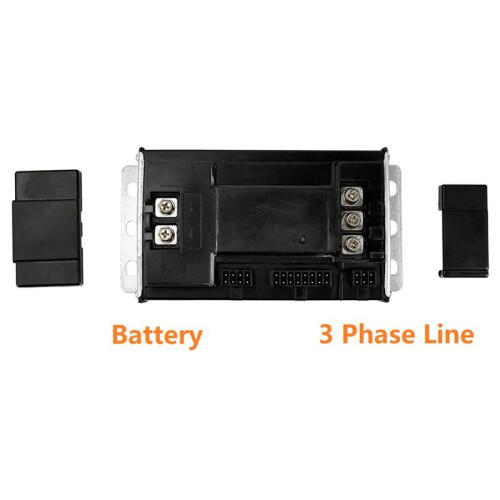

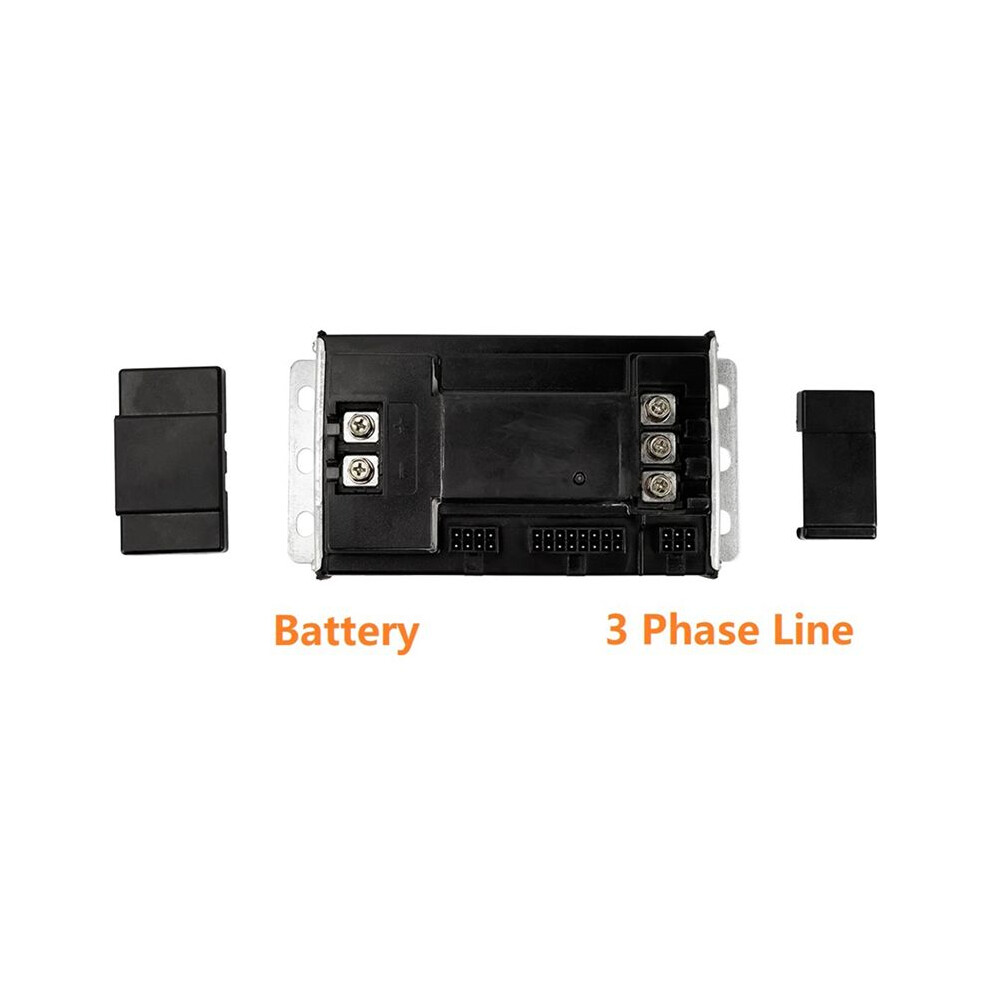

1. connect the battery
2. connect the controller throttle (color to color),connect electric lock(if your throttle not have key lock,controller key lock can be shorted)
3. connect the hall (if motor without hall , don't need connect)
4. docking the two intelligent recognition lines, the wheel will forward or reverse.(if wheel forward ,Separate the intelligent recognition . if wheel reverse, Separate the intelligent recognition . Docking the intelligent recognition again, if wheel forward ,Separate the self-learning .)
5. other functions can be connected as needed.
Due to different product batches, the appearance may be different, which does not affect use.
Colour:Black
Material:Plastic+Metal

Package Contents:
1 * Sine Wave Controller

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
