SLogic Combo 8 Slogic Analyzer DAPLink CKLink Debugger Tool CKLink Debugger DAP-Link Debugger UART Module Black

New

136,19 RON

Would you like us to let you know when it's back?

Adaugă în coș

Descriere & Detalii

Rezumat

SLogic Combo 8 is a development tool that combines the functions of a logic analyzer, CKLink Debugger, DAP-Link Debugger, and USB2UART. You can switch functions at will by pressing the button during use.
When used as a logic analyzer, it supports a maximum sampling rate of 80MHZ, and can cooperate with the host computer to analyze most protocols;
When used as a UART module, it supports 4 serial ports at the same time, and supports a maximum baud rate of 20M, which can adapt to most scenarios where serial ports are used;
Use as CKLink or DAPLink It can be used to debug RISC-V series chips and ARM series chips, and additionally supports 1 serial port for observing logs.
CKLink Debugger

Descriere SLogic Combo 8 Slogic Analyzer DAPLink CKLink Debugger Tool CKLink Debugger DAP-Link Debugger UART Module Black

SLogic Combo 8 is a development tool that combines the functions of a logic analyzer, CKLink Debugger, DAP-Link Debugger, and USB2UART. You can functions at will by pressing the button during use.
When used as a logic analyzer, it supports a maximum sampling rate of 80MHZ, and can cooperate with the host computer to analyze most protocols;
When used as a UART module, it supports 4 serial at the same , and supports a maximum baud rate of 20M, which can adapt to most scenarios where serial are used;
Use as CKLink or DAPLink It can be used to debug RISC-V series chips and ARM series chips, and additionally supports 1 serial port for observing logs.

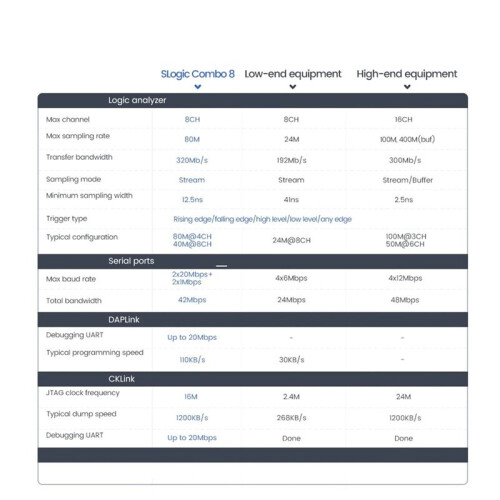

SLogic function parameters
Logic Analyzer: SLogic Combo 8
Maximum number of channels: 8CH
Maximum sampling rate: 80M
Transmission bandwidth: 320Mb/s
Sampling mode: Stream
Typical configuration: 80M@4CH 40M@8CH
Signal input range: 0~3.6V
High and low level threshold: VIH Greater than 2V VIL Less than 0.8V
Note: The maximum transmission bandwidth of SLogic Combo 8 under Windows environment is 160Mb/s, and the typical configuration is 80M@2CH 40M@4CH
CKLink function parameters
JTAG clock rate: 16M
Typical dump speed: 1200KB/s
Debug serial port: to 20Mbps
DAPLink function parameters
Debug serial port: to 20Mbps
Typical burning speed: 110KB/s
UART function parameters
High speed four serial
Maximum baud rate: 2x20Mbps+2x1Mbps
Total bandwidth: 42Mbps
Material: plastic
colour: black

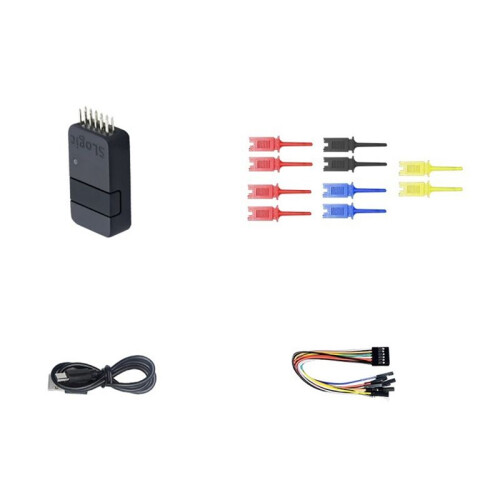

Package Contents:
1 x SLogic Combo 8 Slogic Analyzer
1 x USB Type-C data cable
1 x Jump wire
10 x chip clamp
