StamPLC IoT ESP32-S3 Programmable Logic Controller Cloud Data Monitoring IOT Development Board
Brand ISTOVO
Nou
În stoc
De ce îți va plăcea să cumperi de la OnBuy:
- Câștigi Cashback la fiecare achiziție – folosește-l la următoarea comandă
- Livrare gratuită – la milioane de produse de pe site
- Clienții ne iubesc – 126,000 de recenzii cu evaluare “Excelent”
590,30 RON
740,37 RON
Reducere de 20%!
Livrare GRATUITĂ
1%
Câștigați 5,90 RON instant
Află mai multe
Prețurile articolelor vândute de OnBuy includ TVA.
Opțiuni de plată în rate fără dobândă disponibile
Vezi descrierea completă și detaliile produsului
Livrare: Standard (Gratuit) | mie 17 - lun 22 iun.
Returnări: 30 zile
Protecție la plată pentru 180 de zile
Cele mai populare în Amplificatoare auto
Descriere & Detalii
Rezumat
- StampS3A Control Module (ESP32-S3FN8). EZData Cloud Monitoring

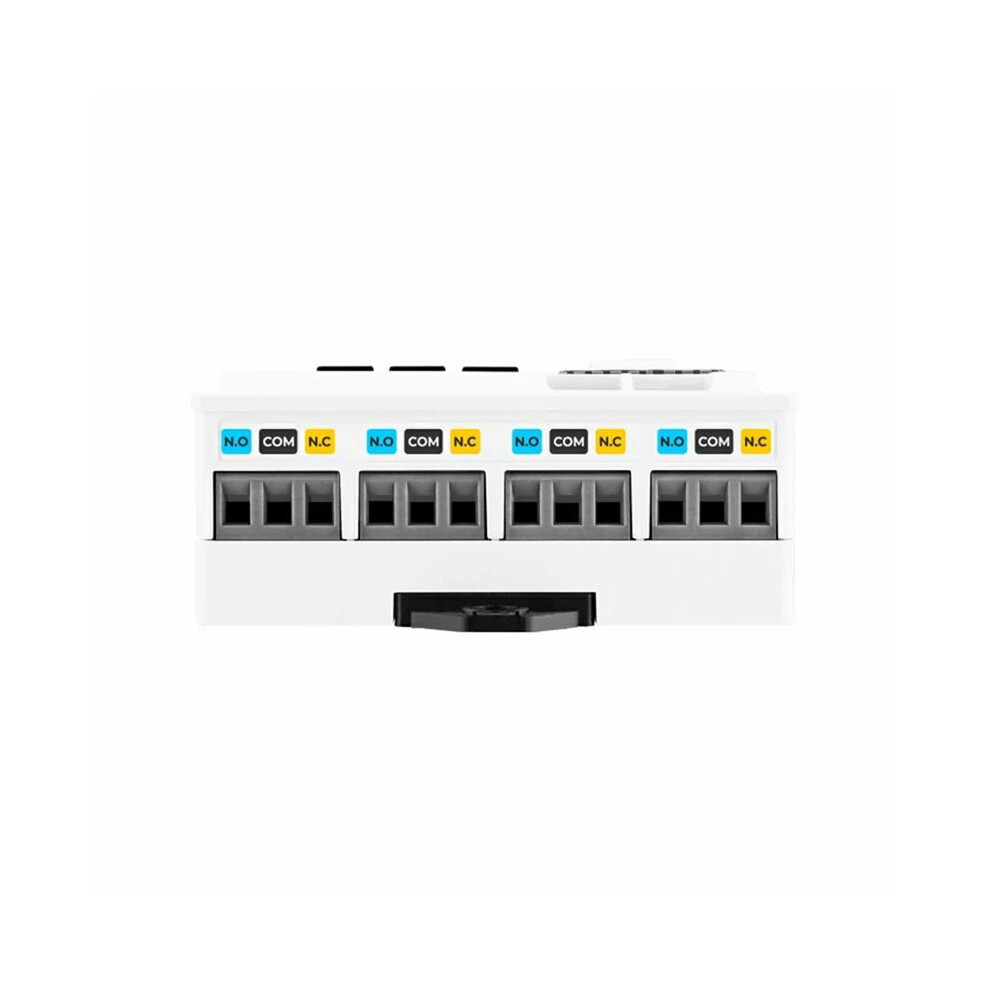

- 8 Opto-isolated Digital Inputs. 4 Relay Outputs (AC/DC)
- WR-CAN & PWR-485 Interfaces
- StamPLC is an IoT programmable logic controller designed for industrial automation and remote monitoring. The product is based on the StampS3A control module, which not only delivers powerful processing capabilities but also provides efficient wireless connectivity.
- In terms of control, StamPLC offers 8 opto-isolated digital inputs and 4 relay outputs (supporting both AC and DC loads), along with a GPIO.EXT port and 2 Grove interfaces, making the integration of various sensors and actuators both simple and reliable. Meanwhile, through the onboard PWR-CAN and PWR-485 interfaces, the device can be seamlessly integrated into industrial fieldbus networks, enabling remote data transmission and centralized control.
Descriere StamPLC IoT ESP32-S3 Programmable Logic Controller Cloud Data Monitoring IOT Development Board
StampS3A Control Module (ESP32-S3FN8). EZData Cloud Monitoring
8 Opto-isolated Digital Inputs. 4 Relay Outputs (AC/)
WR-CAN & PWR-485 Interfaces
StamPLC is an IoT programmable logic controller designed for industrial automation and remote monitoring. The product is based the StampS3A control module, which not only delivers powerful processing capabilities but also provides efficient wireless connectivity.
In terms of control, StamPLC offers 8 opto-isolated digital inputs and 4 relay outputs (supporting both AC and loads), along with a GPIO.EXT port and 2 Grove interfaces, making the integration of various sensors and actuators both simple and reliable. Meanwhile, through the onboard PWR-CAN and PWR-485 interfaces, the device can be seamlessly integrated into industrial fieldbus networks, enabling remote data transmission and centralized control.
For human-machine interaction, the product features a 1.14-inch color display, a RESET/BOOT button, 3 user buttons, and a buzzer, which facilitate real- parameter configuration and status monitoring, and can alert users in the event of anomalies. To withstand harsh industrial environments, StamPLC supports a wide voltage input ( 6-36V) and is designed for DIN rail mounting to ensure secure installation; the built-in Micro- card slot further facilitates data storage and firmware updates.
Note:
Power supply precautions
Precautions:The power supply output pins for StamPLC's PWR-CAN and PWR-485 are directly connected to the main input power. Therefore, during operation, please ensure that the input voltage matches the power requirements of any connected external devices.
The product appearance and printed words may vary depending the batch, but this does not affect use.
Colour:As Shown
Material:PCB
Package Contents:
1 * IOT Development
Detalii
| OPC | PPZB8GD |
|---|---|
| Brand | ISTOVO |
| Coduri | 6033460512275 (EAN) |
Date despre produs
| Height | 4cm |
|---|---|
| Width | 9cm |
| Length | 10cm |
| Weight | 0.1775kg |
| Colour | As Shown |
| Material | PCB |
