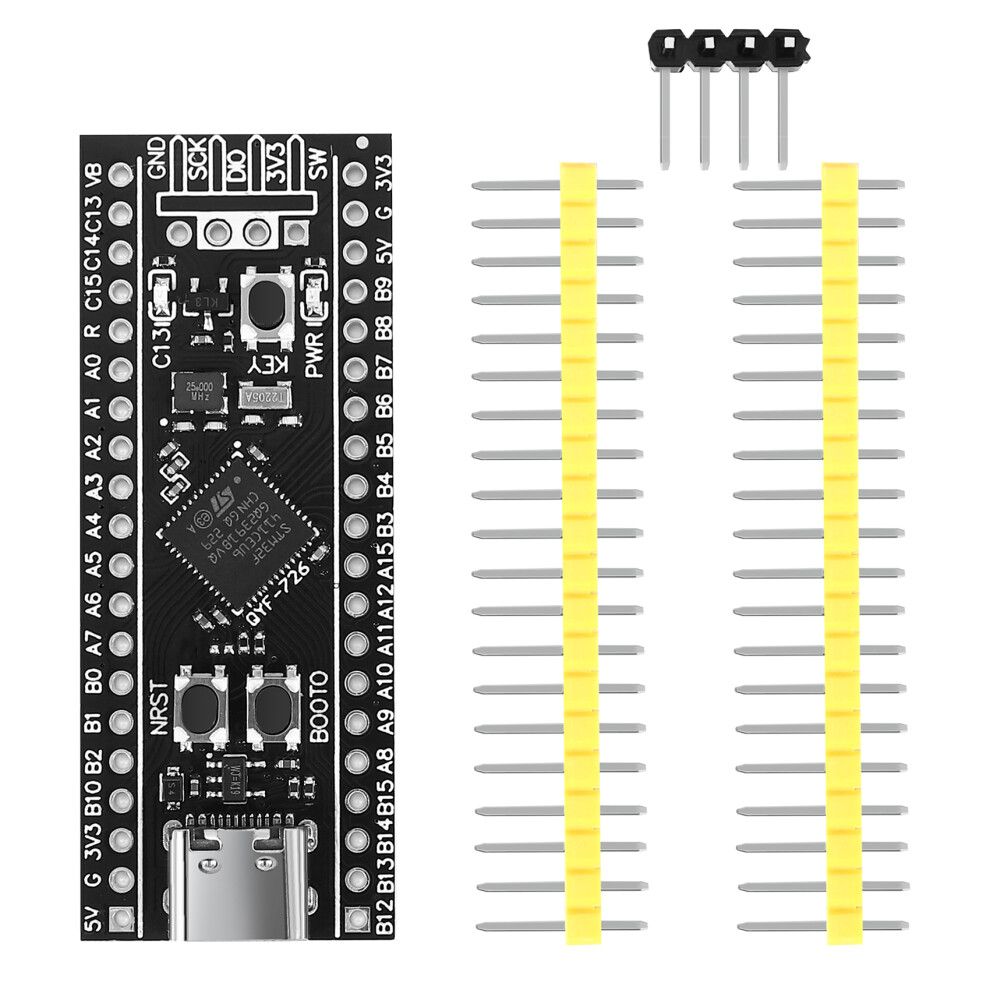

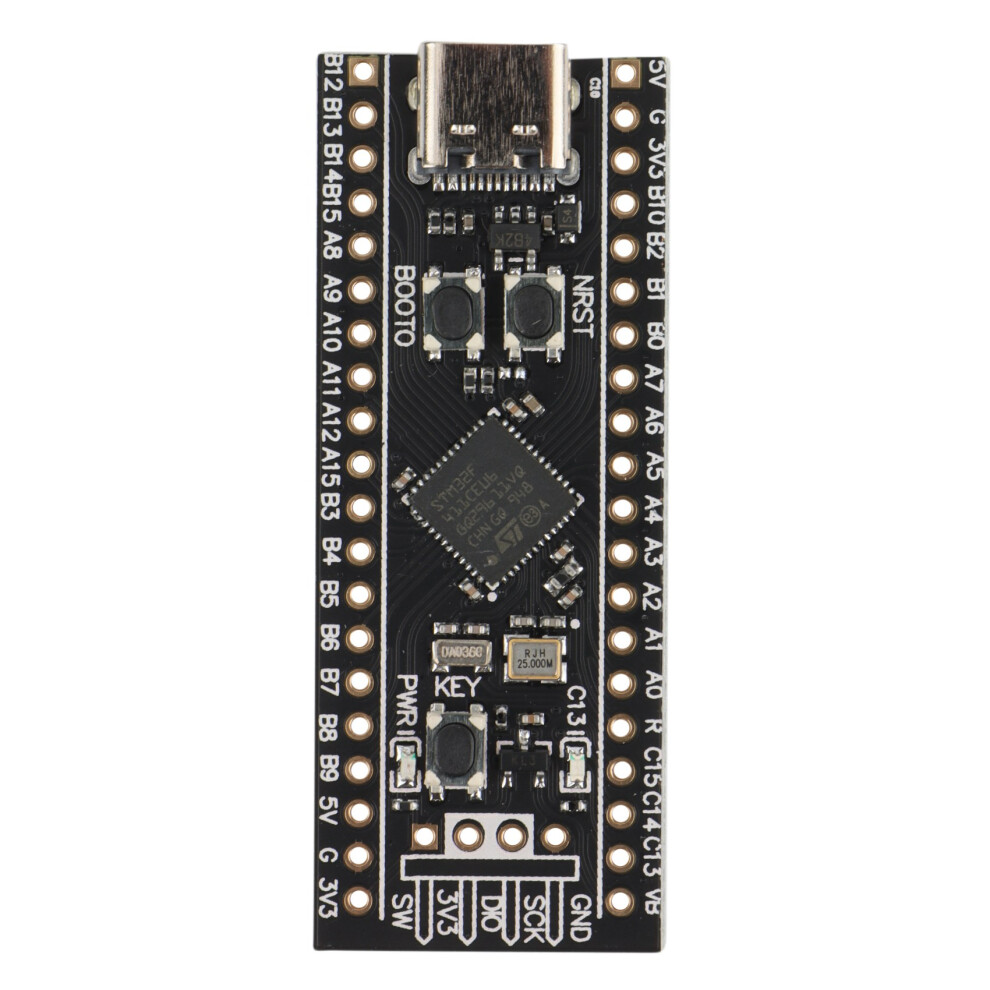

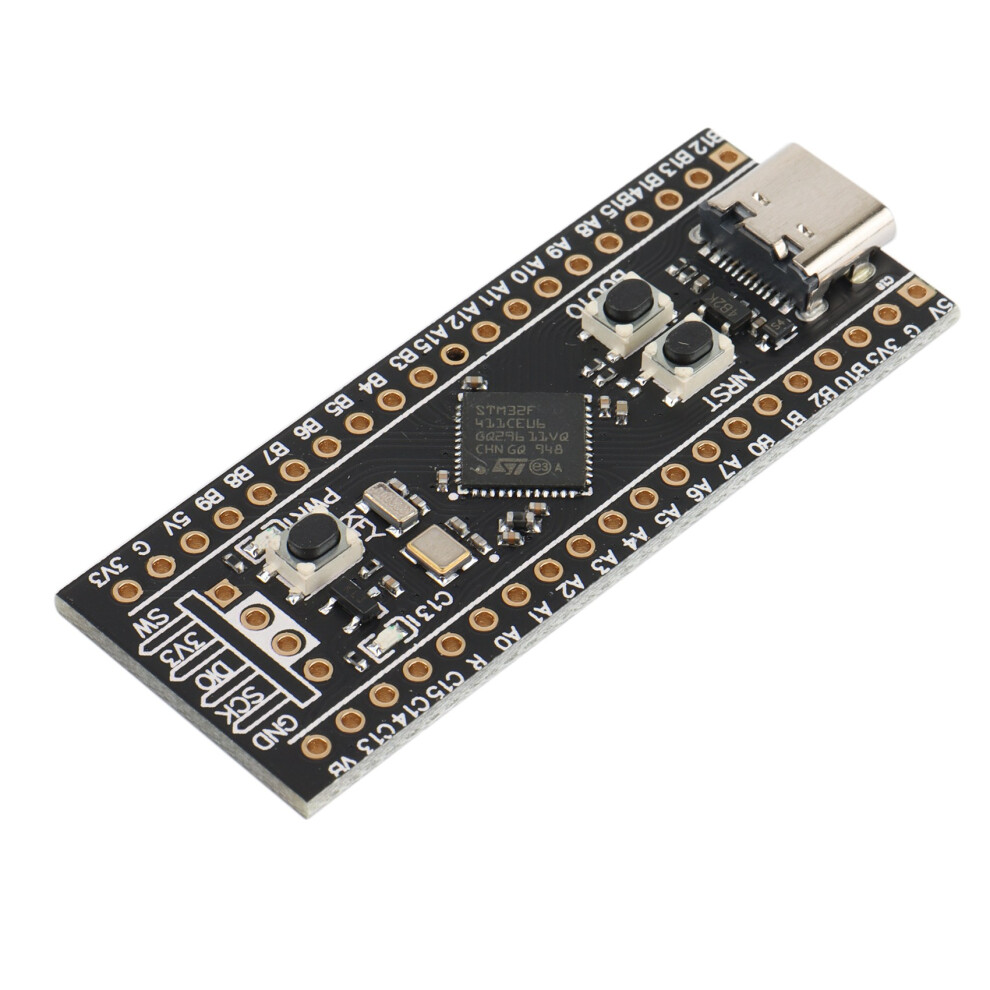

STM32F411 Development Board, STM32F411CEU6 STM32F4 Learning Board, Support for MicroPython/ Programming
Brand Torribaly
Nou
În stoc
De ce îți va plăcea să cumperi de la OnBuy:
- Câștigi Cashback la fiecare achiziție – folosește-l la următoarea comandă
- Livrare gratuită – la milioane de produse de pe site
- Clienții ne iubesc – 126,000 de recenzii cu evaluare “Excelent”
105,30 RON
134,27 RON
Reducere de 22%!
Livrare GRATUITĂ
1%
Câștigați 1,05 RON instant
Află mai multe
Prețurile articolelor vândute de OnBuy includ TVA.
Opțiuni de plată în rate fără dobândă disponibile
Vezi descrierea completă și detaliile produsului
Livrare: Standard (Gratuit) | mie 17 - lun 22 iun.
Returnări: 30 zile
Protecție la plată pentru 180 de zile
Cele mai populare în Circuit Board Opto-Electronică
Descriere & Detalii
Rezumat
- 25MHZ high speed crystal oscillator & 32.768Khz 6PF low speed crystal oscillator
- V3.0 version began to use lead-free process, the pin header is gold-plated pin header, more environmentally friendly
- Flash pads have been reserved and USBDisk && FATFFS routines are provided
- WeAct HID FW Bootloader has been burned out of the factory. It is a special factory test version, and hex is not provided.
- Support MicroPython programming, provide available MicroPython firmware, see the link for configuration files, but do not provide technical answers!
Descriere STM32F411 Development Board, STM32F411CEU6 STM32F4 Learning Board, Support for MicroPython/ Programming
25MHZ high speed crystal oscillator & 32.768Khz 6PF low speed crystal oscillator
V3.0 version began to use lead-free process, the pin header is gold-plated pin header, more environmentally friendly
Flash pads have been reserved and USBDisk && FATFFS routines are provided
WeAct HID FW Bootloader has been burned out of the factory. It is a special factory test version, and hex is not provided.
Support MicroPython programming, provide available MicroPython firmware, see the link for configuration files, but do not provide technical answers!
Boards with version V1.3 and above have 3 buttons, reset button, BOOT0 button, and user buttons.
How to enter ISP mode
Method 1: Press and hold the BOOT0 button and the reset button under the power- state, then release the reset button, and release the BOOT0 button after 0.5 seconds
Method 2: Hold down the BOOT0 key when power is off, and release the BOOT0 key 0.5S after power
DFU mode: just use the data cable to connect to the computer, if there is a problem of unrecognized, you can properly heat the chip (25 Celsius), and then re-enter the ISP mode
Serial port mode: use USB to serial port to connect PA9 and PA10 of the core board
WeAct HID FW Bootloader
No need for USB to serial port, no debugger, no computer driver, just a TYPE-C data cable to complete the firmware download
Press and hold theKEY button, click thereset button, LED C13flashes, release theKEY buttonto enter
model:STM32F411CEU6
Colour:black
Material:plastic
Package Contents:
1 * Development Board
Detalii
| OPC | PVDS6DK |
|---|---|
| Brand | Torribaly |
| Coduri | 4711331911892 (EAN) |
Date despre produs
| Height | 1cm |
|---|---|
| Width | 6cm |
| Length | 10cm |
| Weight | 0.011kg |
| Colour | Black |
| Size | STM32F411 |
| Material | plastic |
