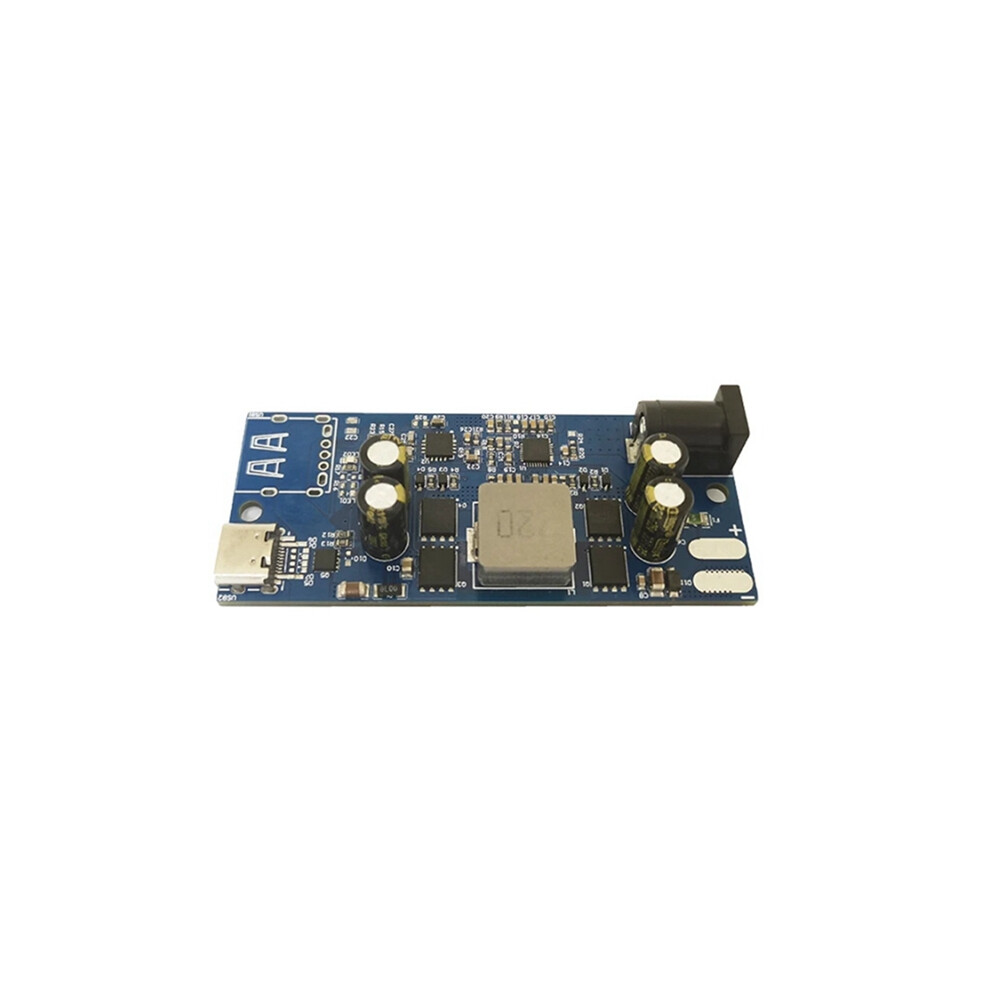

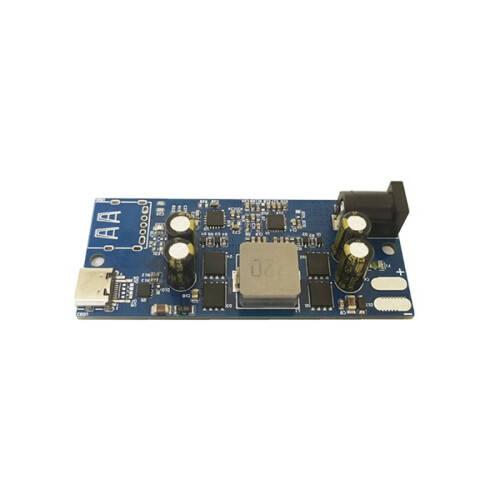

SW2303 Full Protocol Fast Charging Module PL5501 Type-C Fast Charging 100W Buck-Boost PD QC Fast Charging Module

Descriere SW2303 Full Protocol Fast Charging Module PL5501 Type-C Fast Charging 100W Buck-Boost PD QC Fast Charging Module

1: Support mainstream fast charging protocols such as PD.QC.FCP, high and low voltage SCP.AFC.SFCP and PE
2: input or battery input can be used
3: Support most mobile phones
4: The module belongs to the buck-boost fast charge
5: The maximum support power is 100W

Output port:Type-c
Recommended power supply:24V 150W
SW2303 is a highly integrated Type-C port/Type-A port fast charging protocol chip that supports mainstream fast charging protocols such as PD.QC, FCP, high and low voltage SCP.AFC, SFCP and PE. Sw2303+PL5501 can fast charge and down,
Type-C port output; the module can be used for daily fast charging of mobile phones with 3-24 volt power adapters, and can also be powered by batteries, solar panels, wind turbines, etc.
A good helper in outdoor/vehicle/long-term power outages and other occasions, this is an ordinary hand Machine chargers and power banks can't do it.
Tip: If the 100W module is not plugged into the mobile phone, it must be 100W charging power. The specific power is determined by the fast charging protocol, or it may be determined by the power supply. Some manufacturers such as for hw, for xm equipment will detect whether it is the-original charging equipment, if it is not-original chip or charging , it cannot reach the highest charging power. The data fast charging cable used by the device is also important.
Colour:
Material:PC+Metal
Size:Board size 73x31mm

Package Contents:
1 * fast charging module
