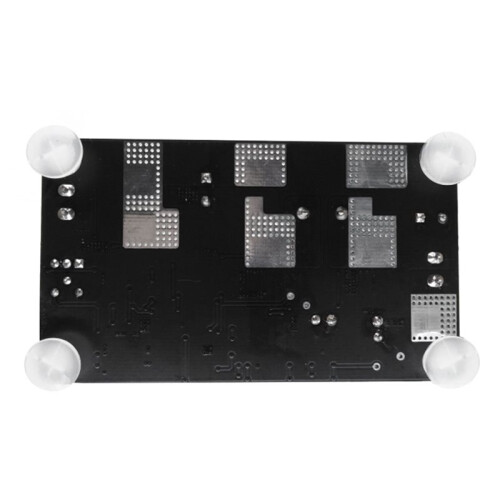

Switching Module, Quad Constant Voltage/Constant Current Module, High Power Automatic Buck-Boost Module
În stoc
De ce îți va plăcea să cumperi de la OnBuy:
- Câștigi Cashback la fiecare achiziție – folosește-l la următoarea comandă
- Livrare gratuită – la milioane de produse de pe site
- Clienții ne iubesc – 126,000 de recenzii cu evaluare “Excelent”
Prețurile articolelor vândute de OnBuy includ TVA.
Opțiuni de plată în rate fără dobândă disponibile
Vezi descrierea completă și detaliile produsului
Livrare: Standard (30,00 RON) | joi 11 - sâm 13 iun.
Vândut de: YPDblue
Returnări: 30 zile
Protecție la plată pentru 180 de zile
Cele mai populare în Invertoare de putere
Rezumat
- 1. Truly High Efficiency and Low Heat Generation: High-performance architecture, synchronous rectification for both boost and buck converters, typical efficiency 95%!
- 2. Robust Components: 7 MOSFETs! (4 for power conversion, 1 for input reverse connection protection, 2 for charging reverse charging protection) 1. **High-frequency, low-resistance solid-state capacitors for input and output filtering! High cost! Low ripple!**
- 3. **Professional battery charging:** The constant voltage and constant current output voltage and current are adjustable! It also features a high-efficiency, low-heat, high-cost MOS-type reverse-current protection circuit! Safe and professional!
- 4. **Comprehensive protection functions:** Input reverse connection protection (using MOS components/high efficiency), Input overcurrent protection, Input undervoltage protection, Output reverse current protection (using MOS components/high efficiency/high cost), Output short-circuit protection.
- 5. **Rich indicator light functions:** Red and blue lights illuminate during constant current output; blue light only illuminates during constant voltage output; blue and green lights illuminate when the battery is nearly fully charged; green light only illuminates when fully charged!
Descriere Switching Module, Quad Constant Voltage/Constant Current Module, High Power Automatic Buck-Boost Module
1. Truly High Efficiency and Low Heat Generation: High-performance architecture, synchronous rectification for both boost and buck converters, typical efficiency 95%!
2. Robust Components: 7 MOSFETs! (4 for power conversion, 1 for input reverse connection protection, 2 for charging reverse charging protection) 1. **High-frequency, low-resistance solid-state capacitors for input and output filtering! High cost! Low ripple!**
3. **Professional battery charging:** The constant voltage and constant current output voltage and current are adjustable! It also features a high-efficiency, low-heat, high-cost MOS-type reverse-current protection circuit! Safe and professional!
4. **Comprehensive protection functions:** Input reverse connection protection (using MOS components/high efficiency), Input overcurrent protection, Input undervoltage protection, Output reverse current protection (using MOS components/high efficiency/high cost), Output short-circuit protection.
5. **Rich indicator light functions:** Red and lights illuminate during constant current output; light only illuminates during constant voltage output; and green lights illuminate when the battery is nearly fully charged; green light only illuminates when fully charged!
Features:
Input Voltage: 5-35VDC
Output Voltage: 3-29V
Output Current: 0-8A
Input Current: 10A (MAX)
Output Power: Rated 120W, Maximum 150W with Enhanced Heat Dissipation
Typical Efficiency: 95% (between 93%-96%)
Operating Frequency: 200kHz
Board Dimensions: 91*53*23mm
Color: As Shown
Material: ABS
Package Contents:
1*Automatic Buck-Boost Module
Detalii
| OPC | PV9NVP2 |
|---|---|
| Coduri | 4714078977251 (EAN) |
Date despre produs
| Height | 3cm |
|---|---|
| Width | 7cm |
| Length | 11cm |
| Weight | 0.1kg |
| Colour | As Shown |
| Material | ABS |
